Delta Children Jeep SPORT UTILITY Manual de usuario

ADULT ASSEMBLY REQUIRED

INSTRUCTION MANUAL

STYLES AND COLORS MAY VARY

12498

SPORT UTILITY

ALL-TERRAIN

STROLLER

Fits Graco® SnugRide® Click Connect™ 30, 35, and 40 Infant Car Seat (not included)

Fits Evenﬂo® Embrace™ Select Infant Car Seat (not included)

Fits Evenﬂo® Nurture™ Infant Car Seat (not included)

Fits Chicco®Keyﬁt 30™ Infant Car Seat (not included)

Fits Britax®B-Safe 35™ Infant Car Seat (not included)

WARNING:

Adult assembly required because of

small parts. Keep assembly parts out

of reach of children

under 3 years.

CHOKING HAZARD

www.DeltaChildren.com

DCP-02052019-V3

Customer Care Tel. (646) 435-8726

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

This stroller is not from, sponsored or endorsed by Britax®.

This stroller is not from, sponsored or endorsed by Evenﬂo Company, Inc.

This stroller is not from, sponsored or endorsed by Graco Children’s Products Inc.

This stroller is not from, sponsored or endorsed by Artsana S.p.A.

CARE AND MAINTENANCE

WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these

instructions for future reference.

WARNING: Failure to follow these instructions could result in serious injury or death.

WARNING: Avoid serious injury from falling or sliding out. Always insure that the child is properly

positioned by using the safety harness according to these instructions.

WARNING: Never leave children unattended.

WARNING: CHOKING HAZARD Adult assembly required because of small parts.

Keep (assembly parts) out of reach of children under 3 years.

CAUTION: Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of

the stroller and cause hazardous unstable conditions.

• The maximum weight that can be carried in the lower basket, and child tray, each is 3 lbs (1.36 kg).

Excessive weight may cause a hazardous unstable condition to exist.

• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the

open locked position.

• Use of the stroller with children weighing more than 50 pounds or over 42 inches tall, will cause

excessive wear and stress on the stroller and may cause hazardous unstable condition to exist.

NEVER use the stroller on stairways or escalators.

• NEVER use the stroller with roller skates or in-line skates.

Never allow your stroller to be used as a toy.

To prevent injury:

Make sure all body parts are clear of the stroller when folding and unfolding.

• To clean the plastic parts on stroller use a mild cleaning solution with warm water on a sponge or

damp cloth. Hand wash fabric with damp cloth and air dry. Do not use bleach.

• To keep your stroller wheels from squeaking, use silicone or graphite based lubricant.

• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace

or repair parts as needed.

• Discontinue use of stroller if it should become damaged or malfunctions.

• If you experience any difﬁculty with assembly, missing parts or use, please DO NOT return this item to

the store. Retail stores are unable to properly assist you. Contact our Customer Service Department

directly for assistance 1-646-435-8726.

1-646-435-8726

Parts Assembly

IMPORTANT! Please remove all parts from the package and identify them

before assembly.

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Front Wheel

(Lock & Swivel) x 2

Rear Wheel x 2

Seat

Stroller Frame

Part # 50242

Part # 50240

Part # 50243

IMPORTANT! Before assembly and each use, inspect this product for

damaged hardware, loose joints, missing parts, or sharp edges. NEVER use

if any parts are missing or broken. Contact manufacturer for replacement

parts and instructions if needed. Never substitute parts. IMPORTANT! Adult

assembly is required.

Remove stroller from box. The front wheels, rear wheels, seat, canopy, and

child bar need to be installed prior to use.

Child Bar

Canopy

5 in 1 Car Seat

Adapter

Part # 50241

Part # 50247

Fig. 1

Fig. 1B

WARNING: Care must be taken when folding and unfolding

the stroller to prevent ﬁnger entrapment.

• First, release the locking latch clip which is located on the right side of

the stroller. (Fig. 1)

• Second, lift up on the stroller handle with both hands until the stroller

frame is in a fully opened and locked position. (Fig. 1A) The stroller is in

a fully locked position when both side handle latches are in a fully locked

position and clicks. (Fig. 1B) Prior to placing your child into the stroller,

test to make sure both latches are fully engaged and fully locked.

Opening Stroller

Fig. 1A

WARNING: Care must be taken when folding and unfolding the

stroller to prevent ﬁnger entrapment.

Front

Back

Fully Locked

Position Once

Both Sides Click

CLICK

Carry All Parent

Organizer

Assembly

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Please follow these instructions for the proper installation of your front wheel assembly.

Attaching Front Wheels

•To attach front wheels: Push each front wheel posts into the front

wheel housing until they “CLICK” into a fully locked position. (Fig. 2)

Note: Pull downward on each wheel to ensure that each wheel is securely

locked.

Removing Front Wheels

Note: Make sure the back brakes are fully engaged.

•To release front wheels: Press the grey button located on the back of

the wheel housing and pull downward to release. (Fig. 2A)

Front Swivel Wheel Lock

• To lock the front swivel wheel lock: Rotate the lever located on the

top of the front wheel housing clockwise until it “CLICKS” into a fully

locked position (Fig. 3).

• To unlock the front swivel wheel lock: Rotate the lever located on

the top of the front wheel housing counter clockwise until it “CLICKS” into

a fully locked position (Fig. 3A).

Fig. 2

Fig. 3 Fig. 3A

Fig. 2A

Note: Before attaching front wheels, make sure the stroller is in a fully open

position.

Rotate clockwise

to lock

Rotate counter

clockwise to unlock

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Assembly

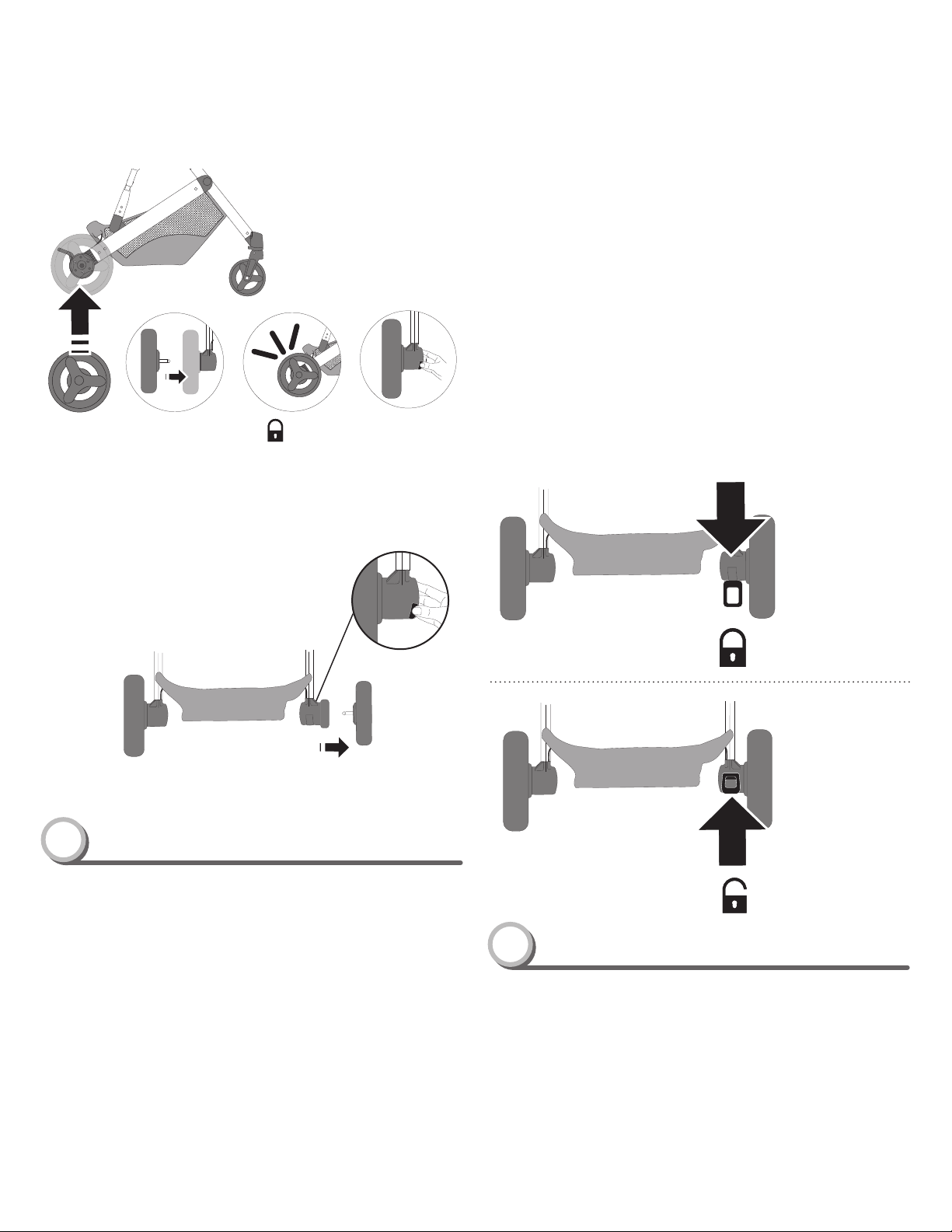

Attaching / Removing Rear Wheels

Attaching Rear Wheels

• To attach rear wheels: Push each rear wheel posts into the rear wheel

housing (Fig. 4) until they “CLICK” into a fully locked position (Fig. 4A).

Note: Pull outward on each wheel to ensure that each wheel is securely

locked.

• Repeat on opposite side.

Removing Rear Wheels

• To remove the rear wheels: Press the grey button located on the

back of the wheel housing (Fig. 4B) and pull wheel outward until wheel is

released (Fig. 4C)

• Repeat on opposite side.

Rear Non-Swivel Wheel Brakes - One Touch Brake System

• To engage brakes: Apply light downward pressure to the linked brake

lever located on the right side of the rear wheel housing. (Fig. 5) Check to

make sure the brakes are in a fully locked position, making sure stroller will

not move when pushed.

• To release brakes: Gently lift up on the linked brake lever. (Fig. 5A)

WARNING: Always lock brakes when the stroller is not being

pushed so that the stroller will not roll away. Never leave stroller

unattended on a hill or incline as the stroller may slide down the hill.

WARNING: NEVER leave child unattended in stroller.

Fig. 4

Fig. 4A

Fig. 4C

Fig. 4B

Fig. 5

Fig. 5A

Push downward on brake

lever to lock stroller

Removing Rear Wheels:

Attaching Rear Wheels:

Fully Locked

Position

CLICK

Push upward on brake

lever to unlock stroller

Please follow these instructions for the proper installation of your rear wheel assembly.

Rear Facing Seat -

Child Facing Parent-

Infant

Front Facing Seat -

Child Facing

Away from Parent

-Toddler

Fig. 6A

Fig. 6

Fig. 6B

Fig. 6C

Attaching / Removing Seat

Attaching Seat

• To attach seat to stroller: Face seat to the preferred direction. Rear

facing seat (Fig. 6) or front facing seat (Fig. 6A). Press seat into right / left

housing until it “CLICKS” into a fully locked position (Fig. 6B).

Note: Pull upward on seat to ensure that the seat is securely locked into

right / left seat housing.

Removing Seat

• To remove or reverse seat from stroller: Press the buttons located

on both sides of the stroller and lift seat upward to fully remove. (Fig. 6C)

CLICK

Assembly

Fully Locked

Position

Right / Left Seat

Housing

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

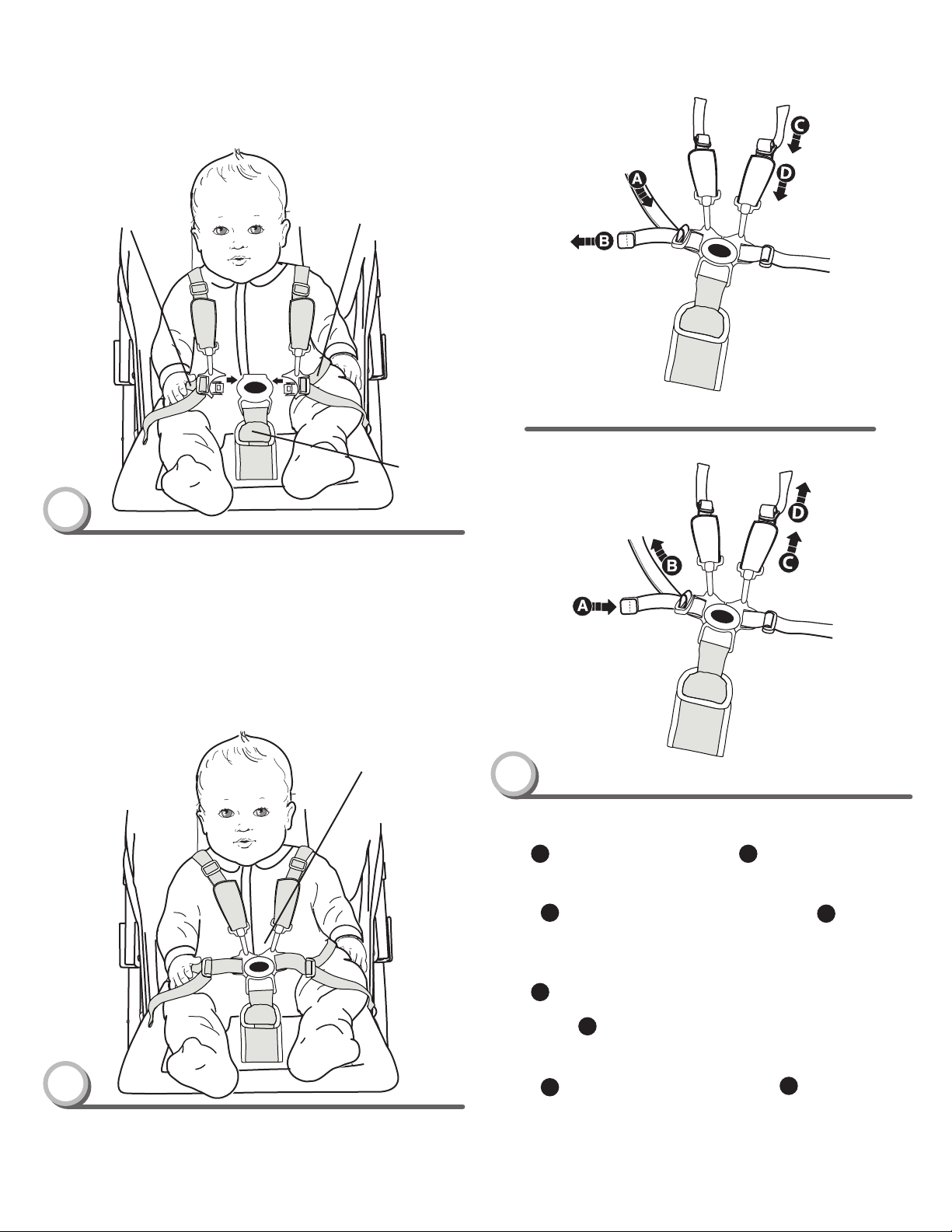

Securing Child

•Place your child in the stroller. Position the crotch belt between your

child’s legs.

•Pull shoulder straps over child’s arm and shoulder and fasten both strap

ends to the restraint system.

•Fasten both waist belts to the buckle on each side of the crotch belt.

Make sure you hear a “click” on both sides.

•Check to be sure the restraint system is securely attached by pulling it

away from your child. The restraint system should remain attached.

To tighten the waist belts and shoulder straps:

•Feed the anchored end of a waist belt up through the buckle to form a

loop A. Pull the free end of the waist belt B.

•Repeat this procedure to tighten the other waist belt.

•Feed the top end of the shoulder strap through the plastic stay to form

a loop . Pull the bottom end down to tighten the strap .

•Repeat this procedure to tighten the other shoulder strap.

To loosen the waist belts and shoulder straps:

•Feed the free end of the waist belt up through the buckle to form a

loop A. Enlarge the loop by pulling on the end of the loop toward the

buckle. Pull the anchored end of the waist belt to shorten the free end of

the waist belt B.

•Repeat this procedure to loosen the other waist belt.

•Feed the bottom end of the shoulder strap through the plastic stay to form

a loop . Pull the top end up to loosen the strap .

•Repeat this procedure to loosen the other shoulder strap.

Please note: After adjusting the restraint system to ﬁt your child, make sure

you pull on it to be sure it is securely fastened.

TIGHTEN

LOOSEN

5 Point Safety

Harness

•Tighten each waist belt and shoulder strap so that the restraint system is

snug against your child.

Please refer to the next section for instructions to tighten the waist belts.

Before Placing your Child in Stroller:

Close Canopy. Press both brake pedals down until they “click” into the locked position.

Make sure the brake pedals are pressed down completely.

Always set both brake pedals when parking the stroller.

Waist Belt

Crotch Belt

Restraint System

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Fig. 7E

Fig. 7F

Fig. 7G

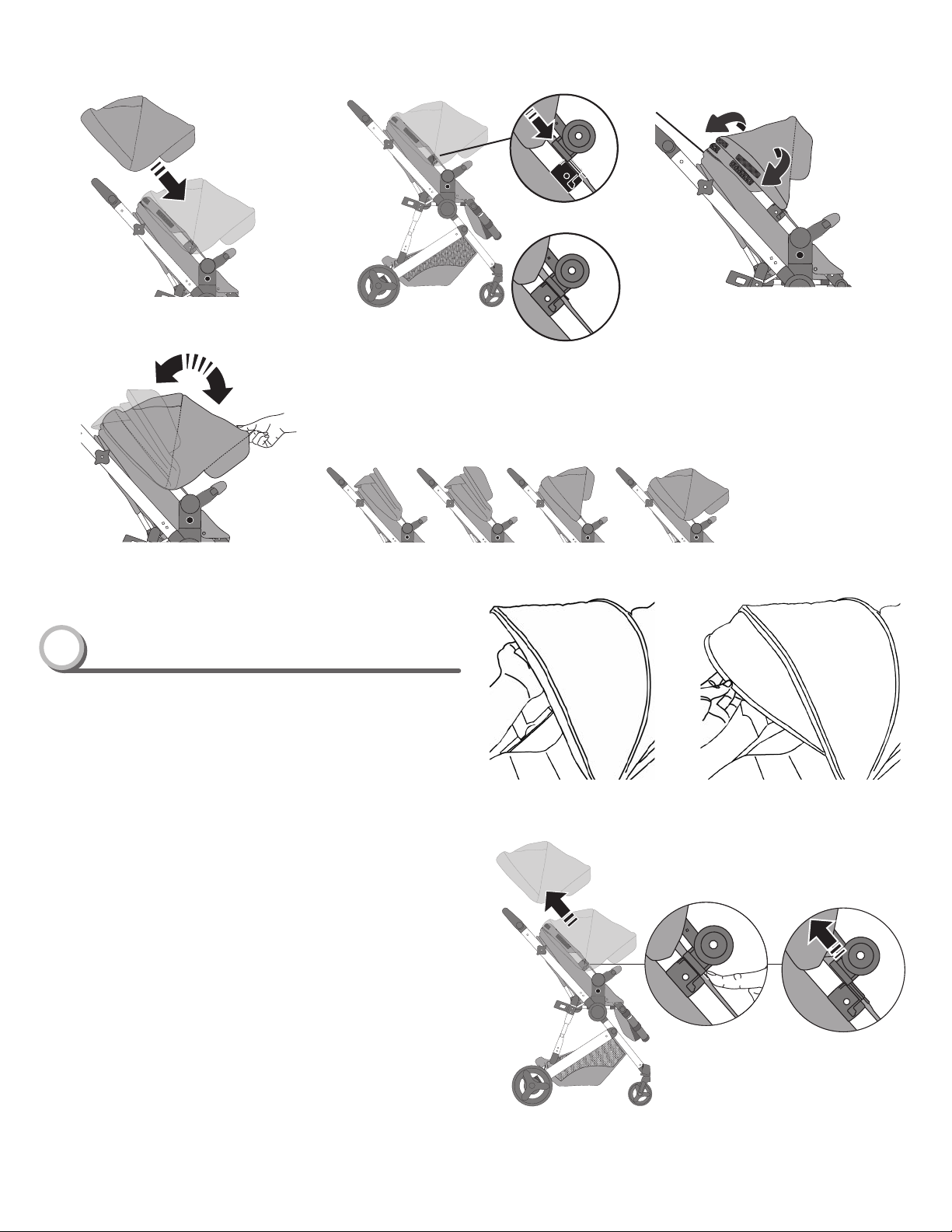

Attaching Canopy and Canopy and Sun Visor Adjustment

Attaching Canopy

• To attach the canopy: Place canopy onto the top front of the stroller.

(Fig. 7) Then, slide both sides of the canopy locks into both canopy

housings (Fig. 7A) until they “CLICK” into a fully locked position (Fig.

7B). Match the velcro edges of the canopy with the seat velcro (Fig. 7C)

until the canopy is fully attached to the seat. Pull the front edge of the

canopy forward until fully opened. (Fig. 7D)

• To open the sun visor: Grab front edge of the sun visor under canopy

and pull down and rotate forward until fully extended. (Fig. 7E)

• To close canopy: Push backward on the front edge until canopy is all

the way collapsed. (Fig. 7F).

Removing Canopy

• To remove the canopy: First, unvelcro the canopy off the seat. Then, press

the canopy release buttons downward and slide both sides of the canopy

upward off the stroller frame sides to fully remove. (Fig. 7G)

Setup and Use

Canopy Adjustment Options:

Velcro

Fig. 7

Fig. 7A

Fig. 7B

Fig. 7C

Fig. 7D

Fully Locked

Position

Seat Back Recline Positioning

• To recline seat: Lift recline latch located on the back of the seat and

rotate seat downward to recline seat. (Fig. 8)

• To return to an upright position: Pull the recline latch and push seat

upward into its desired position until it “CLICKS” into a fully locked

position. (Fig. 8A)

Foot Rest Adjustment

• To adjust foot rest: Press both recline buttons located on left/right side

of foot rest. While pressing both recline buttons, rotate foot rest upward or

downward to its desired position until it “CLICKS” into a fully locked

position. (Fig. 9)

Adjustable Handle

• To adjust handle: Press both left / right buttons inward located on the

outside of both sides of the stroller frame. (Fig. 10) While pressing both

buttons rotate the handle upward or downward to its desired position.

(Fig. 10A)

• The handle will “CLICK” on both sides once it is in a fully locked position.

910

Fig. 8

Fig. 9

Fig. 8A

RECLINE

Press Recline

Button On Both Sides Rotate Handle Upward

Or Downward Press Both Buttons

Inward

Rotate

Up or Down

UPRIGHT

Fig. 10A

Fig. 10

Setup and Use

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Setup and Use

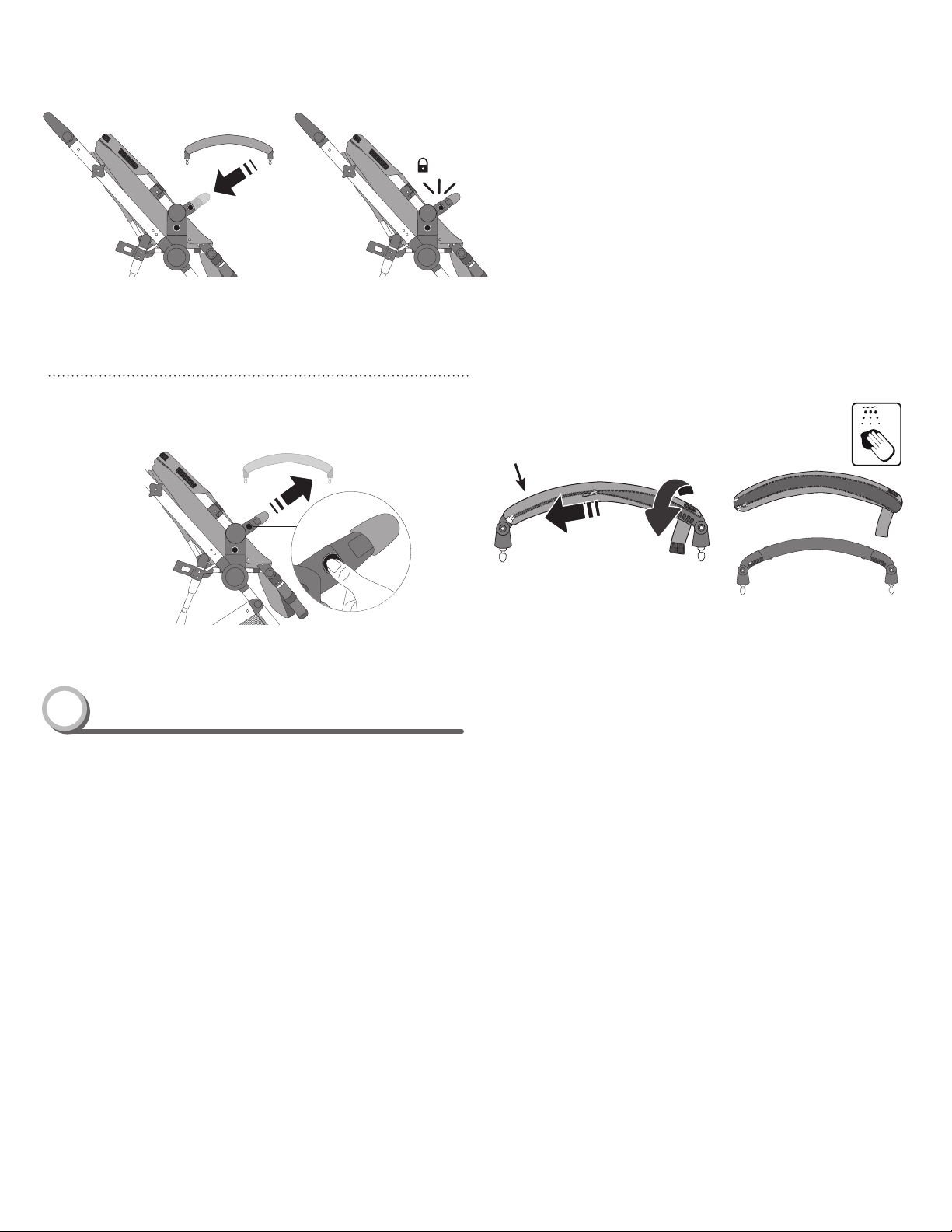

Attaching / Removing Child Bar

Attaching Child Bar

• To attach child bar: Insert left / right sides of the child bar into the child

bar housing located on the left / right side of the stroller frame. (Fig. 11)

• The child bar will “CLICK” on both sides once it is in a fully locked position.

(Fig. 11A)

Note: Pull upward on the child bar to ensure it is securely locked onto the

stroller frame.

Removing Child Bar

• To remove child bar: Press both child bar buttons located on both sides

of the stroller frame and pull upward to release. (Fig. 11B)

Removing Child Bar Cover

• To remove child bar cover for cleaning: First, remove the velcro strap.

(Fig. 11C) Then unzip the cover from left to right located under the child bar.

(Fig. 11D)

CLICK

Fig. 11 Fig. 11A

Fig. 11B

Fig. 11C

Fig. 11D Unvelcro

Child Bar

Cover

Unzip

Tabla de contenidos

Otros manuales de Paseante de Delta Children

Delta Children

Delta Children Jeep Arrow Manual de usuario

Delta Children

Delta Children The Clutch Manual de usuario

Delta Children

Delta Children SPYDER 11381 Manual de usuario

Delta Children

Delta Children Jeep 12597A Manual de usuario

Delta Children

Delta Children J is for Jeep Atlas AL Sport Manual de usuario

Delta Children

Delta Children LX PLUS SIDE X SIDE 11709 Manual de usuario

Delta Children

Delta Children jeep EVEREST Manual de usuario

Delta Children

Delta Children 11588 Manual de usuario

Delta Children

Delta Children POWERGLYDE Jeep 11460 Manual de usuario

Delta Children

Delta Children Jeep Gemini Manual de usuario

Delta Children

Delta Children Jeep 60008A Manual de usuario

Delta Children

Delta Children Disney baby 61100-2344 Manual de usuario

Delta Children

Delta Children CLASSIC TOUR Manual de usuario

Delta Children

Delta Children babyGap 14982 Manual de usuario

Delta Children

Delta Children CLUTCH PLUS 11363 Manual de usuario

Delta Children

Delta Children Little Folks LF20016 Manual de usuario

Delta Children

Delta Children Little Folks OLYMPIA Manual de usuario

Delta Children

Delta Children Jeep PowerGlide plus Manual de usuario

Delta Children

Delta Children Jeep POWERGLYDE PLUS 11808 Manual de usuario

Delta Children

Delta Children NORTH STAR Jeep VARY 33098 Manual de usuario

Delta Children

Delta Children OLYMPIA Little Folks LF11602 Manual de usuario

Delta Children

Delta Children PATRIOT OPEN TRAILS DELUXE JOGGER Manual de usuario

Delta Children

Delta Children CRUZER 11511 Manual de usuario

Delta Children

Delta Children J is for Jeep Side x Side Destination Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
