INSTRUCTION MANUAL

Read all instructions BEFORE assembly and USE of product

KEEP INSTRUCTIONS FOR FUTURE USE.

11288

ADULT ASSEMBLY REQUIRED

STYLES AND COLORS MAY VARY

DCP-IM-08082018-F1

WARNING:

Adult assembly required because of

small parts. Keep assembly parts

out

of reach of children under 3 years.

CHOKING HAZARD

CLASSIC

JOGGER

This stroller is not from, sponsored or

endorsed by Graco Children's Products Inc.

This stroller is not from, sponsored or

endorsed by Evenﬂo Company, Inc.

This stroller is not from, sponsored or

endorsed by Britax®

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

WARNING: Please follow all of these instructions to ensure the safety of your child.

Keep these instructions for future reference.

WARNING: Failure to follow these instructions could result in serious injury or death.

• Avoid serious injury from falling or sliding out. ALWAYS insure that the child is properly positioned by

using the safety harness according to these instructions. ONLY children who have developed enough

upper body control to sit without leaning forward can use the front seat in the upright position.

• NEVER leave children unattended.

WARNING: CHOKING HAZARD Adult assembly required because of small parts.

Keep (assembly parts) out of reach of children under 3 years.

WARNING: FALL HAZARD from tip over. Before running, jogging, or walking fast,

LOCK the front wheel from swiveling.

CAUTION: This is a single occupant jogging stroller for one child only. The use of more than one child

may cause an unstable condition which can injure your child. DO NOT place parcels, diaper bags or

accessory items on jogging stroller as this can cause an unstable condition.

TO PREVENT INJURY

• Make sure all body parts are clear of the stroller when folding and unfolding.

• DO NOT place hot liquids in the cup holder. Hot liquids can burn your child.

• Before allowing the children near the stroller, be certain the stroller is fully erect and latched in the

open locked position.

• The maximum weight that can be carried in the lower basket, child tray and parent tray each is 3 lbs (1.36 kg).

• Use of the stroller with children weighing more than 50 pounds (22.62 kg) or over 42 inches

(106.7 cm) tall, may cause a hazardous unstable condition to the stroller.

• NEVER use the stroller on stairways or escalators.

• NEVER allow your stroller to be used as a toy.

• NEVER use the stroller in conjunction with bicycles, skateboards, roller skates, or in-line skates.

Please discuss using the jogging stroller with your health care provider prior to jogging use.

We recommend that the child occupant needs to be 6 months of age, at the minimum, before use

of the stroller.

Product features and decorations may vary from the photo.

• To clean the stroller use a mild household soap with warm water on a sponge or clean cloth.

Do not use bleach.

• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis.

Replace or repair parts as needed, discontinue use of stroller if it should become damaged or malfunctions.

CARE AND MAINTENANCE

FLAT TIRE

The jogging stroller features bicycle air tires which could become ﬂat. If you have a ﬂat tire, use a

standard bicycle hand air pump to inﬂate the tires. Inﬂate the tires 20-25 psi.

NOTE: The stroller air tires can be taken to a bicycle shop for ﬂat tire repair.

EXTENDED WARRANTY

DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFES MISHAPS!

With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if

your item stops working due to normal wear and tear, plus all those unexpected surprises.

2 YEARS OF PROTECTION

For Additional Information:

Simply visit our Website, register your product, and add the Extended Warranty

https://www.deltachildren.com/pages/product-registration

Extended Warranty only available in the following States: Arkansas, Colorado, Delaware, District of Columbia, Georgia, Idaho,

Illinois, Indiana, Iowa, Kansas, Kentucky, Louisiana, Maryland, Michigan, Mississippi, Missouri, Nebraska, Nevada, New Hampshire,

New York, North Carolina, North Dakota, Pennsylvania, Rhode Island, South Dakota, Tennessee, Utah, West Virginia

Please DO NOT return this product to the store .

If you experience any difficulty with assembly, missing parts or use, please

DO NOT return this item to the store. Retail stores are unable to properly

assist you. Contact our Customer Service Department directy for assitance

646-435-8726

www.DeltaChildren.com • [email protected]

STOP

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Front Wheel Axle Lock Nuts Front Wheel Retainer Plate

Child Tray

Stroller

Front Wheel

Rear Wheels

Cup Holder x 2

Part # 50237

Part # 50174

Part # 50218 Part # 50219

Part # 50216

Part # 50226

Safety Tether Strap

Part # 50238

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

ASSEMBLY

FRONT WHEEL

WARNING: This front wheel utilizes a front wheel

axle lock nut system. Please follow all of these

instructions to ensure the safety of your child.

Failure to follow these instructions could result in

serious injury or death.

• To attach the front wheel, unfold stroller as

described in the following section:

1. Lean the stroller backwards so the rear axle

frame is resting on a ﬂat surface and the front

wheel forks are pointing upward. (Fig. 1)

2. Hook the front wheel axle into the front fork’s

slots (Fig.2)

Fig. 1

Fig. 2

IMPORTANT! To ensure safe operation of your stroller, please follow these instructions carefully.

Please keep these instructions for future reference.

IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints,

missing parts or sharp edges. NEVER use stroller if any parts are missing or broken. IMPORTANT!

Adult assembly is required.

• Remove stroller from box. The front wheel, rear wheels, parent tray and child tray need to be installed

prior to use.

3. Slide the retainer plate onto the front wheel axle.

Be sure that the retainer plate’s bent tab is

facing towards the front fork slot. The bent tab

on the retainer plate must be lined up with and

trapped inside the front fork slot before

tightening the wheel. (Fig. 3)

Fig. 3

4. Install the axle lock nuts and tighten with

standard wrench, box or open end wrench.

The front axle lock nut will be fully tighten and

securely fastened when there is signiﬁcant

resistance to front fork. Repeat on other side.

The wheel should be held tightly in place (Fig.4).

Front Forks

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

ASSEMBLY

WARNING: FALL HAZARD: Wheel can detach

and cause tip over. Pull on the wheel to assure it is

securely attached and make sure the front swivel

wheel is in a locked position during running, jogging

or walking fast.

WARNING: ALWAYS check that both front axle lock

nuts are fully tighten before each use to ensure that

the front wheel is securely fastened to the frame.

TESTING FOR PROPER WHEEL

INSTALLATION

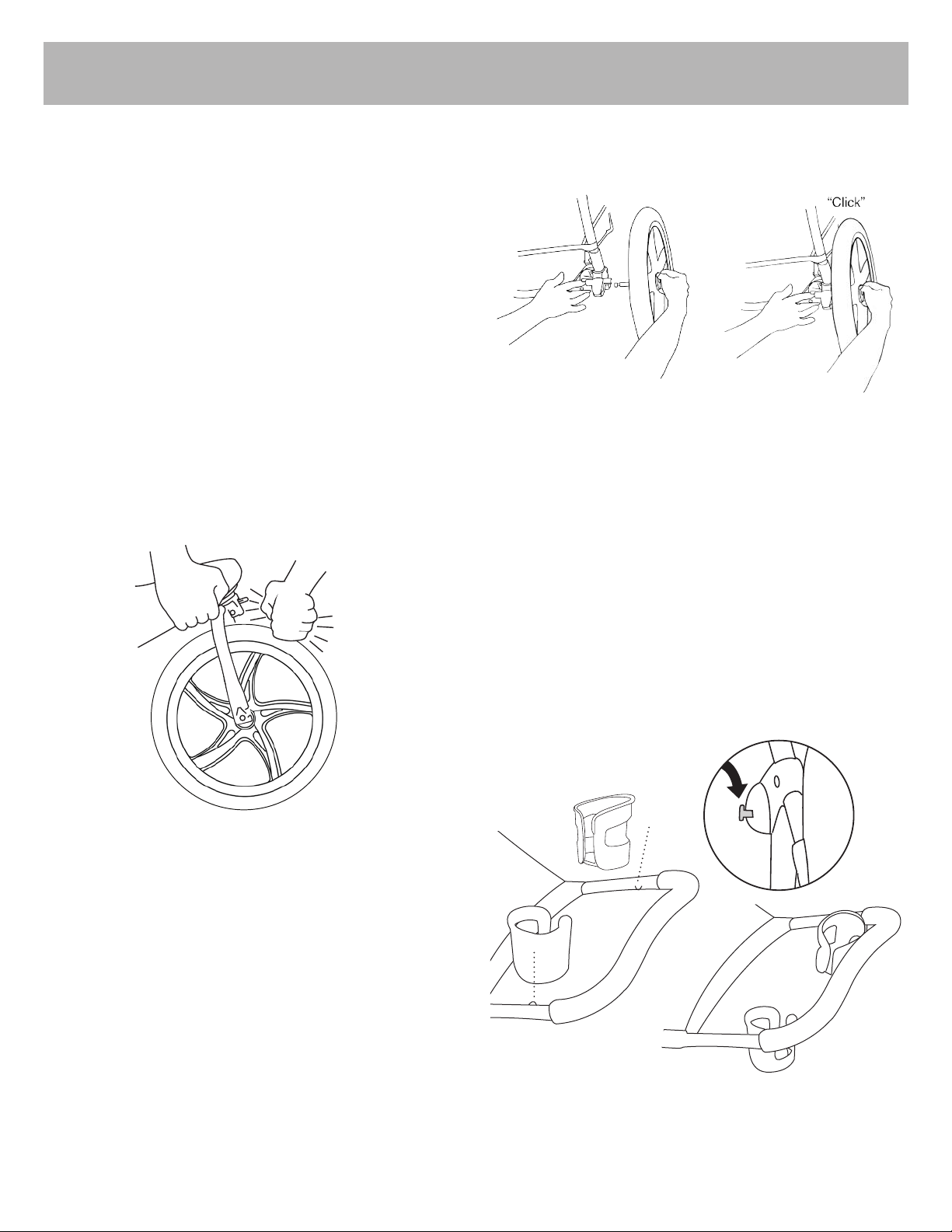

6. To attach the rear wheels, lay stroller on its side.

Align back wheel axle to the stroller's rear wheel

axle housing (Fig 6a). Push the back wheel axle

inward until you hear a "click" (Fig. 6b). Once

in a fully locked position, check to make sure

back wheel is in a fully locked position by pulling

outward. Repeat steps for other side back wheel.

NEVER use stroller if any wheels are not in a

fully locked position. Please contact our

customer service department immediately at

646-435-8726 for assistance.

REAR WHEEL

Fig. 5

Fig. 6a Fig. 6b

5. Lift the front wheel off of the ground and

sharply strike the top of the tire. (Fig. 5)

The wheel should not be loose or come off.

CUP HOLDER

Fig. 7b

Fig. 7a

7. To attach cup holders locate both knobs located

on the inner side frame (Fig.7a). Fit the notch in

the cup holders over the knob and push down

until you hear a "click" (Fig.7b). Pull on the cup

holders to be sure they are secure.

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

8. To open the canopy: pull forward on the front

edge of the canopy until fully opened. (Fig. 8a)

To close canopy: push backward on front edge

until canopy is all the way collapsed. (Fig. 8b)

CANOPY

Open

Fig. 8a

Fig. 8b

ASSEMBLY

9. To open the sun visor: grab front edge of sun

visor under canopy and pull down and rotate

forward until fully extended. (Fig. 9)

SUN VISOR

Fig. 9

CHILD TRAY

10. To attach the child tray: Rotate and align left

and right side of child tray posts with the left

and right side stroller tray posts. Press left and

right side child tray posts into left and right side

stroller tray posts into a fully locked position.

Press left side child tray button and snap child

tray onto stroller tray posts. Release button

to lock child tray onto stroller (Fig.10). Repeat

on right side of child tray. Check to make sure

the child tray is securely attached to the stroller

by pulling upward on the child tray.

Fig. 10

11. To access child seat: press left or right release

buttons (Fig 11a) and rotate tray upward (Fig 11b).

Fig. 11a Fig. 11b

12.To remove the child tray: Press the right and

left release buttons and pull upward on child

tray. (Fig 12)

Fig. 12

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

SETUP & USE

BRAKES

13.To lock brakes, press downward on brake lever

located on each rear wheel. Please note in

order to line up the break tab with brake tab

slots stroller may need to be moved forward

or backwards slightly. (Fig. 14) Check to make

sure the brakes are in a fully locked position, so

stroller will not move when pushed. To release

breaks, gently push up on the brake lever.

Fig. 13

WARNING: Always lock brakes when not in use on a hill

or incline as stroller may roll away or slide down the hill.

WARNING: Never leave child unattended in stroller.

Fig. 14

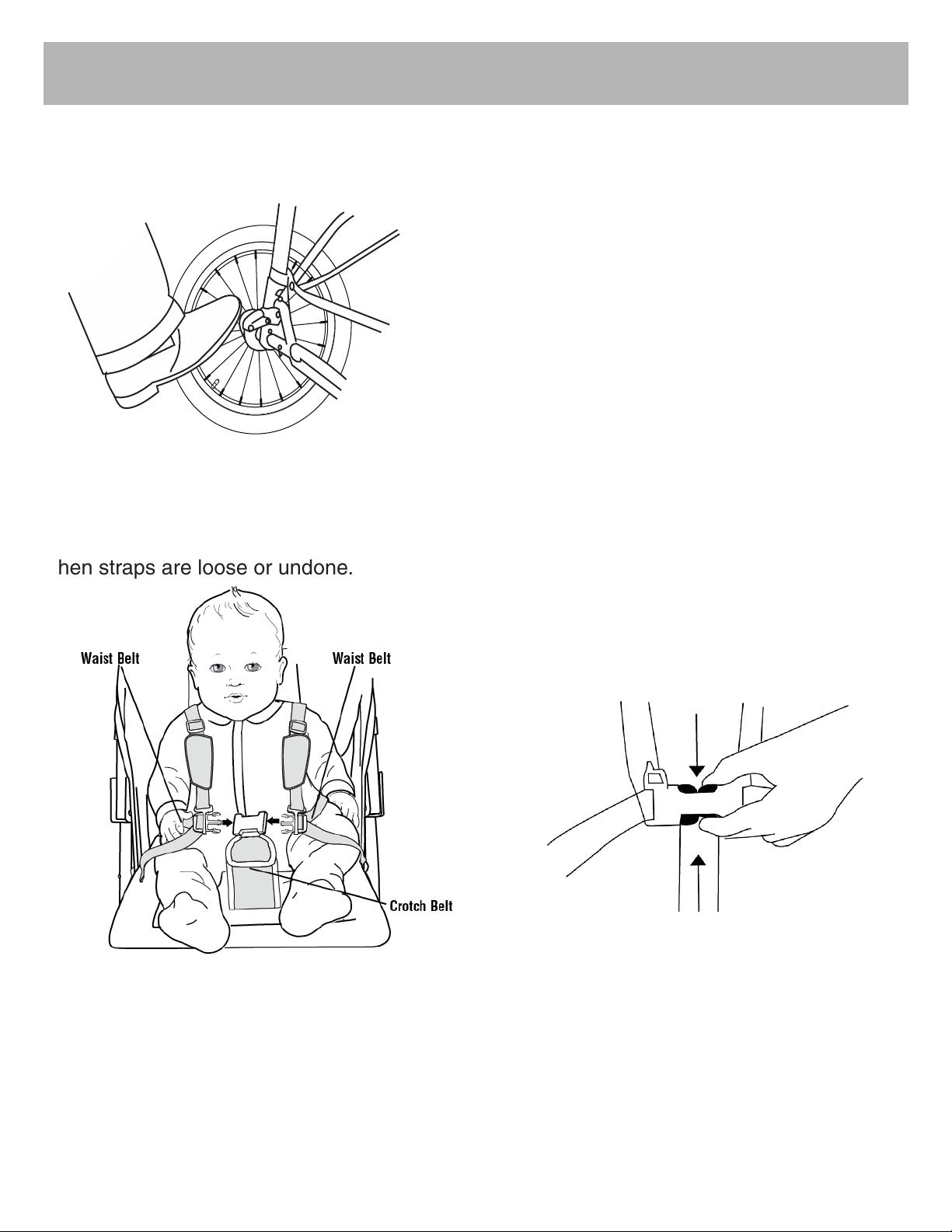

TO SECURE THE CHILD

WARNING: Avoid serious injury from falling or sliding out. Always use the safety harness.

STRANGULATION HAZARD: Child can strangle in loose straps. Never leave child in seat

when straps are loose or undone.

Fig. 14

Fig. 15

14. Place your child in the stroller. Position the

crotch belt between your child’s legs. Pull

shoulder straps over child’s arm and shoulder

and fasten both strap ends to the restraint

system. Fasten both waist belts to the buckle

on each side of the crotch belt. Make sure

you hear a “click” on both sides. Check to be

sure the restraint system is securely attached

by pulling it away from your child. The restraint

system should remain attached. (Fig 14)

15. To release, apply pressure to both sides of

locked clips until clip releases. See (Fig. 15).

This might need a considerable amount of

effort to release as this harness is to prevent

an accidental release by your child.

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

Fig. 16b

Fig. 16a

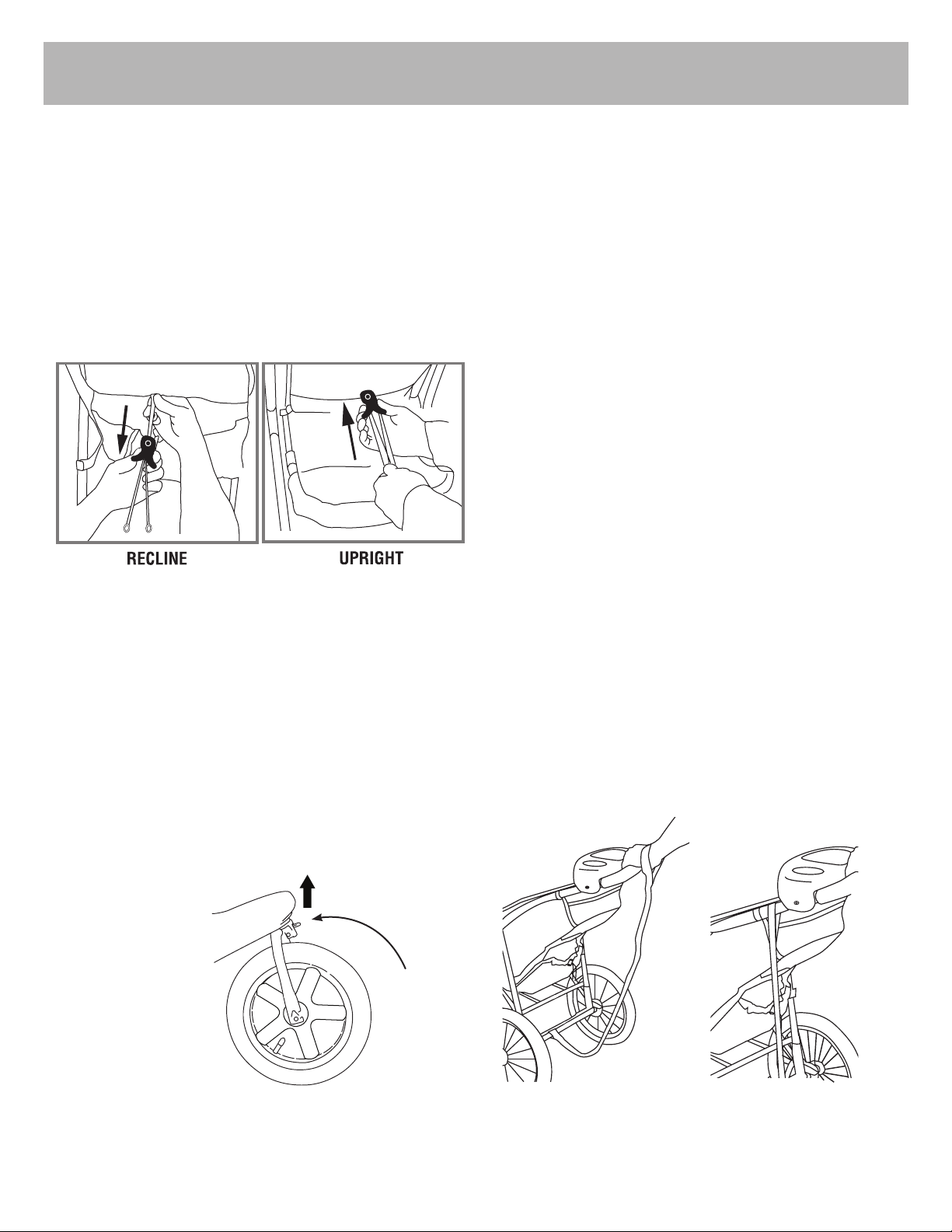

SEAT BACK RECLINE

16. Squeeze both sides on cord housing and

pull away to recline seat. (Fig 16a). To

return to an upright position, hold bottom

cord loops while squeezing cord housing

and move cord housing upwards towards

the backseat. (Fig 16b)

JOGGING WITH YOUR

STROLLER

17. When you are jogging with your child,

use the following safety features:

• LOCK THE FRONT SWIVEL WHEEL BY

PUSHING UPWARD ON THE FRONT

SWIVEL WHEEL LOCK PUTTING THE

FRONT WHEEL INTO A STRAIGHT

POSITION. (Fig. 17)

• SAFETY TETHER STRAP: Always connect

the safety tether strap to either right or left

wrist when jogging. The tether strap will keep

the stroller from moving or rolling away in the

event that you trip or stumble while running.

(Fig. 17a) The safety tether strap must remain

connected to the rear lower frame cross

member at all times. The safety tether strap

can be stored on the left or right side of the

stroller with the Velcro attachment, when not

in use. (Fig 17b).

• NOTE: Do not remove the safety tether strap

from the bottom wheel axle as it is intended

to prevent the stroller from tipping backwards

if the stroller happens to move or roll away in

the event that you trip or stumble.

Fig. 17a Fig 17b

SETUP & USE

Fig. 17

Push Upward To

Lock Front Swivel

Wheel

Front Swivel

Wheel Lock

Customer Service Tel. (646) 435-8726 www.DeltaChildren.com

For Graco and Eveno Car Seats

(Car Seats are NOT included)

(Car Seats DO NOT need adapter - both car seats lock in the center of the child tray)

18. To use the car seat feature, lock back wheels

and recline the back seat to its lowest point

and fold canopy close. Turn and lock grey

latches (Fig 18). Align car seat as shown in

Fig 18a. Angle feet ﬁrst, while lowering car

seat into a locked position on the child tray.

Both car seats lock in the center of the child

tray. See locked positions for Graco (Fig 18b)

and Evenﬂo (Fig 18c). Make sure car seat is

fully fastened by pulling upward.

Fig. 18a

Fig. 19

Fig. 18

HOW TO ATTACH CAR SEATS

car seat safety

grey latches

Eveno locked position -

grey locking tab clicks

Graco locked position -

red locking tab clicks

19. Final step to secure the footrest side of car

seat onto the stroller, use the straps with

velcro to secure seat onto stroller. (Fig 19).

Check that car seat is securely attached by

pulling up on the car seat. To remove, undo

latches and unlock car seat from child tray.

Fig. 18b Fig. 18c

Back of Eveno

Car Seat

Back of Graco

Car Seat

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Paseante de Delta Children

Delta Children

Delta Children HERCULES Manual de usuario

Delta Children

Delta Children 11588 Manual de usuario

Delta Children

Delta Children LX PLUS SIDE X SIDE 11709 Manual de usuario

Delta Children

Delta Children NORTH STAR Jeep VARY 33098 Manual de usuario

Delta Children

Delta Children Jeep EVOLVE 60010 Manual de usuario

Delta Children

Delta Children Little Folks EXPLORATION Manual de usuario

Delta Children

Delta Children Jeep SPORT UTILITY Manual de usuario

Delta Children

Delta Children Jeep PowerGlide plus Manual de usuario

Delta Children

Delta Children SPYDER 11381 Manual de usuario

Delta Children

Delta Children Jeep Breeze Manual de usuario

Delta Children

Delta Children Disney baby 61100-2344 Manual de usuario

Delta Children

Delta Children Jeep 60008A Manual de usuario

Delta Children

Delta Children Jeep Gemini Manual de usuario

Delta Children

Delta Children J is for Jeep Atlas AL Sport Manual de usuario

Delta Children

Delta Children Jeep WRANGLER DELUXE Manual de usuario

Delta Children

Delta Children Jeep POWERGLYDE PLUS 11808 Manual de usuario

Delta Children

Delta Children OLYMPIA Little Folks LF11602 Manual de usuario

Delta Children

Delta Children PATRIOT OPEN TRAILS DELUXE JOGGER Manual de usuario

Delta Children

Delta Children Little Folks OLYMPIA Manual de usuario

Delta Children

Delta Children Jeep POWERGLYDE 11409 Manual de usuario

Delta Children

Delta Children jeep EVEREST Manual de usuario

Delta Children

Delta Children Little Folks LF20016 Manual de usuario

Delta Children

Delta Children Jeep CLUTCH PLUS Manual de usuario

Delta Children

Delta Children Jeep Arrow Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
