Dell OptiPlex FX130 Manual de usuario

Dell™OptiPlex™FX130

Quick Setup Guide

Notes, Cautions, and Warnings

NOTE:

A NOTEindicates important information that helpsyou

make better useofyourcomputer.

CAUTION: A CAUTION indicates potential damage

to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for

property damage, personal injury, or death.

_____________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and OptiPlex™ are trademarks

of Dell Inc.

Other trademarks and trade names may be used in this publication to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary

interest in trademarks and trade names other than its own.

Power adapter models that may be included are AU1361203N (Elementech International Co.

Ltd.) and FSP036-DGAA1A (FSP Group Inc.)

Regulatory Model: D05U

Regulatory Type: D05U001

2011-12 Rev. A03

Additional Information

To find additional information regarding the setup and

configuration of your Dell thin client software please refer to

the Administration Guide:

Visit http://support.dell.com

Click on

Select a Product

Choose

Select Model



Desktops



OptiPlex



FX130

FX170



Confirm

Select

Manuals & Documentation

The Echo Management Console Dell Edition is included with

your purchase of this Dell thin client system.

To download the Echo Management Console Dell Edition:

Visit http://support.dell.com

Select

Drivers & Downloads

from the top of the

screen.

Select

Choose from a list of all Dell Products

and

click

Continue

Choose

Desktops



OptiPlex



FX130

FX170

Under

Operating System

, select

DeTOS

Windows Embedded

Echo is available under the Applications category.

4 |

Dell™OptiPlex™FX130

Quick Setup Guide

Before Setting Up Your FX130

NOTE:

Place the thin client in its verticalorientation for best

performance.

Your FX130 terminal is shipped with the following items:

Power Cord

Adapter

Terminal Stand (pre-installed)

Quick Setup Guide

Warranty and Support Information

End User License Agreement

CD Containing Open Source Code

Safety, Environmental, and Regulatory Information

DVI-VGA Adapter

NOTE:

Inspect all parts visually for damage. If anything is damaged,

please contact Dell immediately to report the issue.

| 5

Setup and Features Information

Power Button

Network Activity Indicator LED

Audio Line Out

Microphone

USB 2.0 Connectors (2)

Front View

6 |

Network Connector

USB 2.0 Connectors (2)

DVI Connector

PS/2 Connector

Power Connector

Security Cable Slot

Back View

| 7

Quick Setup

Connect the monitor to the DVI Connector on the back of

the unit.

8 |

Connect the mouse and keyboard to the PS/2 or USB

connectors, depending on what type you have.

| 9

Connect the network cable to the Network Connector on

the unit and the other end of the cable to your local

network.

10 |

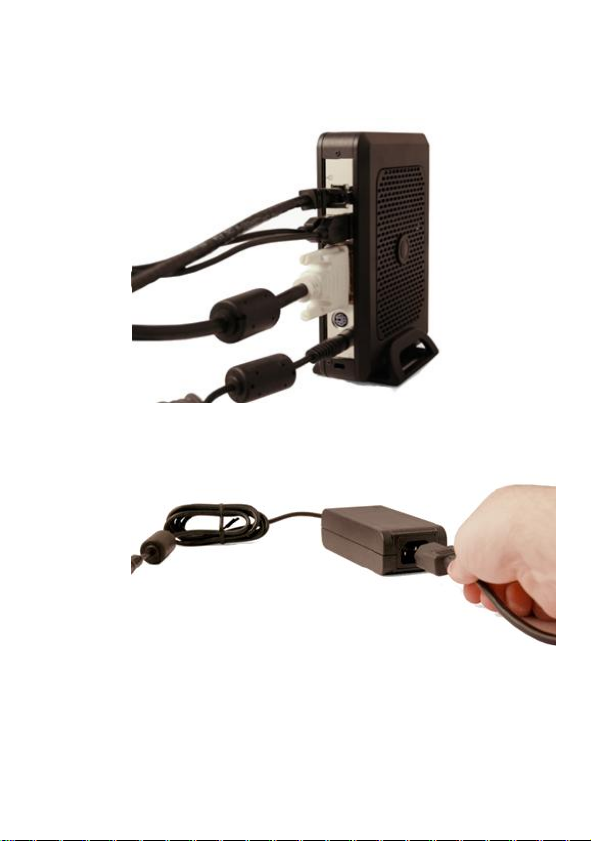

Connect the power supply to the FX130’s power

connector on the back of the unit.
