Dell XC720xd Manual de usuario
Dell XC720xd
Getting Started Guide
Regulatory Model: E14S Series
Regulatory Type: E14S001
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright ©2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. Dell™and the Dell logo are trademarks of Dell Inc. in the United States and/or other
jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
2014–11
Rev. A00
Installation and configuration
WARNING: Before performing the following procedure, review the safety instructions that came
with the system.
Unpacking a rack system
Unpack your system and identify each item.
Assemble the rails and install the system in the rack following the safety instructions and the rack
installation instructions provided with your system.
Figure 1. Installing the Rails and System in a Rack
Connecting the optional keyboard, mouse, and monitor
Figure 2. Connecting keyboard, mouse, and monitor
Connect the keyboard, mouse device, and monitor (optional).
The connectors at the back of your system have icons indicating which cable to plug into each
connector. Be sure to tighten the screws (if any) on the monitor's cable connector.
3
Connecting the power cable(s)
Figure 3. Connecting Power Cable(s)
Connect the system’s power cable(s) to the system and, if a monitor is used, connect the monitor’s
power cable to the monitor.
Securing the power cable(s)
Figure 4. Securing power cable(s)
Bend the system power cable(s), as shown in the illustration, and attach to the cable strap.
Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source
such as an uninterruptible power supply (UPS) or a power distribution unit (PDU).
4
Turning on the system

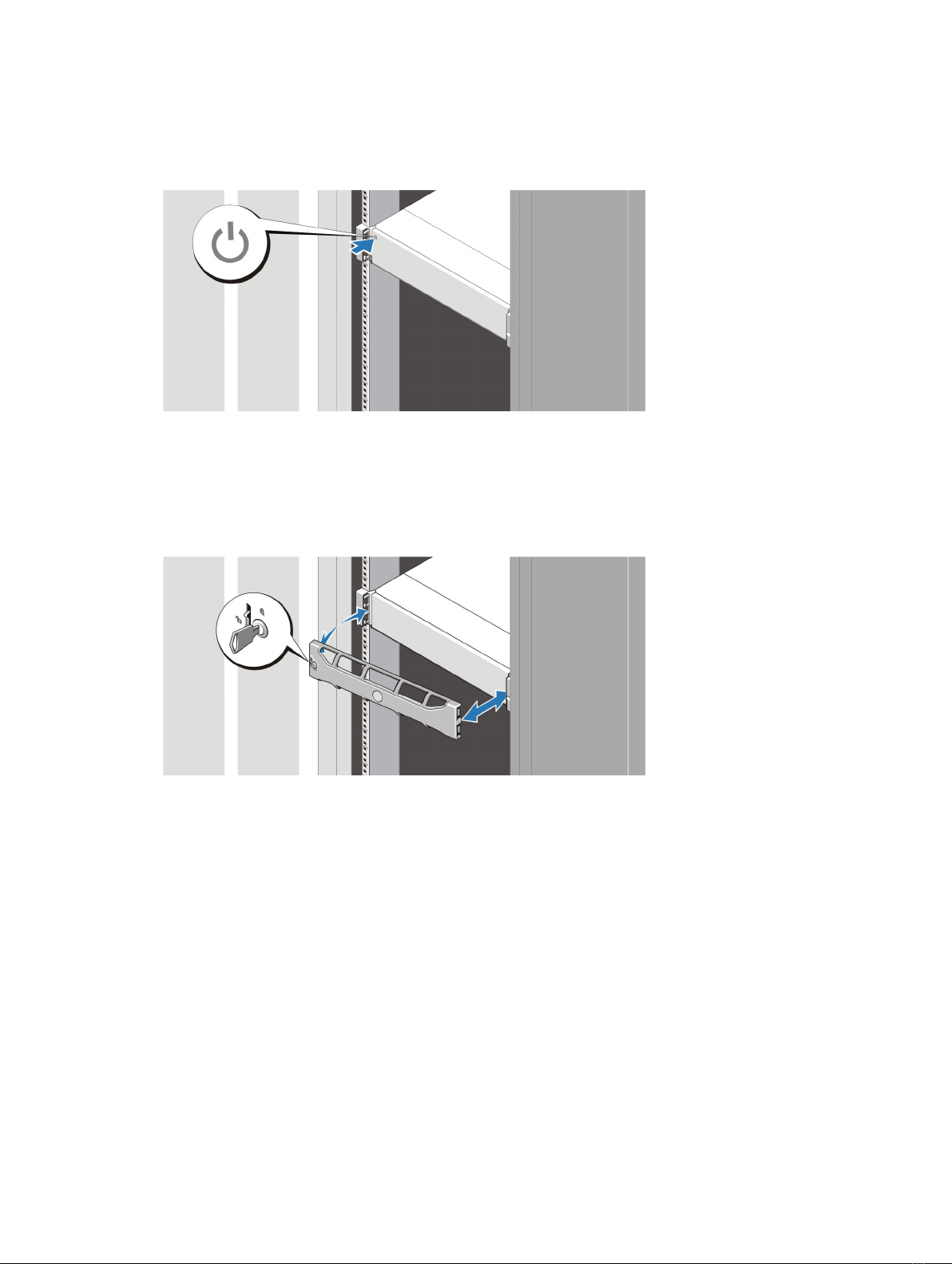

Figure 5. Turning on the system
Press the power button on the system. The power indicator LED must start glowing.
Installing the Bezel
Figure 6. Installing the Bezel
Install the bezel.
Setting up the system
For information about setting up your system, see the Dell See the XC720xd Solutions Guide available at
support.dell.com. The Solutions Guide also provides information about Nutanix Account setup, license
activation and management, deployment and recovery of the system, documentation access, and
managing the XC720xd.
5
Dell software license agreement
Before using your system, read the Dell and Nutanix Software License Agreements that came with your
system. You must consider any media of Dell-installed software as BACKUP copies of the software
installed on your system’s hard drive. If you do not accept the terms of the agreements, call the customer
assistance telephone number. For customers in the United States, call 800-WWW-DELL (800-999-3355).
For customers outside the United States, see support.dell.com and select your country or region from
the upper-left corner of the page.
Other information you may need
WARNING: See the safety and regulatory information that shipped with your system. Warranty
information may be included within this document or as a separate document.
• The Solutions Guide provides procedures about Nutanix account setup, license activation and
management, deployment and recovery, documentation access, and XC720xd management. This
document is available online at support.dell.com.
• The Owner’s Manual provides information about system features and describes how to troubleshoot
the system and install or replace system components. This document is available online at
support.dell.com.
• The rack documentation included with your rack solution describes how to install your system into a
rack, if required.
• Any media that ships with your system that provides documentation and tools for configuring and
managing your system, including those pertaining to the operating system, system management
software, system updates, and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com and read the updates first because they often
supersede information in other documents.
NOTE: When upgrading your system, it is recommended that you download and install the latest
BIOS, driver, and systems management firmware on your system from support.dell.com.
Obtaining technical assistance
If you do not understand a procedure in this guide or if the system does not perform as expected, see
your system Owner’s Manual. Dell offers comprehensive hardware training and certification. See
dell.com/training for more information. This service may not be offered in all locations.
Technical specifications
NOTE: The following specifications are only those required by law to ship with your system. For a
complete and current listing of the specifications for your system, refer to XC720xd Owner’s Manual
available at support.dell.com.
Power
AC Power Supply (per power supply)
Wattage 750 W or 1100 W
6
Power
Heat dissipation
NOTE: Heat dissipation is calculated using
the power supply wattage rating.
2891 BTU/hr maximum (750 W)
4100 BTU/hr maximum (1100 W)
Voltage
NOTE: This system is also designed to be
connected to IT power systems with a
phase to phase voltage not exceeding 230
V.
100–240 V AC, autoranging, 50/60 Hz
Battery
Coin-cell battery 3 V CR2032 Lithium coin cell
Physical
Height 87.3 mm (3.44 inch)
Width
With rack latches 482.4 mm (18.98 inch)
Without rack latches 444 mm (17.48 inch)
Depth (includes bezel) 755.8 mm (29.75 inch)
Weight (maximum)
3.5-inch hard disk drive systems 32.5 kg (71.5 lbs)
Weight (empty)
3.5-inch hard disk drive systems 10.3 kg (22.7 lbs)
Environmental
NOTE: For additional information about environmental measurements for specific system
configurations, see dell.com/environmental_datasheets.
Temperature
Operating Continuous operation: 10 °C to 35 °C at 10% to 80%
relative humidity (RH), with 26 °C max dew point.
De-rate maximum allowable dry bulb temperature
at 1 °C/300 m above 900 m (1 °F per 550 ft).
NOTE: For information abput supported
expanded operating temperature range and
configurations, see support.dell.com.
Storage –40 °C to 65 °C (–40 °F to 149 °F) with a maximum
temperature gradation of 20 °C per hour.
Relative Humidity
7
Environmental
Operating 20% to 80% (noncondensing) at a maximum wet
bulb temperature of 29 °C (84.2 °F)
Storage 5% to 95% at a maximum wet bulb temperature of
38 °C (100.4 °F)
Maximum Vibration
Operating 0.26 Grms at 5 Hz to 350 Hz (all operation
orientations)
Storage 1.87 Grms at 10 Hz to 500 Hz for 15 min (all six sides
tested)
Maximum Shock
Operating One shock pulse in the positive z-axis (one pulse on
each side of the system) of 31 G for 2.6 ms in all
operational orientations.
Storage Six consecutively executed shock pulses in the
positive and negative x, y, and z axes (one pulse on
each side of the system) of 71 G for up to 2 ms.
Six consecutively executed shock pulses in the
positive and negative x, y, and z axes (one pulse on
each side of the system) of 32 G faired square wave
pulse with velocity change at 270 inches/second
(685 centimeters/second)
Altitude
Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)
NOTE: For altitudes above 2950 ft, the
maximum operating temperature is derated
1ºF/550 ft.
Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)
Airborne Contaminant Level
Class G1 as defined by ISA-S71.04-1985
8
