Dell D1918H Manual de usuario

1

LED MONITOR No. D1918H

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a

product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any

attempt to service or repair the product or products dealt with in this service information by anyone else could result in

serious injury or death.

2

ground

1

Assembly and Disassembly Procedures

Assembly—SOP D1918H

Assembly procedures

Preparation before assembly

1. clean the room for work

2. Identify the area for material

3. Prepare the implement, equipments, materials as bellow:

1) Press Fixture

2) Work ing table

3) Screw-Driver

4) knife

5) glove

6) cleaning cloth

7) ESD protection

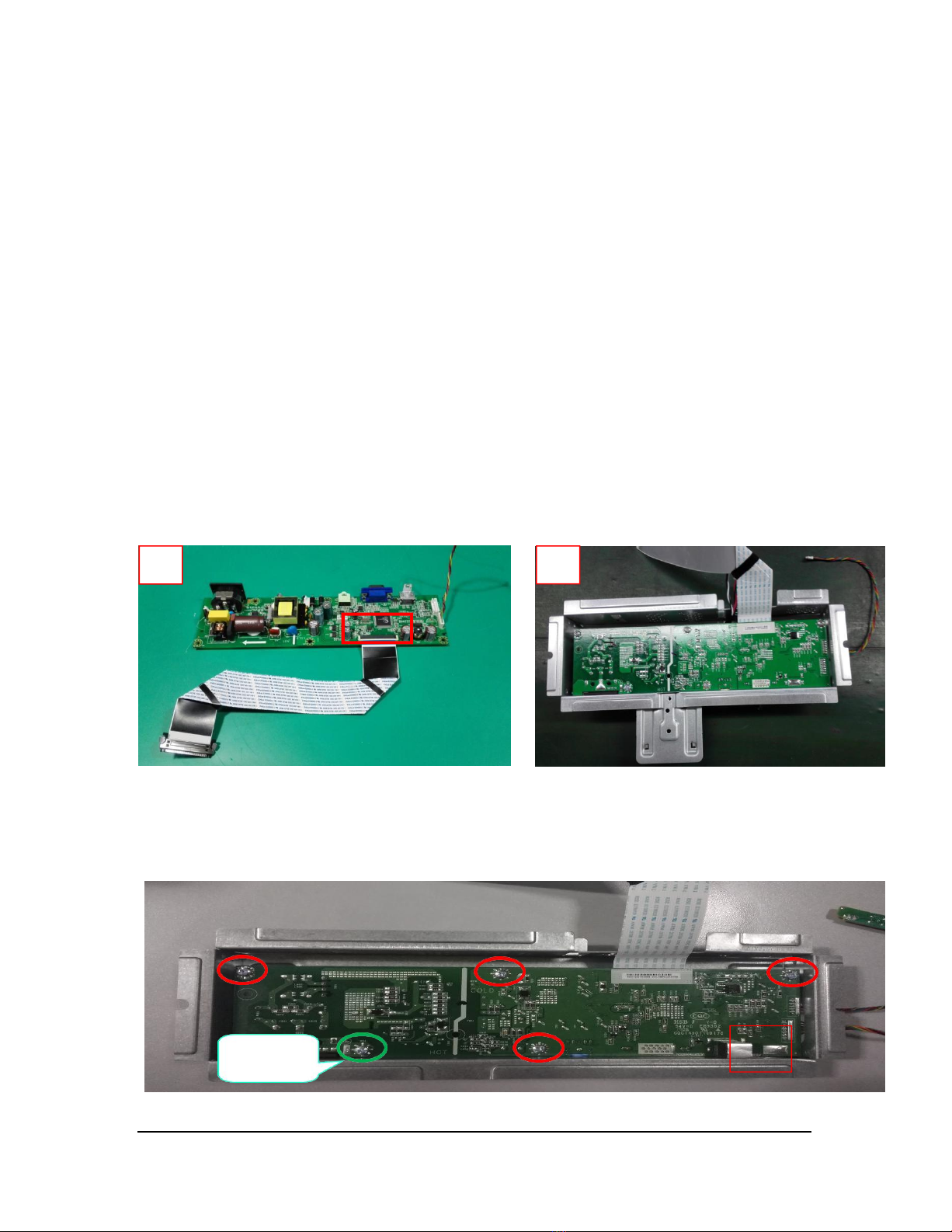

Step1

1. Insert the LVDS cable to M/B

2. Assemble M/B into the SHIELD PLATE

Step2

1. Insert wireharness from to M/B

2. Assemble M/B by locking 5 screws(M3*6)-(one ground screw)

3. Foam on the HDMI cable（EMI Solution）

2

ground

3

Step3

1. Stick the K/B FFC cable on the M/B

Step4

1. Isolation hood positioning

2.Chapaixian LVDS

Step5

1.Aluminum foil and anti-static adhesive tape

4

Step6

1. Lock the hexagonal screws

Step7

1.Assembly the back cover into the panel

Step8

1.Assembly the back cover by locking 1 screws(M3*8)

5

Step9 Assembling stand

Disassembly—SOP D1918H

Disassembly procedures

Preparation before disassembly

4. clean the room for work

5. Identify the area for material

6. Check the position that the monitors be placed and the quantify of the

monitor ;prepare the area for material flow,according to the actual condition

plan the disassemble layout

7. Prepare the implement, equipments, materials as bellow:

1) Press Fixture

2) Working table

3) Screw-Driver

4) knife

5) glove

6) cleaning cloth

7) ESD protection

Step1 disassemble the stand

6

Step2 Remove rear cabinet screw

Step3 Disassemble CABI Back

7

Step4

1. Take off the AL SHIELDING TAPES and pull out the LVDS cable

2. Remove the press button in the front K/B

8

Step5 Unlock the screws

Step6

1. Disassemble the K/B and pull out the FFC cable

Step7

1.Unlock the screws and take out the M/B

2. Foam demolition

9

Step8 Pull out the LVDS cable

Assembly SOP for BOEA185WX3 321171850551001 (MNT)

Assembly procedures

Preparation before assembly

8. Cleanroom and working table

9. Clean cothes

10. Glove

Step 1

1.Take the black on the assembly line

2.Stick the glue in the red box

10

Step 2

1.Stick the label on the red box

Step 3

1.Stick the block gine on the red box
