Dell C5517H Manual de usuario

Model No.: C5517H

Regulatory model: C5517Hc

User’s Guide

Dell C5517H

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use

of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury or death.

_________________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and

Windows are either trademarks or registered trademarks of Microsoft. Corporation in the United

States and/or other countries, Intel is a registered trademark of Intel Corporation in the U.S. and

other countries; and ATI is a trademark of Advanced Micro Devices, Inc.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

2016 - 10 Rev. A01

3

Contents

About Your Monitor .............................5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . 5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Identifying Parts and Controls . . . . . . . . . . . . . . . . 10

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . 13

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . 21

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . 26

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . 26

Setting Up the Monitor..........................27

Attaching the Monitor . . . . . . . . . . . . . . . . . . . . . 27

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . 28

Removing the Monitor Stand . . . . . . . . . . . . . . . . 30

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . 31

Operating the Monitor ..........................32

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . 32

Using the Function Controls . . . . . . . . . . . . . . . . . 32

Using the On-Screen Display (OSD) Menu . . . . . . . . . 34

OSD Warning Messages . . . . . . . . . . . . . . . . . . . . 44

Setting the Maximum Resolution . . . . . . . . . . . . . . 47

Troubleshooting ...............................48

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Built-in Diagnostics. . . . . . . . . . . . . . . . . . . . . . . 50

4 

Product-Specific Problems . . . . . . . . . . . . . . . . . . 55

Appendix ......................................56

FCC Notices (U.S. Only) and Other Regulatory Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Contact Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Setting Up Your Monitor ........................57

Setting the display resolution to 1920 x 1080 (Maximum) 57

If you have a Dell desktop or a Dell portable computer with

Internet access . . . . . . . . . . . . . . . . . . . . . . . . . 58

If you have a non Dell desktop, portable computer, or

graphics card . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Procedures for setting up dual monitors in Windows 7,

Windows 8/Windows 8.1 or Windows 10. . . . . . . . . . 59

Dell Display Manager User’s Guide ...............74

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Using the Quick Settings Dialog . . . . . . . . . . . . . . . 74

Setting Basic Display Functions . . . . . . . . . . . . . . . 75

Assigning Preset Modes to Applications . . . . . . . . . . 77

Organizing Windows with Easy Arrange . . . . . . . . . . 78

About Your Monitor 5

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you

have received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor.

Some features or media may not be available in certain countries.

•Monitor

•Monitor Base

•Screws: M4 (12 mm) x 4

•Remote Control & Batteries (AAA x 2)

•Power Cable (varies by countries)

•VGA Cable (3 m)

•HDMI Cable (3 m)

•DP to DP Cable (3 m)

6 About Your Monitor

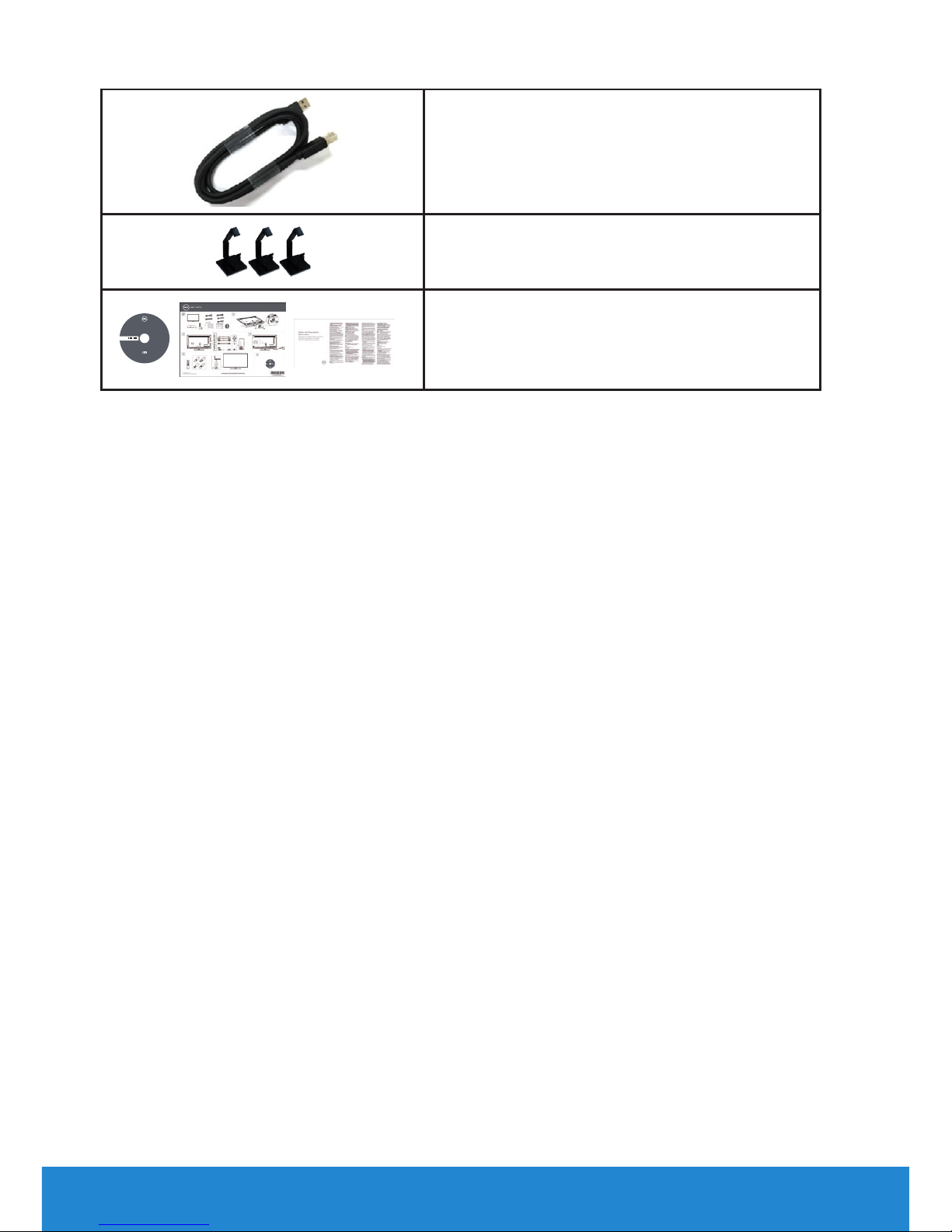

•USB Upstream Cable (enable the USB ports

on the monitor) (3m)

•Cable clips: 3 pcs

Drivers a nd Documen tation

P/NRPJY6 Rev. A00

P/NQ70G55C170003A

September 6102

Madein C hina

lleD ™rotinoMH7155C

RPJY6A00

Contents:

•Deviced rivers

•QuickS etup Guide

•User'sG uide

•DellD isplay Manager Sof tware

•Drivers and Documentation media

•Quick Setup Guide

•Safety, Environment, and Regulatory

Information (SERI)

Product Features

The Dell C5517H flat-panel display has an active matrix, Thin-Film Transistor,

Liquid Crystal Display. The monitor’s features include:

• C5517H: 1386.84 mm (54.6 inches) diagonal viewable image size,

1920 x 1080 resolution, plus full-screen support for lower resolutions.

• LED backlight.

• Removable pedestal and Video Electronics Standards Association

(VESA) 400 mm x 400 mm mounting holes for flexible mounting

solutions.

• Plug and play capability if supported by your system.

• VGA, HDMI and DP connectivity make it simple and easy to connect

with legacy and new system.

• Audio out

• On-Screen Display (OSD) adjustments for ease of set-up and screen

optimization.

• Software and documentation media which includes an information file

(INF), Image Color Matching File (ICM), and product documentation.

• Dell Display Manager Software (comes in the CD shipped with the

monitor).

• Asset Management Capability.

• Build-in Speaker (10W)x2

• RoHS compliant.

• BFR/PVC Free (Halogen-Free) monitor excluding external cables.

• Arsenic-Free glass and Mercury-Free for panel only.

About Your Monitor 7

4Left

Press to move the selection left in

OSD menu.

5Down

Press to move the selection down in

OSD menu.

6Menu

Press to turn on the OSD menu.

7Brightness -

Press to decrease the Brightness.

8Volume -

Press to decrease the Volume.

9MUTE

Press to turn the mute function on/

o.

10 Preset Modes

Display information about Preset

Modes.

11 Right

Press to move the selection right in

OSD menu.

12 OK

Conﬁrm an entry or selection.

13 Exit

Press to exit the Menu.

14 Brightness +

Press to increase the Brightness.

15 Volume +

Press to increase the Volume.

Remote Control

1Power On/O

Switch this monitor on or o.

2Input Source

Select input source. Press [<] or

[>] button to select from HDMI1,

HDMI2,VGA or DP. Press [√] button

to conﬁrm and exit.

3Up

Press to move the selection up in

OSD menu.

8 About Your Monitor

Inserting the batteries in the remote control

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries:

1. Press and then slide the cover to open it.

2. Align the batteries according to the (+) and (–) indications inside the

battery compartment.

3. Replace the cover.

CAUTION:

The incorrect use of batteries can result in leaks or bursting. Be sure to

follow these instructions:

• Place “AAA” batteries matching the (+) and (–) signs on each battery to

the (+) and (–) signs of the battery compartment.

• Do not mix battery types.

• Do not combine new batteries with used ones. It causes shorter life or

leakage of batteries.

• Remove the dead batteries immediately to prevent them from liquid

leaking in the battery compartment. Don’t touch exposed battery acid,

as it can damage your skin.

NOTE: If you do not intend to use the remote control for a long period,

remove the batteries.

Handling the remote control

• Do not subject to strong shock.

• Do not allow water or other liquid to splash the remote control. If the

remote control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Other than to install the batteries, do not open the remote control.

About Your Monitor 9

Operating range of the remote control

Point the top of the remote control toward the LCD monitor’s remote

sensor during button operation.

Use the remote control within a distance of about 8 m from remote control

sensor or at a horizontal and vertical angle of within 15° within a distance of

about 5.6 m.

NOTE: The remote control may not function properly when the

remote control sensor on the display is under direct sunlight or

strong illumination, or when there is an obstacle in the path of signal

transmission.

15 15

10 About Your Monitor

Identifying Parts and Controls

Front View

1IR Lens (with LED indicator)

Back View

DELL

ModelNo./

Modelo/型號

型号

모델명

:C5517Hc

輸入電源/输入电源/정격입력

100-240V 50/60Hz 2.5A

Q40G055N-700-03A

XXXXXXXXXXX

MSIP-REM-TPF-C5517Hc

신청인/제조자:TPVElectronics(Fujian)Co., Ltd.

XXXXXX-XX

CANICES-3(B)/NMB-3(B)

Theequipmentmustbe connected to an earthed mains socket-outlet.

L'appareildoitêtrebranché sur une prise de courant munie d'une mise à la terre.

Удельная мощность рабочего режима - X.XXX Вт/см²

Потребляемая мощность изделием в режиме ожидания - X.XX Вт

Потребляемая мощность изделием в выключенном режиме - X.XX Вт

ServiceTag:1NGTQV1

ExpressSVCcode:359 576 607 7

S/N:CN-0 P2NYV-64180-46D-001T

REVA00

生产日期/ManufacturedDate: Apr.2016

中国制造

MadeinChina

IS13252(Part1)/

IEC60950-1

R-41018660

S&E

R33037

RoHS

警語:使用過度恐傷害視力。

DELL

ModelNo./

Modelo/型號

型号

모델명

:C5517Hc

輸入電源/输入电源/정격입력

100-240V 50/60Hz 2.5A

Q40G055N-700-03A

XXXXXXXXXXX

MSIP-REM-TPF-C5517Hc

신청인/제조자:TPVElectronics(Fujian)Co., Ltd.

XXXXXX-XX

CANICES-3(B)/NMB-3(B)

Theequipmentmustbe connected to an earthed mains socket-outlet.

L'appareildoitêtrebranché sur une prise de courant munie d'une mise à la terre.

Удельная мощность рабочего режима - X.XXX Вт/см²

Потребляемая мощность изделием в режиме ожидания - X.XX Вт

Потребляемая мощность изделием в выключенном режиме - X.XX Вт

ServiceTag:1NGTQV1

ExpressSVCcode:359 576 607 7

S/N:CN-0 P2NYV-64180-46D-001T

REVA00

生产日期/ManufacturedDate: Apr.2016

中国制造

MadeinChina

IS13252(Part1)/

IEC60950-1

R-41018660

S&E

R33037

RoHS

警語:使用過度恐傷害視力。

Back View with monitor stand

Label Description Use

1 VESA mounting holes (400 mm x

400 mm)

Wall mount monitor using VESA-

compatible wall mount kit (400 mm x

400 mm).

2 Regulatory label Lists the regulatory approvals.

3 AC power connector To connect the monitor power cable.

4 Function buttons (For more

information, see Operating the

Monitor)

Use the keys on the back of the

monitor to adjust the image settings.

5 Security lock slot Secures monitor with security lock.

Otros manuales para C5517H

Tabla de contenidos

Otros manuales de Monitor de Dell

Dell

Dell E551 Manual de usuario

Dell

Dell P2319H Instrucciones de instalación

Dell

Dell SP1908FP Manual de usuario

Dell

Dell SX2210 - 22" LCD Monitor Manual de usuario

Dell

Dell S2419Hc Manual de usuario

Dell

Dell E2209Wc Manual de usuario

Dell

Dell Alienware AW2521H Manual de usuario

Dell

Dell E771p - 17" CRT Display Manual de usuario

Dell

Dell ST2210 - 16:9 Aspect Ratio Flat Panel... Manual de usuario

Dell

Dell SE2216H Manual de usuario

Dell

Dell P1230 Manual de usuario

Dell

Dell SP2309Wc Manual de usuario

Dell

Dell UP2720QB Manual de usuario

Dell

Dell S2721H Instrucciones de instalación

Dell

Dell P2724DEB Manual de usuario

Dell

Dell P1914S Manual de usuario

Dell

Dell P2720DC Manual de usuario

Dell

Dell AW2521HF Instrucciones de uso

Dell

Dell 1907FPf Manual de usuario

Dell

Dell S2340T Touch Manual de usuario

Dell

Dell E2014T Manual de usuario

Dell

Dell C5519Q Manual de usuario

Dell

Dell ST2310 - 23" LCD Monitor Manual de instrucciones

Dell

Dell P2418HT Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Philips

Philips 107C64 Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

LG M1950D-PZ Manual de usuario

Sceptre

Sceptre D40 Manual de usuario

Hunt Electronic

Hunt Electronic HCD-15AH Manual de usuario
