Dell Precision™

Mobile Workstation M20

Quick Reference Guide

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see your online

User’s Guide

. To access your User’s Guide,

(depending upon your operating system) either double-click the

User’s Guide

icon on your desktop or click the

Start

button, click

Help and Support Center

, and click

User and system guides

If you purchased a Dell™ n Series computer, any references in this document to Microsoft

Windows

operating systems are not applicable.

NOTE: Some features may not be available for your computer or in certain countries.

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Dell Precision are trademarks of Dell Inc.; Intel and Pentium are registered trademarks

of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

October 2004 P/N T7623 Rev. A00

Contents 3

Contents

Finding Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setting Up Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . 8

Battery Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Checking the Battery Charge . . . . . . . . . . . . . . . . . . . . . . . . 10

Dell™ QuickSet Battery Meter . . . . . . . . . . . . . . . . . . . . . 10

Microsoft®Windows®Power Meter. . . . . . . . . . . . . . . . . . 11

Charge Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Health Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Low-Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . 12

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Removing a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Storing a Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

About Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Notebook System Software . . . . . . . . . . . . . . . . . . . . . . 19

Lockups and Software Problems . . . . . . . . . . . . . . . . . . . . 20

Running the Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . 22

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4Contents

Dell Precision Mobile Workstation M20 Quick Reference Guide 5

Finding Information

NOTE: Some features may not be available in certain countries

NOTE: Additional information may ship with your computer.

What Are You Looking For? Find It Here

• A diagnostic program for my computer

• Drivers for my computer

• My computer documentation

• My device documentation

• Notebook System Software (NSS)

Drivers and Utilities CD (also known as ResourceCD)

Documentation and drivers are already installed on your

computer. You can use the CD to reinstall drivers, run the

Dell Diagnostics, or access your documentation.

Readme files may be

included on your CD to

provide last-minute

updates about technical

changes to your

computer or advanced

technical-reference

material for technicians

or experienced users.

NOTE: Drivers and documentation updates can be found at

support.dell.com.

NOTE: The Drivers and Utilities CD is optional and may not

ship with your computer.

• Warranty information

• Terms and Conditions (U.S. only)

• Safety instructions

• Regulatory information

• Ergonomics information

• End User License Agreement

Dell™ Product Information Guide

• How to remove and replace parts

• Specifications

• How to configure system settings

• How to troubleshoot and solve problems

User’s Guide

Microsoft®Windows®XP Help and Support Center

Click the

Start

button and click

Help and Support

Click

User’s and system guides

and click

User’s guides

The User’s Guide is also available on the optional

Drivers

and Utilities

6Dell Precision Mobile Workstation M20 Quick Reference Guide

www.dell.com | support.dell.com

• Service Tag and Express Service Code

• Microsoft Windows License Label

Service Tag and Microsoft Windows License

These labels are located on the bottom of your computer.

• Use the Service Tag to

identify your

computer when you

use

support.dell.com

or contact technical

support.

• Enter the Express Service Code to direct your call when

contacting technical support.

• Solutions — Troubleshooting hints and tips, articles

from technicians, online courses, frequently asked

questions

• Community — Online discussion with other Dell

customers

• Upgrades — Upgrade information for components, such

as memory, the hard drive, and the operating system

• Customer Care — Contact information, service call and

order status, warranty, and repair information

• Service and support — Service call status and support

history, service contract, online discussions with

technical support

• Reference — Computer documentation, details on my

computer configuration, product specifications, and

white papers

• Downloads — Certified drivers, patches, and software

updates

• Notebook System Software (NSS)— If you reinstall the

operating system for your computer, you should also

reinstall the NSS utility. NSS provides critical updates

for your operating system and support for Dell™

3.5-inch USB floppy drives, Intel

Pentium

processors, optical drives, and USB devices. NSS is

necessary for correct operation of your Dell computer.

The software automatically detects your computer and

operating system and installs the updates appropriate

for your configuration.

Dell Support Website — support.dell.com

NOTE: Select your region to view the appropriate

support site.

NOTE: Corporate, government, and education customers

can also use the customized Dell Premier Support website

at premier.support.dell.com.The website may not be

available in all regions.

What Are You Looking For? Find It Here

Dell Precision Mobile Workstation M20 Quick Reference Guide 7

• How to use Windows XP

• Documentation for my computer

• Documentation for devices (such as a modem)

Windows Help and Support Center

Click the

Start

button and click

Help and Support

Type a word or phrase that describes your problem and

click the arrow icon.

Click the topic that describes your problem.

Follow the instructions on the screen.

• How to reinstall my operating system

Operating System CD

The operating system is already installed on your

computer. To reinstall your operating system, use the

Operating System CD. See your User’s Guide for

instructions.

After you reinstall your

operating system, use the

Drivers and Utilities CD

to reinstall drivers for the

devices that came with

your computer.

Your operating system

product key label is

located on your

computer.

NOTE: The color of your CD varies based on the operating

system you ordered.

NOTE: The Operating System CD is optional and may not

ship with all computers.

What Are You Looking For? Find It Here

8Dell Precision Mobile Workstation M20 Quick Reference Guide

www.dell.com | support.dell.com

Setting Up Your Computer

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the

Product Information Guide.

Unpack the accessories box.

Set aside the contents of the accessories box, which you will need to complete the setup of

your computer.

The accessories box also contains user documentation and any software or additional

hardware (such as PC Cards, drives, or batteries) that you have ordered.

Connect the AC adapter to the AC adapter connector on the computer and to the electrical

outlet.

Dell Precision Mobile Workstation M20 Quick Reference Guide 9

Open the computer display and press the power button to turn on the computer.

NOTE: Do not connect the computer to the docking device until the computer has been turned on and

shut down at least once.

Battery Performance

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions

located in the Product Information Guide.

NOTE: Batteries for portable computers are covered only during the initial 1-year period of the limited

warranty for your computer. For more information about the Dell warranty for your computer, see the

Product Information Guide or separate paper warranty document that shipped with your computer.

For optimal computer performance and to help preserve BIOS settings, operate your Dell™

portable computer with the main battery installed at all times. Use a battery to run the computer

when it is not connected to an electrical outlet. One battery is supplied as standard equipment in

the battery bay.

NOTE: Battery operating time (the time the battery can hold a charge) decreases over time. Depending

on how often the battery is used and the conditions under which it is used, you may need to purchase a

new battery during the life of your computer.

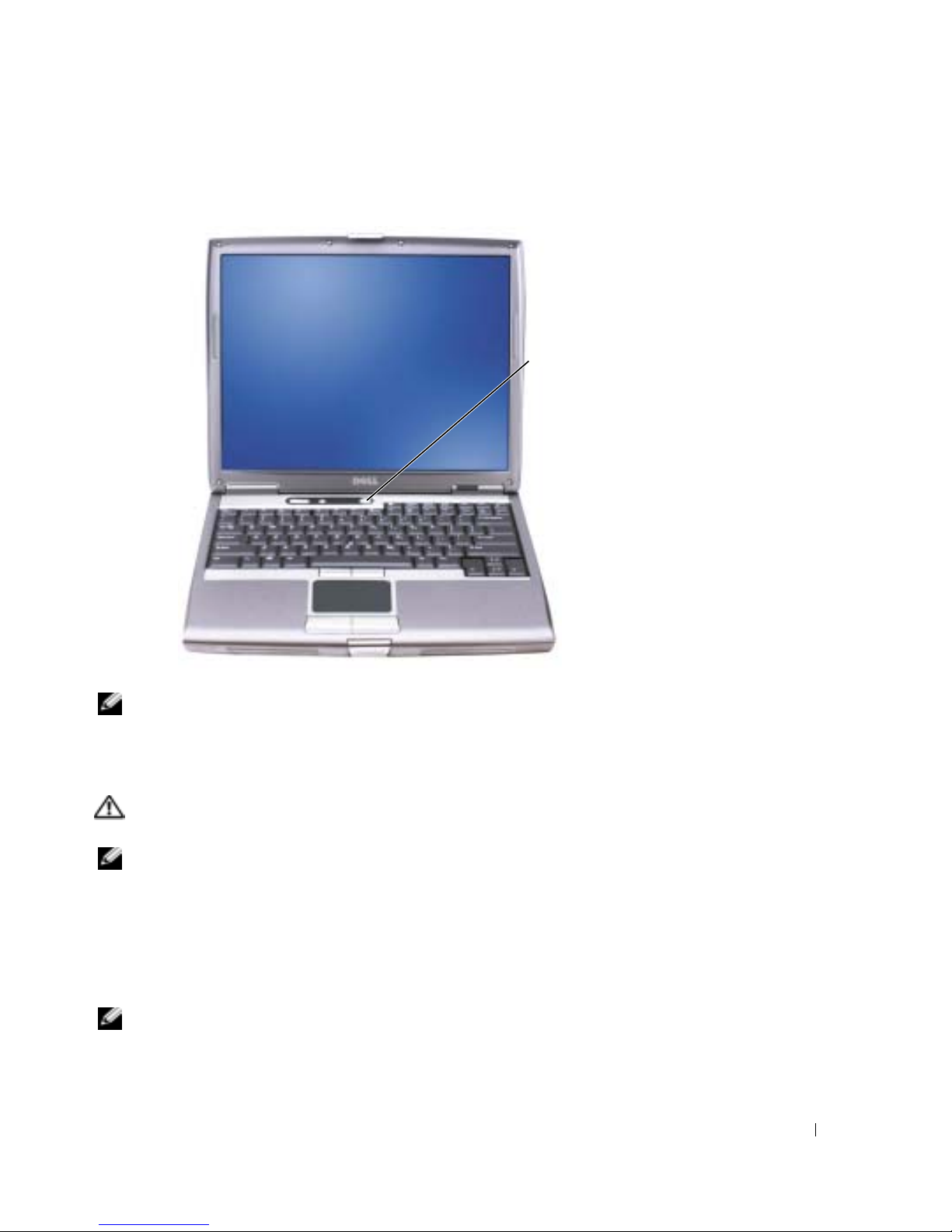

power button

10 Dell Precision Mobile Workstation M20 Quick Reference Guide

www.dell.com | support.dell.com

Battery operating time varies depending on operating conditions. You can install an optional

second battery in the module bay to significantly increase operating time. For more information

about the second battery, see your

User’s Guide

Operating time is significantly reduced when you perform operations including, but not limited to,

the following:

• Using optical drives, such as DVD and CD drives

• Using wireless communications devices, PC Cards, or USB devices

• Using high-brightness display settings, 3D screen savers, or other power-intensive programs

such as 3D games

• Running the computer in maximum performance mode

NOTE: It is recommended that you connect your computer to an electrical outlet when writing to a CD or

DVD.

You can check the battery charge before you insert the battery into the computer. You can also set

power management options to alert you when the battery charge is low.

CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the

battery only with a compatible battery purchased from Dell. The lithium-ion battery is designed to work

with your Dell computer. Do not use a battery from other computers with your computer.

CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a

charge, call your local waste disposal or environmental agency for advice on disposing of a lithium-ion

battery. See "Battery Disposal" in the Product Information Guide.

CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture,

incinerate, disassemble, or expose the battery to temperatures above 65°C (149°F). Keep the battery

away from children. Handle damaged or leaking batteries with extreme care. Damaged batteries may

leak and cause personal injury or equipment damage.

Checking the Battery Charge

The Dell QuickSet Battery Meter, the Microsoft

Windows

Power Meter

window and icon,

the battery charge gauge and health gauge, and the low-battery warning provide information on the

battery charge.

For more information about checking the charge on the second battery, see your

User’s Guide

Dell™ QuickSet Battery Meter

If Dell QuickSet is installed, press <Fn><F8> to display the QuickSet Battery Meter.

The

Battery Meter

window displays status, charge level, and charge completion time for the battery

in your computer.

NOTE: You can use your docking device to charge a computer battery. However, a battery in a docking

device does not power the docking device or computer.

Otros manuales para Precision M20

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Computadora portátil de Dell

Dell

Dell Latitude 3380 Manual de usuario

Dell

Dell Alienware 15 R3 Manual de operación y mantenimiento

Dell

Dell Latitude E5530 Manual de usuario

Dell

Dell Latitude 3120 Manual de usuario

Dell

Dell NOT21281 Manual de operación y mantenimiento

Dell

Dell Inspiron 7590 Manual de usuario

Dell

Dell d400 - Latitude - Pentium M 1.3 GHz Guía del usuario

Dell

Dell Latitude 12 Rugged Extreme - 7204 Manual de usuario

Dell

Dell Latitude 5430 Manual de usuario

Dell

Dell Precision 7750 Manual de usuario

Dell

Dell Vostro 3400 Manual de usuario

Dell

Dell Inspiron 1150 Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 24 5411 All-in-One Manual de operación y mantenimiento

Dell

Dell Latitude E6230 Manual del propietario

Dell

Dell Inspiron 09N1F7A01 Manual de usuario

Dell

Dell Precision 7750 Manual de usuario

Dell

Dell G15 5521 Special Edition Manual de usuario

Dell

Dell Precision M60 Series Guía del usuario

Dell

Dell Latitude E6400 XFR Manual de usuario

Dell

Dell Studio 1435 Manual de usuario

Dell

Dell Inspiron 5420 Manual de usuario

Dell

Dell G3 15 Manual de usuario

Dell

Dell Inspiron 1150 Manual de usuario

Manuales populares de Computadora portátil de otras marcas

HP ze2401xt - Pavilion Notebook PC Manual de usuario

Velocity

Velocity NoteMagix M10 Manual de usuario

Toshiba

Toshiba A105-S2236 Manual de usuario

HP ENVY 17 Manual

Winbook

Winbook LM Manual de usuario

HP PROBOOK 4520S Manual

Sony

Sony VAIO PCG-FX270 Manual de usuario

Sony

Sony VAIO PCG-R505JLK Manual de usuario

Lenovo

Lenovo THINKPAD X32 Manual de usuario

HP Compaq tc4200 Guía de inicio rápido

Toshiba

Toshiba mini NB300 Manual de usuario

Lenovo

Lenovo ThinkPad X201 Tablet Manual

Lenovo

Lenovo THINKPAD X31 Manual

Sony

Sony VGN-T240P VAIO Manual de usuario

Compaq

Compaq Armada E700 Series Manual de usuario

Fujitsu

Fujitsu Lifebook A6230 Manual de usuario

Acer

Acer Aspire ONE 722 Manual de usuario

Toshiba

Toshiba L300-EZ1524 Manual de usuario
