Dell Latitude 5280

Quick Start Guide

Language: ENGLISH

Regulatory Model: P27S

Regulatory Type: P27S001

This document is for regulatory purpose only.

Warnings

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

CAUTION:A CAUTION indicates either potential damage to hardware or loss of

data and tells you how to avoid the problem.

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of

Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned

herein may be trademarks of their respective companies.

Rev: A01

1 | Page This document is for regulatory purpose only.

Setting up Your Computer

This section provides information about setting up your Dell computer.

Before Setting up Your Computer

When positioning your computer, ensure that you allow easy access to a power source,

adequate ventilation, and a level surface to place your computer.

Restricting airflow around your computer may cause it to overheat. To prevent overheating

ensure that you leave at least 10.2 cm (4 inches) at the back of the computer and a minimum of

5.1 cm (2 inches) on all other sides. You should never place your computer in an enclosed

space, such as a cabinet or drawer when it is powered on.

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents.

Do not store your Dell™ computer in a low-airflow environment, such as a closed briefcase,

while it is powered on. Restricting the airflow can damage the computer or cause a fire. The

computer turns on the fan when the computer gets hot. Fan noise is normal and does not

indicate a problem with the fan or the computer.

CAUTION: Placing or stacking heavy or sharp objects on the computer may result in

permanent damage to the computer.

Icons, Status Lights and Indicators

Icons are used to label all connectors and buttons on Dell computers. Check the following table

for a description of those found on your computer.

Power/battery status light – Indicates the power state

and battery status.

AC adapter connector - Connects to the AC adapter to

power the computer and charge the battery when the

computer is not in use.

Battery status light – if the power status light does not

provide information on battery charge status, this light

provides information on charge status.

Wireless switch - used to either turn wireless

communication on or off.

-Or-

used to scan the local area for available wireless signals.

Network connector – Connects your computer to a

network or a broadband device if you are using a wired

network.

VGA connector – Connects to a monitor or projector.

2 | Page This document is for regulatory purpose only.

USB 2.0 connector – Connects to USB devices, such as

a mouse, keyboard, printer, external drive, or MP3 player.

Eject the disc

Audio out/Headphone connector – Connects one pair of

headphones, or sends audio to a powered speaker or

sound system.

Audio in/Microphone connector – Connects to a

microphone or input signal for use with audio programs.

Turn up the volume

Mute the sound

Turn down the volume

Play or pause

Play the next track or chapter

Play the previous track or chapter

HDMI connector

– connects to a monitor, projector, or

television.

eSATA

– connects to external devices such as hard drives

and media bays, this connector also supports standard

USB devices.

ExpressCard slot

– Supports one 34 mm wide

ExpressCard. The computer ships with a plastic blank

installed in the slot.

NOTE

: Blanks protect unused slots from dust and other

particles. Save the blank for use when no ExpressCard is

installed in the slot; blanks from other computers may not

fit your computer.

Nigeria statement

Display Port

- connects to a monitor or projector

Provides a fast and convenient way to view and share

digital photos, music, videos, and documents stored on

digital memory cards.

1394

Firewire – used for high-speed data connections to

external storage and digital media devices, such as still-

3 | Page This document is for regulatory purpose only.

and video cameras.

Line in

– connects to audio devices such as receivers and

MP3 players

Line out

– connects to audio devices such as stereos and

speakers

USB connector

– connects to peripheral devices such as

printers, mice, and keyboards.

Wireless sync

– used to synchronize connections with

wireless input devices such as keyboards and mice (for

select systems only).

DVI connector

– used to connect monitors, projectors, and

televisions.

activity light

– lights when the hard drive is writing or

reading data.

Removing and Replacing a Laptop Computer Battery

If your Dell laptop computer is shipped without the battery, install the battery before your

proceed.

WARNING: Before you begin any of the procedures in this section, follow the safety

instructions that shipped with your computer.

WARNING: Using an incompatible battery may increase the risk of fire or explosion. This

computer should only use a battery purchased from Dell. Do not use batteries from other

computers.

WARNING: Before removing the battery, shut down the computer, and remove external

cables (including the AC adapter).

To install the battery

1. Slide the battery into the battery bay until it clicks into place.

For some computers, this requires that the battery be inserted at a 45-degree angle.

To remove the battery

1. Turn off the computer and turn it over.

4 | Page This document is for regulatory purpose only.

2. Slide the battery release latch or latches to the unlock position until it clicks into

place.

3. Slide the battery out.

Connecting the Power Supply

Computers With External AC Adapters (Notebooks and All-in-One Models)

Connect the AC adapter to the computer and then plug it into an electrical outlet or surge

protector. Be sure to leave your AC adapter connected throughout the setup process to ensure

consistent power for your operating system to complete all configurations, and to charge your

battery.

WARNING: The AC adapter works with electrical outlets worldwide. However, power

connectors and power strips vary among countries. Using an incompatible cable or improperly

connecting the cable to a power strip or electrical outlet may cause fire or permanent damage to

your computer.

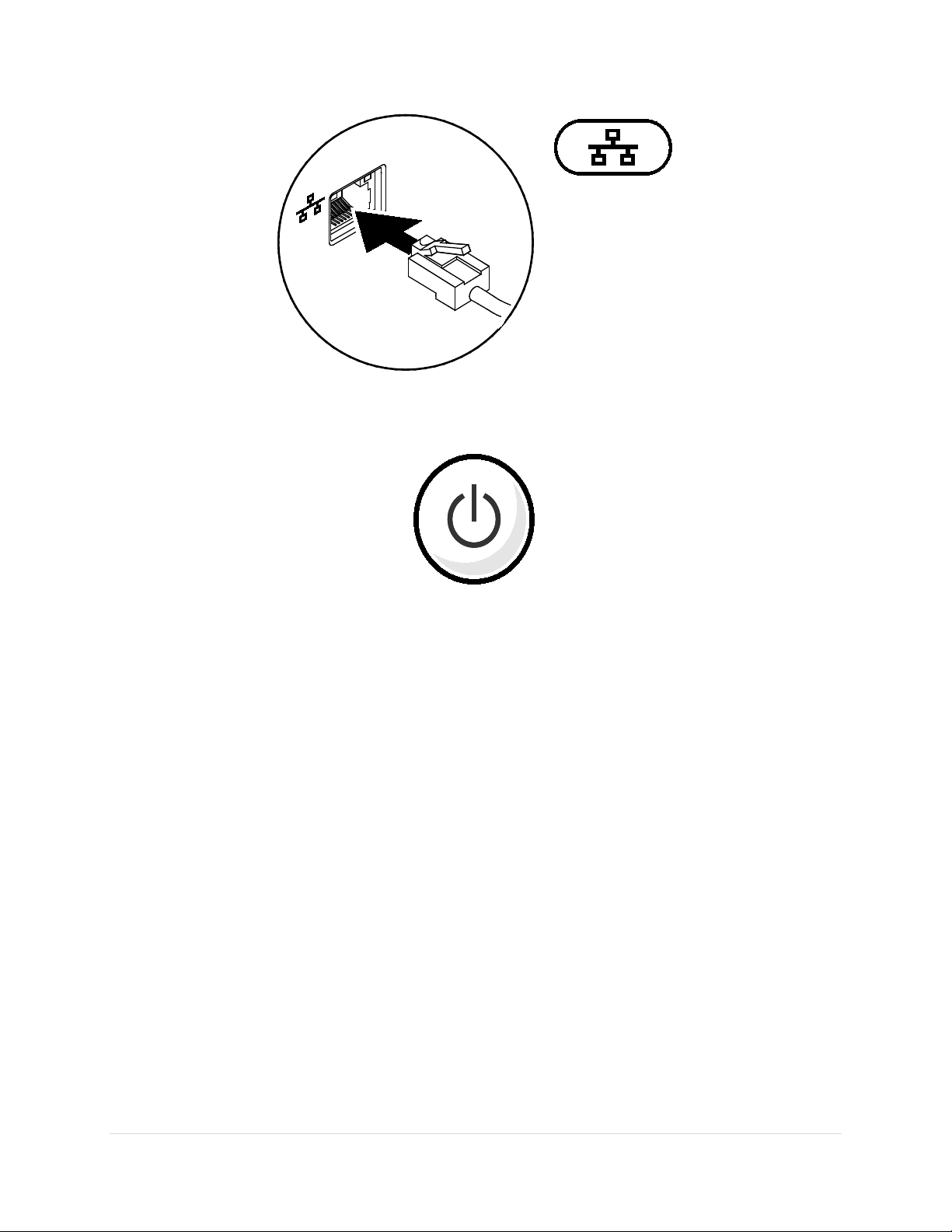

Connect the Network Cable (Optional)

To use a wired network connection, connect the network cable.

5 | Page This document is for regulatory purpose only.

Press the Power Button on the Computer.

6 | Page This document is for regulatory purpose only.

Specifications

This section provides information that you may need when setting up, updating drivers for, and

upgrading your computer.

NOTE: Offerings may vary by region. For more information regarding the configuration of

your computer, go to dell.com/support.

AC Adapter

Type 60 W

Input voltage 100-240 VAC

Input current (maximum) 1.7 A/2.50 A

Input frequency 50-60 Hz

Output current 3.34 A/4.62 A

Rated output voltage 19.5 ± 1 VDC

7 | Page This document is for regulatory purpose only.

Appendix

Information for NOM, or Official Mexican Standard (Only for Mexico)

The following information is provided in the device(s) described in this document in accordance

with the requirements of the Official Mexican Standard (NOM):

Importer:

Dell México S.A. de C.V.

Paseo de la Reforma 2620 – Flat 11°

Col. Lomas Altas

11950 México, D.F.

For details, read the safety information that shipped with your computer.

India RoHS

“This product complies with RoHS requirements as prescribed by E-Waste (Management &

Handling) Rules, by the Ministry of Environment & Forests, Government of India”.

For additional safety best practices information, see the Regulatory Compliance

Homepage at www.dell.com/regulatory_compliance.

8 | Page This document is for regulatory purpose only.

FCC Radiation Exposure Statement

WARNING: The radiated output power of this device is below the FCC radio

frequency exposure limits. Nevertheless, this device should be used in such a

manner that the potential for human contact during normal operation is minimized.

This device has been evaluated for and shown compliant with the FCC RF

Exposure limits under mobile exposure conditions (antennas are greater than 20cm

from a person’s body). This device has also been evaluated for and shown

compliant with the FCC RF exposure limits under portable exposure conditions

(antennas are within 20 cm of a person's body) when installed in certain specific

configurations. Details of the authorized configurations can be found at

https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm by entering the FCC

ID number on the device.

Interference Statement

These devices comply with Part 15 of the FCC Rules. Operation of the devices is subject

to the following two conditions: (1) The devices may not cause harmful interference, and

(2) The devices must accept any interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy. If the equipment is

not installed and used in accordance with the instructions, the equipment may cause

harmful interference to radio communications. There is no guarantee, however, that such

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception (which can be determined by turning

the equipment off and on), the user is encouraged to try to correct the interference by

taking one or more of the following measures:

Relocate this device.

Increase the separation between the device and the receiver.

Connect the device into an outlet on a circuit different from that of other

electronics.

Consult the dealer or an experienced radio technician for help.

NOTE: Dell RFID devices must be installed and used in strict accordance with the

manufacturer’s instructions as described in the user documentation that comes with

the product. Any other installation or use will violate FCC Part 15 regulations.

Modifications not expressly approved by Dell could void your authority to operate

the equipment.
