Dell™Latitude™D410User'sGuide

Model PP06S

Click the links to the left for information on the features and operation of your computer. For information on other documentation included with your computer,

see "Finding Information."

Notes, Notices, and Cautions

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see the Glossary.

IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Dell TravelLite, DellNet, Axim, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, Strike Zone, and

Dell OpenManage are trademarks of Dell Inc.; Intel, Pentium, and Intel SpeedStep are registered trademarks of Intel Corporation; Microsoft, Windows, and Outlook are registered

trademarks of Microsoft Corporation; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc., and is used by Dell under license; ENERGY STAR is a registered trademark

of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model PP06S

December2005P/NW7405Rev.A02

Finding Information

About Your Computer

Using Microsoft®Windows®XP

Dell™QuickSet

Using the Keyboard and Touch Pad

Using the Display

UsingtheDell™D/Bay

Using CDs, DVDs, and Other Multimedia

Using a Battery

Wireless Local Area Network

Using PC Cards

Using Smart Cards

Travelling With Your Computer

Passwords

Solving Problems

Using the Dell Diagnostics

Cleaning Your Computer

Reinstalling Software

Adding and Replacing Parts

Using the System Setup Program

Getting Help

Specifications

Appendix

Alert Standard Format (ASF)

Glossary

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

NOTE: Some features may not be available for your computer or in certain countries.

NOTE: The Drivers and Utilities CD and the Operating System CD are optional and may not ship with your computer.

Back to Contents Page

About Your Computer

Dell™Latitude™D410User'sGuide

Front View

Left View

Right View

Back View

Bottom View

Front View



display latch —Keeps the display closed.



display —For more information about your display, see "Using the Display."



volume control buttons —Press these buttons to adjust the volume.



device status lights

display latch

touch pad

display

track stick/touch pad buttons

volume control buttons

track stick

device status lights

speaker

mute button

power button

keyboard

keyboard and wireless status lights

If the computer is connected to an electrical outlet, the light operates as follows:

¡Solid green: The battery is charging.

¡Flashing green: The battery is almost fully charged.

¡Off: The battery is adequately charged (or external power is not available to charge the battery).

If the computer is running on a battery, the light operates as follows:

¡Off: The battery is adequately charged (or the computer is turned off).

¡Flashing orange: The battery charge is low.

¡Solid orange: The battery charge is critically low.



mute button —Press this button to turn off the volume.



keyboard —The keyboard includes a numeric keypad as well as the Windows logo key. For information on supported keyboard shortcuts, see "Using the

Keyboard and Touch Pad."



touch pad —Provides the functionality of a mouse. See "Using the Keyboard and Touch Pad" for more information.



track stick/touch pad buttons —Provide the functionality of a mouse. See "Using the Keyboard and Touch Pad" for more information.



track stick —Provides the functionality of a mouse. See "Using the Keyboard and Touch Pad" for more information.



speaker —To adjust the volume of the integrated speaker, press the volume control buttons, mute button, or volume-control keyboard shortcuts. For more

information, see "Using the Keyboard and Touch Pad."



power button —Press the power button to turn on the computer or exit a power management mode.

If the computer stops responding, press and hold the power button until the computer turns off completely (which may take several seconds).



keyboard and wireless status lights

Turns on when you turn on the computer and blinks when the computer is in a power management mode.

Turns on when the computer reads or writes data.

NOTICE: To avoid loss of data, never turn off the computer while the light is flashing.

Turns on steadily or blinks to indicate battery charge status.

NOTICE: To avoid losing data, turn off your computer by performing a Microsoft®Windows®operating system shutdown rather than by pressing the

power button.

The green and blue lights located above the keyboard indicate the following:

Left View



security cable slot —Lets you attach a commercially available antitheft device to the computer. For more information, see the instructions included with the

device.

Turns on when wireless devices are enabled.

Turns on when Bluetooth®wireless technology is enabled. To enable or disable Bluetooth wireless technology, press <Fn><F2>.



NOTE: Bluetooth wireless technology is an optional feature on your computer, so the icon turns on only if you ordered Bluetooth wireless

technology with your computer. For more information, see the documentation that came with your Bluetooth wireless technology.

Turns on when the numeric keypad is enabled.

Turns on when the uppercase letter function is enabled.

Turns on when the scroll lock function is enabled.

security cable slot

air vents

D/Bay connector

infrared sensor

USB connector

air vents

NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fans or the computer.

CAUTION: Donotblock,pushobjectsinto,orallowdusttoaccumulateintheairvents.DonotstoreyourDell™computerinalow-airflow

environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot.



D/Bay connector —Connects the computer to the Dell D/Bay.



USB connector



air vents —The computer uses an internal fan to create airflow through the vents, which prevents the computer from overheating.



infrared sensor —Lets you transfer files from your computer to another infrared-compatible device without using cable connections.

When you receive your computer, the sensor is disabled. You can use the system setup program to enable the sensor. For information on transferring data,

see Windows Help, the Help and Support Center, or the documentation that came with your infrared-compatible device.

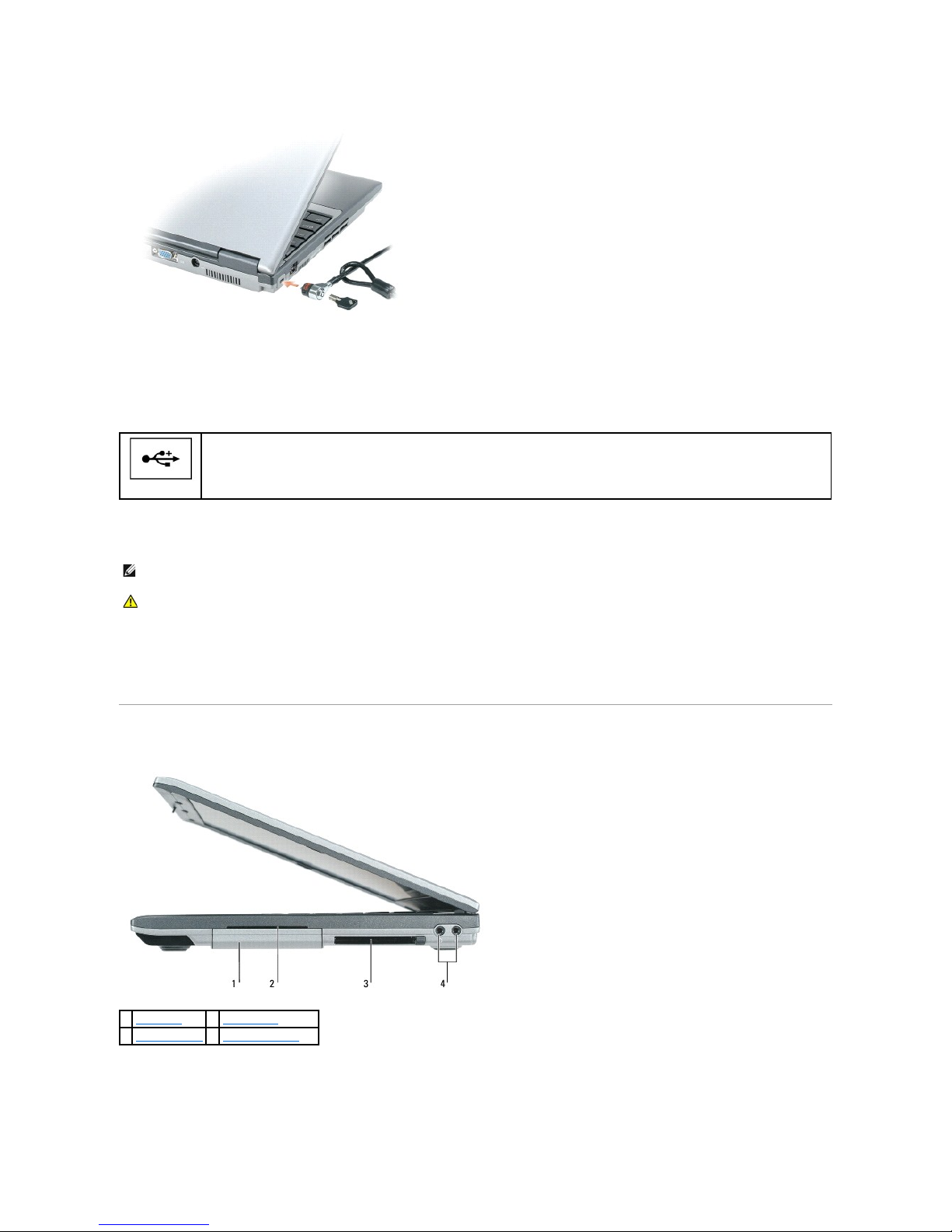

Right View



hard drive —Stores software and data.



Connects USB devices, such as a mouse, keyboard, or printer. You can also connect the optional floppy drive directly to a USB connector

using the optional floppy drive cable.

NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,

such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

hard drive

PC Card slot

smart card slot

audio connectors (2)

smart card slot —Supports one smart card. For more information, see "Using Smart Cards."



PC Card slot —Supports one PC Card, such as a modem or network adapter. The computer ships with a plastic blank installed in the slot. For more

information, see "Using PC Cards."



audio connectors

Back View



network connector (RJ-45)



modem connector (RJ-11)



USB connectors

Attach headphones to the connector.

Attach a microphone to the connector.

CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,

such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

network connector (RJ-45)

video connector

modem connector (RJ-11)

AC adapter connector

USB connectors (2)

air vents

NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the computer, do not plug a telephone line into the

network connector.

Connects the computer to a network. The two lights next to the connector indicate status and activity for wired network connections.

For information on using the network adapter, see the device user's guide supplied with your computer. See "Finding Information."

If you ordered the optional internal modem, connect the telephone line to the modem connector.

For information on using the modem, see the online modem documentation supplied with your computer. See "Finding Information."



video connector



AC adapter connector —Connects an AC adapter to the computer.

The AC adapter converts AC power to the DC power required by the computer. You can connect the AC adapter with your computer turned either on or off.



air vents —The computer uses an internal fan to create airflow through the vents, which prevents the computer from overheating.



Bottom View

Connect USB devices, such as a mouse, keyboard, or printer. You can also connect the optional floppy drive directly to a USB connector

using the optional floppy drive cable.

Connects video devices, such as a monitor.

CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an

incompatible cable or improperly connecting the cable to the power strip or electrical outlet may cause fire or equipment damage.

NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself, and pull firmly but gently to avoid

damaging the cable. When you wrap the AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid damaging the

cable.

NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,

such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.



battery-bay latch releases —Release the battery. See "Using a Battery" for instructions.



battery charge gauge —Provides information on the battery charge. See "Using a Battery" for instructions.



battery —When a battery is installed, you can use the computer without connecting the computer to an electrical outlet. See "Using a Battery."

NOTE: Using batteries in both the Media Base and the computer while the computer is docked in the Media Base increases the battery operating time.



hard drive —Stores software and data.



memory module/coin-cell battery cover —Covers the compartment that contains the memory module(s) and the coin-cell battery. See "Adding and

Replacing Parts."



docking-device connector —Lets you attach your computer to the Media Base or other docking device. See the Dell documentation that came with your

docking device for more information.



fan air vents —The computer uses an internal fan to create airflow through the fan air vents, which prevents the computer from overheating.



Back to Contents Page



battery-bay latch releases (2)

docking-device connector

battery charge gauge

memory module/coin-cell battery cover

battery

fan air vents

hard drive

NOTE: The computer turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.

CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your computer in a low-airflow environment,

such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

Back to Contents Page

Appendix

Dell™Latitude™D410User'sGuide

Macrovision Product Notice

FCC Notices (U.S. Only)

Macrovision Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is

intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is

prohibited.

FCC Notices (U.S. Only)



FCC Class B

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction

manual, may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:



1. This device may not cause harmful interference.



2. This device must accept any interference received, including interference that may cause undesired operation.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be

determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

lReorient the receiving antenna.

lRelocate the system with respect to the receiver.

lMove the system away from the receiver.

lPlug the system into a different outlet so that the system and the receiver are on different branch circuits.

If necessary, consult a representative of Dell Inc. or an experienced radio/television technician for additional suggestions.

The following information is provided on the device or devices covered in this document in compliance with the FCC regulations:

Back to Contents Page



NOTICE: The FCC regulations provide that changes or modifications not expressly approved by Dell Inc. could void your authority to operate this

equipment.

Product name:

Dell™Latitude™D410

Model number:

PP06S

Company name:

Dell Inc.

Worldwide Regulatory Compliance & Environmental Affairs

One Dell Way

Round Rock, TX 78682 USA

512-338-4400

Back to Contents Page

Alert Standard Format (ASF)

Dell™Latitude™D410User'sGuide

Alert Standard Format (ASF) is a Distributed Management Task Force (DMTF) management standard that specifies "pre-operating system" or "operating system

absent" alerting techniques. The standard is designed to generate an alert on potential security and fault conditions when the operating system is in a sleep

state or the system is turned off. ASF is designed to supersede previous operating system-absent alerting technologies.

Your computer supports the following ASF alerts and remote capabilities:

For more information about Dell's ASF implementation, see ASF for Dell Portable Computers and the ASF Administrator's Guide for Dell Portable Computers, which

are available on the Dell Support website at support.dell.com.

Back to Contents Page



Alert



Description

Chassis Intrusion –Physical Security Violation/Chassis Intrusion –Physical

Security Violation Event Cleared

The docking device has been opened and the PCI slot has

been compromised.

Failure to Boot to BIOS

The BIOS did not complete loading upon initiation.

System Password Violation

The system password is invalid (alert occurs after three failed

attempts).

Entity Presence

Periodic heartbeats have been transmitted to verify system

presence.

Otros manuales para Latitude D410

Tabla de contenidos

Otros manuales de Computadora portátil de Dell

Dell

Dell Vostro 5620 Manual de operación y mantenimiento

Dell

Dell P110F Manual de usuario

Dell

Dell P102F001 Manual de usuario

Dell

Dell Inspiron 13 7000 2-in-1 Manual de operación y mantenimiento

Dell

Dell XPS 14 Manual de usuario

Dell

Dell XPS M1710 Manual de usuario

Dell

Dell Latitude 5501 Manual de usuario

Dell

Dell Vostro 1450 Manual de usuario

Dell

Dell Inspiron 3420 Manual de usuario

Dell

Dell Precision M4800 Manual de usuario

Dell

Dell D620/D820 - LATITUDE PRECISION M65 Manual de usuario

Dell

Dell Latitude D830 - Core 2 Duo Laptop Manual de lista de piezas

Dell

Dell D15S Manual de usuario

Dell

Dell Inspiron 14 5000 Series Manual de usuario

Dell

Dell Inspiron 14 3000 Series Manual de usuario

Dell

Dell Latitude 3440 Manual del propietario

Dell

Dell Inspiron 15 3000 Series Manual de usuario

Dell

Dell Inspiron 17 7000 Series Manual de usuario

Dell

Dell Vostro 1310 Manual del propietario

Dell

Dell XPS /Dimension Gen 2 Manual de usuario

Dell

Dell Inspiron 2500 Manual de instrucciones

Dell

Dell Latitude E5470 Manual de usuario

Dell

Dell Inspiron 15 7000 Series Manual de usuario

Dell

Dell Latitude Z Manual de usuario

Manuales populares de Computadora portátil de otras marcas

HP ze2401xt - Pavilion Notebook PC Manual de usuario

Velocity

Velocity NoteMagix M10 Manual de usuario

Toshiba

Toshiba A105-S2236 Manual de usuario

HP ENVY 17 Manual

Winbook

Winbook LM Manual de usuario

HP PROBOOK 4520S Manual

Sony

Sony VAIO PCG-FX270 Manual de usuario

Sony

Sony VAIO PCG-R505JLK Manual de usuario

Lenovo

Lenovo THINKPAD X32 Manual de usuario

HP Compaq tc4200 Guía de inicio rápido

Toshiba

Toshiba mini NB300 Manual de usuario

Lenovo

Lenovo ThinkPad X201 Tablet Manual

Lenovo

Lenovo THINKPAD X31 Manual

Sony

Sony VGN-T240P VAIO Manual de usuario

Compaq

Compaq Armada E700 Series Manual de usuario

Fujitsu

Fujitsu Lifebook A6230 Manual de usuario

Acer

Acer Aspire ONE 722 Manual de usuario

Toshiba

Toshiba L300-EZ1524 Manual de usuario
