Dell™XPS™M1710ServiceManual



Notes, Notices, and Cautions

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see "Glossary" in the Owner's Manual.

IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.

©2006DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and XPS are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation; Bluetooth is a

registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model PP05XB

April 2006 Rev. A00

Before You Begin

Subwoofer

Optical Drive

USB Port Board

Hard Drive

Processor Thermal-Cooling Assembly

Memory Module(s)

Processor Module

Modem

Video Card/Thermal-Cooling Assembly

Mini-Card

System Fan(s)

Internal Card With Bluetooth®Wireless Technology

ExpressCard Cage

Hinge Cover

Smart Card Reader

Keyboard

System Board

Display

Battery Latch Assembly

Palm Rest

Flashing the BIOS

Coin-Cell Battery

Pin Assignments for I/O Connectors

Speakers



NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Back to Contents Page

Battery Latch Assembly

Dell™XPS™M1710ServiceManual

Removing the Battery Latch Assembly

Replacing the Battery Latch Assembly

Removing the Battery Latch Assembly



1. Follow the instructions in Before Working Inside Your Computer.



2. Remove the hinge cover (see Removing the Hinge Cover).



3. Remove the keyboard (see Keyboard).



4. Remove the display assembly (see Removing the Display Assembly).



5. Remove the palm rest (see Removing the Palm Rest).



6. Remove the system board (see Removing the System Board).



7. Removetheharddrivebay/ExpressCardcageassemblybyremovingthetworemainingM2x3-mm screws, and lifting out the bay.



8. Remove the M2 x 2.5-mm screw in the battery latch assembly.

When you remove the screw, the battery latch release on the bottom of the computer will also be released.

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTE: You can remove the hard drive bay without removing the ExpressCard cage from the hard drive bay.

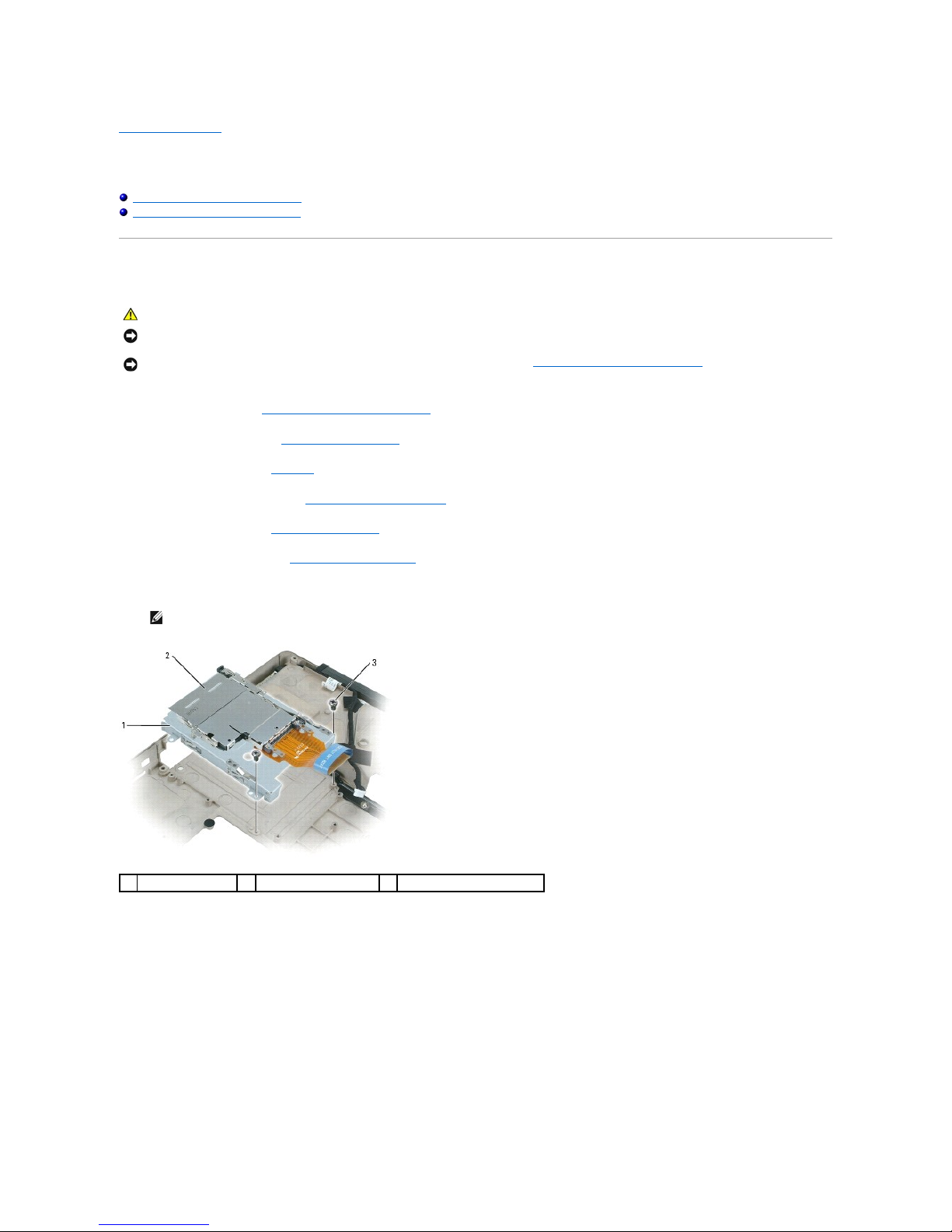

hard drive bay

ExpressCard cage

M2 x 3-mm screws (2)



9. Remove the spring from the hook on the computer base by lifting it up and away with a screwdriver or a plastic scribe.



10. Remove the plastic battery-latch assembly by twisting the assembly slightly and lifting it out of the channel and away from the computer base.

Replacing the Battery Latch Assembly



1. Insert the latch assembly into the channel on the computer base, and press it into place.



2. Using a small screwdriver, hook the spring over the hook on the computer base.



3. Place the battery latch release under the computer base, line it up with the hole in the base, and then replace the M2 x 2.5-mm screw in the assembly.

Ensure that the newly installed latch moves smoothly and freely when pushed and released.



4. Replace the hard drive bay and reinsert the two M2 x 3-mm screws.



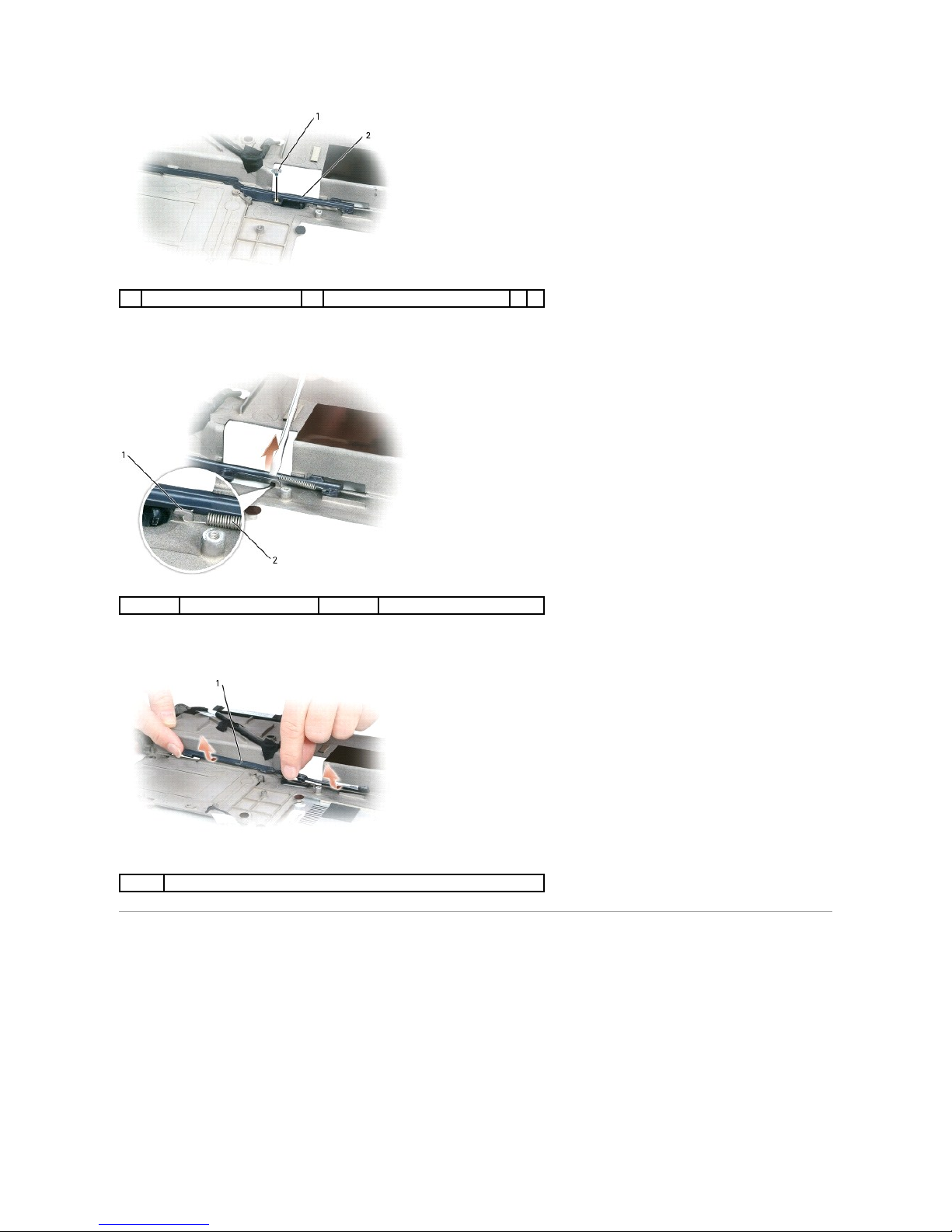

M2 x 2.5-mm screw

battery latch assembly



hook

spring

battery latch assembly



5. Replace the system board and the four M2.5 x 5 screws.



6. Replace in reverse order the other components that you removed in Removing the Battery Latch Assembly.

Back to Contents Page



Back to Contents Page

Before You Begin

Dell™XPS™M1710ServiceManual

Recommended Tools

Turning Off Your Computer

Before Working Inside Your Computer

This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the

following conditions exist:

lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.

lYouhavereadthesafetyinformationintheDell™Product Information Guide.

lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.

Recommended Tools

The procedures in this document may require the following tools:

lSmall flat-blade screwdriver

lPhillips screwdriver

lSmall plastic scribe

lFlash BIOS update program CD

Turning Off Your Computer



1. Shut down the operating system:

Save and close any open files, exit any open programs, and click Start®Shut Down®Shut down.

The computer turns off after the operating system shutdown process finishes.



2. Ensure that the computer and any attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut

down your operating system, press and hold the power button for 4 seconds.

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help ensure your own personal safety.



1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.



2. Turn off your computer (see Turning Off Your Computer).



NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off your computer.

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

NOTICE: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal

mounting bracket. Hold a component such as a processor by its edges, not by its pins.

NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not

covered by your warranty.

NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in

reverse order.

NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself. Some cables have a connector with

locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep

them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and

aligned.

NOTICE: To help prevent damage to the computer, perform the following steps before you begin working inside the computer.

NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network device.



3. Disconnect any telephone or network cables from the computer.



4. Disconnect your computer and all attached devices from their electrical outlets.



5. Close the display and turn the computer upside down on a flat work surface.



6. Slide and hold the battery-bay latch release on the bottom of the computer and remove the battery from the bay.



7. Turn the computer top-side up.

Back to Contents Page



NOTICE: To help prevent damage to the system board, remove the main battery before working inside the computer.

battery-bay latch release

battery

Back to Contents Page

Internal Card With Bluetooth®Wireless Technology

Dell™XPS™M1710ServiceManual



1. Follow the instructions in Before Working Inside Your Computer.



2. Remove the M2.5 x 8-mm screw and remove the card cover from the computer.



3. Pull the card out of the compartment so that you can disconnect the card from its cable and remove it from the computer.

Back to Contents Page



CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTE: If you ordered an internal card with Bluetooth wireless technology with your computer, the card is already installed.

card connector

internal card with Bluetooth wireless technology

card door

M2.5 x 8-mm screw



Back to Contents Page

ExpressCard Cage

Dell™XPS™M1710ServiceManual



1. Follow the instructions in Before Working Inside Your Computer.



2. Remove the hard drive (see Removing the Hard Drive).



3. Remove the optical drive (see Optical Drive).



4. Remove the hinge cover (see Removing the Hinge Cover).



5. Remove the keyboard (see Keyboard).



6. Remove the display assembly (see Removing the Display Assembly).



7. Remove the palm rest (see Removing the Palm Rest).



8. Disconnect the ExpressCard connector from the system board.



9. Remove the four M2 x 3-mm screws that attach the ExpressCard cage to the top of the hard drive bay.

Back to Contents Page



CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

NOTE: You can remove the hard drive bay without removing the ExpressCard cage. The only reason for removing the ExpressCard Cage from the hard

drive bay is if you are replacing an existing ExpressCard cage or hard drive bay.

hard drive bay

ExpressCard cage

M2 x 3-mm screws (4)

ExpressCard connector



Back to Contents Page

Mini-Card

Dell™XPS™M1710ServiceManual



1. Follow the procedures in Before Working Inside Your Computer.



2. Turn the computer upside down and loosen the captive screws from the Mini-Card cover.



3. Place your finger under the cover at the indentation, and lift the cover to remove it.



4. If a Mini-Card is not already installed, go to step 5. If you are replacing a Mini-Card, remove the existing card:

a. Disconnect the antenna cables from the Mini-Card.

b. Release the Mini-Card by pushing the metal securing clips toward the back of the computer until the card pops up slightly.

c. Lift the Mini-Card out of its connector.

CAUTION: Before you begin the following procedure, follow the safety instructions in the Product Information Guide.

CAUTION: Only products approved for use in your portable computer may be installed.

NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such

as the back panel) on the computer.

NOTICE: To prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the

computer.

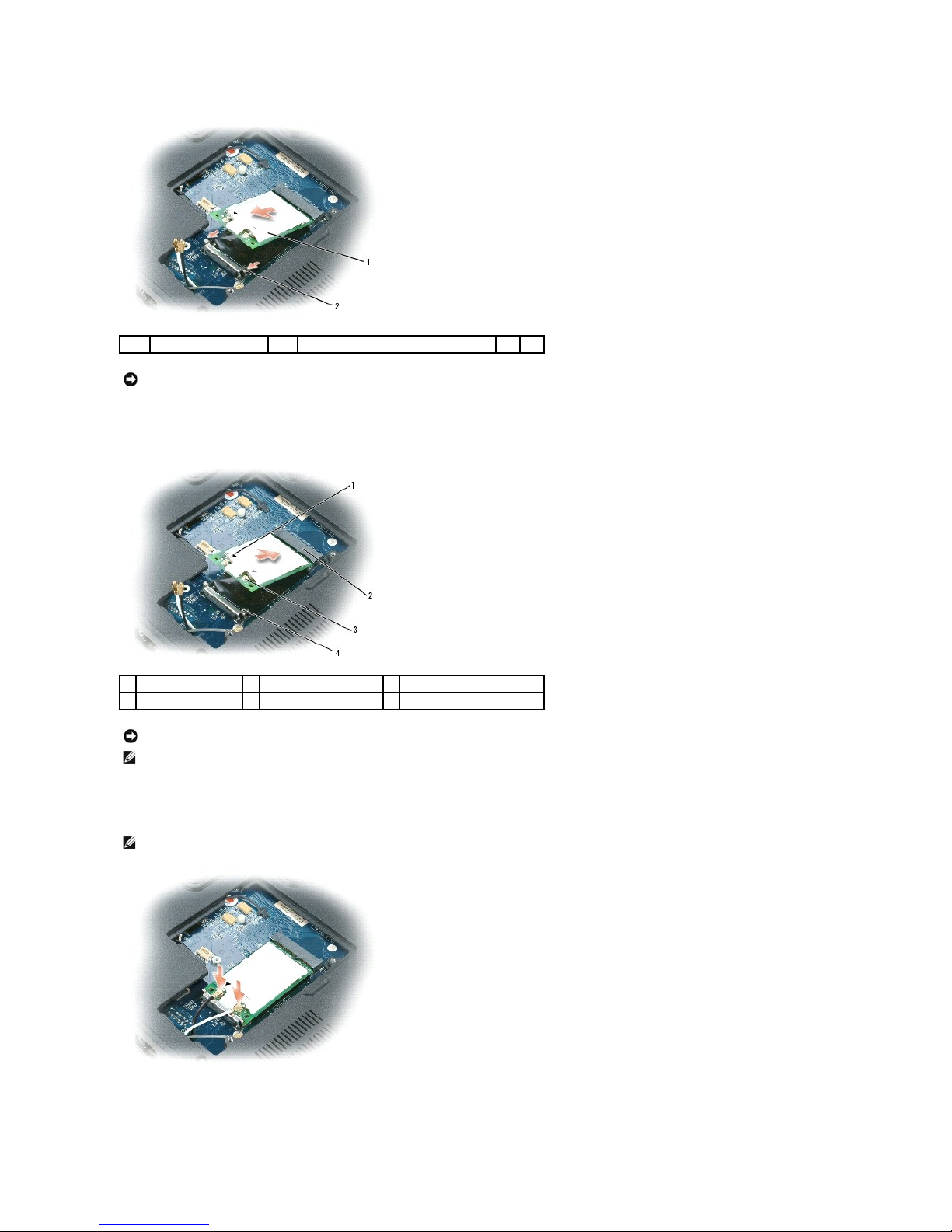

antenna connectors (2)

Mini-Card

Mini-Card connector



5. Install the replacement Mini-Card:

a. Align the Mini-Card with the connector at a 45-degree angle, and press the Mini-Card down into the securing clips until the card clicks into place.

b. Connect the antenna cables to the antenna connectors on the Mini-Card by matching the color of the cable to the color of the triangle beside the

connector. Connect the main antenna cable (white) to the antenna connector with the white triangle. Connect the auxiliary antenna cable (black)

to the antenna connector with the black triangle.



6. Replace the Mini-Card cover.

Mini-Card

securing clips (2)



NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the card.

triangles (2)

Mini-Card connector

antenna connectors (2)

securing clips (2)



NOTICE: To avoid damaging the Mini-Card, never place cables under the card.

NOTE: If you are installing a Mini-Card for the first time, you will find a clear plastic protective sleeve on each antenna cable connector. Before you

connect the antenna cables to the Mini-Card, slide the sleeves off of the cable connectors.

NOTE: If your computer has a gray cable, connect it to the connector with the gray triangle, if one is available on your card.
