Dell Precision T3610 Manual del propietario

Dell Precision Workstation T3610/T5610/T7610

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

T3610/T5610 — Front and Back View

Figure 1. Front and Back View of T3610/T5610

1. optical-drive

2. optical-drive eject button

3. optical-drive (optional)

4. optical-drive eject button (optional)

5. USB 3.0 connector

6. drive-activity light

7. power button, power light

8. microphone connector

9. headphone connector

10. diagnostic lights (4)

11. USB 2.0 connectors (3)

12. back panel

13. active expansion card slots (6)

14. blank slot

15. security cable slot

16. padlock ring

17. power connector

18. power supply unit (PSU) release latch

Regulatory Model: D01T, D02X

Regulatory Type: D01T004, D01T003, D02X002

2013- 05

T3610/T5610 — Back Panel

Figure 2. Back Panel View of T3610/T5610

1. line-out connector

2. network link integrity light

3. network adapter connector

4. network activity light

5. PS2/mouse connector

6. USB 3.0 connector

7. USB 2.0 connector

8. line-in/microphone connector

9. serial connector

10. USB 2.0 connectors (2)

11. PS/2 keyboard connector

12. USB 3.0 connectors (2)

T7610 — Front and Back View

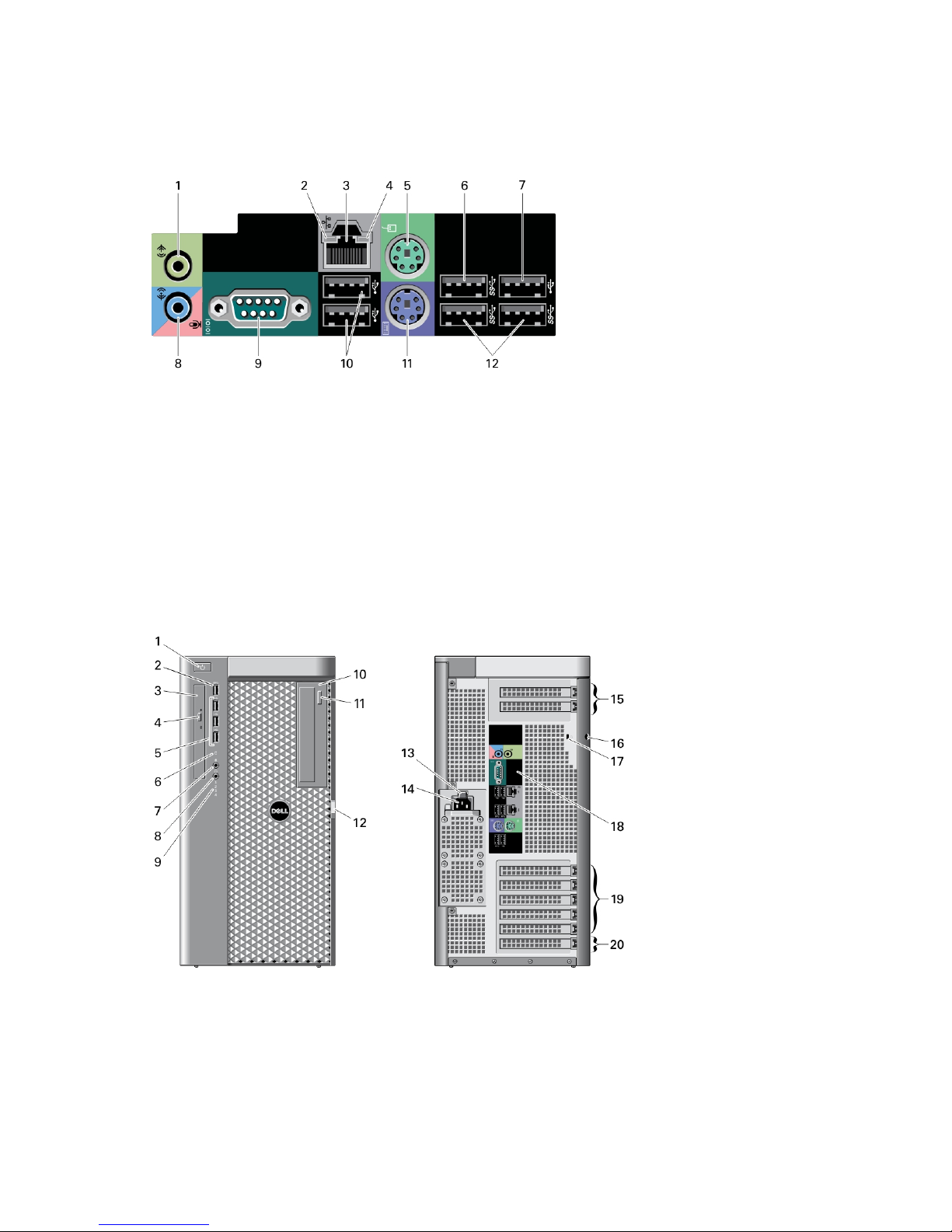

Figure 3. Front and Back View of T7610

1. power button, power light 2. USB 3.0 connector

3. optical drive

4. optical-drive eject button

5. USB 2.0 connectors (3)

6. hard-drive activity light

7. microphone connector

8. headphone connector

9. diagnostic lights (4)

10. optical-drive (optional)

11. optical-drive eject button (optional)

12. hard drive access cover-release latch

13. power supply unit (PSU) release latch

14. power connector

15. expansion card slots (2)

16. padlock ring

17. security cable slot

18. back panel

19. active expansion card slots (5)

20. blank slot

NOTE: The PCIe expansion slots (#15) are only active when a second CPU is installed.

T7610 — Back Panel

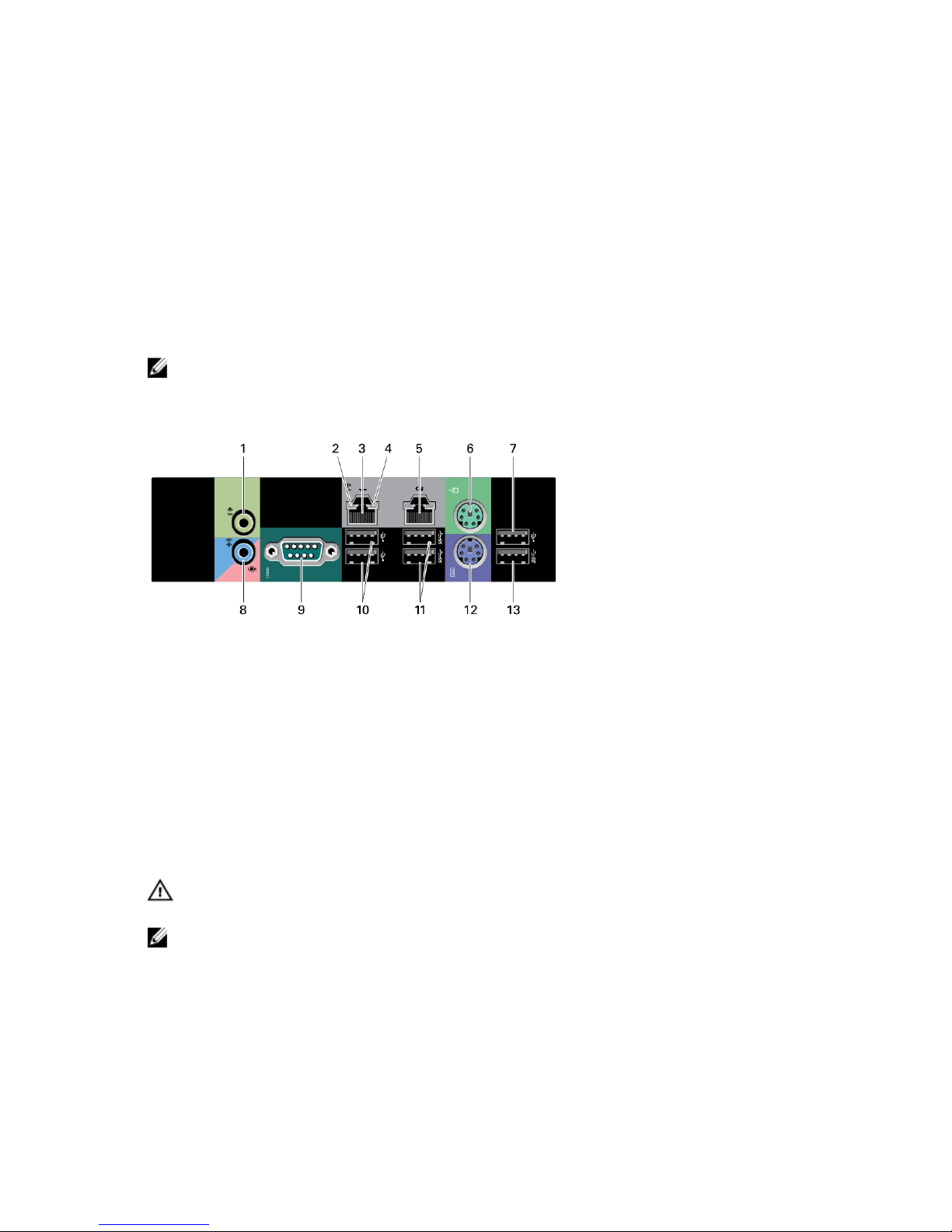

Figure 4. Back Panel View

1. line-out connector

2. network link integrity light

3. network adapter connectors

4. network activity light

5. network adapter connectors

6. PS/2 mouse connector

7. USB 2.0 connector

8. line-in/microphone connector

9. serial connector

10. USB 2.0 connectors (2)

11. USB 3.0 connectors (2)

12. PS/2 keyboard connector

13. USB 3.0 connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with

your computer. For additional best practices information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order them.

1. Connect the network cable(s) (optional).

Figure 5. Network Connection

2. Connect the keyboard or mouse (optional).

Figure 6. Keyboard and Mouse Connection

3. Connect the monitor cable (optional).

Figure 7. Monitor Connection

4. Connect the power cable(s).

Figure 8. Power Connection

5. Press the power buttons on the monitor (optional) and the computer.

Figure 9. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your

computer. For more information regarding the configuration of your computer, click Start → Help and Support and

select the option to view information about your computer.

Power

Coin-cell battery 3 V CR2032 lithium coin-cell

Voltage 100 VAC to 240 VAC

Wattage

T3610 • 685 / 425W (input voltage of 100 VAC to 240 VAC)

T5610 • 825 / 685W (input voltage of 100 VAC to 240 VAC)

T7610 • 1000 W (input voltage 100 VAC to 107 VAC)

• 1100 W (input voltage 108 VAC to 180 VAC)

• 1300 W (input voltage 181 VAC to 240 VAC)

Maximum heat dissipation

1300 W 4113.00 BTU/hr

825 W 3086.60 BTU/hr

685 W 2337.22 BTU/hr

425 W 1450.10 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

T3610/T5610

Height 414.00 mm (16.30 inches) with feet – 416.90 mm (16.41 inches)

Width 172.60 mm (6.79 inches) with feet – 175.50 mm (6.91 inches)

Depth 471.00 mm (18.54 inches)

Weight (minimum) 13.50 kg (29.80 lb)

Weight (minimum) 12.40 kg (27.40 lb)

T7610

Height 430.50 mm (16.95 inches) with feet – 433.40 mm (17.06 inches)

Width 216.00 mm (8.51 inches)

Depth 525.00 mm (20.67 inches)

Physical

Weight (minimum) 16.70 kg (36.80 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in compliance with the requirements of

the official Mexican standards (NOM).

Voltaje de alimentación 100 V CA – 240 V CA

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico

D02X 12,00 A ~ 6,00 A

D01T 6,00 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at www.dell.com/support/manuals

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,ExpressCharge™, Latitude™, Latitude ON™,

OptiPlex™, Vostro™, and Wi-Fi Catcher™are trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®

are registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a registered trademark and

AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™, ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro

Devices, Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are either

trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Blu-ray Disc™is a trademark

owned by the Blu-ray Disc Association (BDA) and licensed for use on discs and players. The Bluetooth®word mark is a registered

trademark and owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is a registered

trademark of Wireless Ethernet Compatibility Alliance, Inc.
