Degelman STRAWMASTER PRO 80 Manual de programación

OPERATOR & PARTS

MANUAL

DEGELMAN INDUSTRIES LTD.

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

STRAWMASTER PRO

80’, 100’ & 120’

Serial Numbers: SM-7557 and up

142646 v2.2

1) Remove Transport Locks from the 2 Endwheel locations

and all Wing Beam connections (4-80’ or 8-100’/120’).

2) Slowly Back-up Strawmaster Assembly while extending

the Endwheel steering cylinder on only one wing to

spread the wing partially open to a minimum of 45°.

IMPORTANT: To avoid contact of harrow sections

between the wings while unfolding.

3) When the rst wing has been unfolded a minimum of

45° or more (up to 90°), you can start extending the

Endwheel steering cylinder on the second wing.

Note: Ensure there is plenty of room behind and to the

sides of the Strawmaster before backing into eld position.

Important: To avoid contact

or damage, open only one wing a

minimum of 45°(to 90°) before

starting to open the second wing.

Connect Hydraulics

Backing Into Field Position

4) When the autofold swing arms are close to closing you can

activate the endwheel cylinder circuit again to open the

latch clamp.

5) When the swing arms are in position, this circuit can be

activated again (fully extended) to close the clamps.

Note: If Latches have been left in the down position, the Swing

Arms can also be engaged by allowing the Swing Arms to ride

into the Latches and “click” into engagement.

Caution:Lock hydraulic functions for both wing circuits before

working in eld to avoid accidental operation while in use.

6) Lower the Harrow Sections down fully into eld position.

Adjustment Settings - (refer to section “C”)

7) Adjust settings for light or aggressive harrowing.

8) Adjust Tine Angle as needed.

9) Adjust Parallel Angle as needed.

HARROW LIFT CIRCUIT... Harrow Lift Cylinders

LEFT WING CIRCUIT........ Endwheel & Left Latch

RIGHT WING CIRCUIT...... Endwheel & Right Latch

Caution: Before working in eld, lock the function for both the

Left and Right Wing Circuits to avoid accidental operation.

142647 v1.1

HYDRAULIC JACK CIRCUIT...... Jack Cylinder

QUICK-START GUIDE*

for STRAWMASTER PRO

For Models with Serial Numbers 7557 and up.

* Refer to operators manual for complete safety and operation info.

WARRANTY

REMEMBER! You must complete Product

Registration to be eligible for Warranty.

1) Raise the Harrow Sections up fully into transport position.

2) Activate the endwheel cylinder circuit to open the latch clamp on only one wing.

3) Drive forward until wing trails back approximately 45°.

4) Activate the second endwheel cylinder circuit to open the latch clamp on the opposite wing.

5) Drive forward slowly until both wings trail behind the center frame. Ensure end wheel cylinders are fully extended.

IMPORTANT: When positioning wings, do not drive quickly or the wings may collide with each other.

6) Install the Transport Locks on the 2 Endwheel locations and all Wing Beam connections (4-80’ or 8-100’/120’).

7) Ensure lights are working and SMV sign is clean. Follow all local transport laws when transporting.

DMoving Into Transport Position

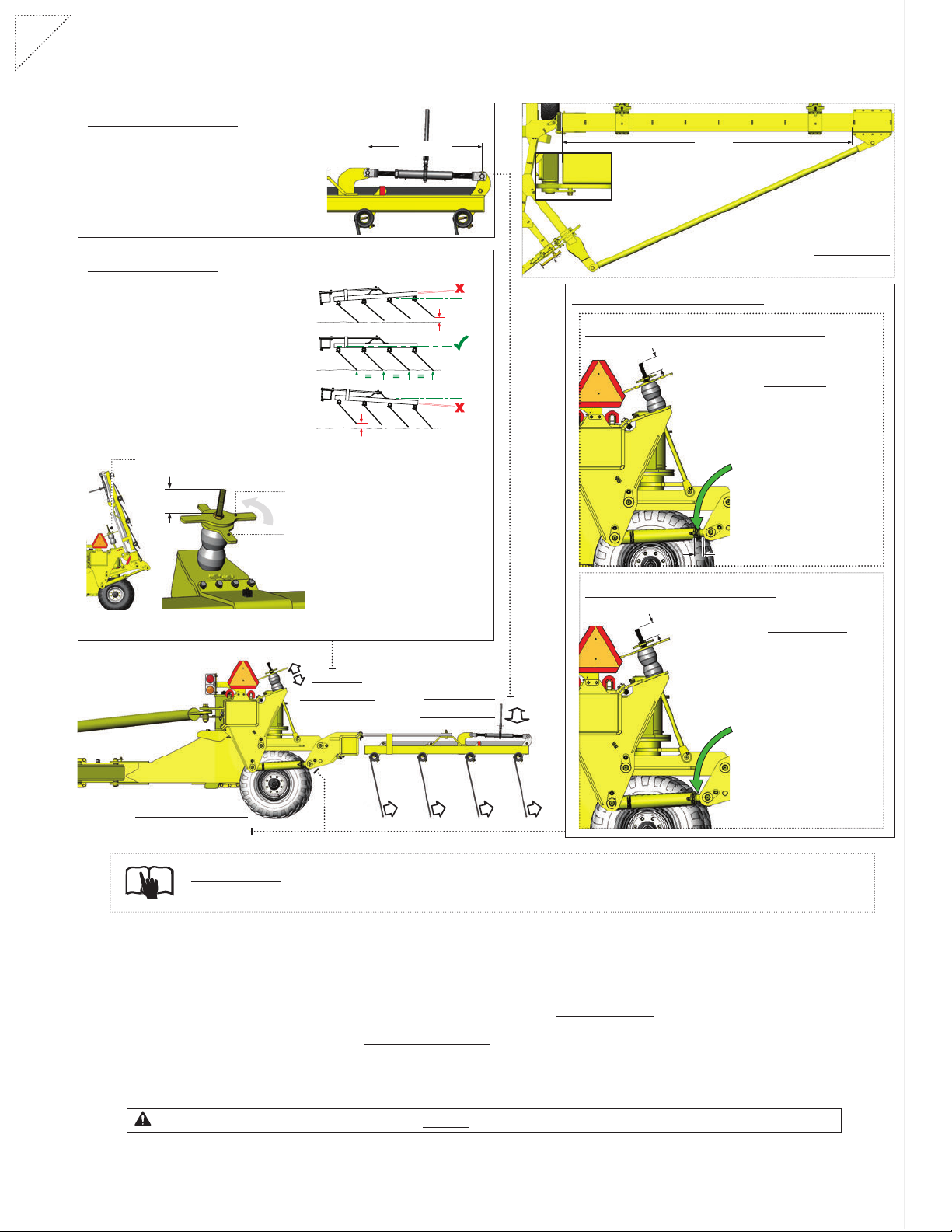

CSetting Tine Angle, Pressure & Frame

Parallel

Adjustment Tine Angle

Adjustment

Parallel Adjustment

2 - Loosen top Jam nut arm

to allow adjustment.

4 - Re-tighten top Jam nut arm.

3 - Adjust bottom arm as needed.

1 - Lift harrow sections to relieve tension on springs.

(NOTE: A suggested starting distance, from top of

rod to top of lock nut is 5” for Light harrowing or

4” for Agressive harrowing. Increasing this

distance will raise front of the harrow

section, decreasing will lower it.)

For initial setup and each time

after you make adjustments

to the harrow tine angles, you

should check and ensure that

the harrow frame sections are

running parallel to the ground.

(Check that the front rows and back

rows are applying equal pressure)

298”

(NOTE: If end of wing beam appears to

be trailing back, conﬁrm that this

dimension hasn’t moved.)

(NOTE: Suggested starting

setting distance is 27-1/2”

pin to pin) 27-1/2”

Tine Angle Adjustment

There are no standard angles

for running the tines, the

operator may adjust the tine

angles as needed to achieve

desired results.

• Parallel Adjustment

setting should be set

to 4”.

• Fully close harrow

cylinders, then slowly

open until 1-1/2” of

rod is exposed.

Hydraulic Lock

Cylinders

Aggressive Harrowing Setting

• Parallel Adjustment

setting should be set

to 5”.

• The harrow cylinders

should be set to oat

position.

Cylinders in

Float Position

Light Harrowing Setting

Harrow Pressure Adjustment

Harrow Frame

Support Arm Setting

Harrow Pressure

Adjustment

4”or 5”

1-1/2”

5”

4”

• Check for missing, worn or damaged parts.

• Working points & pins

Maintenance

(Check Machine Daily)

• Hydraulic Connections & Hoses

• Hubs & Spindles

• Tire Pressure: 41 PSI (283 kPa)

* Refer to operators manual for complete safety and operation info.

IMPORTANT:

READ MANUAL

DEGELMAN INDUSTRIES LTD.

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

* Reference Sheet Quick-Start Guide

OPERATORS SECTION - TABLE OF CONTENTS

Introduction 1

Safety 2

Operation 4

Pre-Operation Checklist 5

Hook-Up 6

Transport to Field Position 7

Field to Transport Position 8

Adjustments 9

Service & Maintenance

Maintenance Checklist & Speciﬁcations 12

Repair - Hyd Cylinder Repair 15

Repair - Pressed Bushing 16

Repair - Wheel Hub 17

Repair - Tine Replacement 18

Decal Location Overview 19

Troubleshooting 20

PARTS SECTION - TABLE OF CONTENTS

Part Assemblies & Component - Overview 21

Hitch Pole Frame Components 17

Wing Frame Beam Components 24

Link Arm Components 25

End Wheel Components 26

Wing Connection & Harrow Sections 27

Hydraulic Routing

Hydraulic Routing - Latch & Steering 28

Hydraulic Routing - Depth & Lift 29

Hydraulic Routing - Jack 30

Electrical Layout & Light Components 31

Warranty 32
