DEFA Solid 712800 Manual de usuario

EV Charging Station

(EN) User Manual

iii defa.com

Table of Contents

Description......................................................................................................... 4

Safety information............................................................................................... 5

Main parts.......................................................................................................... 8

Charge the vehicle............................................................................................... 9

Display symbols on the charging unit..................................................................... 12

Set the required charging level.............................................................................. 14

Store and protect................................................................................................ 15

Maintenance and care.......................................................................................... 16

Error detection and solutions................................................................................ 17

Technical specification......................................................................................... 19

Contact information ............................................................................................ 20

defa.com 4

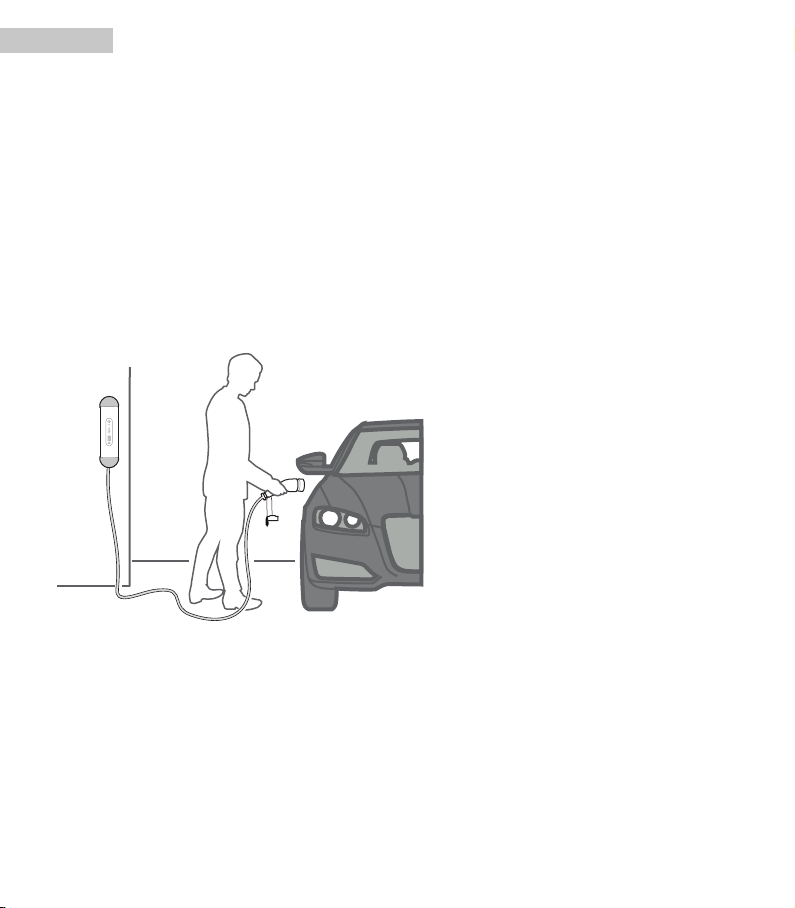

Description

The DEFA Solid EV Charger is a premium charging station for electric vehicles and plug-in

hybrids.

The DEFA Solid EV Charger has been created with the user in mind. Unique features, unmatched

user friendliness, and extreme durability characterizes the DEFA Solid EV Charger.

• Efficient cable management: Cable guides and clip keep the cable tidy.

• Robust and durable: Aluminum housing ensures a long product life, even in rough conditions.

• Easy to wind: The markets most flexible cable, even in temperatures down to -40°C.

• User-friendly: One-button interface and intuitive display.

• Power Adjustment: Manually reduces current to protect main fuse when necessary.

5 defa.com

Safety information

Important! Read this document before using the device. Failure to follow any of the instructions

or warnings can result in material damage or personal injury.

Important! If the device fails to behave according to instructions, immediately contact an

electrician or support, see chapter Contact information.

Important! The charging station must be installed, uninstalled or repaired by a licensed

electrician. These actions must be executed in accordance with national and local regulations.

DANGERSections marked with this symbol draw attention to electrical voltages that

represent a danger to life and limb. Actions contrary to these safety notices may lead to

severe or fatal injury. Actions contrary to these safety notices must not be carried out

under any circumstances.

WARNINGSections marked with this symbol draw attention to additional hazards that

may lead to damage to the cable itself or to other electrical devices. Actions marked

with this symbol must be carried out with special care.

NOTICESections marked with this symbol draw attention to additional important

information and special features that are necessary for the reliable operation of the

device. Actions marked with this symbol should be carried out as required.

Danger

Do not use if the

outer shell has

been damaged.

Do not use the

charging cable if it

is defective or ap-

pears cracked,

broken or other-

wise damaged.

Do not use ad-

apters or exten-

sion cords.

Physical repairs

must be executed

by a licensed elec-

trician.

Changes to the

settings or the

power connections

must be executed

by a licensed elec-

trician.

defa.com 6

Warning



The product is de-

signed only for Mode

3-charging of vehicles.

Do not use it for any

other purpose.

Do not allow the cable

to be under strain dur-

ing charging.

Do not allow water to

enter the charging port

while charging.

Keep the plug and

charging station away

from water. Do not ex-

pose to a direct jet, or

splashes of water.

Handling

DANGEREnsure that the cable is never run over by a vehicle.

Handle the charger with care and do not subject it to strong force or impact. Do not pull, twist,

tangle, drag, or step on the cable.

Always hold the cable by the handle when pulling it. Do not pull the cable itself.

7 defa.com

Storing

See chapter Store and protect for information about how to coil the cable correctly.

• Always store with the cable coiled. Do not leave the cable on the ground after usage.

• Attach the plug cap to protect the vehicle plug when the product is not in use.

• Use the cable clip to coil the cable for when the product is not in use.

defa.com 8

Main parts

Charging station

A. Charging cable

B. Charging unit

C. Cable clip

D. Plug cap

E. Vehicle plug

F. Wall bracket

Display view

a. Power Input Indica-

tion

b. Select Button

c. Charger Status Indic-

ation

d.Vehicle Connection

Indication

9 defa.com

Charge the vehicle

NOTICEPlease read the charging instructions in the vehicle's manual before using the

charging station.

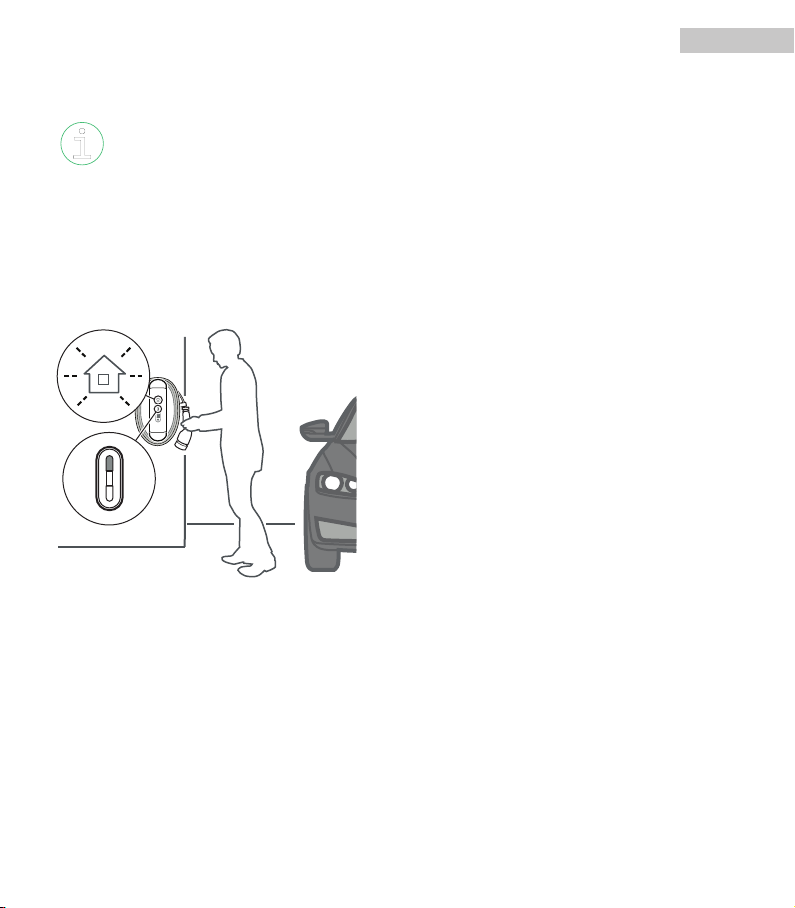

Plug in

1. Ensure that the charging station is turned on (Power Input Indication is lit).

– In case the charging station is turned off, refer to the section Turn the charger on/off.

2. Ensure that the charging station is set to the desired level (displayed by Charger Status

Indication).

3. Check the condition of the vehicle inlet before inserting the plug.

4. Uncoil the cable and grab the handle.

5. Insert the plug into the vehicle inlet. The vehicle starts to charge which is indicated by the

lights being lit in sequence on Vehicle Connection Indication. The speed in which the lights

are lit indicates which level is used.

defa.com 10

Proper connection

The plug must be fully inserted into the inlet of the vehicle. Failure to do so will prevent the

vehicle inlet from locking the plug in place and start charging.

Unplug

WARNINGDo not unplug the charging cable while the vehicle is still charging. Always

complete or end the charging before unplugging (refer to the vehicle's charging

instruction for information about this).

• If the charging is finished, all symbols on the display will blink. You can safely unplug the

charging cable.
