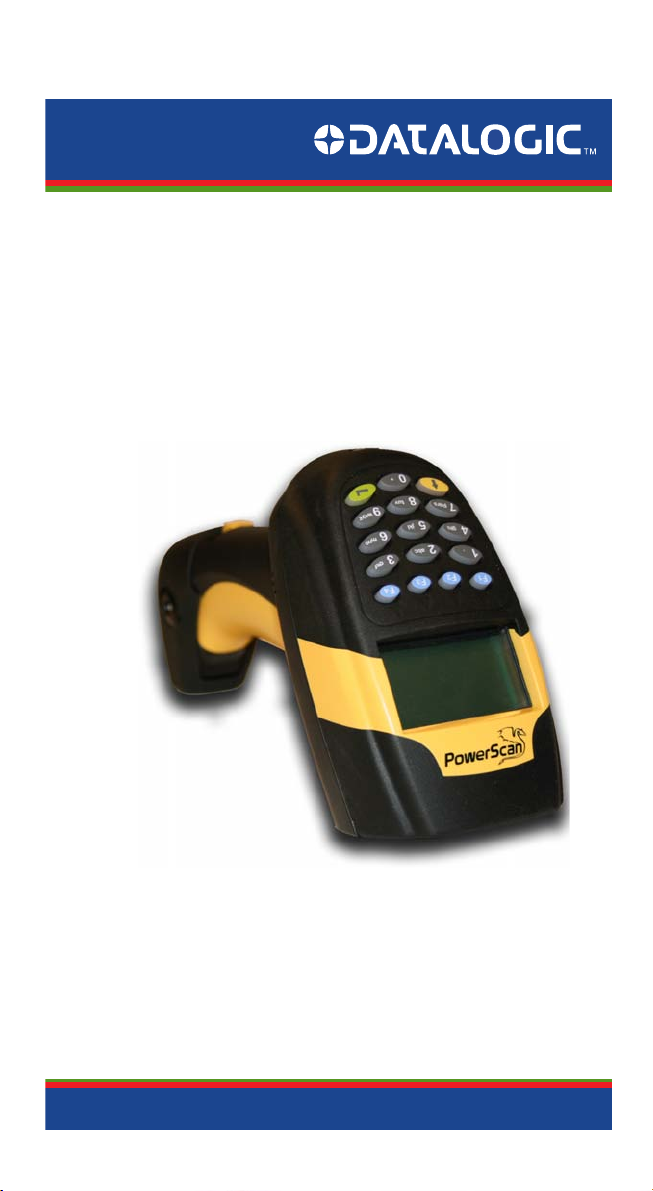

PowerScan™ PM8300-DK

16-Key Reader

Quick Reference Guide

Datalogic Scanning, Inc.

959 Terry Street

Eugene, Oregon 97402

USA

Telephone: (541) 683-5700

Fax: (541) 345-7140

procedures described therein may be reproduced or transmitted in any form or by any means with-

out prior written permission of Datalogic Scanning, Inc. or its subsidiaries or affiliates ("Datalogic"

or “Datalogic Scanning”). Owners of Datalogic products are hereby granted a non-exclusive, revo-

cable license to reproduce and transmit this documentation for the purchaser's own internal busi-

ness purposes. Purchaser shall not remove or alter any proprietary notices, including copyright

notices, contained in this documentation and shall ensure that all notices appear on any reproduc-

tions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contact-

ing your Datalogic representative. Electronic versions may either be downloadable from the Data-

logic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our

website and would like to make comments or suggestions about this or other Datalogic publica-

tions, please let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is complete

and accurate, however, Datalogic reserves the right to change any specification at any time with-

out prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,

including the U.S.A and the E.U. All other brand and product names referred to herein may be

trademarks of their respective owners.

Patents

This product is covered by one or more of the following patents:

Design Pat. AU 310201; AU 310202; CN 693980; CN735959; HK 0602013.5M001; HK

0602013.5M002; JP 1305693; KR 30-0460940; US D570,843 S; USD588,596 S.

US Pat. 5,992,740; 6,305,606 B1; 6,412,698 B2; 6,517,003; 6,808,114 B1; 6,997,385 B2;

7,387,246 B2; 5,103,080; 5,262,627; 5,367,151; 5,449,893; 5,545,889; 5,917,173;

5,923,025; 5,945,659; 6,098,877; 6,220,514 B1; 6,412,698 B2; 6,607,132 B1; 6,817,529

B2; 6,834,805 B2.

European Pat. 789,315 B1; 895,175 B1; 1,128,314 B1; 1,128,315 B1; 1,396,811 B1;

1,413,971 B1; 1,816,585 B1; 1,942,442 B1.

Additional patents pending.

Quick Reference Guide 1

Table of Contents

Using the PowerScan™ PM8300-DK .............................................................. 3

Scan Line Position .........................................................................................3

Reading Angle ................................................................................................3

Aiming System ...............................................................................................4

Installing the Battery Pack................................................................................. 5

Charging the Batteries .................................................................................7

Setup......................................................................................................................... 8

PowerScan™ PM8300-DK/BC-80X0 Point-to Point Configuration ......8

PowerScan™ PM8300-DK/BC-80X0 Stand Alone Configuration .........8

PowerScan™ PM8300-DK/STAR-System™ Configuration ......................8

PowerScan™ PM8300-DK Configuration ..................................................... 9

PowerScan™ PM8300-DK/BC-80X0 Point-to-Point Setup ...............9

PowerScan™ PM8300-DK/BC-80X0 Stand Alone Setup ................10

Using Multiple Readers with Same Cradle .........................................12

PowerScan™ PM8300-DK/STAR-MODEM™ Stand Alone Setup ..12

PowerScan™ PM8300-DK/STAR-SYSTEM™ Setup .................................. 13

Selecting the Operative Mode...................................................................... 15

Simple Data Input Mode ..................................................................................15

Quantity-Code Mode ........................................................................................15

PowerScan™ PM8300-DK Default Configuration................................... 16

Technical Features ............................................................................................ 17

Reading Diagrams............................................................................................. 18

Warranty ............................................................................................................... 19

Service and Support......................................................................................... 19

Compliance ......................................................................................................... 20

FCC Compliance ...........................................................................................20

Radio Compliance .......................................................................................20

Laser Safety Compliance ...........................................................................20

LED CLASS ......................................................................................................21

IC (Industry Canada) ...................................................................................21

WEEE Compliance .......................................................................................22

Numeric Table .................................................................................................... 23

2PowerScan™PM8300-DK16-Key Reader

NOTES

Quick Reference Guide 3

PowerScan™ PM8300-DK

16-Key Reader

Using the PowerScan™PM8300-DK

The PowerScan™PM8300-DK series readers can be used with either an BC-

80X0 cradle or Stargate™ radio base station to build a Cordless Reading System

for the collection, decoding and transmission of barcoded data.

PowerScan™PM8300-DK laser readers automatically scan barcodes at a distance.

Simply aim and pull the trigger.

Scan Line Position

Code scanning is performed along the scan line emitted from the reading window.

This line must cross the entire code. The best reading angles are indicated in the

figure below:

Reading Angle

Successful scanning is obtained by tilting the reader with respect to the barcode to

avoid direct reflections that impair the reading performance, see the figure below.

Using the PowerScan™ PM8300-DK

4 PowerScan™ PM8300-DK 16-Key Reader

Aiming System

PowerScan™PM8300-DK provides an aiming system. If enabled, a partial trigger

press produces a red spot, which should be aimed over the code center to get the

best reading performance, see #1 in the figure above. By completely pressing the

trigger the scan line appears to start the code scanning, see #2.

After setting up the reader, you can enable or disable the aiming system by reading

the codes below:

Disable Aiming System (Default)

Ì$+Bj0$-"Î

Enable Aiming System

Ì$+Bj1$-'Î

Installing the Battery Pack

Quick Reference Guide 5

Installing the Battery Pack

To install, charge and/or do any other action on the battery, follow the

instructions in this manual.

NOTE

To charge the Battery Pack, See “Charging the Batteries” on

page 7.

Datalogic recommends annual replacement of rechargeable

battery packs to ensure maximum performance.

WARNING

Do not discharge the battery using any device except for the

scanner. When the battery is used in devices other than the

designated product, it may damage the battery or reduce its

life expectancy. If the device causes an abnormal current to

flow, it may cause the battery to become hot, explode or ignite

and cause serious injury.

Lithium-ion battery packs may get hot, explode or ignite and

cause serious injury if exposed to abusive conditions. Be sure to

follow the safety warnings listed below:

• Do not place the battery pack in fire or heat.

• Do not connect the positive terminal and negative terminal of

the battery pack to each other with any metal object (such as

wire).

• Do not carry or store the battery pack together with metal

objects.

• Do not pierce the battery pack with nails, strike it with a ham-

mer, step on it or otherwise subject it to strong impacts or

shocks.

• Do not solder directly onto the battery pack.

• Do not expose the battery pack to liquids, or allow the battery

to get wet.

• Do not apply voltages to the battery pack contacts.

In the event the battery pack leaks and the fluid gets into your

eye, do not rub the eye. Rinse well with water and immediately

seek medical care. If left untreated, the battery fluid could

cause damage to the eye.

Installing the Battery Pack

6 PowerScan™ PM8300-DK 16-Key Reader

As with other types of batteries, Lithium-Ion (LI) batteries will lose capacity over

time. Capacity deterioration is noticeable after one year of service whether the

battery is in use or not. It is difficult to precisely predict the finite life of a LI

battery, but cell manufacturers rate them at 500 charge cycles. In other words, the

batteries should be expected to take 500 full discharge / charge cycles before

needing replacement. This number is higher if partial discharging / recharging is

adhered to rather than full / deep discharging,

The typical manufacturer advertised useful life of LI batteries is one to three years,

depending on usage and number of charges, etc., after which they should be

removed from service, especially in mission critical applications. Do not continue

to use a battery that is showing excessive loss of capacity, it should be properly

recycled / disposed of and replaced. For most applications, batteries should be

replaced after one year of service to maintain customer satisfaction and minimize

safety concerns.

Collect and recycle waste batteries separately from the device in comply with

European Directive 2006/66/EC, 2002/95/EC, 2002/96/EC and subsequent

modifications, US and China regulatory and others laws and regulations about the

environment.

CAUTION

Always charge the battery at 32° – 113°F (0° - 45°C) tempera-

ture range.

Use only the authorized power supplies, battery pack, char-

gers, and docks supplied by your Datalogic reseller. The use of

any other power supplies can damage the device and void your

warranty.

Do not disassemble or modify the battery. The battery contains

safety and protection devices, which, if damaged, may cause

the battery to generate heat, explode or ignite.

Do not place the battery in or near fire, on stoves or other high

temperature locations.

Do not place the battery in direct sunlight, or use or store the

battery inside cars in hot weather. Doing so may cause the bat-

tery to generate heat, explode or ignite. Using the battery in

this manner may also result in a loss of performance and a

shortened life expectancy.

Do not place the battery in microwave ovens, high-pressure

containers or on induction cookware.

Immediately discontinue use of the battery if, while using,

charging or storing the battery, the battery emits an unusual

smell, feels hot, changes color or shape, or appears abnormal

in any other way.

Do not replace the battery pack when the device is turned on.

Do not remove or damage the battery pack’s label.

Do not use the battery pack if it is damaged in any part.

Battery pack usage by children should be supervised.

Installing the Battery Pack

Quick Reference Guide 7

Charging the Batteries

Once the BC-80X0/C-8000 is powered, you can charge the reader's batteries.

Place the PowerScan™PM8300-DK into the BC-80X0 cradle or the C-8000

battery charger. The "Reader" LED on the cradle/battery charger turns red.

The battery is completely charged when the "Reader" LED on the cradle/battery

charger turns green.

To change the batteries, unscrew the retaining screw and extract the battery pack

from the reader handle. Then, insert the new battery pack into the reader handle

and tighten the screw. (See the following figures).

Figure 1.

Changing the Batteries

Do not incinerate, disassemble, short terminals or expose to high

temperature. Risk of fire, explosion. Use specified charger only.

Risk of explosion if the battery is replaced by an incorrect type.

Dispose of the batteries as required by the relevant laws in force.

WARNING

Setup

8 PowerScan™ PM8300-DK 16-Key Reader

Setup

PowerScan

™

PM8300-DK/BC-80X0 Point-to Point Configuration

1. Connect a BC-80X0 cradle to the Host. For installation and connection

information see the BC-80X0 Quick Reference Manual.

2. Charge the PowerScan™PM8300-DK battery using an BC-80X0 or the

C-8000 charger as described in this Quick Reference manual. A full

charge takes 4 hours if using an external power supply; while it takes up

to 10 hours if supplying power through the USB port.

3. Configure the reader as described in this Quick Reference -

PowerScan™PM8300-DK/BC-80X0 Point-to-Point Setup.

4. Configure the BC-80X0 cradle. See BC-80X0 Configuration in the

BC-80X0 Quick Reference.

PowerScan

™

PM8300-DK/BC-80X0 Stand Alone Configuration

1. Connect an BC-80X0 cradle to the Host. For installation and connection

information see the BC-80X0 Quick Reference Manual.

2. Charge the PowerScan™PPM8300-DK battery using an BC-80X0 or

the

C-8000 charger as described in this Quick Reference manual. A full

charge takes 4 hours if using an external power supply; while it takes up

to 10 hours if supplying power through the USB port.

3. Configure the reader as described in this Quick Reference -

PowerScan™PM8300-DK/BC-80X0 Stand Alone Setup.

4. Configure the BC-80X0 cradle. See BC-80X0 Configuration in the

BC-80X0 Quick Reference.

PowerScan

™

PM8300-DK/STAR-System™ Configuration

1. Charge the PowerScan™PM8300-DK battery using an BC-8000 or the

C-8000 charger as described in this Quick Reference manual. A full

charge takes 4 hours if using an external power supply; while it takes up

to 10 hours if supplying power through the USB port.

2. Configure the reader as described in this Quick Reference

PowerScan™PM8300-DK/STAR-System™ Setup.

Tabla de contenidos

Otros manuales de Lector de código de barras de Datalogic

Datalogic

Datalogic DS2100N Manual de usuario

Datalogic

Datalogic OM-GRYPHON Manual de usuario

Datalogic

Datalogic Heron D130 Manual de usuario

Datalogic

Datalogic Gryphon I GBT4400 2D Manual de usuario

Datalogic

Datalogic Magellan 9800i Manual de instalación y operación

Datalogic

Datalogic Magellan 1500i Manual de usuario

Datalogic

Datalogic Magellan 3300HSi Manual de instalación y operación

Datalogic

Datalogic Magellan 1100i Manual de instalación y operación

Datalogic

Datalogic Quickscan I Manual de usuario

Datalogic

Datalogic PowerScan D8330 Manual de usuario

Datalogic

Datalogic QuickScan Lite QW2400 Manual de usuario

Datalogic

Datalogic TC1100 Manual de usuario

Datalogic

Datalogic PowerScan M8300 Manual de usuario

Datalogic

Datalogic Gryphon I GBT4100 Manual de usuario

Datalogic

Datalogic Magellan 3300HSi Manual de instalación y operación

Datalogic

Datalogic QuickScan I QD24 Series Manual de instalación y operación

Datalogic

Datalogic Heron HD3100 Manual de instalación y operación

Datalogic

Datalogic Jota A6 Touch Manual de usuario

Datalogic

Datalogic QuickScan QM21 1 Series Manual de usuario

Datalogic

Datalogic PowerScan PM9100 Series Manual de usuario

Datalogic

Datalogic Gryphon I GBT4400 Manual de instalación y operación

Datalogic

Datalogic PowerScan PM9500 Manual de usuario

Datalogic

Datalogic DS6500 Series Manual de usuario

Datalogic

Datalogic PowerScan 9500 Series Manual de instalación y operación

Manuales populares de Lector de código de barras de otras marcas

POSMicro

POSMicro Datalogic PowerScan D7100 Manual de usuario

Marson

Marson MT780 Guía de configuración rápida

NCR

NCR RealPOS Manual de usuario

Motorola

Motorola SE3300 Guía de configuración rápida

Element

Element P130BT Manual de usuario

Motorola

Motorola Symbol LS3008 Manual de instalación y operación

Meec tools

Meec tools OBD-II / VAG Manual de usuario

SICK

SICK CLP 100 Manual de usuario

Royal Tag SA

Royal Tag SA I-Read Manual de usuario

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manual de usuario

Meteor

Meteor 8310 Manual de usuario

Denso

Denso BHT-500B Manual de usuario

Motorola

Motorola MP6000 Instrucciones de montaje

Newland

Newland NLS-HR15-BT Manual de usuario

ARTDEV

ARTDEV AS-1310 Manual de usuario

Aopos

Aopos AS290 Manual de usuario

ENS

ENS 367-5455 Manual de usuario

Atid

Atid AT188N Plus Manual de usuario
