Datalogic Matrix 300 Manual de usuario

Matrix 300™

QUICK REFERENCE GUIDE

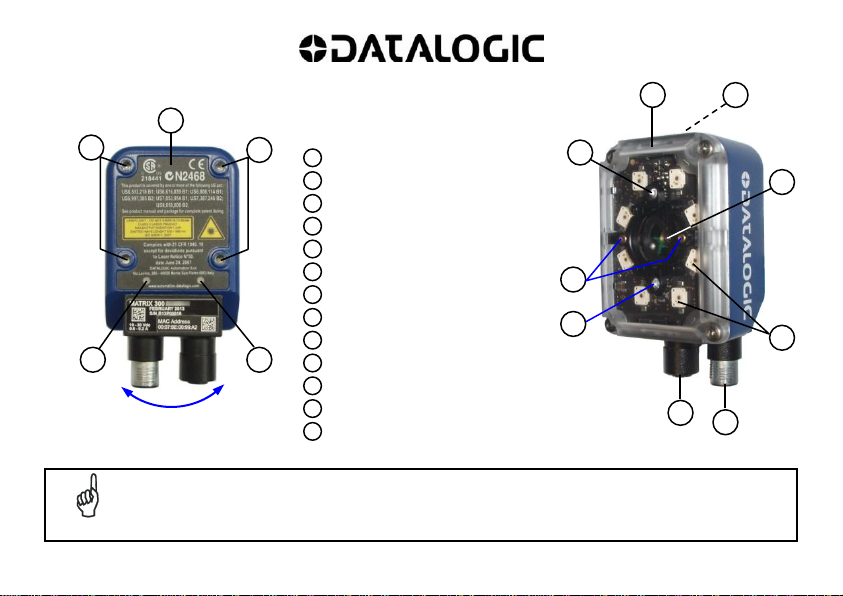

Figure A

NOTE

This manual illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Fieldbus, Pass-Through, etc.

and for complete reader configuration using the VisiSet™ configuration program, refer to the Matrix 300™ Reference Manual

available on the mini-DVD and also downloadable at www.datalogic.com.

Device Class Label

Bracket Mounting Holes (4)

Good Read LED (green)

Lens Cover

Ethernet Connector

No Read LED (red)

Aiming System Laser Pointers

Power - Serial Interfaces - I/O Connector

HMI X-PRESS™ Interface

Ethernet Connection LED

Lens

Power On LED

Internal Illuminator

Connector block rotates

to 90° position

MATRIX 300™ QUICK GUIDE

SUPPORT THROUGH THE WEBSITE

Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the

Industrial Automation links for further information:

Products - Industrial Automation - Identification

Select your product from the links on the Identification page. The product page describes specific Info, Features, Applications,

Models, Accessories, and Downloads including documentation, software drivers, and the VisiSet™ utility program, which allows

device configuration using a PC through Serial and Ethernet interfaces.

Support & Services - Industrial Automation

Several links from the Industrial Automation list take you to additional services such as: Service Program which contains

Maintenance Agreements and Warranty Extensions; Repair Centers; On-Line RMA Return Material Authorizations; Technical Support

through email or phone, Partner Program; Downloads for additional downloads.

LEGAL NOTICES

altering of this document isprohibited without express written consent from Datalogic Automation S.r.l.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.

Matrix 300, ID-NET, VisiSet and X-PRESS are trademarks of Datalogic Automation S.r.l. All other brand and product names mentioned

herein are for identification purposes only and may be trademarks or registered trademarks of their respective owners.

Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages

resulting from the use of this material.

MATRIX 300™ QUICK GUIDE

STEP 1 –CONNECT THE SYSTEM

To connect the system in a Stand Alone configuration, you need the hardware indicated in Figure 1. In this layout the data is transmitted to

the Host on the main serial interface. Data can also be transmitted on the RS232 auxiliary interface independently from the main interface

selection. When One Shot or Phase Mode Operating mode is used, the reader is activated by an External Trigger (photoelectric sensor) when

the object enters its reading zone.

Figure 1 –Matrix 300™ in Stand Alone Layout

CBX100/CBX500 Pinout for Matrix 300™

The table below gives the pinout of the CBX100/CBX500 terminal block connectors. Use this pinout when the Matrix 300™reader is

connected by means of the CBX100/CBX500:

Matrix 300™

Host

PG 6000

Main Serial Interface (RS232 or RS485/422 Full-Duplex)

External Trigger (for One Shot or Phase Mode)

CBX

I/O, AUX

CAB-DSxx

MATRIX 300™ QUICK GUIDE

CBX100/500 Terminal Block Connectors

Power

Outputs

Vdc

Power Supply Input Voltage +

Power Source - Outputs

GND

Power Supply Input Voltage -

-V

Power Reference - Outputs

Earth

Protection Earth Ground

O1+

Output 1 +

O1-

Output 1 -

Inputs

O2+

Output 2 +

Power Source –External Trigger

O2-

Output 2 -

I1A

External Trigger A (polarity insensitive)

O3A

Output 3 (CBX500 only)

I1B

External Trigger B (polarity insensitive)

Auxiliary Interface

-V

Power Reference –External Trigger

Auxiliary Interface TX

Power Source –Inputs

Auxiliary Interface RX

I2A

Input 2 A (polarity insensitive)

SGND

Auxiliary Interface Reference

I2B

Input 2 B (polarity insensitive)

ID-NET™

-V

Power Reference –Inputs

REF

Network Reference

Shield

ID+

ID-NET™ network +

Shield

Network Cable Shield

ID-

ID-NET™ network -

Main Interface

RS232

RS485/422 Full-Duplex

TX+

RTS

TX-

* RX+

CTS

* RX-

SGND

*Do not leave floating, see Reference Manual for connection details.

CAUTION

Do not connect GND, SGND and REF to different (external) ground references. GND, SGND and REF

are internally connected through filtering circuitry which can be permanently damaged if subjected to

voltage drops over 0.8 Vdc.

MATRIX 300™ QUICK GUIDE

STEP 2 –MOUNT AND POSITION THE READER

1. To mount the Matrix 300™, use the mounting bracket to obtain the most suitable position for the reader. The most common mounting

configuration is shown in the figure below.

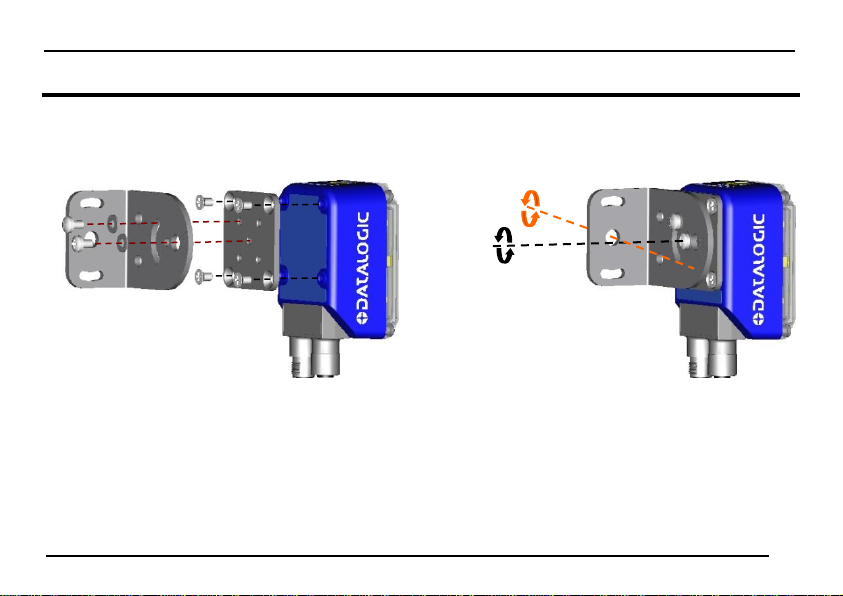

Figure 2 –Positioning with Mounting Bracket

Tilt

Pitch

MATRIX 300™ QUICK GUIDE

2. When mounting the Matrix 300™ take into consideration these three ideal label position angles: Pitch or Skew 10° to 20° and Tilt 0°, although

the reader can read a code at any tilt angle providedthe codefits intothe FieldOf View (FOV).

Figure 3 –Pitch, Tilt and Skew Angles

3. Refer to the Reading Diagrams in the Appendix of this Quick Reference Guide to determine the distance your reader should be

positioned at. Further diagrams are provided in the Matrix 300™ Reference Manual.

NOTE

Rapid Configuration of the Matrix 300™ reader can be made either through the X-PRESS™ interface (steps 3-4) which

requires no PC connection, or by using the VisiSet™ Setup Wizard (steps 5-6). Select the procedure according to your

needs.

Pitch

Minimize

No Pitch, Tilt or Skew

Tilt

any angle

inside FOV

Skew

Assure at least 10°

FOVH

FOVV

MATRIX 300™ QUICK GUIDE

STEP 3 –AIM AND AUTOFOCUS THE READER

(Liquid Lens Models only)

Matrix 300™ provides a built-in laser pointer aiming system to aid reader positioning. For Liquid Lens models the autofocus feature is also

incorporated into this function. The aiming system is accessed through the X-PRESS™ Interface.

1. Power the reader on. During the reader startup (reset or restart phase), all the LEDs blink

for one second. On the reverse side of the reader near the bracket, the “POWER ON” LED

(blue) indicates the reader is correctly powered.

2. Place the Grade A Barcode Test Chart in front of the reader at the correct reading

distance for your application. See the Reading Diagrams in the Appendix of this Quick

Reference Guide or in the Reference Manual.

3. Enter the Aim/Autofocus function by pressing and holding the X-PRESS™ push button

until the Aim LED is on.

Figure 4 –X-PRESS™ Interface:

Aim/Autofocus Function

4. Release the button to enter the Aim function. The laser pointers turn on, and the Autofocus

procedure begins, see Figure 4. The Aim LED will blink until the procedure is completed.

Within 3 seconds (before the reader flashes), center one of the larger codes on the

aiming system pointers (the code must not move during this procedure).

The Autofocus procedure ends when the Reading Distance and PPI values are successfully

saved in the reader memory, the Aim LED will stop blinking and Matrix 300™ emits 3 high

pitched beeps.

If the Autofocus cannot be reached after a timeout of about 3 (three) minutes Matrix 300™ will

exit without saving the parameters to memory, the Aim LED will stop blinking and in this case

Matrix 300™ emits a long low pitched beep.

You can exit the Aim/Autofocus function at any time by pressing the X-PRESS™ push

button once. After a short delay the autofocus procedure is cancelled and the laser

pointers turn off.

MATRIX 300™ QUICK GUIDE

STEP 4 –X-PRESS™ CONFIGURATION

Once Matrix 300™ has focused at the correct reading distance, you must configure it for optimal code reading relative to your application.

This configuration can be performed either through the X-PRESS™ Interface or the VisiSet™ configuration program.

AIM

1. Enter the Aim function by pressing and holding the X-PRESS™ push button until the Aim LED is

on.

2. Release the button to enter the Aim function. The laser pointers turn on.

3. Select a single code from your application. Position the code at the center of the FOV

(equidistant from the laser pointers).

The reader may start flashing and try to perform autofocus however this will have no effect on the

application specific code; it can be ignored.

Figure 5 –X-PRESS™ Interface:

Aim Function

Exit the Aim function by pressing the X-PRESS™ push button once. After a short delay the Aim function is cancelled and the laser

pointers turn off.

SETUP

4. Enter the Setup function by pressing and holding the X-PRESS™ push button until the Setup

LED is on.

5. Release the button to enter the Setup function. The Setup LED will blink until the procedure is

completed.

The Setup procedure ends when the Image Acquisition parameters are successfully saved in the

reader memory, the Setup LED will stop blinking and Matrix 300™ emits3 high pitched beeps.

Figure 6 –X-PRESS™ Interface:

Setup Function

If the calibration cannot be reached after a timeout of about 5 (five) seconds Matrix 300™ will exit without saving the parameters to memory,

the Setup LED will stop blinking and in this case Matrix 300™ emits a long low pitched beep.

MATRIX 300™ QUICK GUIDE

LEARN

6. Enter the Learn function by pressing and holding the X-PRESS™ push button until the Learn LED

is on.

7. Release the button to enter the Learn function. The Learn LED will blink until the procedure is

completed.

The Learn procedure ends when the Image Processing and Decoding parameters are successfully

saved in the reader memory, the Green Spot is activated, the Learn LED will stop blinking and

Matrix 300™ emits 3 high pitched beeps1.

Figure 7 –X-PRESS™ Interface:

Learn Function

If the autolearning cannot be reached after a timeout of about 3 (three) minutes Matrix 300™ will exit without saving the parameters to

memory, the Learn LED will stop blinking and in this case Matrix 300™ emits a long low pitched beep.

You can exit the Learn function at any time by pressing the X-PRESS™ push button once. After a short delay the Learn procedure is

cancelled.

The Grade A Barcode Test Chart cannot be used to set the Code 128 symbology (even though the reader successfully reads the

code). Use the application specific code if you need to set this symbology.

If you have used this procedure to configure Matrix 300™ go to step 7.

RESET READER TO FACTORY DEFAULT (OPTIONAL)

If it ever becomes necessary to reset the reader to the factory default values, you can perform this procedure by holding the X-PRESS™

push button pressed while powering up the reader. You must keep the X-PRESS™ push button pressed until the power up sequence is

completed (several seconds) and all LEDs blink simultaneously 3 times.

All LEDs remain on for about 1 second, then off for one second, the Configuration and Environmental parameters are reset, and the status

LED remains on. If connected through a CBX500 with display module, the message "Default Set" is shown on the display.

The Learn procedure will not recognize Pharmacode symbologies.

MATRIX 300™ QUICK GUIDE

STEP 5 –INSTALLING VISISET™ CONFIGURATION PROGRAM

VisiSet™is a Datalogic reader configuration tool providing several important advantages:

Setup Wizard for rapid configuration and new users;

Defined configuration directly stored in the reader;

Communication protocol independent from the physical interface allowing the reader to be considered as a remote object to be

configured and monitored.

To install VisiSet™, turn on the PC that will be used for the configuration, running Windows 98, 2000/NT, XP, Vista, 7 or 8; then insert the

VisiSet™ Mini-DVD, wait for the DVD to autorun and follow the installation procedure.

This configuration procedure assumes a laptop computer, running VisiSet™, is connected to the reader's auxiliary port. The reader can also

be connected to VisiSet™ through the on-board Ethernet by following the procedure in the Reference Manual.

After installing and running the VisiSet™ software program the

following window appears:

Set the communication parameters from the "Options" menu. Then select

"Connect", the following window appears:

Figure 8 - VisiSet™ Opening Window

Figure 9 - VisiSet™ Main Window After Connection

Otros manuales para Matrix 300

Tabla de contenidos

Otros manuales de Lector de código de barras de Datalogic

Datalogic

Datalogic PowerScan PBT9500-RT Manual de usuario

Datalogic

Datalogic PowerScan RF SR Manual de usuario

Datalogic

Datalogic Magellan 1100i Manual de instalación y operación

Datalogic

Datalogic Cobalto CO5300 Manual de usuario

Datalogic

Datalogic PowerScan PBT950X Manual de instalación y operación

Datalogic

Datalogic OM-DRAGON Series Manual de usuario

Datalogic

Datalogic DLC7070 Manual de usuario

Datalogic

Datalogic QuickScan QD24 series Manual de instalación y operación

Datalogic

Datalogic Magellan 2300HS Manual de usuario

Datalogic

Datalogic PD9330 Manual de instalación y operación

Datalogic

Datalogic Gryphon D432 Manual de usuario

Datalogic

Datalogic MAGELLAN 8500? Manual de instalación y operación

Datalogic

Datalogic RIDA DBT6400 Manual de usuario

Datalogic

Datalogic OM-GRYPHON Manual de usuario

Datalogic

Datalogic DS2200 SH2348 Manual de usuario

Datalogic

Datalogic Gryphon 4200 Series Manual de usuario

Datalogic

Datalogic QuickScan QM24 series Manual de instalación y operación

Datalogic

Datalogic PowerScan D8330 Manual de usuario

Datalogic

Datalogic Gryphon 2D Series Manual de usuario

Datalogic

Datalogic Formula Manual de usuario

Datalogic

Datalogic Gryphon I GFS4400 Manual de usuario

Datalogic

Datalogic QuickScan Lite QW2400 Manual de usuario

$Datalogic Kyman\ Manual de usuario$

Datalogic

Datalogic Kyman\ Manual de usuario

Datalogic

Datalogic MAGELLAN 8300 Manual de usuario

Manuales populares de Lector de código de barras de otras marcas

POSMicro

POSMicro Datalogic PowerScan D7100 Manual de usuario

Marson

Marson MT780 Guía de configuración rápida

NCR

NCR RealPOS Manual de usuario

Motorola

Motorola SE3300 Guía de configuración rápida

Element

Element P130BT Manual de usuario

Motorola

Motorola Symbol LS3008 Manual de instalación y operación

Meec tools

Meec tools OBD-II / VAG Manual de usuario

SICK

SICK CLP 100 Manual de usuario

Royal Tag SA

Royal Tag SA I-Read Manual de usuario

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manual de usuario

Meteor

Meteor 8310 Manual de usuario

Denso

Denso BHT-500B Manual de usuario

Motorola

Motorola MP6000 Instrucciones de montaje

Newland

Newland NLS-HR15-BT Manual de usuario

ARTDEV

ARTDEV AS-1310 Manual de usuario

Aopos

Aopos AS290 Manual de usuario

ENS

ENS 367-5455 Manual de usuario

Atid

Atid AT188N Plus Manual de usuario
