Dante DLF1129P Manual de usuario
DLF1129P
1/3” Super High Resolution
690TVL D/N amera
with True WDR
Installation and Operations Manual
Model Number: DLF1129PA NTSC
DL 1129PB PAL
Description: Super High Resolution 690TVL
D/N DR Camera w/Low Light Illumination
with PIXIM Seawolf Image Sensor
EXPOSURE SHUTTER
AGC
BRIGHTNESS
DWDR
WHITE BAL ATW1
AWC SET
ATW2
MANUAL
BACKLIGHT BLC
OFF
HLC
DAY&NIGHT COLOR
EXT
B/W
AUTO
DPC
SPECIAL
CAM TITLE
PRIVACY
MOTION
PARK LINE
IMAGE ADJ
VERSION
LANGUAGE
RESET
EXIT

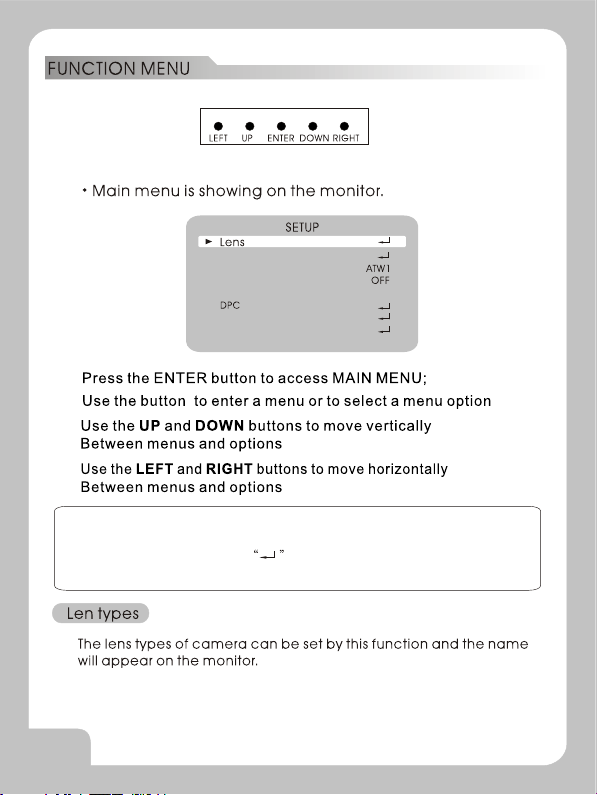

ENTER: ENTER the main menu.
MANUAL
Attention:
Available submenu ifthere is a .You canenter Into the submenu by
pressing the ENTENbutton.
1.Press ENTER button,the menu willappear on the screen.Use DOWN
button to movethe cursor tothe name of"lens types"
2.Use LEFT or RIGHT button to setthe "lens types"(DC/VIDEO/MANUAL).
COLOR
EXPOSURE
WHITE BAL.
BACKLIGHT
DAU&NIGHT
SPECIAL
RESET
EXIT
EXPOSURE
EXPOSURE
AUTO
BRIGHTNESS 050
DWDR
RETURN RET
MIDDLE
SHUTTER:Choose the electronicshutter(1/50,FLK,1/250,1/500,
1/1000,1/2000,1/4000,1/5000,1/10000,1/100000,AUTO)
BRIGHTNESS:Adjust camera s brightness(value:0-255)
AGC:Adjust AGC level,thereare four kindsof level optionally
(OFF/LOW/MIDDLE/HIGH).
DWDR(Digital Wide Dynamic Range):OFF/ON(value:0-63)
The camera deliversclears,high quality pictures even in a backlight,
by increasing exposurein dark areaswhile decreasing itin bright areas;
a corrected imagewith clear results.
WHITE BAL
ATW:Auto tracking Balance
Camera continously monitorsthe color temperature,and automatically
set proper whitebalance to displaytrue color.
There are twomodes optionally(ATW1 and ATW2)
AWC SET: The white balanceis automatically adjustedin a specific
Environment.In orderto obtain thebest result,press the ENTER button
while the camerafocuses on whitethe balance again.
MANUAL:
To fine adjust,select the manual mode,while monitoring the difference
on the screen,setto "MANUAL" mode,increase or decrease the value
for red andblue,watching the color of the picture,and you obtain the
best color.
SHUTTER
OFF
COLOR TEMP MANUAL
80
BLUE
RED
RETURN
110
WB MANUAL
RET
COLOR TEMP:MANUAL/INDOOR/OUTDOOR.
BLUE:Adjust blue value,only when selectingMANUAL.
RED:Adjust red value,only when selectingMANUAL.
BACKLIGHT
OFF:Turn off BLC.
BLC:Turn on BLC.
BLC
AREA SEL. AREA1
AREA STATE ON
GAIN
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
RETURN RET
005
006
003
004
042
AREA SEL:Select BLC area,AREA1and AREA2 optionally.
AREA STATE:BLC area display on or off.
GAIN:Set BLC gain value.
HEIGHT: Adjust the height of BLC area.
WIDTH:Adjust the widthof BLC area .
LEFT/RIGHT:Adjust horizontal positionof BLC area .
TOP/BOTTOM:Adjust vertical positionof BLC area.
HLC: Highlight compensation willdarken image portionsfor clearer images.
HLC
LEVEL 200
MODE ALL DAY
RETURN RET
LEVEL:Adjust HLC level.
MODE:ALL DAYand NIGHT ONLY optionally.
COLOR: Camera always displayscolor image.
EXT:Change to theCOLOR/ BW by installing IR LED BOARD or Switch.
AUTO:Camera recognize DAY/NIGHT mode automatically, image is
color in daytime, and changes to B/W mode at night.
D&N AUTO
D N Level
D N Delay
N D Level
N D Delay
Return
033
3 SEC
156
RET
1 SEC
DNLEVEL:The sensitivity ofday to nightvalue.
NDLEVEL: The sensitivityof night to day value.
NDDELAY:The switching timeof night to day.
B/W: Camera always displaysblack and whiteimage.
DNDELAY:The switchingtime of day to night .
DAY NIGHT
DPC :Defective Pixel Correct
This will attemptto detect andcorrect defective pixels.Lens must
be covered.
COVER THE LENS
THEN
PRESS ENTER KEY
SPECIAL
CAM TITLE
SPECIAL
OFF
MOTION OFF
PRIVACY OFF
PARK . LINE
IMAGE ADJ.
COMM ADJ
LANGUAGE
VERSION
RETURN RET
10 12 22
ENGLISH
OFF
Used to turnon or offthe camera title.The camera titleis 15 character
at most,"0-9,A-Z,punctuation", The position of camera title can be
adjusted in "POS"of the MENU. "CLR" clearsthe entire entry.To modify
one character,useor-to position the cursor above the character.To
be modified andclick the ENTERbutton after Selectingthe character
to enter.
CAM TITLE:
0 1 2 3 4 5 6
7 8 9 A B C D E
F G H I J K L M
N O P Q R S T U
V W X Y Z
/ = & ~ , .
CLR POS END
------------------------------
MOTION
This product hasa feature that allows you to observe movements of objectsin
different area onthe screen,and the on the screenwhen
movement is detected;thecamera detects an object s movement bysensing
disparity of outline,andlevel of brightness and color.
AREA SEL
AREA STATE
HEIGHT
WIDTH
LEFT/RIGHT
DEGREE
VIEW
RETURN.
MOTION
AREA SELECT:Enable user toselect the motion area.
AREA STATE:Enabled user to set up ON/OFF in selected area.
HEIGHT:Adjust the heightof motion detection area.
WIDTH:Adjust the widthof motion detectionarea.
LEFT/RIHGT:Adjust horizontal positionof motion detectionarea.
TOP/BOTTOM:Adjust vertical positionof motion detectionarea.
DEGREE: Set degree ofthe motion detection.
AREA1
ON
004
004
002
002
038
ON
RET
MOTION VIEW:Display the motionarea on the screen.
PRIVACY:
OFF:Close the privacymasking function.
ON:Open the privacymasking function.
AREA SEL.
AREA STATE
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
COLOR
RETURN
AREA 1
ON
032
032
020
016
000
RET
PRIVACY
AREA SELECT:Select the privacy masking area (8 optional areas) .
AREA STATE:Enabled user to set up ON/OFF in selected area.
HEIGHT:Adjust the height of privacy masking area.
WIDTH:Adjust the widthof privacy maskingarea.
LEFT/RIHGT:Adjust horizontal positionof privacy maskingarea.
TOP/BOTTOM:Adjust vertical positionof privacy maskingarea.
COLOR: Set color ofthe privacy maskingarea (16 colorto choose) .

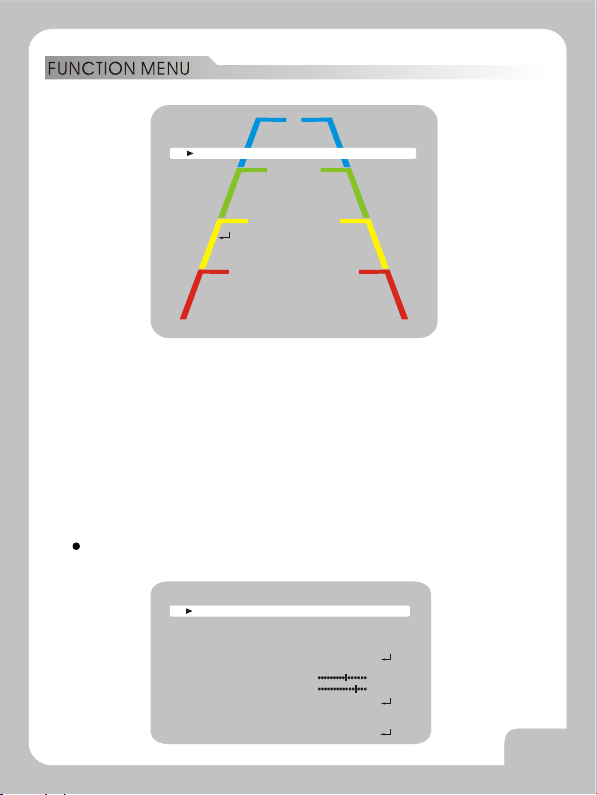

PARK LINE:
Back a carto aide function,itcan be used for the rear-view camera.
LT
LB
RT
RB
F
N
T
RET
075
027
113
170
013
069
009
PARK.LINE
LT:Adjust left topside of parkline.
LB: Adjust left bottomside of parkline
RT: Adjust right topside of park line
RB: Adjust right bottomside of parkline
F: Adjust far side of park line
N: Adjust near sideof park line
T: Adjust the sizeof park line
IMAGE ADJ:
LENS SHAD.
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG.IMAGE
RETURN
OFF
ON
OFF
134
026
CRT
OFF
RET
Back a carto aide function,itcan be used for the rear-view camera.
IMAGE ADJ.
