User's Guide
Installer's Guide
www.danfoss.com
ECL Comfort
Installer's Guide
ECL Comfort
User's Guide
*087R8017*
*VI7BC502*
*087R8017*
*VI7BC502*
Mixing controller
The shown diagram is a fundamental and simplified example and
does not contain all components that are necessary in a system.
If the system you are about to install differs from the shown
diagram of a standard heating system, feel free to sketch an outline
for comparison. Adaptation of systems, see section 10.
List of components:
ECL Comfort 200
S1 Outdoor temperature sensor
S2 Room temperature sensor
S3 Flow temperature sensor
S4 Return temperature sensor
P1 Circulation pump, heating
M1 Motorized control valve
User / service
setting
indicator
User /
service
settings
Shift
button
Adjust-
ment
Controller
mode
Controller mode
Manual operation (used only at maintenance
and service)
Scheduled operation
Constant comfort temperature
Constant setback temperature
Standby mode
Arrow buttons. Switch between the lines of the ECL
Card
Shift button. Switches between temperatures,
changeover points etc.
Adjust temperatures and values etc.
Switch between user settings (yellow card side) and
service settings (grey card side).
Safety Note
To avoid injury of persons and damages to the device, it is
absolutely necessary to read and observe these instructions
carefully.
Necessary assembly, start-up, and maintenance work must be
performed by qualified and authorized personnel only.
This guide is associated with ECL Card 087B4653
Installer:
By:
Date:
User's Guide (turn the guide over for sections 1-7)
1 Choose your favorite display
2 Select controller mode
3 Set your room temperature
4 Set your personal schedule
6 Hot points
7 Definitions
Table of Contents
Sections in the Installer’s Guide
The documentation for the ECL Comfort controller is
composed of numbered sections. Only sections relevant to
your ECL Comfort controller are included here.
Before you start
Installation
10 Identifying the system type
11 Mounting the ECL Comfort controller
12 Electrical connections 230 V a.c.
13 Electrical connections 24 V a.c.
14 Connecting and placing the temperature sensors
15 Adapting the ECL Comfort controller
Basic Set-up
16 Adjusting the ECL Card settings
17 Setting the time and date - line A
18 Monitoring temperatures and system units - line B
19 Manual control - line B
20 Setting the heat curve - line C
21 Heating cut-out - line 1
22 Flow temperature limits - line 2
23 Room temperature influence - line 3
26 Control parameters - lines 4-7
Control & Overviews
29 Check list
30 ECL Card settings
31 Service parameters
Extended Service
32 Adjusting the service parameters
VI.7B.C5.02
Card P30
2005.10
Sketch your application
The ECL Comfort controller series is designed for a wide
range of heating and hot-water systems with different
configurations and capacities.
If your system differs from the diagrams shown in section
10, you may want to make a sketch of the system about to
be installed. This makes it easier to use the Installer’s Guide,
which will guide you step-by-step from installation to final
adjustments before the end-user takes over.
The controller is pre-programmed with factory settings that are
shown in the relevant sections of this guide.
However, you might come across some settings that are not listed
in this instruction. These settings could be related either to recent
updates or the use of optional modules (which are described in
the instructions in question).
How to use this guide
This guide is divided into two parts:
• User’s Guide: Yellow sections 1-7
• Installer's Guide: Grey sections 10 and onwards
The application P30 is very flexible. These are the basic principles:
Typically, the flow temperature is always adjusted according to
your requirements.
The flow temperature sensor (S3) is the most important sensor.
The desired flow temperature at S3 is calculated in the ECL
Comfort controller, based on the outdoor temperature (S1). The
lower the outdoor temperature, the higher the desired flow
temperature.
The motorized control valve (M1) is opened gradually when the
flow temperature is lower than the desired flow temperature and
vice versa.
The return temperature (S4) to the district heating supply should
not be too high. If so, the desired flow temperature can be
adjusted (typically to a lower value) thus resulting in a gradual
closing of the motorized control valve. In boiler-based heating
supply the return temperature should not be too low (same
adjustment procedure as above).
If the measured room temperature does not equal the desired
room temperature, the desired flow temperature can be adjusted.
The circulation pump, P1, is ON when the desired flow
temperature is higher than 20 °C or the outdoor temperature is
lower than 2 °C.
Before you start
Installation
The ECL Comfort controller is a universal controller that can
be used for various systems. Based on the shown standard
systems, it is possible to configure additional systems.
In this section you find the most frequently used systems. If
your system is not quite as shown below, find the diagram
which has the best resemblance with your system and make
your own combinations.
10.1 Indirectly connected heating system
10.2 Directly connected heating system
Identifying the system type
10a
Installation
10b
10.3 Boiler system with 3-way valve
10.4 Boiler system with 4-way rotary valve
System diagrams in this instruction are principal drawings and do
not contain all components which are necessary in your systems.
Installation
For easy access, you should mount the ECL Comfort
controller near the system. Select one of the three
following methods:
• Mounting on a wall
• Mounting on a DIN rail
• Mounting in a panel
Screws and rawlplugs are not supplied.

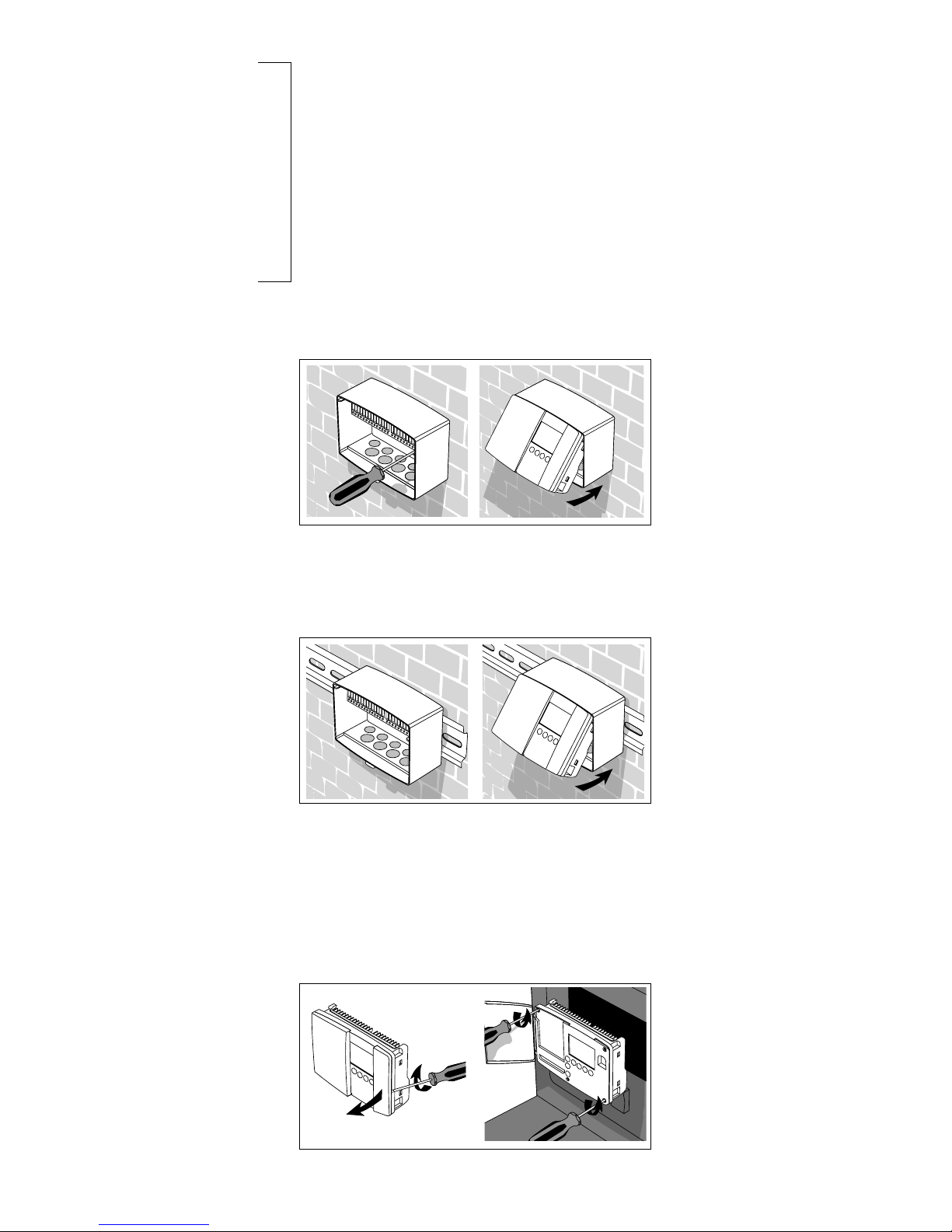

Mounting on a wall
Socket for mounting on wall: Order code No. 087B1149.
Mount the terminal box on a wall with a smooth surface.
Establish the electrical connections and position the
controller in the box. Secure the controller with the fixing
screw.
Mounting on a DIN rail
Mounting kit: Order code No. 087B1145.
A mounting kit is necessary to mount the box with the
controller on a DIN rail.
Mounting in a panel
Connector set: Order code No. 087B1148.
The panel plate thickness must not exceed 3 mm.
Prepare a cut-out with the dimensions 93 x 139 mm. Pull off
the right side of the lid by means of a screwdriver.
Insert the controller into the panel cut-out and fix it with the
two locks which are placed diagonally in two corners of the
controller.
Mounting the ECL Comfort
controller
11a
Installation
11b
Installation
Electrical connections -
230 V a.c. - in general
12a
230 V a.c. connections - without safety thermostat
Establish these jumpers:
1-5-10
and 2 to common N-terminal.
230 V a.c. connections - with safety thermostat
This circuit diagram is only valid if Danfoss actuators are used
Establish these jumpers:
1-10-12
Safety thermostat:
4, 5 and 10 with ST- (safety thermostat)
and 2 to common N-terminal.
