Danfoss 103E7 Instrucciones de montaje

103E7

Installation & User Instructions

including Factory Replacement Units (FRU)

7-day electronic timeswitch

for controlling hot water

and heating

Certification Mark

INDEX

Index

Installation

Product speciﬁcation 3

Installation 4-6

Wiring 6-9

Replacement 10-11

User

What is a timeswitch? 12

Your timeswitch 13

Resetting the unit 13

24hr or AM/PM display 14

Setting the Time and Day 14

Factory preset programmes 15

Changing the preset programmes 16

Setting the programme - 7 day 17-18

Setting the programme - 5/2 day 19-20

Running your programme 21

Temporary user overrides 22

Battery backup 23

Contact details 24

Please Note:

Thisproduct should only be installed byaqualiﬁedelectrician

or competent heating installer, and should be in accordance

with the current edition of the IEEE wiring regulations.

Speciﬁcation

Power supply 230Vac ± 15%, 50 Hz

Switching action 1 x SPST, Type 1B

Switch rating 264Vac, 50/60Hz, 3(1)A

Setting/Running Accuracy ±1 min./month

Power Reserve Minimum 24 hours

Max. Ambient Temperature 45°C

Dimensions, mm (W, H, D) 102 x 136 x 47

Design standard EN 60730-2-7

Control Pollution Situation Degree 2

Rated Impulse Voltage 2.5kV

Ball Pressure Test 75°C

Product speciﬁcation

Speciﬁcation

Installation Instructions

Installation

NB. For FRU units - go straight to point 6.

1. Loosen the ﬁxing screw in the base of the unit to release the

Wiring Cover.

2. Holding the unit face downwards, press ﬁrmly in the

centre of the wallplate and slide it apart and lift it from the

module.

3. Fix the wallplate and terminal block to the wall, or plaster

box, as required. Ensure that the screw heads do not

protrude beyond the vertical centre rib of the wallplate,

or this will prevent the module correctly locating onto the

wallplate.

4. Surface cables can only enter from below the unit. Cut

an appropriate cable aperture in the wiring cover. If the

wallplate is mounted on a plaster box, cables can enter

from the rear below the terminal block.

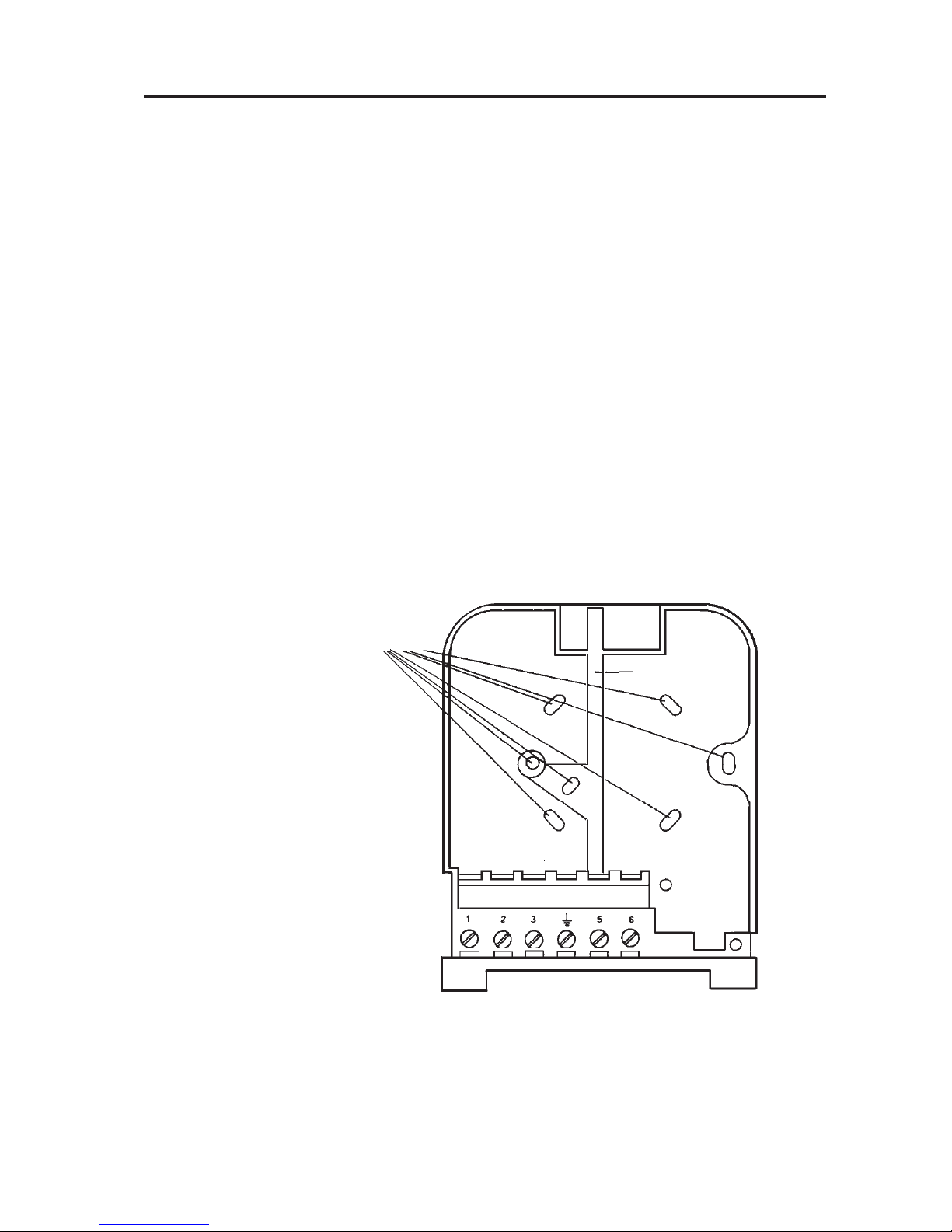

Installation

Screw ﬁxing holes

(screwheads MUST

NOT protrude above

centre rib)

Vertical

centre rib

Wallplate & Terminals

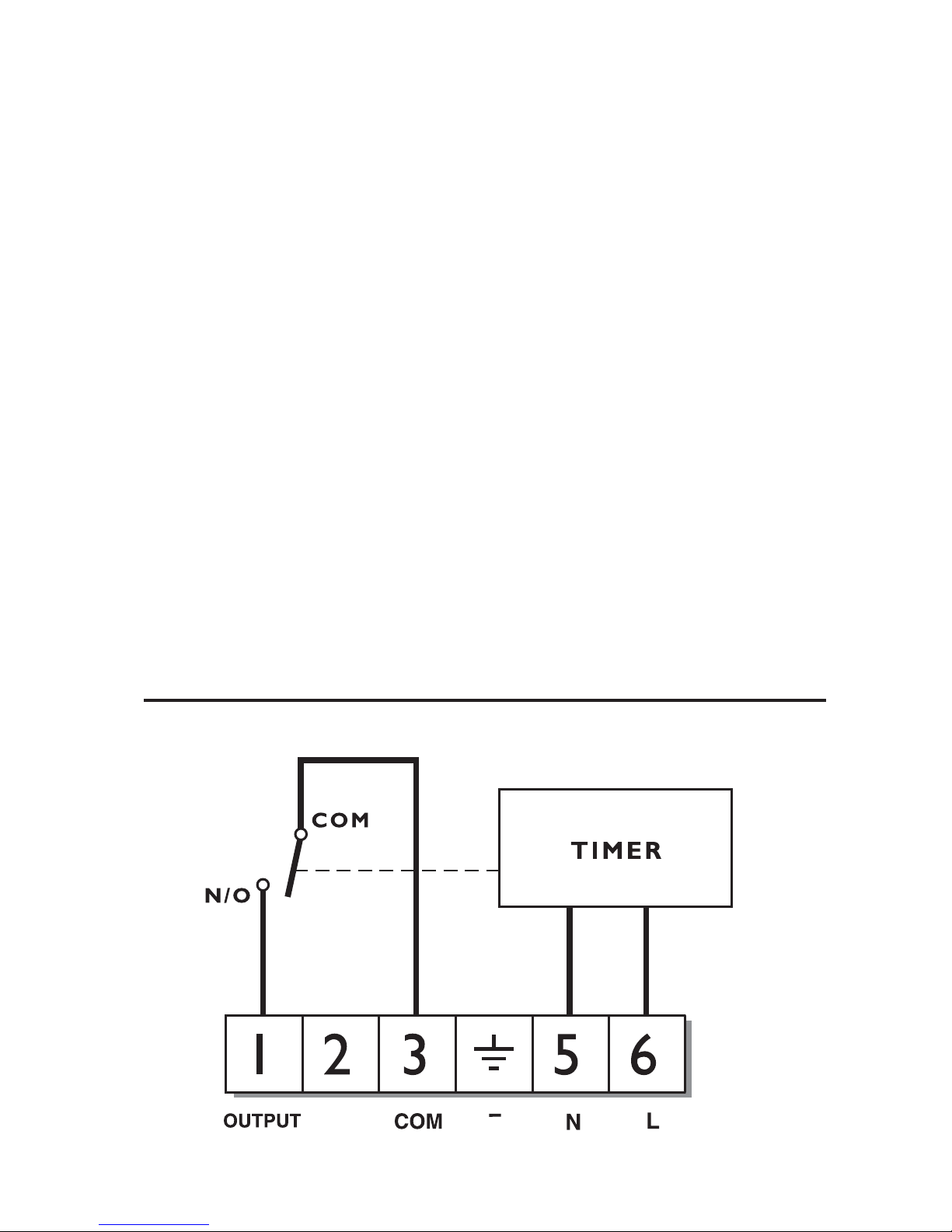

5. Electrical connections are simpliﬁed by using a Wiring

Centre. However, if this is not used, the wallplate terminal

identiﬁcation is as shown.

If the system being controlled is 230 Vac, then terminals

3 and L must be linked with insulated cable capable of

carrying full load current. Whilst the unit does not require

an earth connection, a terminal is provided on the wallplate

for earth continuity purposes.

6. Refer to the wiring diagrams on page 6-9, connect the unit

as shown.

7. Find out from the user whether the unit is required to

operate in 7-day mode (factory preset) or weekday/

weekend mode (5/2 day). To convert to 5/2 day mode

remove the small two-way connector from the pins towards

the left of the recess on the rear of the module, then press

the button marked R/S under the ﬂap to RESET the unit.

8. Ensure all dust and debris are cleared from the area. Plug

the module into the wallplate by locating it onto the

wallplate and, when ﬂush with it, sliding it down, ensure

the hook at the top of the wallplate engages with the slot

at the back of the module.

9. Before setting the programme, check the unit and circuit.

Press the SELECT button until the bar in the display lines up

with the word ON. Adjust the remote thermostats to check

the system operates correctly.

Installation

Load Mains Supply

(via 3 amp fuse)

ON SPARE COM NL

123 5 6

103, 103E5

Wiring

10. Then press the SELECT button until the bar lines up with

the word OFF and check the system does not operate.

11. When the circuit check has been completed, replace the

wiring cover and tighten the ﬁxing screw. Cut any cable

aperture in the wiring cover which may be necessary to

accommodate surface mounted cables.

12. Finally set time of day and programmes required, noting

that the unit is supplied with a pre-set programme, as

stated on Page 15.

12356

MAINS

SUPPLY

FUSED

3 AMP

L N

COM CALL

ROOM

' S TAT

LINK

PUMP

TERMINALS

103E5

TERMINALS

L N L N

COM CALL

ROOM

' S TAT

BOILER

TERMINALS

PUMP

TERMINALS

LINK

103E5

TERMINALS

MAINS

SUPPLY

FUSED

3 AMP

123 56

Wiring

Typical Gravity DHW with pumped heating

Typical control of Pump for Central Heating on a

Solid Fuel System

103E7

TERMINALS

103E7

TERMINALS

12356

103E5

TERMINALS

LOAD

MAINS

SUPPLY

FUSED

3 AMP

LOW

VOLTAGE

SUPPLY

COM CALL

LOW

VOLTAGE

ROOM

' S TAT

COM CALL

ROOM

' S TAT

L N BOILER

TERMINALS L N PUMP

TERMINALS

103E5

TERMINALS

MAINS

SUPPLY

FUSED

3 AMP

123 56

LINK

Wiring

Typical Heating Only system,

Boiler and Pump control

Typical control of Low Voltage System requiring

voltage free contacts

103E7

TERMINALS

103E7

TERMINALS

103E5

TERMINALS

123 56

MID-POSITION VALVE L N

MAINS

SUPPLY

FUSED

3 AMP

BOILER &

PUMP

TERMINALS

RED OR

ORANGE

WHITE

BROWN

BLUE GREY

ROOM

' S TAT CYL.

' S TAT

SAT

CALL

COM

LINK

123 56

COM CALL

ROOM

' S TAT

INPUT OUTPUT NL

103E7

TERMINALS

MAINS

SUPPLY

FUSED

3 AMP

COMBI BOILER

TERMINALS

Wiring

Typical control of Heating when provided by

Combination type Boiler (see note below)

Typical Heating & Hot Water control system usuing

3 port mid-position valve

103E7

TERMINALS

103E7

TERMINALS

Note: Connection must only be made if input/output of boiler are 230V

signals

DANFOSS

RANDALL 103E7

LOAD MAINS SUPPLY

(via 3 amp fuse)

An additional terminal block is

required where these disconnected

leads (or pairs of leads) should be

terminated

ON SPARE COM

1 2 3 5 (N) 6 (L) A B C D

RANDALL 103, 103E,

103E7 123 56

RANDALL 3020 4 2 - 1,7 6 3 5

RANDALL TSR2 5 4 1 3 2 6 7

GRASSLIN 45, 45A, 45E 4 - 3 2 1

HORSTMANN 424

EMERALD & PEARL AUTO

RANGE

4 2 3 N L,1 5

HORSTMANN 423 PEARL,

EMERALD & TOPAZ 413 NL256

SANGAMO S254 Form 2,

S408 Form 5,

S251 Form 2

LOAD - - N L

SANGAMO S610 F2,

S611 F2, S612 F2, S408 F4,

S408 F6, S253 F2, S255 F2

LOAD - SWITCH

LIVE NMOTOR

LIVE

SANGAMO S409 F 8 216 3N5L

Replacement
