Contents

1 Safety

Safety 5

Warnings 5

2 Introduction

Feature List 7

Type Code 8

3 Installation

Mechanical Installation 9

Dimensions and Weights 10

4 Electrical Installation

Control Wiring 11

Control Terminals 11

Remote Inputs 12

Serial Communication 12

Earth Terminal 12

Power Terminations 12

Motor Connection 14

In-Line Installation 15

In-line Installation, Internally Bypassed 15

In-line Installation, Non-bypassed 15

In-line Installation, Externally Bypassed 16

Inside Delta Installation 16

Inside Delta Installation, Internally Bypassed 17

Inside Delta Installation, Non-bypassed 17

Inside Delta Installation, Externally Bypassed 18

Current Ratings 18

In-line Connection (Bypassed) 19

AC-53 Rating for Bypassed Operation 19

In-line Connection (Non-bypassed/Continuous) 20

AC-53 Rating for Continuous Operation 20

Inside Delta Connection (Bypassed) 21

AC-53 Rating for Bypassed Operation 21

Inside Delta Connection (Non-bypassed/Continuous) 22

AC-53 Rating for Continuous Operation 22

Minimum and Maximum Current Settings 23

Bypass Contactor 23

Main Contactor 23

Circuit Breaker 23

MCD 500 Operating Instruction Contents

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Power Factor Correction 23

Fuses 24

Bussman Fuses - Square Body (170M) 25

Bussman Fuses - British Style (BS88) 26

Ferraz Fuses - HSJ 27

Ferraz Fuses - North American Style (PSC 690) 28

Ferraz Fuses - European Style (PSC 690) 29

Ferraz Fuses - AJT 30

Schematic Diagrams 31

Internally Bypassed Models 31

Non-bypassed Models 32

5 Application Examples

Motor Overload Protection 33

AAC Adaptive Acceleration Control 33

Starting Modes 33

Constant Current 33

Current Ramp 34

AAC Adaptive Acceleration Control 34

Kickstart 35

Stopping Modes 35

Coast to Stop 35

TVR Soft Stop 36

AAC Adaptive Acceleration Control 36

Brake 37

Jog Operation 37

Inside Delta Operation 38

Typical Start Currents 39

Installation with Main Contactor 41

Installation with Bypass Contactor 42

Emergency Run Operation 43

Auxiliary Trip Circuit 44

Soft Braking 45

Two Speed Motor 46

6 Operation

The LCP 49

Control Methods 49

Local Control Buttons 50

Displays 50

Temperature Monitoring Screen (S1) 51

Programmable Screen (S2) 51

Contents MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Average Current (S3) 51

Current Monitoring Screen (S4) 51

Frequency Monitoring Screen (S5) 51

Motor Power Screen (S6) 52

Last Start Information (S7) 52

Date and Time (S8) 52

SCR Conduction Bargraph 52

Performance Graphs 53

7 Programming

Access Control 55

Quick Menu 56

Quick Setup 56

Application Setups 57

Loggings 58

Main Menu 58

Parameters 58

Parameter Shortcut 58

Parameter List 59

Primary Motor Settings 59

Brake 61

Protection 62

Current Imbalance 62

Undercurrent 62

Instantaneous Overcurrent 62

Frequency Trip 63

Inputs 64

Outputs 66

Relay A Delays 66

Relays B and C 66

Low Current Flag and High Current Flag 67

Motor Temperature Flag 67

Analog Output A 68

Start/Stop Times 68

Auto-Reset 69

Auto-Reset Delay 70

Secondary Motor Set 70

Display 72

User Programmable Screen 72

Performance Graphs 73

Restricted Parameters 74

MCD 500 Operating Instruction Contents

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Protection Action 76

Factory Parameters 76

8 Tools

Set Date and Time 77

Load/Save Settings 77

Reset Thermal Model 78

Protection Simulation 78

Output Signal Simulation 79

Digital I/O State 79

Temp Sensors State 79

Alarm Log 80

Trip Log 80

Event Log 80

Counters 80

9 Troubleshooting

Trip Messages 83

General Faults 86

10 Specifications

Accessories 90

Communication Modules 90

PC Software 90

Finger Guard Kit 91

11 Bus Bar Adjustment Procedure (MCD5-0360C -

MCD5-1600C)

Contents MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

1Safety

1.1 Safety

1.1.1 Warnings

When reading this manual you will come across different symbols that require special attention. The symbols used are the following:

NB!

Indicates something to be noted by the reader

Indicates a general warning

Indicates a high voltage warning

The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is subject to change at

any time and without prior notice. In no event will responsibility or liability be accepted for direct, indirect or consequential damages resulting from the

use or application of this equipment.

WARNING - ELECTRICAL SHOCK HAZARD

MCD 500 soft starters contain dangerous voltages when connected to mains voltage. Only a competent electrician should carry out the

electrical installation. Improper installation of the motor or the soft starter may cause equipment failure, serious injury or death. Follow

this manual and local electrical safety codes.

Disconnect the soft starter from mains voltage before carrying out repair work.

It is the responsibility of the user or person installing the soft starter to provide proper grounding and branch circuit protection according

to local electrical safety codes.

Do not connect power factor correction capacitors to the output of MCD 500 soft starters. If static power factor correction is employed,

it must be connected to the supply side of the soft starter.

The motor can be stopped by means of digital or bus commands while the soft starter is connected to the mains, if the soft starter is in Auto On mode.

1. If personal safety considerations make it necessary to ensure that no unintended start occurs,

these stop functions are not sufficient.

2. A motor that has been stopped may start if faults occur in the electronics of the soft starter, or a temporary fault in the supply mains or the

motor connection ceases.

AUTO-START

Use the auto-start feature with caution. Read all the notes related to auto-start before operation.

MCD 500 Operating Instruction 1 Safety

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Equipment containing electrical components may not be disposed of together with domestic

waste.

It must be collected separately as electrical and electronic waste according to local and cur-

rently valid legislation.

1 Safety MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

2Introduction

The MCD 500 is an advanced digital soft start solution for motors from 7 kW to 800 kW. MCD 500 soft starters provide a complete range of motor and

system protection features and have been designed for reliable performance in the most demanding installation situations.

2.1.1 Feature List

Models for all connection requirements

• 21 A to 1600 A (in-line connection)

• In-line or inside delta connection

• Internally bypassed up to 215 A

• Mains voltage: 200 - 525 VAC or 380 - 690 VAC

• Control voltage: 24 VAC/VDC, 110 - 120 VAC or 220 - 240 VAC

User-friendly LCP

• Loggings

•Real-timegraphs

•SCRconductionbargraph

Tools

• Application setups

• Date and time stamped event log with 99 entries

•8mostrecenttrips

• Counters

•Protectionsimulation

• Output signal simulation

Inputs and Outputs

• Local or remote control input options

(3 x fixed 1 x programmable)

• Relay outputs (3 x programmable)

• Analog programmable output

• 24 VDC 200 mA supply output

Start and run modes

• AAC - Adaptive Acceleration Control

• Constant current

• Current ramp

•Kickstart

•Jog

• Emergency run operation

Stop modes

• AAC - Adaptive Acceleration Control

• Timed voltage ramp soft stop

•DCbrake

•Softbrake

•Emergencystop

Other features

• Auto start/stop timer

• Second order thermal model

• Battery backup of clock and thermal model

• Optional DeviceNet, Modbus or Profibus communication mod-

ules

Comprehensive protection

• Wiring/Connection/Supply

-Motor connection

-Phase sequence

-Power loss

-Individual phase loss

-Mains frequency

• Current

-Excess start time

-Current imbalance

-Undercurrent

-Instantaneous overcurrent

•Thermal

-Motor thermistor

-Motor overload

-Bypass relay overload

-Heatsink temperature

• Communication

-Network comms

-Starter comms

•External

-Input trip

•Starter

-Individual shorted SCR

-Battery/Clock

MCD 500 Operating Instruction 2 Introduction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

2.1.2 Type Code

MCD 5 -- - -

Current rating

0021 = 21 A, AC53b 3-30:330

0037 = 37 A, AC53b 3-30:330

0043 = 43 A, AC53b 3-30:330

0053 = 53 A, AC53b 3-30:330

0068 = 68 A, AC53b 3-30:570

0084 = 84 A, AC53b 3-30:570

0089 = 89 A, AC53b 3-30:570

0105 = 105 A, AC53b 3-30:570

0131 = 131 A, AC53b 3-30:570

0141 = 141 A, AC53b 3-30:570

0195 = 195 A, AC53b 3-30:570

0215 = 215 A, AC53b 3-30:570

0245 = 245 A, AC53a 3-30:50-6

0360 = 360 A, AC53a 3-30:50-6

0380 = 380 A, AC53a 3-30:50-6

0428 = 428 A, AC53a 3-30:50-6

0595 = 595 A, AC53a 3-30:50-6

0619 = 619 A, AC53a 3-30:50-6

0790 = 790 A, AC53a 3-30:50-6

0927 = 927 A,AC53a 3-30:50-6

1200 = 1200 A, AC53a 3-30:50-6

1410 = 1410 A, AC53a 3-30:50-6

1600 = 1600 A, AC53a 3-30:50-6

Mains voltage

T5 = 200 - 525 VAC

T7 = 380 - 690 VAC

IP rating

00 = IP00

20 = IP20

Control voltage

CV1 = 24 VAC/VDC

CV2 = 110-120 VAC or 220-240 VAC

B = Bypassed

C = Non-bypassed

Frame size

G1 = 0021 ~ 0105 A

G2 = 0131 ~ 0215 A

G3 = 0245 A

G4 = 0360 A ~ 0927 A

G5 = 1200 A ~ 1600 A

Not used

= Not selectable

177HA382.11

2 Introduction MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

3Installation

3.1 Mechanical Installation

1MCD5-0021B - MCD5-0245C: Allow 100 mm (3.94 inches) between soft starters.

MCD5-0360C - MCD5-1600C: Allow 200 mm (7.88 inches) between soft starters.

2MCD5-0021B - MCD5-0215B: Allow 50 mm (1.97 inches) between the soft starter and solid surfaces.

MCD5-0245C: Allow 100 mm (3.94 inches) between the soft starter and solid surfaces.

MCD5-0360C - MCD5-1600C: Allow 200 mm (7.88 inches) between the soft starter and solid surfaces.

3The soft starter may be mounted on its side. Derate the soft starter's rated current by 15%.

4Soft starters may be mounted side by side with clearance of 50 mm (1.97 inches) on both sides.

MCD 500 Operating Instruction 3 Installation

MG.17.K2.02 - VLT®is a registered Danfoss trademark

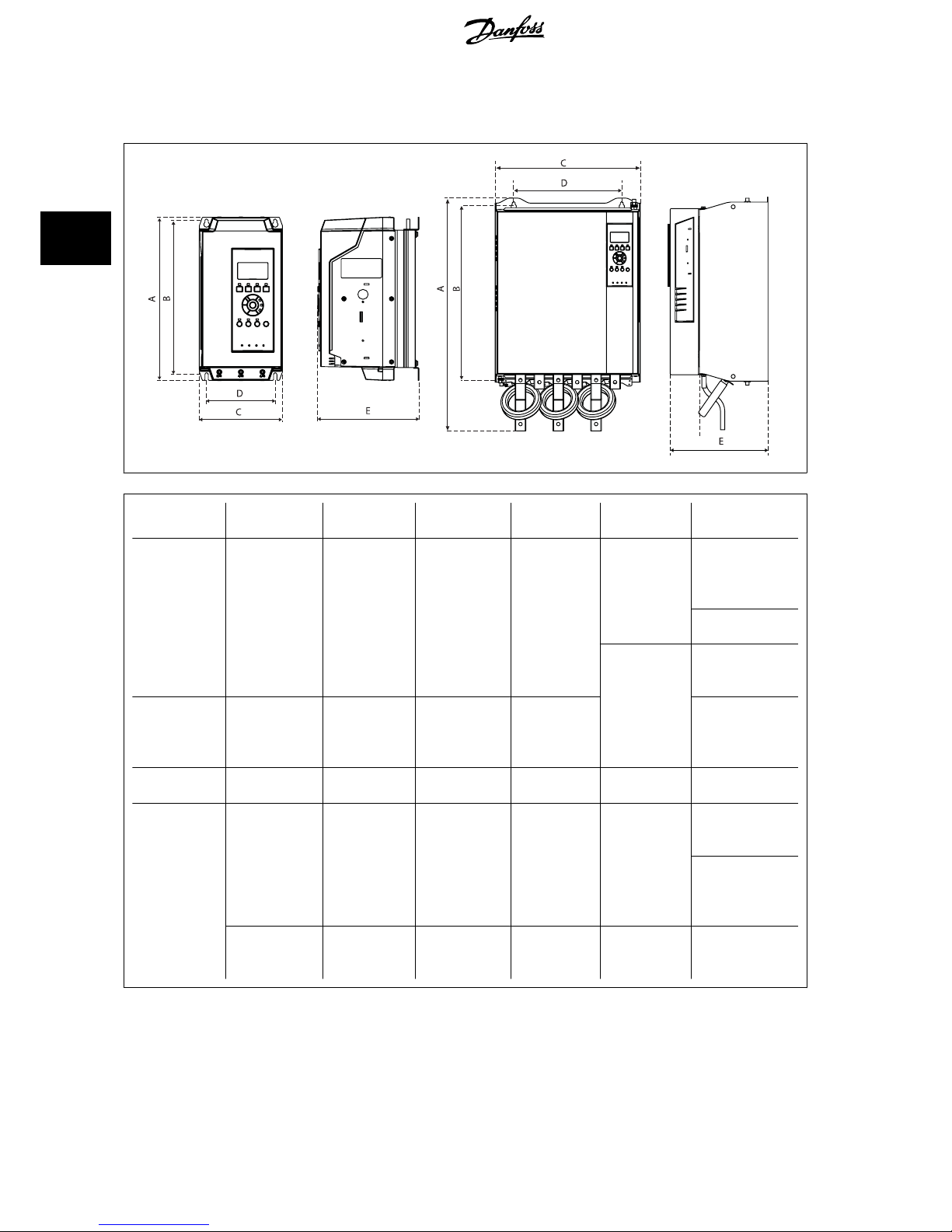

3.2 Dimensions and Weights

177HA514.10

Model A mm

(inches)

B mm

(inches)

C mm

(inches)

D mm

(inches)

E mm

(inches)

Weight kg

(lbs)

MCD5-0021B

295

(11.6)

278

(10.9)

150

(5.9)

124

(4.9)

183

(7.2)

4.2

(9.3)

MCD5-0037B

MCD5-0043B

MCD5-0053B

MCD5-0068B 4.5

(9.9)

MCD5-0084B 213

(8.14)

4.9

(10.8)

MCD5-0089B

MCD5-0105B

MCD5-0131B

438

(17.2)

380

(15.0)

275

(10.8)

248

(9.8)

250

(9.8)

14.9

(32.8)

MCD5-0141B

MCD5-0195B

MCD5-0215B

MCD5-0245C 460

(18.1)

400

(15.0)

390

(15.4)

320

(12.6)

279

(11.0)

23.9

(52.7)

MCD5-0360C

689

(27.1)

520

(20.5)

430

(16.9)

320

(12.6)

302

(11.9)

(77.2)

MCD5-0380C

MCD5-0428C

MCD5-0595C

(99.2)

MCD5-0619C

MCD5-0790C

MCD5-0927C

MCD5-1200C 856

(33.7)

727

(28.6)

585

(23.0)

500

(19.7)

364

(14.3)

120

(264.6)

MCD5-1410C

MCD5-1600C

3 Installation MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Otros manuales para vlt soft starter mcd 500

Tabla de contenidos

Otros manuales de Controladores de Danfoss

Danfoss

Danfoss VLT AQUA Drive FC 202 Manual de usuario

Danfoss

Danfoss ECL Comfort 210 Manual de usuario

Danfoss

Danfoss 140F1139 Manual de usuario

Danfoss

Danfoss ERC 113 Manual de usuario

Danfoss

Danfoss VLT HVAC Drive FC 102 Manual de usuario

Danfoss

Danfoss AK-CC 550 Manual de usuario

Danfoss

Danfoss AK-SC255 Manual de usuario

Danfoss

Danfoss EKC 316A Manual de usuario

Danfoss

Danfoss EKC 201 Manual de usuario

Danfoss

Danfoss ECL Comfort 300 Manual de usuario

Danfoss

Danfoss VLT MCD 201 Manual de usuario

Danfoss

Danfoss VLT PROFIBUS DP MCA 101 Instrucciones de funcionamiento

Danfoss

Danfoss VLT AutomationDrive FC 300 Manual de usuario

Danfoss

Danfoss erc 112 Manual de usuario

Danfoss

Danfoss AMI 140 Series Manual de usuario

Danfoss

Danfoss AME 35 Manual de usuario

Danfoss

Danfoss AME 110 Manual de usuario

Danfoss

Danfoss MCD 500 Series Manual de usuario

Danfoss

Danfoss ECtemp 850 IV Manual de usuario

Danfoss

Danfoss ERC 213 Manual de usuario

Danfoss

Danfoss Old ICAD 600 series Manual de usuario

Danfoss

Danfoss CCR3+ Manual de usuario

Danfoss

Danfoss AME 55 Manual de usuario

Danfoss

Danfoss AK-CC 550 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

Danfoss vlt soft starter mcd 500 Manual de usuario

Manuales populares de Controladores de otras marcas
