SERVICE MANUAL
VACCUM CLEANER
MODEL NAME : RCG-110
CONTENTS
1. SPECIFICATIONS……………………………………………………………………
2 Pages
2. EXTERNAL VIEWS……………………………………………………………………
3 Pages
2-1. ASSEMBLY……………………………………………………………………
3 Pages
2-2. MODEL RCG-110 (Variable Control)………………………………………………………………………………
4 Pages
3. DIAGRAM……………………………………………………………………………
5 Pages
3-1. WIRING DIAGRAM………………………………………………………………
5 Pages
4. TROUBLE SHOOTING GUIDE………………………………………………………………
6 Pages
5. EXPLODED VIEW AND PARTS LIST………………………………………………………………
8 Pages
5-1. BASE ASSEMBLY………………………………………………………………
8 Pages
5-2. FRONT COVER ASSEMBLY………………………………………………………………
10 Pages
5-3. BACK COVER ASSEMBLY………………………………………………………………
12 Pages
5-4. MOTOR ASSEMBLY………………………………………………………………
14 Pages
5-5. CORD REEL ASSEMBLY………………………………………………………………
15 Pages
5-6. ACCRESS ASSEMBLY……………………………………………………
17Pages
1
1. SPECIFICATIONS
Model
RCG-110B
(Variable Control)
RCG-110F
(On/Off Control)
Rated Voltage AC 220-240V AC 220-240V
Frequency 50/60Hz 50/60Hz
Input Watt MAX 1400W MAX 1400W
Weight(Body) 4.38Kg 4.38Kg
Dimension(LXHXD) 350X280X210mm 350X280X210mm
Cord Length 5m 5m
Power Control Body Variable Body On/Off
Dust Meter Mechanical Mechanical
Hose 1.5m 1.5m
Nozzle Pedal Brush Pedal Brush
MULT Nozzle MULT Nozzle
Extension Pipe
Telescopic Tube
Telescopic Tube
2
2. EXTERNAL VIEWS

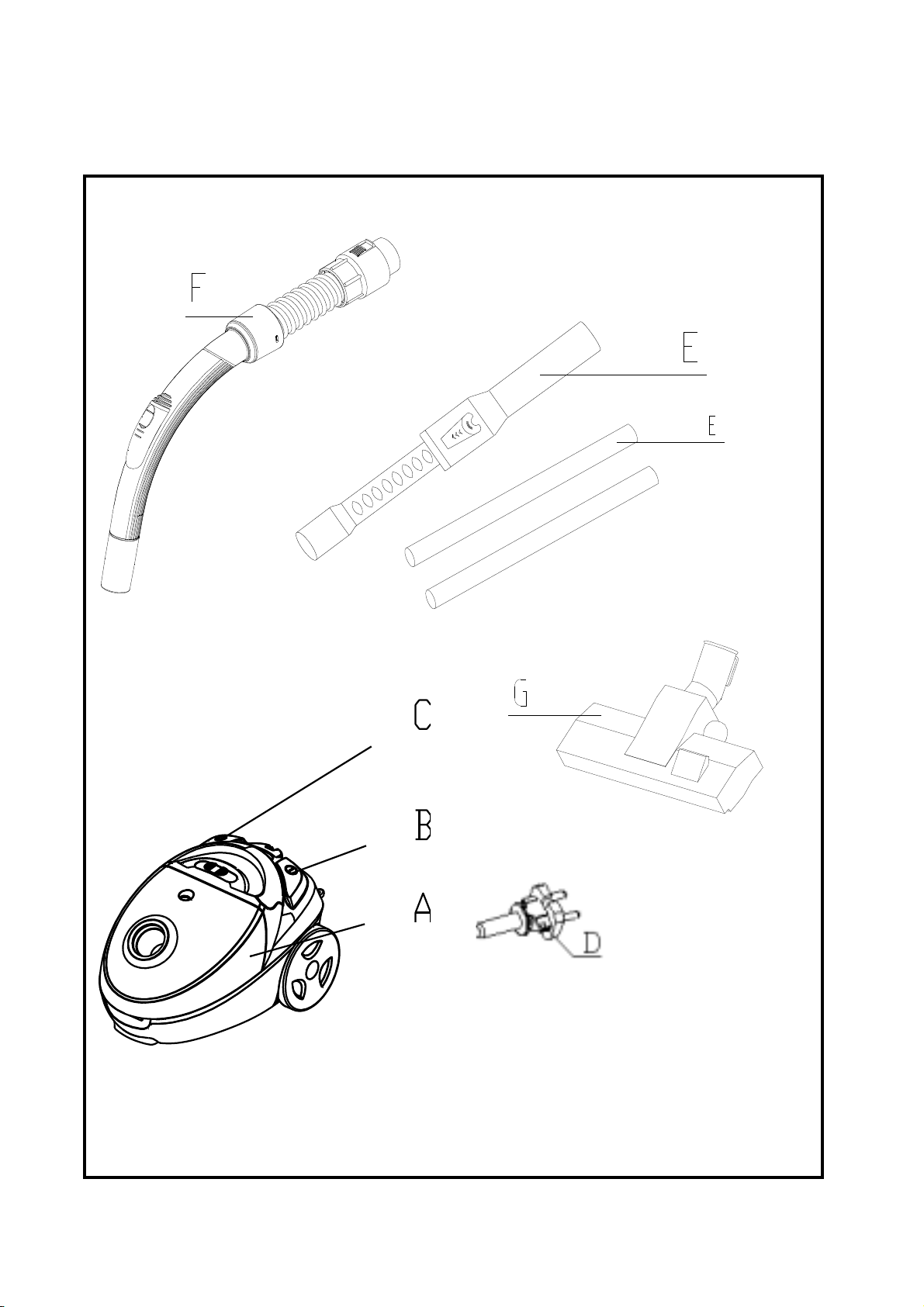

2-1. ASSEMBLY
RCG-110B
(Variable Control)
RCG-110F
(On/Off Control)
A - DUST METER ㅇ ㅇ
B - SWITCH BUTTON ㅇ ㅇ
C - CORD REWIND BUTTON ㅇ ㅇ
D - POWER CORD ㅇ ㅇ
E - EXTENSION PIPE
(Steel Telescopic Tube)
ㅇ ㅇ
F - HOSE HANDLE ㅇ ㅇ
G - PEDAL BRUSH ㅇ ㅇ
PART NAME
MODEL
3
2-2. MODEL RCG-110 (Variable Control)
4
3. DIAGRAM
3-1. WIRING DIAGRAM
■ MODEL : RCG-110B(Variable Control)
■ MODEL : RCG-110F (On/Off Control)
5
4. TROUBLE SHOOTING GUIDE
TROUBLE CAUSE COUNTERMEASURE
SUCTION POWER FILTER BAG(PAPER OR CLOTH) CHANGE IT WITH NEW ONE
IS WEAK IS FULL WITH DUST OR REMOVE THE DUST
CLOGGING OR TEAR IN HOSE REMOVE OBSCTACLE
OR REPLACE THE HOSE
DEFECTIVE MOTOR REPLACE THE MOTOR
(SEE 5-4)
CLEANER DOES BREAKING IN POWER CORD REPLACE THE POWER
NOT WORK (AT BLADE TIP OR ROOT OF PLUG) CORD (SEE 5-5)
DEFECTIVE PCB ASSEMBLY REPLACE IT (SEE 5-3)
BREAKING OF CONNECTIONS REPAIR (SEE 5-5)
OR POOR CONTACTS IN
CORD REEL ASSEMBLY
DEFECTIVE MOTOR REPLACE IT (SEE 5-4)
BREAKING OF CONNECTIONS
IN BACK COVER ASSEMBLY REPAIR (SEE 5-3)
DEFECTIVE SWITCH REPLACE IT (SEE 5-3)
MOTOR DOES NOT DEFECTIVE PCB ASSEMBLY REPLACE IT (SEE 5-3)
STOP EVEN IF
SWITCH
6
TROUBLE CAUSE COUNTERMEASURE
POWER CORD IS BROKEN REEL SPRING REPLACE IT (SEE 5-5)
NOT WOUND UP OF CORD REEL
POWER CORD BROKE AWAY REPAIR (SEE 5-5)
FROM THE BOBBIN
※ CAUTION : BE CAREFUL WHEN BREAKING UP THE CORD REEL, THE REEL
SPRING MAY SPRING OUT OF THE SPRING COVER.
POWER CORD DOES ABRASION OF THE ROLLER REPLACE THE ROLLER
NOT STOP AT AN BRAKE OF CORD REEL BRAKE (SEE 5-5)
ARBITRARY
POSITION LEVER SPRING BROKE AWAY REPAIR (SEE 5-5)
FROM THE CORD REEL BRACKET
7
5. EXPLODED VIEW AND PARTS LIST
5-1.BASE ASSEMBLY
8
DAEWOO CHUNLAN
BASE ASSEMBLY
1BASE CLPB-CL181-A01 PP 1
2FRONT WHEEL HOLDER CLPB-CL150-A26 ABS 1
3PLAIN WASHER CLPB-CL152-B05 Φ4XΦ12X0.8/ZINCIFICATION 1
4TAPPING SCREW ST4.0x12PH/A 1
5FRONT WHEEL CLPB-CL150-A25 PP+PVC 1
6REAL WHEEL CLPB-CL152-A16 PP 2
7OUTLET FILTER(1) CLPB-CL152-E05 1
8OUTLET FILTER(2) CLPB-CL152-E06 1
9OUTLET BOARD CLPB-CL152-A09 ABS 1
10 INLET FILTER CLPB-CL152-E01 1
11 FRONTCOVER SEALING RING CLPB-CL152-C05 RUBBER 1
12 DUSTBAG CLPB-CL152-E04 1
13 PROTECTION LEVER CLPB-CL181-A15 PP 1
14 WRIGGLE SPRING CLPB-CL152-B02 1
15 DUSTBAG HOLDER CLPB-CL181-A23 ABS 1
16 TAPPING SCREW ST4.0x16PH/A 2
17 FRONT COVER BASE CLPB-CL152-A11 ABS 1
LIST OF BASE ASSEMBLY
PART CODE
NO.
PART NAME
SPECS.
Q`YT
9
