Daewoo FRU-541 Series Manual de usuario

Mar. 2010.

S/M No. :FRSU20IA05

1. Model Name

① ②③④⑤

FRS-U20 IAI I

①Refrigerant Type

S : R-134a

N : R-600a

②Model Specification

I : Inner Basic

B : Basic

D : Dispenser Only

E : Dispenser + Magic Room

F : Dispenser + H/Bar

G : Dispenser + H/Bar + Magic Room (Full Option Models)

③Door, Handle & Refrigerator Case Features

A : 1st Basic Handle

B : Aluminum Long Handle ( Ref. Case 2ea )

C : Radius Handle ( Ref. Case 2ea )

E : Aluminum Long Handle ( Ref. Case 3ea )

G : Arc Handle

L : Aluminum Long Handle + Internal feature is C type

④Color Option

⑤Inverter Compressor Models Code

2. Model Features ( Below table is Full option model illustrated )

U20*A*

U20*B*

Model Name & Features

Model Name Features Pocket Type Chilled Case Refrigerator Case Q'ty

U20*C*

U20*E*

U20*G*

U20*L*

2 pieces

1 pieces

2 pieces

1 pieces

3 EA

2 EA

3 EA

2 EA

1. Specification

Dispenser

H/Bar

Magic Cool Zone

Total

Freezer

Refrigerator

Total

Freezer

Refrigerator

Width (mm)

Depth (mm)

Height (mm)

Refrigerant Type

Refrigerant Charge

Evaporator Type

Condenser Type

Dryer

Capillary Tube

Defrost Heater

Dispenser Heater

Water Pipe Heater

Main Duct Heater

Home Bar Heater

Defrost Sensor

Freezer Sensor

Refrigerator Sensor

Fuse Temp. (Defrost)

Freezer Fan Motor

Refrigerator Fan Motor

Condenser Fan Motor

Freezer Lamp

Refrigerator Lamp

Feature

xxO

xxx

343

AC 220V / 10W

531

175

AC 220V / 7W

AC 220V / 5W

175

518

104

227

377

227

FRU-54.G..

U20G…

604618 604

U20F…

FRU-54.F..

U20D…

Cooling Cycle

Electronic Part

Heater

Sensor

U20E…

Factory No.

Buyer No. U20B…U20I…

FRU-57.I.. FRU-57.B.. FRU-54.D.. FRU-54.E..

Weight (kg)

Gross Vol.

(ISO 15502)

Storage Vol.

(ISO 15502)

Diemension

618

241

377

555 518

354 356356 343354

555

175 175201

377

241

531

604 604

377

227 227

377

PBN-43

76g or 190g

AC 220V / 192W

115 117 119

ID0.7 x T0.55 x L2200

Molecular Sieve xH-9

201

DC 13V, 2050rpm

AC 250V, 10A, 77C

PBN-43

PT-38

903

730.5

1790

R-600a or R-134a

25W x 2EA

25W x 1EA

DC 13V, 1100rpm

DC 13V, 1850rpm

117104

Fan Cooling System

Fin Type

2. External Size

SPECIFICATIONS

3. Interior Parts

3-1. Basic Models

3-2. Dispenser Model ( Full option model )

SPECIFICATIONS

1) Freezer Top Pocket (1ea)

2) The mouth of the ice

3) Freezer Pocket (3ea)

4) Case Ice Crusher

5) Freezer Lamp (25Wx1ea)

6) Freezer Shelf

7) Freezer Case (2ea)

8) Refrigerator Lamp (25Wx2ea)

9) Refrigerator Shelf

10) Wine Rack (*Option)

11) Refrigerator Case (2ea)

12) Magic Room (*Option)

13) Dairy Pocket

14) Refrigerator Pocket (3 ea)

15) Refrehsment Pocket

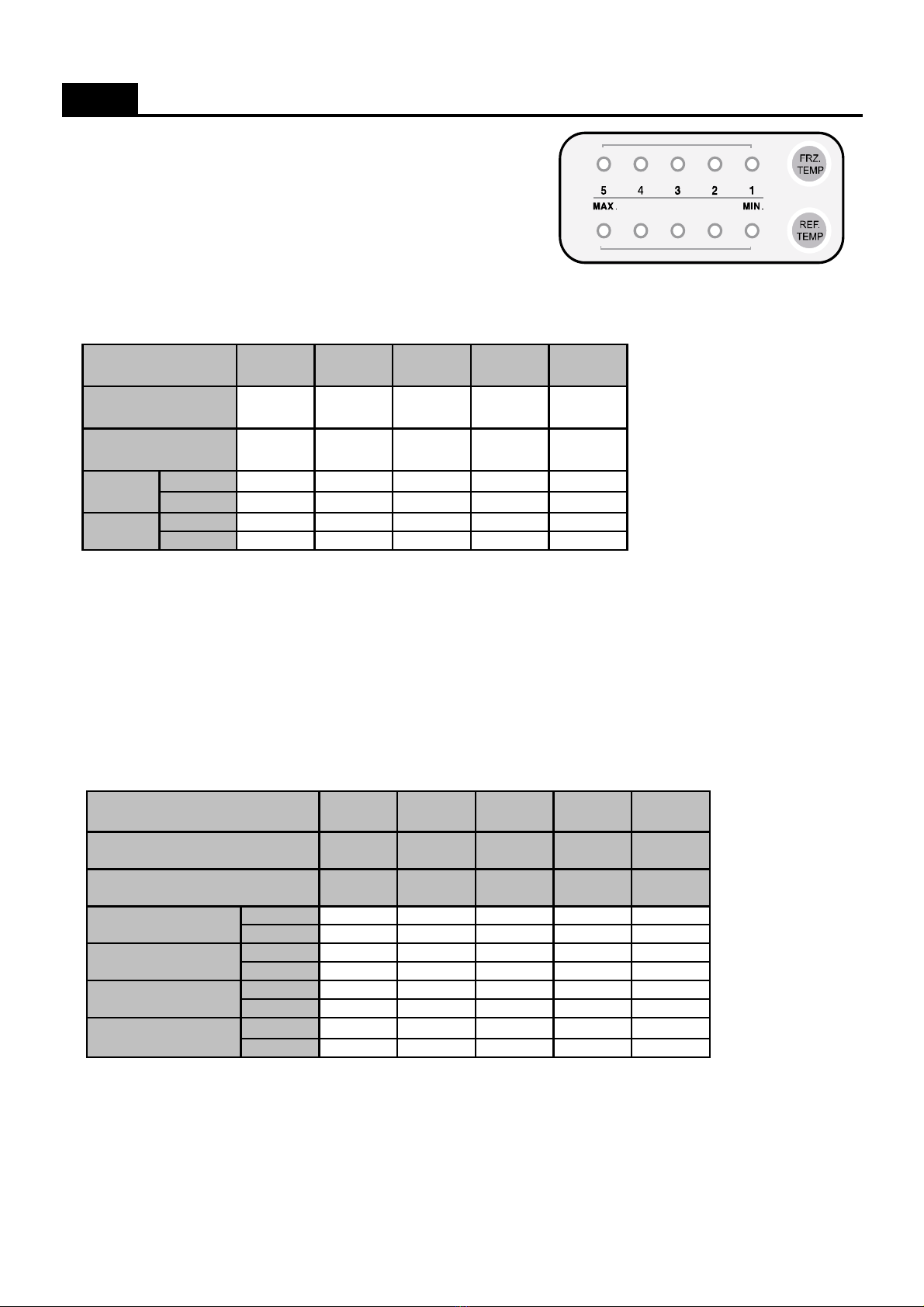

1. Display ( Inner Basic Model )

a Temperature adjustment button for freezer compratment

b Temperature adjustment button for refrigerator compratment

2. Display Control

3. FRZ. SET button

1) Temperature control of freezer compartment

2) Initial power plug in : Medium ( 3 )

- Every time you press the FRZ. SET button, the setting temperature changes below order.

4. REF. SET button

1) Temperature control of refrigerator compartment

2) Initial power plug in : Medium ( 3 )

- Every time you press the REF. SET button, the setting temperature changes below order.

FUNCTIONS ( DISPLAY_Inner Basic Model )

FCP Cotrol

Temp. Display (Set Temp.) Initial Mode : Freezer / Refrigerator set medium ( 3 / 3 )

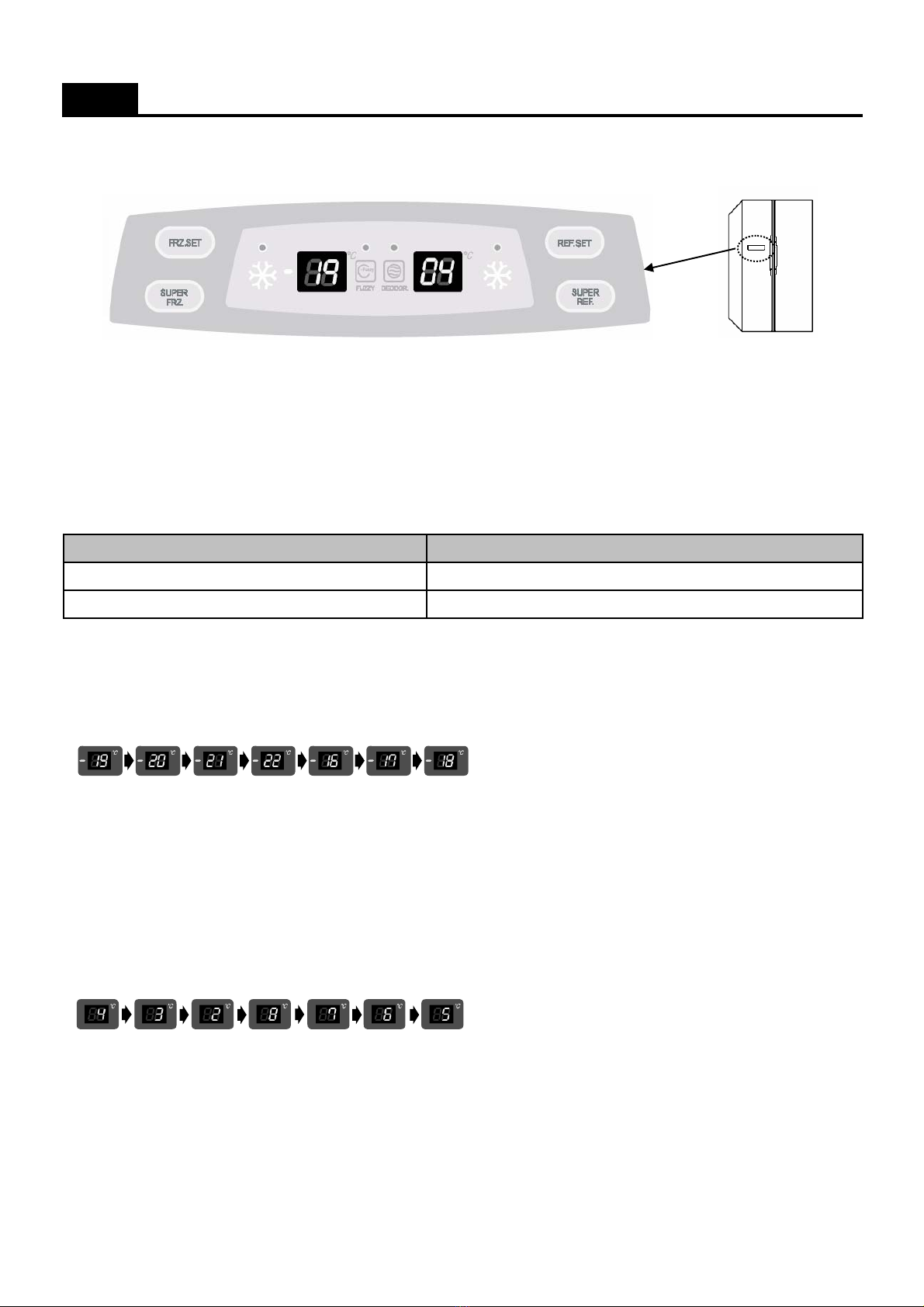

1. Display ( Basic Model )

a Temperature adjustment button for freezer compratment

b Super(Quick) freezer compartment button

c Super(Quick) refrigerator compartment button

d Temperature adjustment button for refrigerator compratment

2. Display Control

3. FRZ. SET button

1) Temperature control of freezer compartment

2) Initial power plug in : Medium ( -19C )

- Every time you press the FRZ. SET button, the setting temperature changes below order.

4. SUPER FRZ. Button

When this button press, the QUICK and Speed icon is flicker 6 times and keep ON.

( By pressing the SUPER FRZ. Button again you can stop this function. )

5. REF. SET button

1) Temperature control of refrigerator compartment

2) Initial power plug in : Medium ( 4C )

- Every time you press the REF. SET button, the setting temperature changes below order.

6. SUPER REF. Button

When this button press, the QUICK and Speed icon is flicker 6 times and keep ON.

( By pressing the SUPER REF. Button again you can stop this function. )

FUNCTIONS ( DISPLAY_Basic Model )

FCP Cotrol

Temp. Display (Set Temp.)

SUPER FRZ, SUPER REF. Icon

Initial Mode : Freezer / Refrigerator set medium ( -19C / 4C)

Button

1. Display ( Dispenser Type )

a Temperature adjustment button for freezer compratment

b Super(Quick) freezer compartment button

c Reset water filter button after exchanging the filter

d Dispenser selction button. ( Water / Crushed ice / Cubed ice )

e Ice maker lock button

f Children lock button ( Hold 3 sceconds )

g Temperature adjustment button for refrigerator compratment

h Super(Quick) refrigerator compartment button

2. Display Control

3. FRZ. SET button

1) Temperature control of freezer compartment

2) Initial power plug in : Medium ( -19C )

- Every time you press the FRZ. SET button, the setting temperature changes below order.

4. SUPER FRZ. Button

When this button press, the QUICK and Speed icon is flicker 6 times and keep ON.

( By pressing the SUPER FRZ. Button again you can stop this function. )

FUNCTIONS ( DISPLAY_Dispenser Model )

FCP Cotrol

Temp. Display (Set Temp.)

SUPER FRZ, SUPER REF. Icon

WATER / CUBED ICE / CRUSHED ICE

KEY LOCK ICON

FILTER CHANEGE LED AFTER 6 Month, LED ON

Initial Mode : Freezer / Refrigerator set medium ( -19C / 4C)

Button

5. REF. SET button

1) Temperature control of refrigerator compartment

2) Initial power plug in : Medium ( 4C )

- Every time you press the REF. SET button, the setting temperature changes below order.

6. SUPER REF. Button

When this button press, the QUICK and Speed icon is flicker 6 times and keep ON.

( By pressing the SUPER REF. Button again you can stop this function. )

7. RESET WATER FILTER

After 6 month of first power input, 'Change Filter Icon' is on. When the time comes to change follow the steps.

1) Push the Lock button.

2) Push the 'Filter Reset' button for 3 seconds. Then 'Change Filter'icon is off.

8. WATER/ICE select

1) WATER / CUBED ICE / CRUSHED ICE mode available.

2) Every the button press, the order is WATER - CUBED ICE - CRUSHED ICE.

3) The initial mode is WATER.

9. ICE MAKER LOCK

1) Press the 'Dispenser' button continue. ( Press again, the mode is OFF. )

2) When cleaning the ice storage case or when not use for a long period of time.

9. LOCK button

1) When lock the other buttons, press this button and LOCK icon is active.

( In this mode other button is unable except LOCK button.)

2) To unlock, push the button again.

< REFERENCE >

: Please wait for 2 ~ 3 seconds in order to take final ice or drops of water when taking out cup from the pressing

switches after taking ice or water.

: The actual inner temperature varies depending on the frood status, as the indicated setting temperature is a target

temperature, not actual temperautre within refrigerator.

FUNCTIONS ( DISPLAY_Dispenser Model )

1. Freezer Compartment Control

1) Adjust by the pushing the FRZ.SET button.

2) Compressor & Freezer Fan controlled by each mode ON/OFF point.

3) Freezer Compartment ON/OFF Difference : 2C

- MEDIUM OFF point : -19C

- When Room Temperature (RT) is below 13C, Freezer sensor OFF point 2C up ( so, MEDIUM OFF : -17C )

4) Control Temperature Point in Each Mode

2. Refrigerator Compartment Control

1) Adjust by the pushing the REF.SET button.

2) Refrigerator Fan controlled by each mode ON/OFF point.

3) Freezer Compartment ON/OFF Difference : 0.5C

- MEDIUM OFF point : 4.2C

- When Room Temperature (RT) is below 13C, Refrigerator sensor OFF point 2C up ( so, MEDIUM OFF : 6.2C )

4) Control Temperature Point in Each Mode

FUNCTIONS ( TEMPERATURE CONTROL )

Initially On 1st Press 2nd Press 3rd Press 4th Press

Sensor On -14.0 -15.5 -17.5 -9.0 -12.0

Sensor Off -16.0 -17.5 -19.5 -11.0 -14.0

Sensor On -12.0 -13.5 -15.5 -7.0 -10.0

Sensor Off -14.0 -15.5 -17.5 -9.0 -12.0

Division

34512Display

Min Medium

Min

Control Medium

Max Max

Normal

RT <= 13C

Temperature Medium

Initially On 1st Press 2nd Press 3rd Press 4th Press

Sensor On 4.7 3.7 2.7 6.7 5.7

Sensor Off 4.2 3.2 2.2 6.2 5.2

Sensor On 6.7 5.7 4.7 8.7 7.7

Sensor Off 6.2 5.2 4.2 8.2 7.2

Sensor On 11.2 10.2 9.2 13.2 12.2

Sensor Off 4.2 3.2 2.2 6.2 5.2

Sensor On 13.2 12.2 11.2 15.2 14.2

Sensor Off 6.2 5.2 4.2 8.2 7.2

Division

Display

Weak refrigeration

& RT <= 13C

Temperature Medium Medium

Max Max Min Medium

Min

Normal

RT <= 13C

Weak refrigeration
