Daewoo FR-331 Manual de usuario

Service Manual

Refrigerator

Model: FR - 331

(FRM-273NLE8C)

DAEWOO ELECTRONICS CO., LTD.

http://svc.dwe.co.kr

S/M No. : FR33100010

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

1. Specification

Refrigerant R134a

COOLING System

Refrigeration System

Defrost System

Defrost Operation

Cold Control

Freezer

Refrigerator

Total

Height

Width

Depth

Net Weight

External

Dimension

1636mm

600mm

682mm

Automatic Start & Stop

Adjustable Dial

Capacity

61L

-1-

207L

268L

115g

Fan Cooling Convection Type

Air Forced Convection

Forced Fin-Evaporator Type

57Kg

2. NAME OF PARTS

-2-

3. REFRIGERANT CYCLE DIAGRAM

-3-

NO PART NAME NO PART NAME NO PART NAME

1 BASE CAB AS 7 PIPE HOT 13 BASE COMP AS

2 COMPRESSOR 8 DRYER AS 14 BRACKET EARTH

3 P-RELAY AS 9 PIPE SUC AS 15 POWER CORD AS

4 PIPE VAPORI AS 10 PIPE SUC CONN 16 ABSORBER PIPE A

5 ABSORBER PIPE B 11 BOX POWER AS

6 PIPE S *PLT 12 HARNESS EARTH

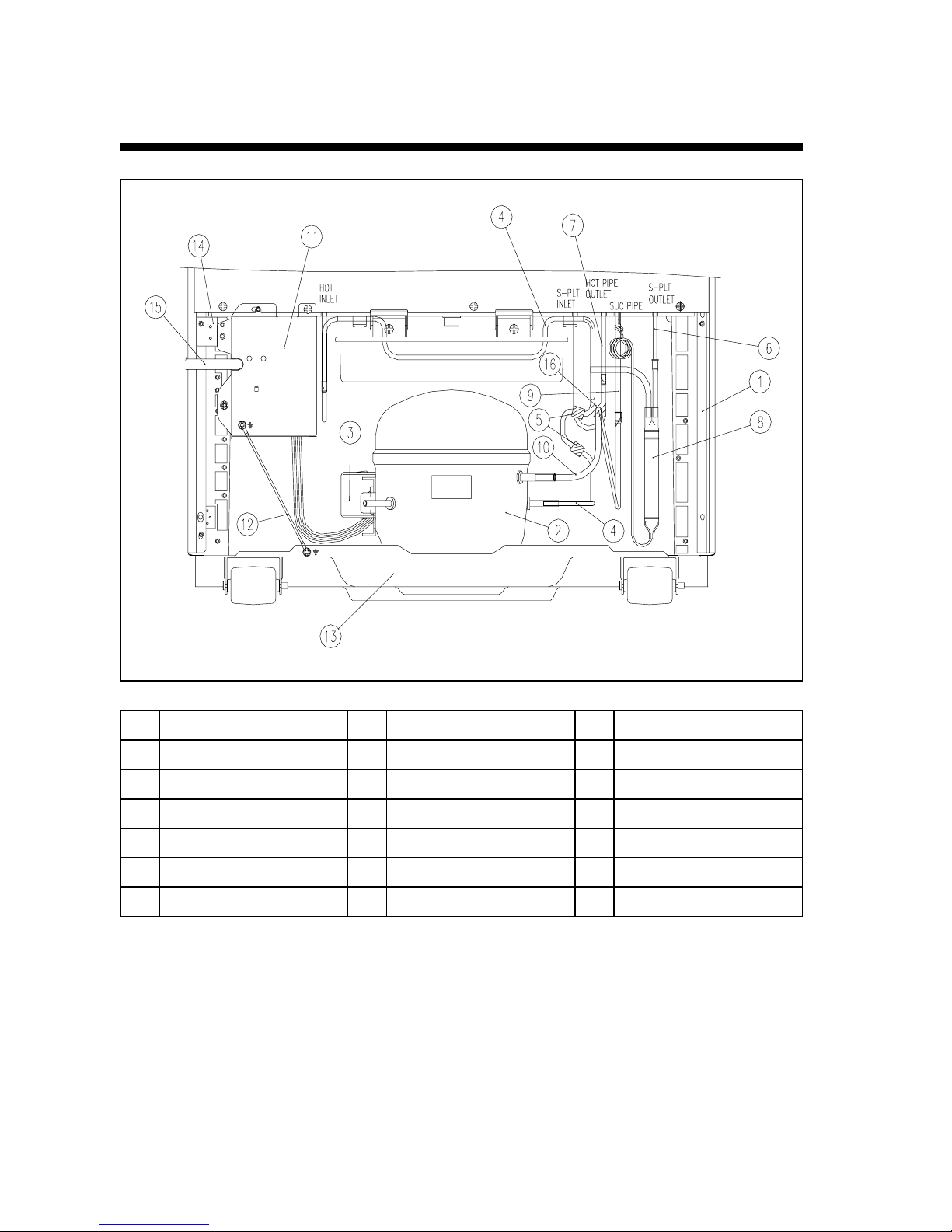

4. MACHINE ROOM VIEW AND PART LIST

-4-

(1) Freezing room louver

1) Unscrew, remove the F-louver by

pulling forward with inserting

screwdriver into the hole of F louver.

2) Assemble it by pressing triangle

shape ( ) by hand.

(2) R control box

1) After pressing both bottom surfaces

of shade and pull forward.

2) To exchange the interior lamp,

unscrew the lamp counterclockwise.

3) Remove two screws

5. METHODS OF EXCHANGING MAIN PARTS

-5-

Methode of exchanging main parts

4) Pull slightly forward with instant force.

5) Remove the housing

6) After romoving the control switch knob

and two screws for fixing control switch,

change the control switch to new one.

-6-

Methode of exchanging main parts

(3) Bimetal

1) Cut off the wire bind.

2) Take out the bimetal.

(4) Glass tube heater

1) Remove 2 screws that fasten the evaporator.

2) Slightly pull the evaporator to the arrow's

direction.

3) Move the entire eveporator upward the pipe

center to the arrow's direction.

(Do not crumble the part A of the

accumulator during the process.)

-7-

Evaporator fastening screw

BIMETAL

Methode of exchanging main parts

4) Cut the both ends of glass tube heater tube

heater lead wires and insulate and seal lead

tip remaining in refrigerator with tape etc.

5) Pull out the glass tube heater from the heater

supporter with heater covers remaining.

(upper and lower) (Do not apply much

power on the heater supporter.)

6) Install the heater covers (upper and lower)

on a new glass tube heater. (Make the cover

with holes the lower one)

7) Place the glass tube heater lead wire shown

as below and fasten the shaded area with

type.

8) Fin insert the lead wire connection terminals.

(Same colored lead wires)

9) Set the evaporator on normal position and

secure the fastening screws.

-8-

Raise upward

Heater Cover

(Top)

Glass tube

heater

Lead wire

Heater fixture

Heater Cover

(Bottom) Heater Cover

(Top)

Heater Cover

(Bottom)

Frontside

AL tape Lead wire

Glass tube heater

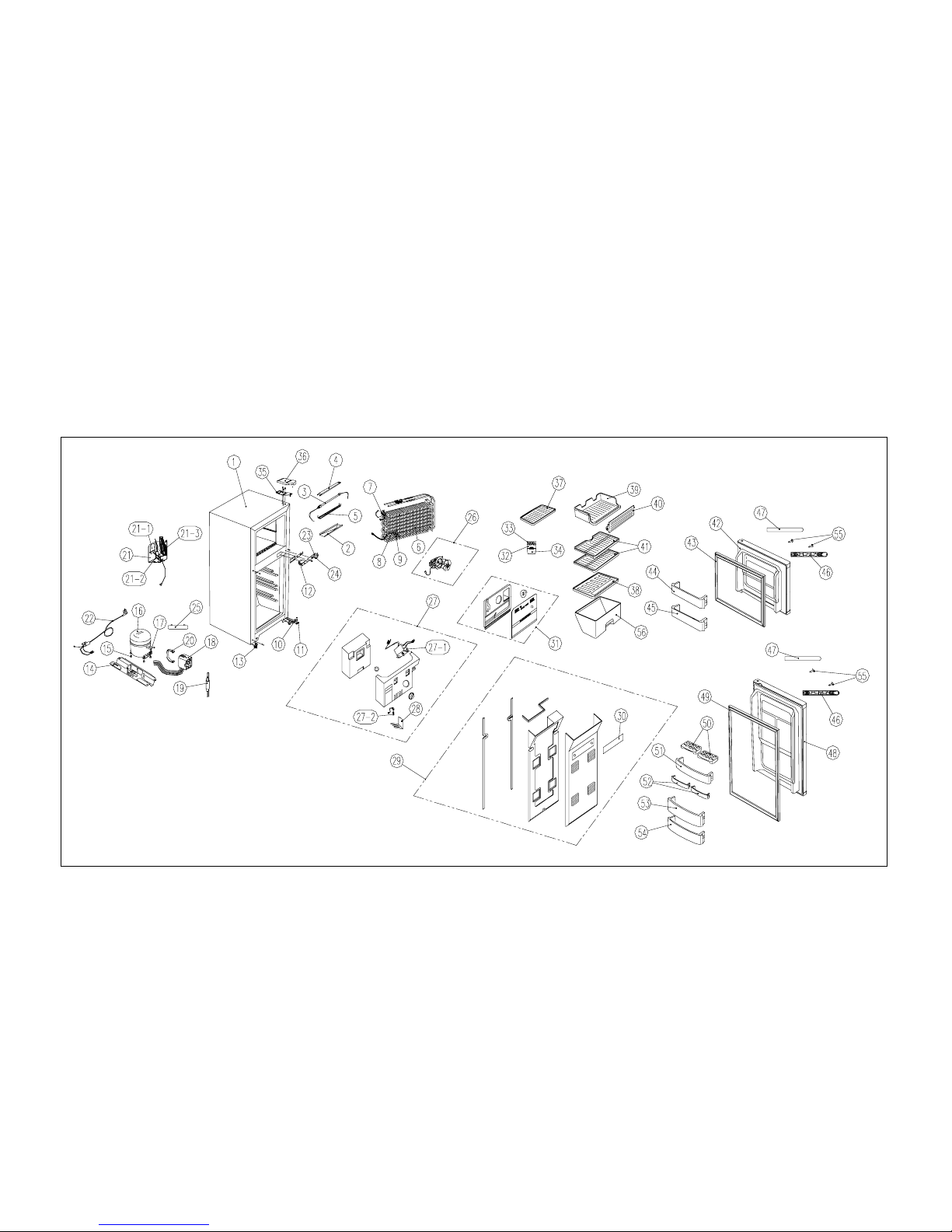

6. EXPLODE VIEW AND PARTS LIST

1. Expoloded views ISRAEL TADIRAN-AMPA (AMPA, FR-331)
