Daewoo FR-142 Manual de usuario

Service Manual

Refrigerator

Model: FR-142

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR14200011

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

1.Specification-----------------------------------------------------------------------------------------------1

2.External view ----------------------------------------------------------------------------------------------2

3.Wire diagram---------------------------------------------------------------------------------------------3

4.Name of parts---------------------------------------------------------------------------------------------4

5.Refrigerant cycle diagram----------------------------------------------------------------------------5

6.Machine room view and part list-------------------------------------------------------------------6

7.Main components---------------------------------------------------------------------------------------7

8.Door color specification --------------------------------------------------------------------------------9

9.Exploded view and parts list -------------------------------------------------------------------------12

1. SPECIFICATION

MODEL NAME FR-142

Refirgerant R12 115g

R134a 105g

Cooling System Aluminumembossed Plat“Roll Bond” Type

Refrigeration System NaturalCold-airConvection

Defrost SystemNatural

DefrostOperation ManualStart& Stop

Cold Control Adjustable Dial

Capacity

Freezer -

Refrigerator -

Total122



External

Dimension

Height 858mm

Width 480mm

Depth531mm

NetWeight 31Kg

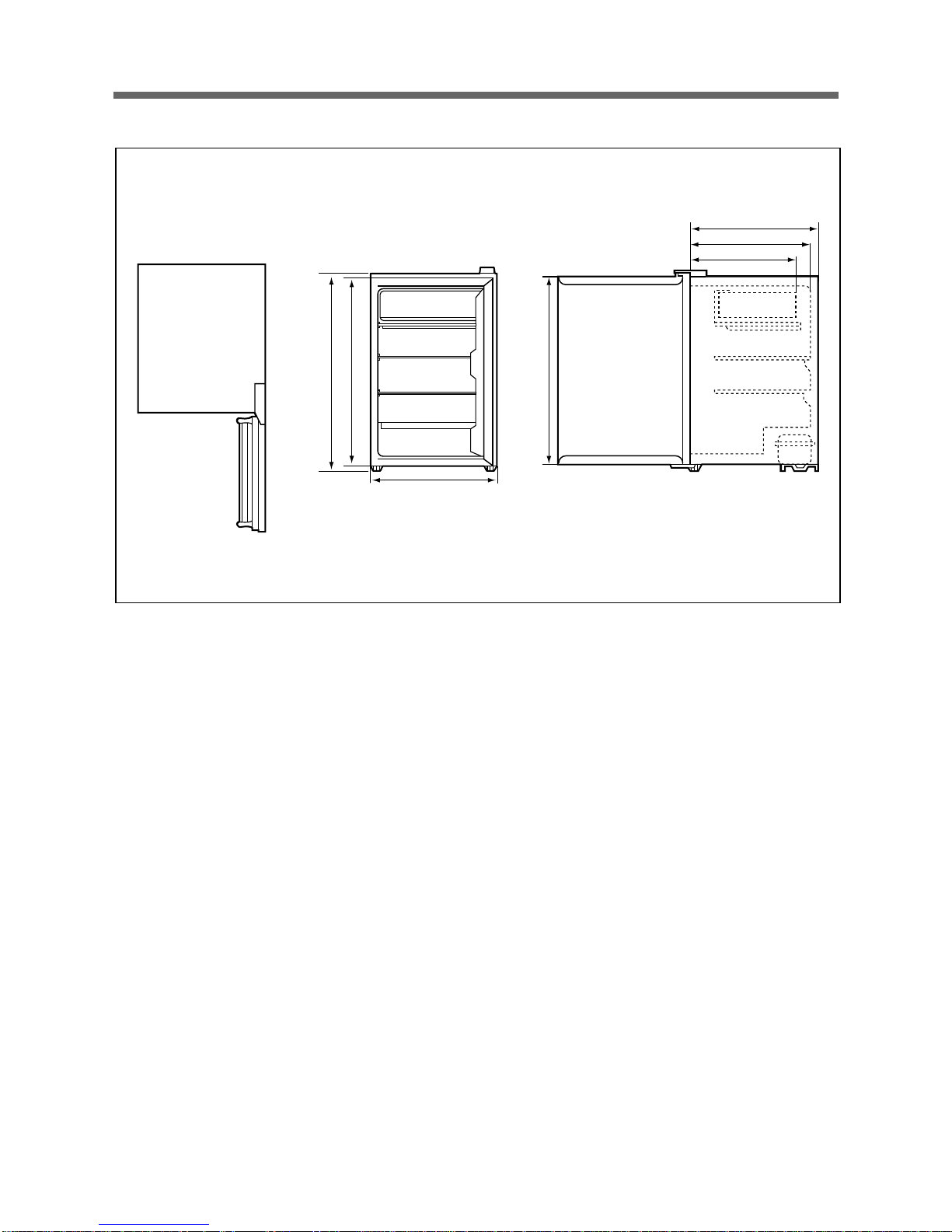

2. EXTERNAL VIEW

471

430

379

816

858

820

480

3. WIRE DIAGRAM

P-RELAY

COMPRESSOR

L/BLUE

PLUG

L/BLUEBLACKBROWN

BROWN

THERMOSTAT

YELLOW

LAMP

LAMP SWITCH

4. NAME OF PARTS

410 11 21735896

1Evaporator

2 Drain Pan

3 Control Box

4 Plastic Coated Shelf

5 Rack

6 Magnetic Door Seals

7 Ice Tray

8 Usable Rack

9 Bottle Rack

10 Crisper

11 Slide Out Crisper

Cover

EVAPORATOR

DRYER

CAPI-TUBE

SUCTION PIPE

COMPRESSOR

SIDE PIPE

5. REFRIGERANT CYCLE DIAGRAM

6. MACHINE ROOM VIEW AND PART LIST

NO PART NAME NO PART NAME NO PART NAME

1 CABINET 7 SUCTION PIPE 13 WASHER *T

2 REINFORCE *L 8 PIPE CON 14 ABSORBER

3 REINFORCE *R 9 BASE COMP 15 BOLT SCREW

4 COMPRESSOR 10 BOLT HEX 16 POWER BOX

5 DRYER 11 P RELAYER AS

6 CAPI TUBE 12 POWER CORD

1. COMPRESSOR

2. RELAY ASSEMBLY

3. CONTROL SWITCH

4. DRYER

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model FL7Y-1 FL5Y-1U SL7Y-5

Part code 3951105400 39511054U0 3954105470

Strating type RSIR RSIR

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model HFL7Y HFL5Y-1H XHSL7Y-5 X DS25LHS8

Part code 3951107F00 3951105F10 X3954107F50 X 3954125Y80

Strating type RSIR X RSIR X RSIR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model 213THB, S068 197SHB, S068 129SHB, S220 104NHB, S220 129SHB, S220

Part code 3018101910 3018102010 3018102110 3018101410 3018100110 3018106810 3018101710

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model 265THB, S068 174SHB, S068 174SHB, S068 X 129SHB, S220 X 129SHB, S220

Part code 3018101920 3018108020 3018102120 X3018101940 X3018122210

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

PFN-110U-02A PFN-110U-02A

Part code 4004V70142 4004V70142

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

PFN-110U-02A PFN-110U-02D PFN-110U-02D PFN-110U-02A PFN-110U-02SS

Part code 4004V70142 3018301000 4004V70142 4004V70142 3018303110

Refrigerant R12 R134a

Spec.

5 g 10 g

Part code 4019L04000 3016801300

7. MAIN COMPONENTS

POWER CORD SPECIFICATION

NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK

13011300320 CP-2PIN FOR EUROPEAN COUNTRY

2401RA17200 CP-2PIN FOR OTHER COUNTRY

34006D17101 KP-30 FOR AMERICA

4401PD17101 KP-211 FOR JAPAN & TAIWAN

53011300801 BP-3PIN

63011300970 #267 FOR SWISS

73011315310 FOR ISRAEL

83011303900 BS-1363A

FOR U.K,

93011301170 KP-551/550 FOR AUSTRALIA

* Upper power cord's part code is only for lead wire, without any kinds of terminal or housing.
