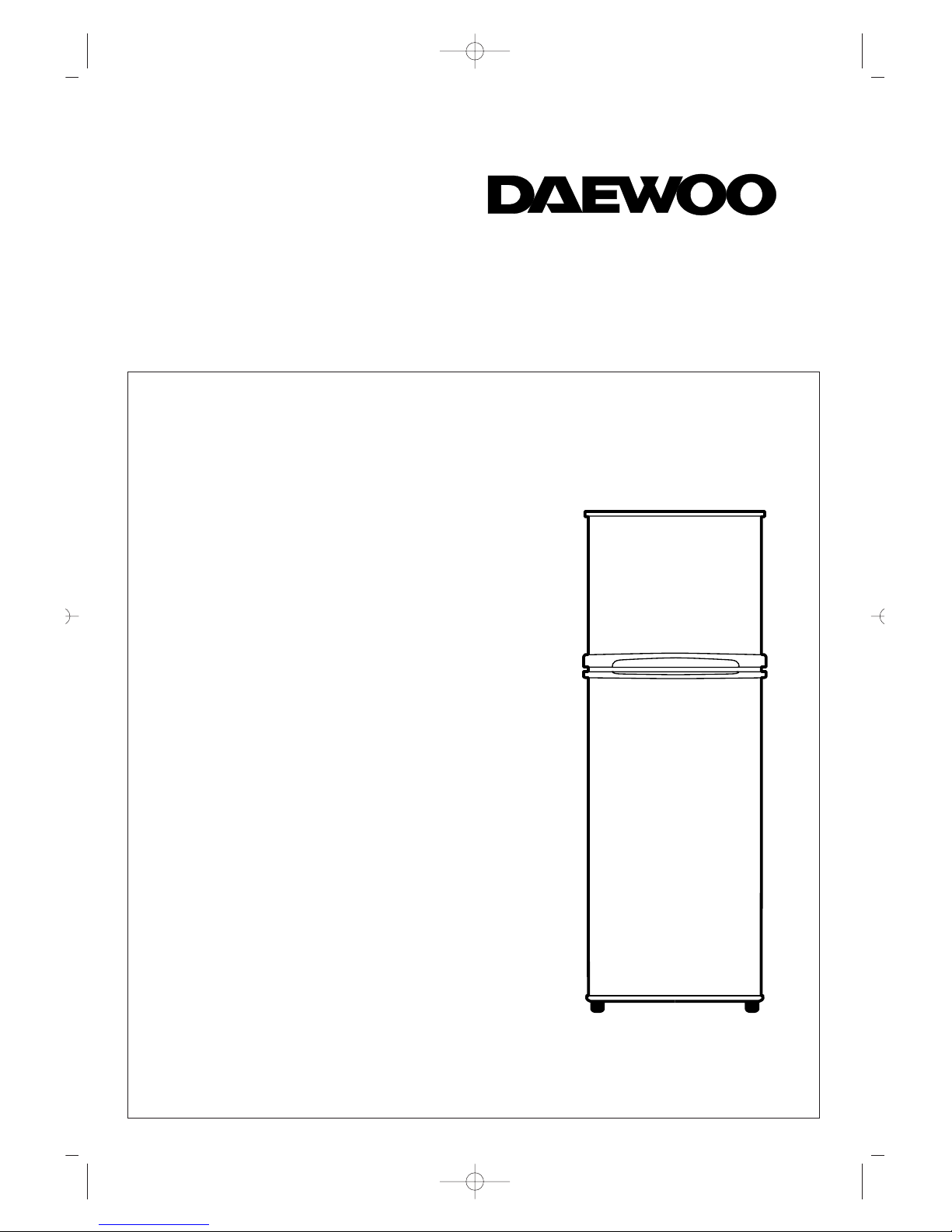

Daewoo FR-2702 Manual de usuario

REFRIGERATOR

INSTRUCTION MANUAL

■Thank you for selecting this refrigerator.

■Before using the refrigerator, please read this manual carefully.

MODEL NO.: FR-2702

FEATURE CHART

1ICE TRAY

2F SHELF (MOVABLE)

3FREEZER TEMPERATURE CONTROL

KNOB

4ICE BOX

5CHILLED CASE

6LAMP COVER

7REFRIGERATOR TEMPERATURE

CONTROL SWITCH

8R SHELF (MOVABLE)

9VEGETABLE CASE COVER

0VEGETABLE CASE

qFREEZER POCKET

wFREEZER POCKET

eUTILITY POCKET

rEGG CASE

tBOTTLE POCKET (LARGE)

yBOTTLE POCKET (SMALL)

CAUTION: 1. Check your voltage before inserting the power supply cord into the socket.

2. Contact the earthing conductor to this unit with an attachment earthing screw.

3. Do not spill liquid on this unit.

4. Do not use flammable spray, such as painting, near this unit.

5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.

6. Take precautions against leakage of any gas equipment near this unit.

7. Keep children from hanging on the door of this unit.

8. Do not reinsert the power supply cord within 5 minutes after releasing it from the

socket. If not, there may be problems with the compressor.

■Lamp Cover

To remove the lamp cover

1. Push up the bottom end of the lamp cover gently, then

pull out.

2. Reverse procedure to join together.

■Vegetable case

May be used for fruit and vegetable storage. Both the

vegetable case and its cover shelf are removable for

easy cleaning. Simply slide forward to remove.

■Utility Pocket (Top)

The Egg Case in this pocket can be turned upside down

for the use of small size goods.

■For lock installed refrigerators only.

CAUTION

When you put or take out food from the refrigerator, be careful not to hit your head on the lock as

there is a protrusion on the door of your refrigerator.

2. INSTALLATION STEPS

Check

Safe installation

place

Components to their

original places

Maintain ~

Level

Check

Plug in after

about hour

Put food after

2~3 hours

• Select a safe place to install

your refrigerator. • Level the refrigerator by

using the adjustable feet. • Install the parts in their own

place.

• Check if the doors are

completely closed. • Check the voltage.

Then wait about an hour

before plugging the power

cord into the outlet.

• Put food in the refrigerator

after running the refrigerator

for 2~3 hours.

Water

Soft cloth

Components to their

original places

Soft cloth

4. CLEANING YOUR REFRIGERATOR

• Do not sprinkle water

directly on the refrigerator

itself.

• Put the parts back in their

original positions after

cleaning.

• Before you clean the

refrigerator, unplug the

power cord. To clean, use a

soft piece of cloth. Wash

with warm, soapy water,

rinse and dry.

• The refrigerator may smell

during the initial operation,

but the odour will fade away

when the refrigerator is

cooled sufficiently.

• Use a soft cloth for cleaning

the interior and exterior of

the refrigerator.

How to operate

1. TEMPERATURE CONTROL

Temperature is controlled by thermostat automatically.

The Temperature Control inside the refrigerator controls the degree of cooling for each compartment.

Freezer Temperature Control

The control has four settings form MIN to

WINTER. The WINTER mode is available only if

atmosphere temperature is below 10°C.

The control has the four settings from MIN to

WINTER. The WINTER mode is available only

if atmosphere temperature is below 10°C.

Refrigerator Temperature Control

MIN MED

TEMP. CONTROL

MAX WINTER

MINMED

MAX

WINTER

TEMP. CONTROL

Starting your new refrigerator

1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with a damp cloth.

2. Set the temperature control knob at normal position.

3. Connect the power supply cord.

To control temperature

Many factors may influence the internal temperature of the refrigerator and freezer

compartments.

■The temperature and humidity of the surrounding environment.

■The opening frequency of the doors and the amount of warm food placed in the refrigerator.

■The combination of food and containers stored in the refrigerator.

For these reasons, you may want to adjust the control to suit the season and your needs.

WHAT TO DO...

When not operating for a long time

■Remove the power supply cord.

■Dry your refrigerator by opening the door for 2-3 days.

When you get ready to move

■Securely fasten movable interior parts (or remove and pack them separately)

■DO NOT lay down your refrigerator horizontally, or the compressor may be damaged.

Before you call for service, please check the following points first.

If the refrigerator is not operating :

■Is the power supply cord unplugged?

■Is the home fuse or circuit out of order?

If the refrigerator is warmer than usual :

■Has the door been opened frequently or for a long period?

■Are there any hot food or anything that has been stored without cooling?

■Is the clearance between the refrigerator and the wall given sufficiently?

If there are unusual sounds :

■Is the refrigerator placed on a levelled floor?

■Are there any foreign objects behind the refrigerator?

■Are dishes on refrigerator shelves vibrating?

CAUTION

Improper use of the grounding plug can result in electric shock. If a grounding adapter is used,

make sure the receptacle box is fully grounded.

POWER CORD REPLACEMENT

If the power cord of the refrigerator is damaged, have it replaced by a repair shop appointed by the

manufacturer's local sales branch or company.
