Service Manual

S/M No. : FRP4210000

✔

Caution

: In this Manual, some parts can be changed for improving, their

performance without notice in the parts list. So, if you need the

latest parts information,please refer to PPL(Parts Price List) in

Service Information Center (http://svc.dwe.co.kr).

Refrigerator

Model: AR-815NF

http://svc.dwe.co.kr

DAEWOO ELECTRONICS CORP.

BK-8152NF

CONTENTS

1. Specification 3

2. External View 3

3. Name Of Parts 4

4. Wiring Diagram 4

5. Air Flow Diagram 5

6. Refrigerant Cycle Diagram 6

7. Wiring Diagram 7

8. Exploded View 8

9. Part List 9

2. EXTERNAL VIEW

740

116 1070

1771

569 610

24510.51020.5140 60

24 692 24 750

740 7.5

750

1356.5

580

1. SPECIFICATION

Input Power, Voltage Frequency

Refrigeration Cycle Compressor Type

Refrigerant (Charge Volume)

Cold Control Refrigerator

Cooling System

Refrigeration System

Defrost System

Freezer

Refrigerator

Total

Width

Height

Depth

Net Weight

Usable Capacity

External Dimension

AC 220V / 50Hz

SL28YE-4E

R-12 (180g)

Adjustable

Fan-Cooling System

Air Forced Convection

Fin-Evaporator-Forced

111 L

299 L

410 L

750 mm

1771 mm

642 mm

76 kg

.NAME OF PARTS

1Freezer Shelf

2Case Icing

3Case Ice

4Case Child

5Shelf Refrigerator

6 Refrigerator Temperature Control

7Crisper Cover

8Crisper

9Adjustable Foot

10 Front Grille

11 Freezer Door Pocket

12 Egg Pocket

13 Case Egg

14 Refrigerator Pocket (SM)

15 Refrigerator Pocket (Medium)

16 Refrigerator Pocket (BG)

17 Deodorant

F-PCB

M-PCB

YELLOW YELLOW

RED

PINK

WHITE

VIOLET

BLUE

GRAY

DOWN

TRANS

ORANGE BLUE

F-SENSOR D-SENSOR

BLACK BLACK BLACK BLACK

PLUG

WHITE

GREEN

COMPRESSOR

TEMP

FUSE

GRAY

HTR

GLASS

WHITE

RED

PINK

LAMPLAMP

YELLOW

BLUE

P-RELAY

DOOR

SWITCH

. WII

S/C

5. AIR FLOW DIAGRAM

-16~-18

-17~-19

1~32~4

2~3

5~7

2~4

3~5

3~5 2~4

Freezer door pocket

Do not put ice cream or frozen

food in freezer door pocket to

store for a long term. Opening

and shutting the door can rise up

the temperature.

Cold air absorbing duct

Do not place food in front

of the duct because it is the

entrance of the cold air.

Refrigerator door pocket

Temperature is high even if the

pocket is in the middle.

When storing margarine or cheese

for one or two weeks, make use

of the refrigerator shelf.

Crisper

Suitable in storing fruits or

vegetable.

Wrapping can prevent from

dryness.

Freezer room

Do not put any bottle such as

beer or beverage because it can

be frozen and broken.

Refrigerating room

This model is multi-flow type

which flows out cold air from

each shelf space. The hot air

after making the refrigerator

cold, flows into cooling system

through the front upper part.

Do not put food having much

moisture at the middle part of

each shelf space ("A", "B" and

"C" part). It can be frozen owing

to the low temperature.

6. REFRIGERANT CYCLE DIAGRAM

FIN CROSS

EVA

SUC-PIPE

MAIN CAPI TUB.

ACCUM

HOT PIPE

DRYER

COMP

AUX-HOT PIPE

BACK PLATE PIPE

. WII

L L

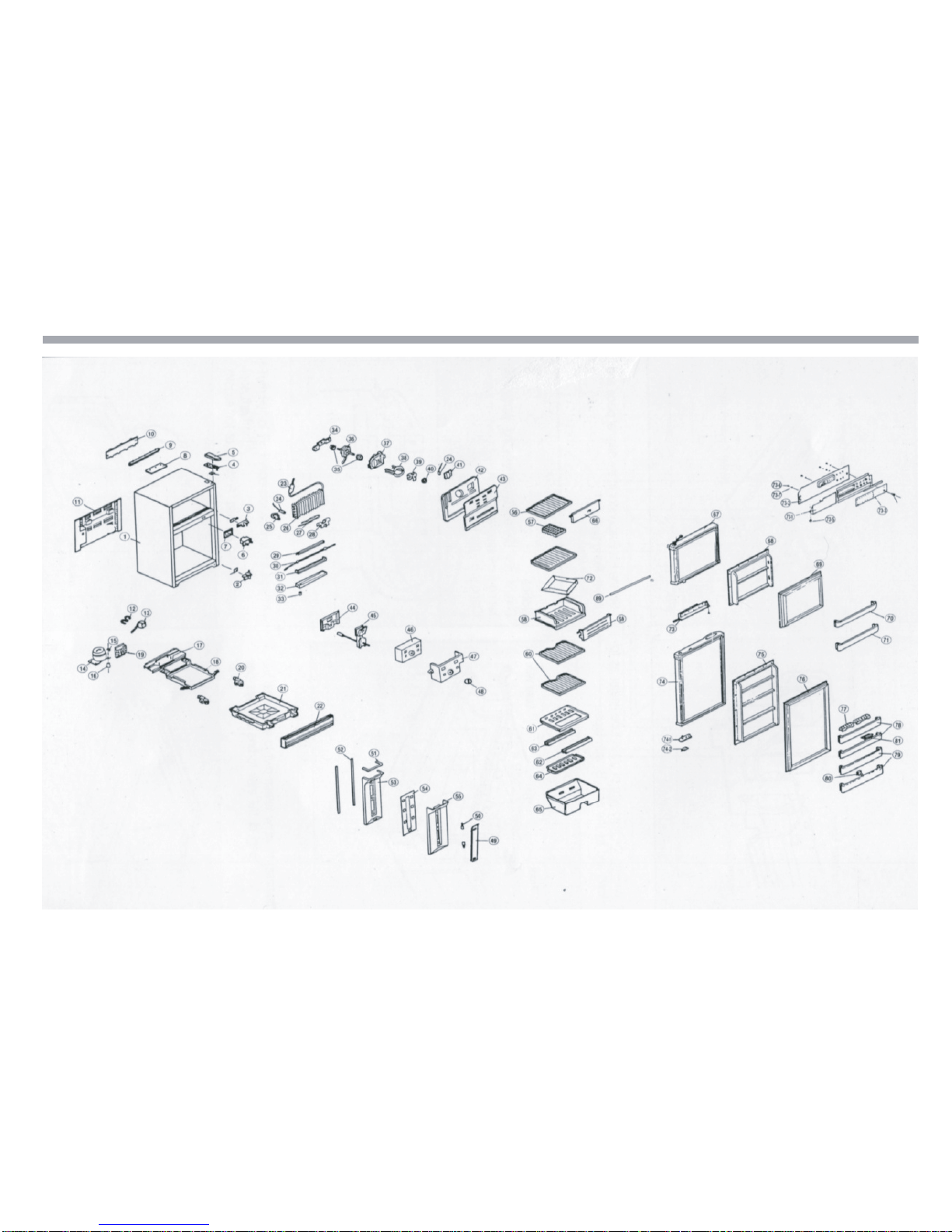

8. EXPLODED VEIW

9. PART LIST

NO PART CODE PART NAME QUANTITY REMARK

1CAB URT AS 1

23012900401 HI *UNDER AS 1

33012900604 HI *MIDDLE AS 1

44010G51402 HI *TOP AS 1

54010G51455 COVER *T HI 1

63018100400 DOOR SWITCH 1

74010E16411 COVER DOOR SWITCH 1

83014300800 M-PCB AS 1 110, 115, 127V

3014300500 1 220, 240V

94019R28472 FIXER M-PCB 1

10 4010G90133 COVER M-PCB 1

11 4010G00017 COVER ROOM MECHANICAL 1

12 3816100100 RELAY BAND 1

3018105001

P-RELAY AS

1 444HUBZZ-52 S068 (110V)

3018105010 1 437THBZZ-52 S068 (127V)

3018105050 1 267THBYY-52 S220 (220V)

3018105031 1 276THBYY-52 S220 (CHILE)

3018105021 1 730RFBYY-52 ST045 (TURKEY)

3018105061 1 213THBYY-52 S220 (240V)

3957127C30

COMPRESSOR

1 CL27YE-3-C (110V-60HZ)

3957127C20 1 CL27YE-2-C (127V-60HZ)

3954128C60 1 SL28YE-4E-C (220V-50HZ)

3958127C60 1 KL27YE-4E-C (TURKEY)

3956128C60 1 PL28YE-6-C (240V-50HZ)

15 4019H09030 COMPRESSOR *T WASHER 4

16 3010100201 CUSHION RUBBER 4

17 3010300601 COMP PLATE 1

18 3014500401 AUXILIARY CONDENSING AS 1

3016400400 START CAPACITOR 1 140VAC 100uF (110V, 127V)

400EL16110 1 350VAC 25uF (TURKEY)

400EL15110 RUNNING CAPACITOR 1 350VAC 5uF (TURKEY)

5EPK060505

DOWN TRANS

1 110V, 127V

5EPK060506 1 220V

5EPK060507 1 240V

3010505511 VOLT CHANGE SW-BOX AS 1 240V

20 4017Z40622 FOOT *F AS 1

21 4010G30661 BOILD 1

22 4010G65015 PLATE COVER *F 1

23 4010G03200 ACCUM AS 1

24 400EL30140 D-SENSOR AS 1

✔ Caution:

In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the

latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

NO PART CODE PART NAME QUANTITY REMARK

25 3012001102 D-SENSOR FIXR 1

26 4010G03106 EVA AS 1

27 400EL21212 FUSE TEMP AS 1

28 4017Z90590 THRM FUSE FIXR 1

29 4017Z73570 COVER HTR E R S *TD F O T 1

30 400EL22311 HTR GLASS TUBE AS 1 110V, 127V

400EL22211 1 220V, 240V

31 4017Z73580 COVER HTR E R S *TD F O T 1

32 4010G54111 DRAIN OUTLET 1

33 4018G54120 PIPE DRAIN 1

34 4017Z32244 FAN MOTOR COVER (B) 1

35 4017Z08430 BUSH 2

401ND24402

FAN MOTOR AS

1 110V, 127V

4019A24402 1 220V

401NB24401 1 240V

37 4017Z32233 FAN MOTOR COVER (C) 1

38 4017Z86412 FAN MOTOR COVER (A) 1

39 4017Z42312 FAN 1

40 4004Q10060 FAN FIX RING 1

41 4017Z29010 F-SENSOR PLATE 1

42 4010G74201 INSULATOR LOUVER F AS 1

43 4017G74012 LOUVER F 1

44 4010G26030 INSULATOR R DAMPER (B) 1

45 4010G26400 DAMPER R AS 1

46 4010G26022 INSULATOR R DAMPER (A) 1

47 3011402910 R DAMPER COVER 1

4010G26014 1 TURKEY

48 4017G31152 R DAMPER KNOB 1

49 4010G15311 SHADE 1

50 4019S15200 LAMP AS 2

400EL20111 2

51 4010G75222 SEAL MULTI DUCT A 1

52 4010G75232 SEAL MULTI DUCT B 1

53 4010G75252 INSULATOR MULTI DUCT 1

401SD75261

HTR MULTI DUCT

1 110V, 127V

4010G75261 1 220V, 240V

3012801800 1 CHILE

55 4010G75214 DUCT MULTI 1

56 4010G55312 SHELF F 2

3017800710 2 ONLY TURKEY

57 3011100400 ICE TRAY 1

58 4010G30310 BASKET CHILLED 1

3011100810 1 ONLY TURKEY

59 3011703300 DOOR CHILLED 1

3011701710 1 ONLY TURKEY
