INSTRUCTION BOOK FOR

Professional Electrol®

Important Safety Instructions

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at

least equal to that of the appliance should be used. Cords rated

for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric shock

when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the

manufacturer may cause a risk of ire, electric shock, or injury to

persons.

Save These Instructions

Pre-Installation

1. Carefully unpack screen.

2. Make sure to recheck measurements of screen location

before installation.

3. Remove instruction cover plate (Fig. 1). Do not remove

wrapping paper or tape strips until screen is installed.

Ironing Board

Professional Electrols 14' and over contain an ironing board to

latten the fabric (long strip attached). The ironing board is part

of the screen case. Do not remove. Contact Da-Lite if the ironing

board is in need of adjustment. (Fig. 2).

Figure 2

Figure 1

Instruction Cover

Case

Tape Strip

Ironing Board

Picture Surface

1" x 3" Cleat

2" Moulding

Installation

Ceiling Mount

Without Hangers

Screen case is placed lush with

the wall and ceiling and held in

position by moulding securely

attached to the wall.

Recessed Above Ceiling

Other methods of installation

will suggest themselves in new

buildings where it would be an

easy matter to provide a recess

for the screen to conceal it when

not in use.

Do not seal in—allow access.

Wall or Ceiling Mount With Hangers

Wall type hangers and ceiling type hangers are

standard equipment. One set is supplied with

each screen. Useful for recessed installations.

Wall Type Hanger

NOTE: For Exposed Installation If the screen is to be mounted

in an exposed position, it may be covered with inished plywood,

veneer, paneling, plastic wall covering or a valance.

Suggested Methods of Installation


Surface Picture

Surface

Ceiling Type Hanger


Surface

Rafters

Electrical

Outlet Box

Reinforced

Top

Motor In The Roller

Screen Without Doors

Length = Fabric Width

+10", All Sizes 11 ⁄"

9 ½"

Screens Up to 18' Wide

Motor

End

Motor

End

Electrical

Outlet Box

10 ¾"

Reinforced

Top

Motor In The Roller

Screen Without Doors

Screens 20' and Wider

Length = Fabric Width

+10", All Sizes 12 ⁄"

Hangers (If required)

1. See Figure 3 for hanger placement.

2. On screens equipped with an ironing board, make sure

hangers do not interfere with the ironing board brackets.

Installation

Figure 3

⁄

Screens 22' Wide And Under

Case Length ÷ 2

⁄

Screens Over 22' Wide

(Case Length – 23") ÷ 3

3. Level unit lengthwise with a carpenter’s plum level.

CAUTION! Do Not completely seal in unit. Access room

must be allowed for motor repair or fabric replacement

ATTENTION! Ne ixez pas complètement l'unité. Un

espace doit être laissé pour pouvoir réparer le moteur

ou remplacer la toile..

4. Remove shipping brace by removing 2 hex head screws

(Fig. 4).

5. Remove wrapping paper and tape strips (Fig. 4).

CAUTION! Do not cut wrapping paper or tape with

knife or any sharp tool. Remove by hand.

ATTENTION! Ne coupez pas le papier d'emballage ou le

ruban adhésif avec un couteau ou un outil tranchant.

Retirez à la main.

6. Install electrical hook up that applies to your unit. Make sure

to review your Electrical Installation Checklists and wiring

diagrams (included) for either 110 volt switch, 220/240 volt

switch, or DRC low voltage control.

7. Test installation by carefully running surface up and down

several times. Be prepared to stop screen.

NOTE: The picture surface, when rolled down, should have

at least a full wrap and a half around the roller. Do not allow

any part of the roller to become exposed.

Installation

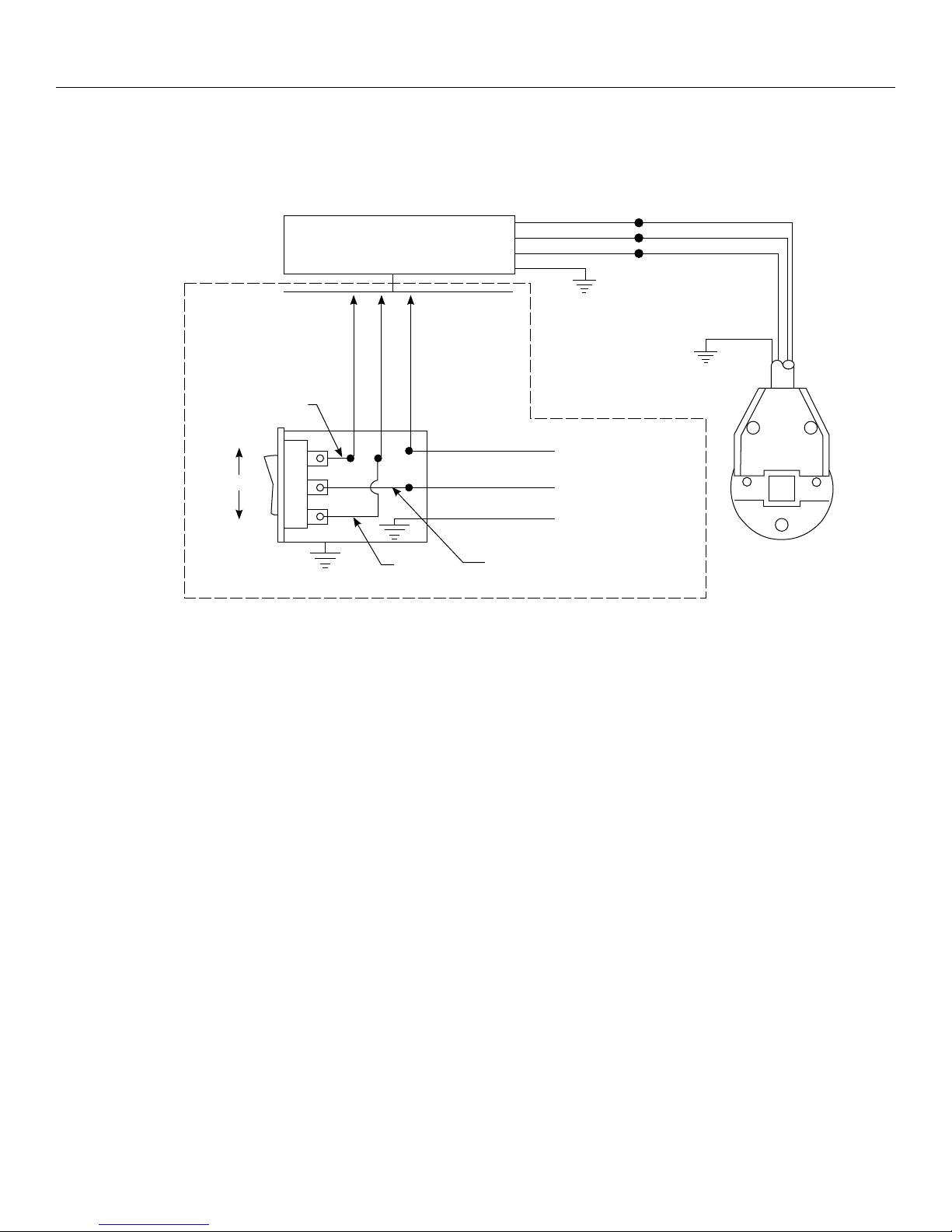

240 Volt Wiring Diagram For Standard Wall Switch:

Da-Lite ofers two styles of 240 volt wall switches for

standard operation. Please see wiring diagram in wall switch

box included with screen.

Black With

Yellow

To junction box mounted in screen

case, in which interal wiring terminates

in white, black, and red leads.

In multiple control installations the switch is replaced by the low

voltage control, operated from push button stations.

Operating switch,

switch box, and

plate furnished with

screen. (SPDT with

center of)

Down

Side View Of

Switch & Box

AC Common

Green

(Ground)

Red

(Up)

Green (Ground)

AC Hot

115V. AC 60HZ

1 AMP. MAX.

This switch cannot be used with L.V.C.

NOTE: A single switch cannot be used to operate more than one

screen. Contract the factory for further information.

120V Wiring Diagram

Motor

Green (Ground)

Black (Down)

Black

(Down)

Red (Up)

White (Common)

Of

Screen Adjustment

Figure 4

Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite.

Should it be necessary to adjust more or less drop of picture, proceed in the following manner:

CAUTION! When adjusting and testing, be prepared to

stop screen quickly as serious damage may occur.

ATTENTION! Lors du réglage et du test, soyez prêt à

rapidement arrêter l'écran car de graves dommages

peuvent se produire.

NOTE: Use a screw driver or allen wrench to make adjustments.

More screen drop

1. Place operating switch in “down” position.

2. When the screen stops, turn the white “down” limit knob

(Fig.4) one-quarter turn counterclockwise. Test by raising

picture surface approximately two feet, then lower again.

Repeat until desired picture surface position is attained.

NOTE: Must leave at least 11/2 wraps of fabric on roller.

Less screen drop

1. Raise picture surface approximately two feet above

desired level.

2. Place operating switch in “of” position.

3. Turn the white “down” limit switch (Fig. 4) one-quarter turn

clockwise. Test by raising picture surface approximately two

feet, then lower again. Repeat until desired picture surface

position is attained.

Tape Strips

White Adjustment

Knob "Down"

Yellow or Red

Adjustment

Knob "Up"

Slat

Shipping Brace

(Not on 3 ¼" Roller)

Troubleshooting

Symptom Cause Solution

Screen will not operate or will

not go “down”.

Motor does not hum.

Motor hums.

Blown facility fuse. Replace facility fuse.

Tripped facility circuit breaker. Reset facility circuit breaker.

No power to operating switch or junction box.

Check above. Tighten all loose wire connections.

Recheck wiring. See installation instructions.

“Down” Position

Check for power across black and white leads.

Power at junction box

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” position. Check for continuity.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Temporary binding. With power “of,” turn roller by hand to free binding.

Capacitor burned out. Replace motor assembly.

Screen will not move upward.

Motor does not hum.

Motor hums.

Blown facility fuse. Replace facility fuse.

Tripped facility circuit breaker. Reset facility circuit breaker.

No power to operating switch or junction box.

Check above. Tighten all loose wire connections.

See above.

“Up” Position

Check for power across red and white leads.

Power at junction box

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “up” position. Check for continuity.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Temporary binding. With power “of,” turn roller by hand to free binding.

Capacitor burned out. Replace motor assembly.

Troubleshooting

Symptom Cause Solution

“Down” limit switch incorrect. “Down” limit switch out of adjustment. See installation instructions.

Noise.

NOTE: Screen will operate with

a low-pitched hum.

Squeaking, rubber end plug rubbing on motor. Center roller between mounting brackets by pushing roller

away from motor end.

Grinding. Foreign object in screen rubbing on roller

or fabric. Remove foreign object.

Gear noise Replace motor assembly..

Coasting. Defective brake. Replace motor assembly.

Roller displaced from

mounting bracket. Pin end slipped out of nylon bearing Remove pin end mounting. Realign motor in tube.

Reattach pin end.

Fabric hangs crooked.

Screen not installed properly.. Check for level and plumb.

Fabric has backed up inside case. Adjust “down” limit switch slowly until roller is exposed and

wrinkle comes out, then readjust for proper drop.

Fabric is damaged. Replace fabric.
