Instruction Book for

DESIGNER ELECTROL®

The Da-Lite Difference.

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rat-

ing at least equal to that of the appliance should be used.

Cords rated for less amperage than the appliance may over-

heat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric

shock when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by

the manufacturer may cause a risk of fire, electric shock, or

injury to persons.

SAVE THESE INSTRUCTIONS

Before proceeding with the installation of the screen, please read the installation and operations instructions thoroughly!

CAUTION! Do not cut wrapping paper or tape with knife or any sharp tool. Pull orange string.

1. Carefully unpack the screen and remove the outer wrapping.

2. Always handle screen in upright position.

3. Remove the front cover of the screen from the back of the screen. Lift front cover up approximately 1/2" and pull

away from back of screen. See Figure 1.

4. There are two methods of mounting the screen: suspended from ceiling and wall mounted. See Figure 2.

NOTE: Allow 1/2" above screen (when mounted) for front cover of screen installation and removal.

5. Picture surface is centered in case. Case extends 5-1/2" beyond surface on either end. Do not attach anything to

screen slat on the bottom of the screen.

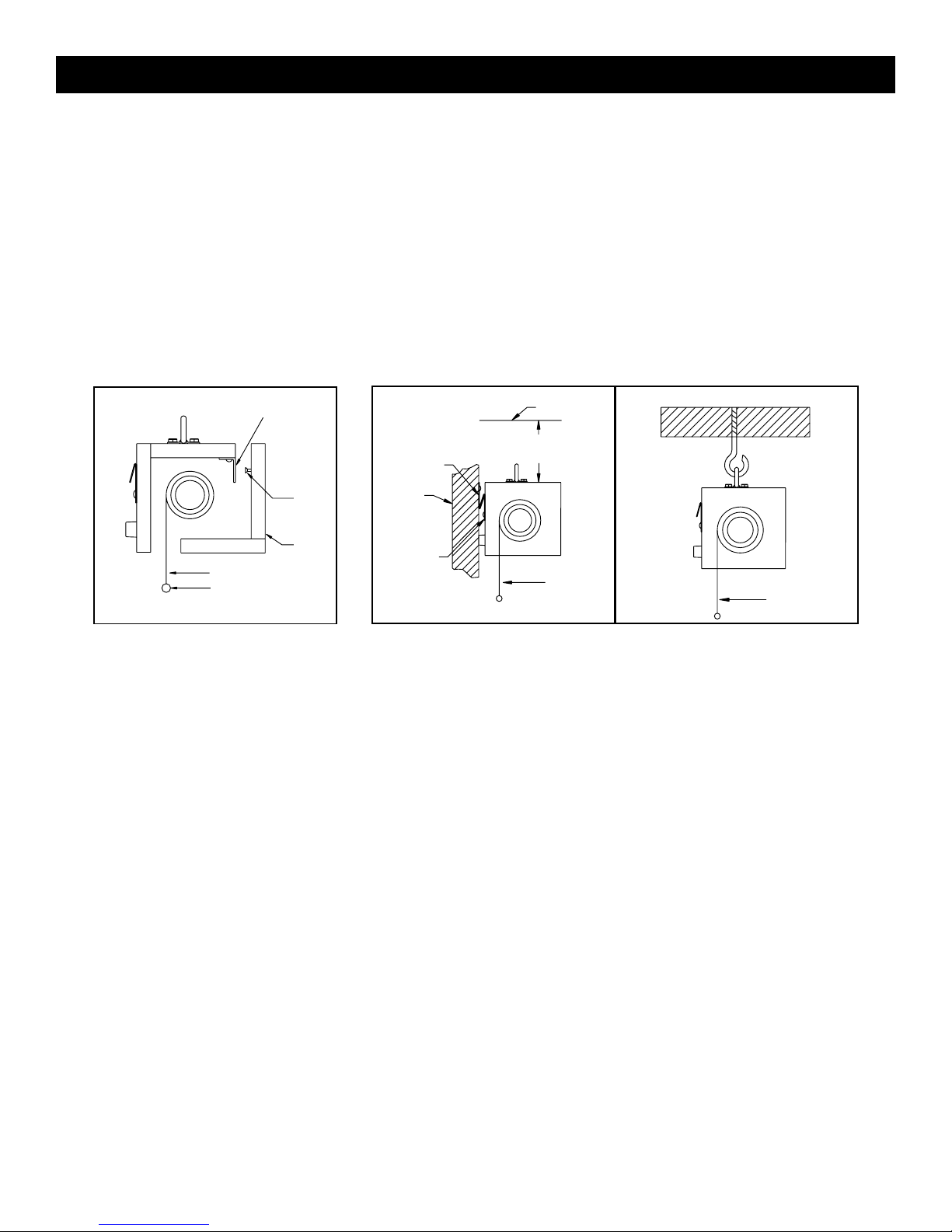

PRE-INSTALLATION

HANGER BRACKET

HANGER

FRONT

COVER

BACK OF

SCREEN


SURFACE


SURFACE

PICTURE SURFACE

SLAT

CEILING

WALL MOUNTING CEILING MOUNTING

PLACE “D”

RINGS OVER

HOOKS WELL

SECURED IN

CEILING.

FIGURE 1 FIGURE 2

“V” BAR MOUNTED

TO THE WALL

WALL

“V” BAR

MOUNTED TO

THE BACK OF

THE CASE AT

THE FACTORY

ALLOW A MINIMUM OF

1-1/4" FROM CEILING

DESIGNER ELECTROL® INSTALLATION

1. Hang screen from wall or ceiling.

FOR WALL MOUNTING

HARDWARE PROVIDED

2 – “V” Bars ( one is factory mounted to the back of the case; one will be mounted to the wall)

6 – Toggle Bolts, 4"

6 – Lead Shields, #10-14 x 11⁄2"

6 – Phillips Flat Head Wood Screws, #10 x 2"

TOOLS REQUIRED

Electric Drill

Masonry Bit 5⁄16" (if mounting in solid masonry or concrete)

Screw Driver, #2 Flat Tip (if using toggle bolts) or #2 Phillips (if mounting in solid masonry or concrete)

Determine the height of the top of the case from the floor. This will be the height of the wall mounted “V” bar.

Hold the loose “V” bar to the wall at the height determined above (MAKE SURE IT IS LEVEL), and mark the loca-

tion for the screw holes. To mount the “V” bar on solid concrete or masonry wall, drill 5⁄16" holes and insert the

lead shields. Fasten the “V” bar to the wall using the #10 x 2" wood screws. If you are mounting to a hollow wall,

drill 1⁄2" holes and insert the toggle bolts. Then fasten the “V” bar to the wall with the toggle bolts. Now set the

case in place on the wall with the “V” bar of the case nestled into the “V” bar on the wall.

FOR CEILING MOUNTING

Position and properly anchor screw hooks into ceiling, beam or other solid surface. Then proceed to use the two

“D” rings that are factory mounted to the top of the case to hang the case securely.

2. Remove black tape from slat.

3. Install electrical hook-up that applies to your unit. Make sure to review your electrical installation checklist and wiring

diagrams (included) for either 120 volt switch, 220/240 volt switch or low voltage control. See Figure 3.

4. Test installation by running screen up and down a few times. Be prepared to stop screen. Standard Duty Cycle: 1

MIN. ON / 3 MIN. OFF.

NOTE: Must be installed in accordance with the requirements of the Local Building Codes, the Canadian Electrical Code (CED), CAN/

CSA C22.1 and the National Electric Code (NEC), NFPA 70.

5-1/2"

A = FABRIC WIDTH + 11"

B = FABRIC WIDTH

5-1/2"


SURFACE

5-1/2"

Screen travel is stopped automatically in the down and up positions by the limit switches that are preset at the factory. If

it's necessary to adjust for more or less drop follow the steps below. The case cover must be removed to access the

motor limit switches.

Remove the front cover of the screen from the back of the screen. Lift front cover up approximately 1/2" and pull away

from back of screen. See Figure 1.

SETTING THE DOWN LIMIT POSITION

TO REDUCE SCREEN DROP:

Turn the white limit switch screw clockwise to decrease the amount of screen drop. Run the screen down to test

the stop position. If the screen drops too far, raise the screen about one foot and adjust the limit switch again.

Repeat until the desired position is set.

TO INCREASE SCREEN DROP:

Turn the white limit switch screw counterclockwise to increase the amount of screen drop. Run the screen down to

test the stop position. If the screen does not drop enough, raise the screen about one foot and adjust the limit

switch again. Repeat until the desired position is set. Do not adjust for more drop than what was ordered. At least

1-1/2 wraps of fabric must remain on the roller.

SCREEN ADJUSTMENT FOR 120V AND 220/240V SCREENS

UP RED LIMIT SWITCH KNOB

TO JUNCTION BOX MOUNTED IN

SCREEN CASE, IN WHICH INTERNAL

WIRING TERMINATES IN WHITE,

BLACK AND RED LEADS.

IN MULTIPLE CONTROL INSTALLATIONS

THIS SWITCH IS REPLACED BY THE LOW

VOLTAGE CONTROL, OPERATED FROM

PUSH BUTTON STATIONS. SEE DIAGRAM

Nos. 46967 AND 74425, AVAILABLE UPON

REQUEST.

OPERATING SWITCH, SWITCH

BOX, AND PLATE FURNISHED

WITH SCREEN. (SPDT WITH

CENTER OFF)

THIS SWITCH CANNOT BE USED WITH LVC.

NOTE: A single switch cannot be used to operate more than

one screen. Contact the factory for further information.

BLACK DOWN

BLACK

RED

DOWN

AC HOT

OFF

WHITE COMMON

BLACK WITH YELLOW

RED UP

ROCKER

SWITCH

AC COMMON

120 VOLTS

50/60 HZ.

2.5 MAX. AMP.

DOWN WHITE LIMIT

SWITCH KNOB

MOTOR

EXTERNAL WIRING

TO BE COMPLETED

BY INSTALLER.

SIDE VIEW

OF SWITCH

AND BOX

FIGURE 3

DESIGNER ELECTROL® INSTALLATION

120V

WIRING DIAGRAM

240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH:

Da-Lite offers two styles of 240 volt wall switches for

standard operation. Please see wiring diagram included

in wall switch box included with screen.

TROUBLESHOOTING

SYMPTOM

1. Screen will not operate.

Motor does not hum.

Motor hums.

2. Incorrect stopping position in

downward direction.

3. Incorrect stopping position in

upward direction.

4. Noise.

NOTE: Screen will operate with a

low pitched hum.

5. Coasting.

6. Roller displaced from mounting

bracket.

CAUSE

(a) Incorrect line voltage.

(b) Blown fuse.

(d) No power to operating switch

or junction.

Power at junction box

(e) Thermal overload tripped.

(f) Broken wire in the “up” or ”down”

position.

(g) Defective motor, limit switch or

capacitor.

(h) Temporary binding.

(i) Capacitor burned out.

(a) Lost roller wrap.

(b) “Down” limit switch out of

adjustment

(a) Lost roller wrap.

(b) “Up” limit switch out of

adjustment

(a) Squeaking rubber end plug

rubbing on motor.

(b) Grinding due to foreign object in

screen rubbing on roller or fabric.

(a) Defective brake.

(a) Pin end slipped out of nylon bear-

ing.

RESTORING LOST ROLLER WRAP

1. Push strap over back of roller.

2. Tape end of strap to pocket.

3. Feed fabric as you pull strap to

draw fabric over top.

4. Remove tape and strap.

SOLUTION

(a) Verify 115-125V (or 220-240V). If

insufficient voltage, rewire incom-

ing electric line.

(b) Replace fuse.

(d) Check above. Tighten all loose

wire connections. Correct any

improper connections.

“Down” Position

Check for power across black

and white leads.

“Up” Position

Check for power across red

and white leads.

(e) Let motor cool down for 15

minutes. Try again.

(f) Check for continuity. Cut off old

splice and reconnect.

(g) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(h) With power “off”, turn roller by

hand to free binding.

(i) Replace motor assembly.

(a) See instructions below.

(b) See installation instructions.

(a) See instructions below.

(b) Adjust “up” limit switch. Turn

clockwise to expose more fabric.

See installation instructions

(a) Adjust roller to center of case.

(b) Remove foreign object.

(a) Replace motor assembly.

(a) Remove pin end mounting.

Re-align motor in tube. Re-attach

pin end.

Printed in U.S.A. 76401 Rev. 12/09

LIMITED ONE YEAR WARRANTY

ON DA-LITE PRESENTATION PRODUCTS

Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from

defects in materials and workmanship for a period of one (1) year from the date of purchase by

the original purchaser provided they are properly operated according to Da-Lite’s instructions and

are not damaged due to improper handling or treatment after shipment from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental

damage, or which has been tampered with or repaired by a person other than authorized Da-Lite

personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option)

the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer.

If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses

to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in

shipment. To protect yourself against damage or loss in transit, insure the product and prepay all

transportation expenses.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied

warranties of ﬁtness for use, or merchantability, that may be mandated by statute or rule of law

are limited to the one (1) year warranty period. This warranty gives you speciﬁc legal rights, and

you may also have other rights, which vary from state-to-state. NO LIABILITY IS ASSUMED

FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF

EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY

NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may

contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE

BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN

ACCORDANCE WITH DA-LITE’S WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

Tabla de contenidos

Otros manuales de Pantalla de proyección de Da-Lite

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manual de usuario

Da-Lite

Da-Lite AdvantageManual With CSR Manual de usuario

Da-Lite

Da-Lite DIRECTOR ELECTROL Manual de usuario

Da-Lite

Da-Lite MULTI-MASK IMAGER Manual de usuario

Da-Lite

Da-Lite 79982 Manual de usuario

Da-Lite

Da-Lite PROFESSIONAL ELECTROL Manual de usuario

Da-Lite

Da-Lite Large Dual Masking Electrol Manual de usuario

Da-Lite

Da-Lite Cinema Contour Screen Manual de usuario

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manual de usuario

Da-Lite

Da-Lite ADVANTAGE DELUXE ELECTROL Manual de usuario

Da-Lite

Da-Lite senIor electrol Manual de usuario

Da-Lite

Da-Lite DESIGNER CONTOUR ELECTROL Series Manual de usuario

Da-Lite

Da-Lite IMAGER Manual de usuario

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Manual de usuario

Da-Lite

Da-Lite TENSIONED LARGE ADVANTAGE ELECTROL Manual de usuario

Da-Lite

Da-Lite Da-Glas Manual de usuario

Da-Lite

Da-Lite EXECUTIVE ELECTROL Manual de usuario

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol Manual de usuario

Da-Lite

Da-Lite Fast-Fold Manual de usuario

Da-Lite

Da-Lite SLIMLINE ELECTROL Manual de usuario

Da-Lite

Da-Lite DUAL MASKING ELECTROL Manual de usuario

Da-Lite

Da-Lite Contour Electrol Manual de usuario

Da-Lite

Da-Lite TENSIONED DUAL MASKING ELECTROL Manual de usuario

Da-Lite

Da-Lite IDEA Panoramic Manual de usuario

Manuales populares de Pantalla de proyección de otras marcas

FART PRODUKT

FART PRODUKT Standard SCREEN Manual de usuario

Draper

Draper E Series Manual

Elite Screens

Elite Screens Elite Tripod Series Manual de usuario

Laarhoven

Laarhoven Companion II Manual de usuario

Renogy

Renogy RMS-LFPS-US Manual de usuario

Samsung

Samsung S*H65* Manual de usuario

FONESTAR

FONESTAR PPTR-43100-FA Manual de usuario

Slide Clear

Slide Clear Varro XL Manual de usuario

Elite Screens

Elite Screens M85XWS1-SRM Manual de usuario

OS РХ-090Н Manual de usuario

Niko

Niko 10-845 Manual de usuario

Speaka Professional

Speaka Professional 2357532 Manual de funcionamiento

Sima

Sima XL-72 Manual de usuario

Jasic

Jasic EVO 2.0 ET-200P Manual de usuario

Elite Screens

Elite Screens Starling 2 Series Manual de usuario

InFocus

InFocus SC-WALL GRY-92H Manual

Barco

Barco OverView MVL-615 Manual de usuario

Draper

Draper Envoy Manual
