Da-Lite Theater-lite Manual de usuario

Instruction Book for

THEATERLITE

The Da-Lite Difference.

DA-LITE SCREEN COMPANY LLC

3100 North Detroit Street

Post Office Box 137

Warsaw, IN 46581-0137 USA

P 800-622-3737 / 574-267-8101

F 877-325-4832 / 574-267-7804

www.da-lite.com

e-mail: [email protected]

INTRODUCTION

Thank you for purchasing this product. Before operating your screen, please read all instructions.

Store this instruction book for future reference.

FOR YOUR SAFETY

This product has been designed with safety in mind. However inappropriate use of this product is

dangerous and may cause personal injury. In order to prevent accidents, please follow the instruc-

tions below.

Inspect the product regularly. Before you use the projection screen, make certain that all the parts

such as the screen case, hook, upright bar, feet and lifting handle are not warped, loose, or damaged.

Do not use if screen is out of order.

CAUTION

Avoid touching the screen film while raising or lowering of unit.

Do not set up the screen on an unstable or uneven surface. This may cause the screen to fall or

tip over, resulting in damage to the screen or personal injury. Be especially careful when setting up

where small children may be present. Do not let children operate or play with the screen.

Do not place the screen near any heating sources. Since the screen is made of a plastic material, it

can be damaged by heat.

Do not disassemble the screen. This will void your warranty and may cause injury.

After the screen is set up, do not push or lean against the upright bar. Do not hang anything from the

screen or the upright bar.

CARE OF SCREEN

Do not leave the screen in areas subject to high humidity and direct sunlight.

Keep the projection surface of the screen free from dirt and dust which can interface with quality

of the projection image. If the screen becomes dirty, lightly wipe it off with soft cloth moistened in

a mild solution of a mild neutral detergent and water. Benzine, thinner and other volatile agents can

cause permanent damage to the screen and should never be used for cleaning.

Do not write on the screen film.

Do not set up the screen in areas subject to strong breeze. This may cause the screen to move and

interfere with the quality of the projected image.

Before storing the screen, lock the release lever by rotating green knob. Do not carry the screen if

the release lever and the green knob are not completely locked. Doing so may cause the screen case

to slip off and discolor or damage the screen.

Setting up the screen

1Determine where to set up the screen.

2Rotate feet at the bottom of the case so

they are perpendicular to the case.

3Rotate the upright bar 90 degrees verti-

cally until it clicks.

4Raise the telescopic upright bar (small) to

the desired hight.

5Raise the telescopic upright bar (medium)

to the desired hight. The height can be

adjusted to 4 different levels.

6Rotate the hook at the top of the upright

bar 90 degrees horizontally.

Operating Instructions

Storing the screen

1Remove the lifting handle from the hook.

2Grasp the lifting handle, lower the screen,

and allow it retract into the case.

Lower the screen, as straight as possile, until

it clicks and the screen is completely stowed

and locked in the case.

Do not carry the product while the screen is

not completely stowed and locked. Doing so

may cause the case to accidentally slip off

and discolor or damage the product.

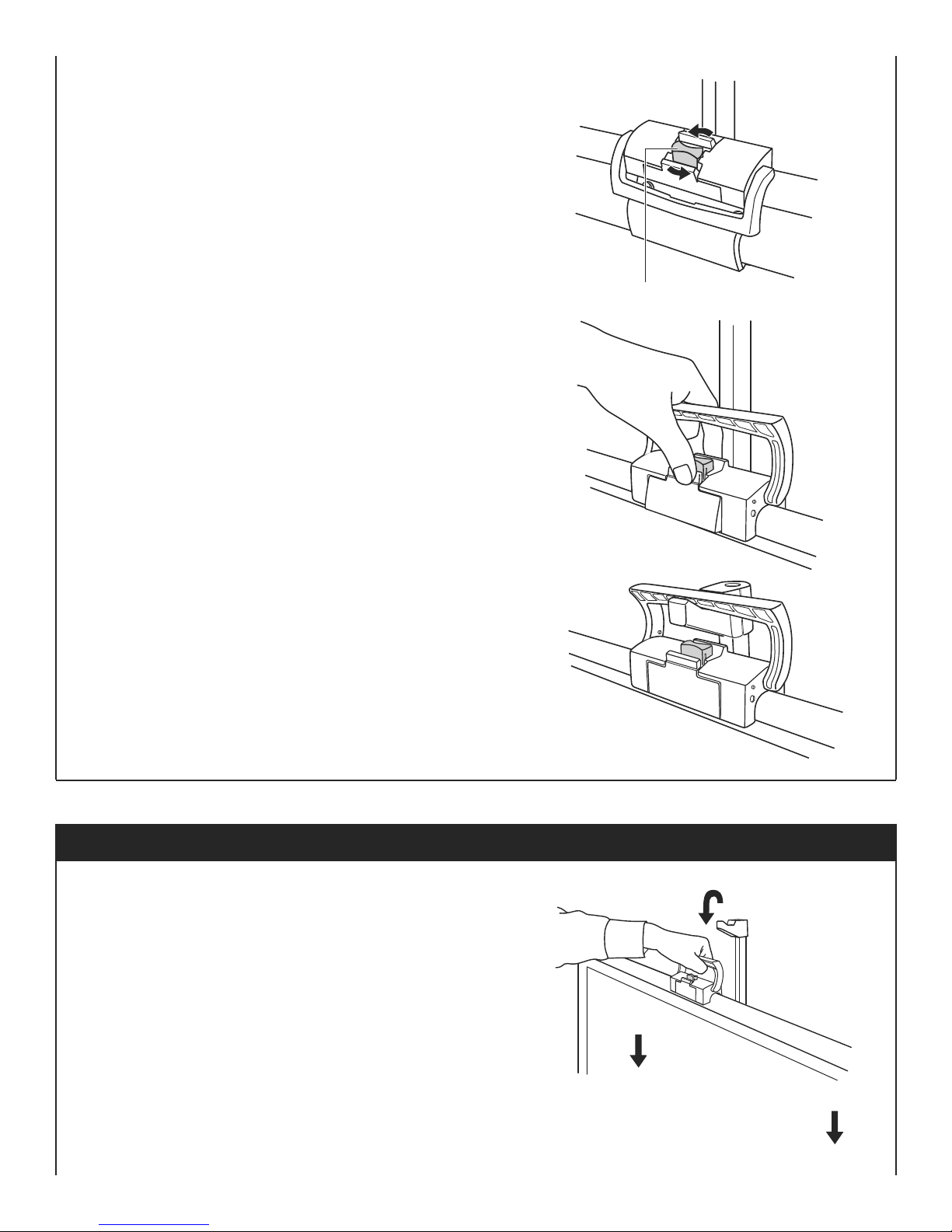

7Unlock the release lever by rotating the

green knob 90 degrees.

8Raise the screen by grasping the lifting

handle while simultaneously squeezing

the release latches.

9Anchor the lifting handle on the upright

hook.

Make sure that the notch of the handre is

firmly on the hook .

Green knob

3Lock green knob by rotating it 90 degrees.

Do not carry the product while the green knob

is not completely set. Doing so may cause

the case to accidentally slip off and discolor or

damage the screen.

4Rotate the hook at the top of the upright

bar 90 degrees.

5Press the green release tab at the base of

the medium upright bar and push down

until retracted. (small and medium)

6Rotate upright bar 90 degrees into a hori-

zontal position

Hold the upright bar firmly to keep it from

falIing over accidentally.

Pull down the upright bar gently until it is

locked its holder.

7Rotate the feet horizontally until they are

aligned with the screen case.

Case

Rotating foot

Hook

Slat

Upright bar

Stop

Lifting handle

Screen film

Skirt film

Hook holder

Release latch

Green knob

Right side

Weight : 60" 7.75 Lbs.

80" 10.00 Lbs.

In the harvesting

Left side

80"60"

1st 42-1/4"

2nd 49-3/4"

3rd 56-1/2"

4th 64"

1st 52"

2nd 59-1/2"

3rd 66-1/4"

4th 73-3/4"

2-3/4"

60" 61-1/4"

80" 78-1/2"

3-1/2"

2-1/4"

13-1/2"13-1/2"

Parts indentification

Specifications
