Dürkopp Adler 884 Instrucciones de funcionamiento

884

Service Instructions

Property of Dürkopp Adler GmbH and copyrighted. Reproduction or publication of the content in any manner,

even in extracts, without prior written permission of Dürkopp Adler GmbH, is prohibited.

Introduction

This service booklet contains the instructions for setting the sewing machine

head mechanisms.

The directions for putting the machine into operation and for setting the

positioning drive are contained in another publication.

The service booklet is common for all subclasses of the machine and

contains also the instructions for setting optional accessories of the machine,

if this is necessary owing to their complexity. Provided the machine supplied

does not contain some elements, then the respective chapters may be

ignored.

The succession of the setting operations is expressed here by sequencing

the paragraphs of this booklet. When setting, check up, if the setting

operations related to this setting have already been performed.

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Index Page

Service Instructions for the Class 884

(Edition 11.2021)

1 General

1.1 Setting gauges ................................................ 5

1.2 Adjusting the handwheel .......................................... 6

1.2.1 Sewingmachinewithminimotor...................................... 6

1.2.2 Sewingmachinewithdirectdrive..................................... 7

2 Bottom feed

2.1 Basic setting for stitch adjustment and stitch length limit ....................... 8

2.2 Stitchuniformityforforwardsandreversestitching.......................... 9

2.3 Adjustingoffeedshaftpositionandclutchleverposition ...................... 10

2.4 Position of the eccentric tappet for the feed movement ........................ 11

2.5 Switchingoverthefeedclutch ...................................... 12

2.6 Position of the eccentric tappet for the switch over of the feed clutch ............... 13

2.7 Checkingtheswitchoverofthefeedclutch .............................. 14

2.8 Wheel feed .................................................. 15

3 Top feed

3.1 Position of the needle holder with single needle sewing machines ................. 17

3.2 Needle feed .................................................. 18

3.3 Rollerfoot................................................... 20

3.4 Rollerfootlifting............................................... 21

3.5 Variatoroftherollerfootdrive....................................... 22

4 Adjusting the needle bar and the hook

4.1 Hookheight.................................................. 23

4.2 Needle bar height, play of needle to hook tip, loop stroke ...................... 24

4.3 Hook tip guard ................................................ 25

4.4 Bobbin housing release ........................................... 26

4.2 Hooklubrication ............................................... 27

5 Thread setting

5.1 Thread regulator, check spring, bolt for the thread lever mechanism................ 28

5.2 Bobbin winder................................................. 29

6 Thread cutter

6.1 Thread-pulling knife height ......................................... 30

6.2 Starting position for the thread pulling knife............................... 31

6.3 Angleposition(timing)ofcontrolcamandclearancebetweencamandroller.......... 33

6.4 Bobbin thread clamp............................................. 34

Index Page

7 Electronic control and sewing machine drive - positioning motor ............... 35

7.1 Terminals to PCB connections - electromagnetic variant ....................... 36

7.2 Terminals to PCB connections - pneumatic variant .......................... 37

1 General

These service instructions describe the adjustments that can be made

to the class 884 special sewing machine.

CAUTION!

The operations described in these service instructions may only be

carried out by qualified staff or other appropriately trained persons!

Caution: Risk of injury!

Turn the main switch off for repair, conversion and maintenance work

and separate the machine from the pneumatic supply line.

Any adjustment work and functional testing with the machine running

should be conducted only under observance of all safety measures

and with the greatest possible caution.

These service instructions describe the adjustment of the sewing

machine in a logical order. Please observe that various setting

positions are dependent on each other. Thus it is essential that the

settings be conducted while keeping to the order described.

For all adjustments of parts involved in the stitch formation, a new

undamaged needle must be inserted.

This text does not specifically mention any machine covers or panels

which must be removed or re-mounted in order to conduct inspections

or adjustments.

Note

Some shafts on the special 884 machine are provided with flat

eccentric surfaces. This significantly simplifies machine adjustments.

For all adjustments on flat surfaces, the first screw screwed in the

direction of the eccentric surface.

1.1 Setting gauges

The retention pin required for adjusting the machine in included with all

units. It is located with the machine accessories and can be attached

so that it is easily accessible below the oil tray.

1.2 Adjusting the handwheel

Rule:

The handwheel (4) is labelled with degree numbers.

Certain adjustments are made with these marked handwheel positions.

–Turn the handwheel until the degree value specified in the

instructions is aligned with the pointer (3).

–Proceed with the adjustment described.

When the needle bar is at top dead centre, the pointer (3) should be

aligned with “0” degrees.

1.2.1 Sewing machines with minimotor

–Loosen the handwheel screws witha3mmAllenkey(1).

–Position the needle bar in the upper dead centre position. Use the

retention pin (3 mm diameter) to peg the position (2).

–Turn the handwheel so that the pointer (3) points to 0 degrees on

the rotary scale.

–Tighten the first screw with the Allen key (1). Turn the handwheel

to 50° and tighten the second screw with the Allen key (1).

1.2.2 Sewing machine with direct drive

–Unscrew three fixing screws on the hand wheel (5) and remove it.

–Put the needle in the upper dead point and insert the setting pin

(2), which is a part of the sewing machine accessories and which is

fixed on the oil tray bottom side, into the crank head.

–Loosen two setting screws of the hand wheel flange (4) with the

Allenkey3mm(1).

–Turn the hand wheel flange with the hollow (6) against the sign (3).

–Tighten both setting screws with the key (1) and fix the hand wheel

on again.

2 Bottom feed

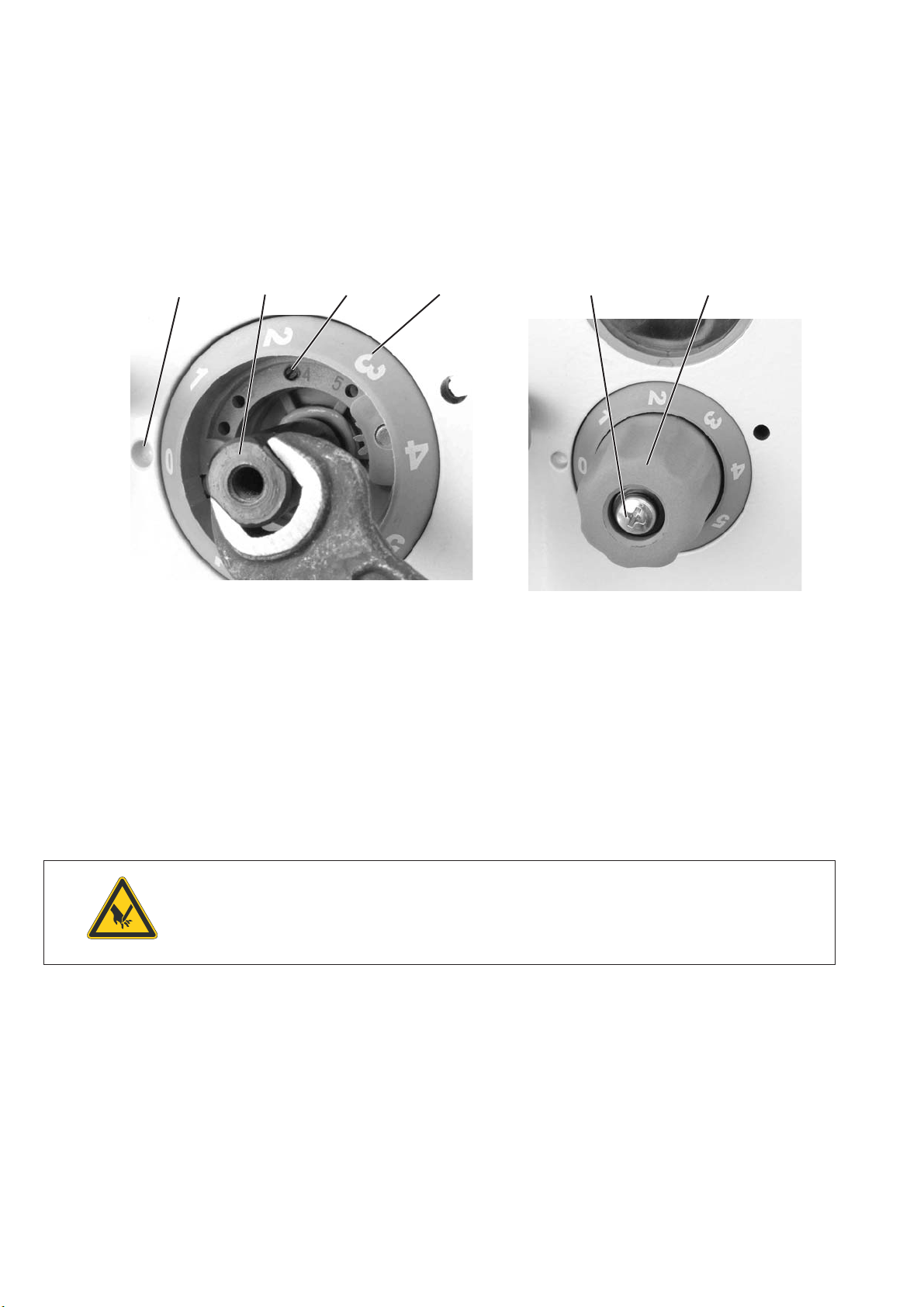

2.1 Basic setting for stitch adjustment and stitch length limit

Rule:

1. When setting the stitch length at “0”, the stitch regulator gear should

have as little play (clearance) as possible when you press down on

the bartacking lever.

2. The maximum stitch length limit depends on the material to be sewn

and the sewing equipment being used (see operating instructions).

–Loosen screw (1) and take off the settings dial (2).

–Turn the screw (3) as far as needed to the right using a 10 mm

open-ended wrench. Verify that the stitch regulator gear is without

motion by pressing down on the bartacking lever. This fulfils rule 1.

–Set the scaling ring (4) with stitch length “0”toalignwiththe

circular mark (5).

–Limit the stitch length according to rule 2. For this, screw the

retention pin (6) into the proper hole. The holes are marked with

numbers which indicate the maximum stitch length.

–Put the settings dial (2) back on and tighten the screw (1).

Caution: Risk of injury!

Turnthemainswitchoff.

Only carry out this basic stitch adjustment when the machine

is turned off.

53 6 4 12
