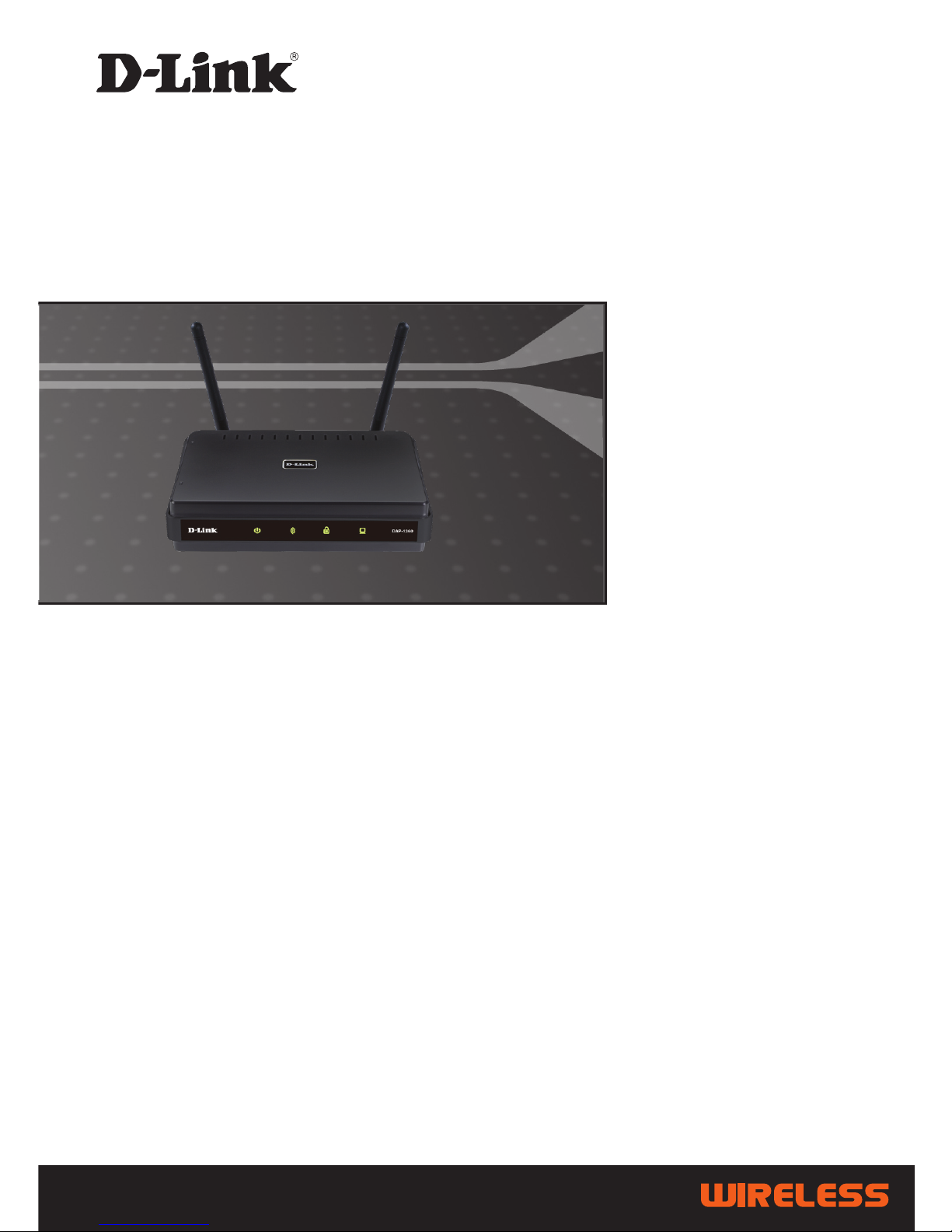

D-Link DAP-1360 Manual de usuario

WIRELESS N ACCESS POINT

DAP-1360

Quick Installation Guide+

Руководство по быстрой установке+

Guía de Instalación Rápida+

Guia de Instalação Rápida+

快速安裝指南+

Petunjuk Pemasangan Cepat+

クイックインストールガイド+

DAP-1360

Wireless N Access Point

Quick Installation Guide

Version 1.00

System Requirements

Package Contents

Open the DAP-1360 package and check to see if all of the following items are

included inside:

• DAP-1360 Wireless N Access Point

• Two detachable antennas

• Power adapter

• Cat. 5 Ethernet cable

• CD-ROM containing the User’s Manual

and this Quick Installation Guide

If any of the above item is missing or damaged, contact the reseller from

whom you purchased this package immediately.

The DAP-1360 Wireless N Access Point is designed to work with computers

equipped with Windows®, Macintosh®, or Linux-based operating systems.

To congure this Wireless N Access Point, you need a computer with an Ethernet

interface and an Internet browser such as Microsoft Internet Explorer 6.0 or above,

Netscape Navigator 7.0 or above, or FireFox 1.5 or above.

Setting Up the DAP-1360

Step 1: Connect the Power Adapter.

Check the AC voltage of your AC power outlet against the AC power input of

the power adapter. Connect the power adapter supplied with the DAP-1360 to

the power socket on the back of this device rst, then plug it to your AC power

outlet. Check to see that the Power LED on the front panel of the DAP-1360 is

turned ON.

Ethernet LAN Port

Can be connected to Ethernet

port of computer, or to an Ethernet

switch or LAN port of a router.

Power Socket

Connect to a 5VDC 2.5Apower

adapter.

WARNING! The DAP-1360’s power output is 5 volts DC, 2.5 Ampere. Use only

the power adapter supplied with this DAP-1360 or one with the same power

specications. Using a power adapter with a different voltage or plugging your

DAP-1360 to a wrong AC voltage outlet will damage this device and will void

the warranty for this product.

Step 2: Connect the Antenna and Ethernet Cable.

Connect both antennas to the antenna connectors on the back of the DAP-1360.

Connect one end of the Ethernet cable to the LAN port on the back panel of the

DAP-1360, and the other end of this cable to your computer’s Ethernet port. If your

computer is connected to an Ethernet network via an Ethernet switch, connect

this end of the cable to the switch’s port.

In the Address

eld, type in the

default ip address

http://192.168.0.50

Type Return.

In the User Name field,

type in the default name

admin

Leave the Password

eld blank.

Once you have logged in, the following Setup screen will appear:

Click Launch Wireless Setup Wizard

Step 3: Begin Conguring your DAP-1360.

This configuration step presumes that you will use the DAP-1360’s default

factory setting of operation mode of AP (access point). This mode allows

computers and devices equipped with 802.11n standard wireless LAN

interfaces to communicate with other wireless computers and devices through

the DAP-1360. In addition, the default factory setting provides no wireless

security. To set the DAP-1360 to another operation mode and to set its wireless

security, refer to its User’s Manual.

Run a web browser on your computer.

The following login screen will appear:

Click Next

Enter the device name of AP and click Next to continue. It is recommended

to change the Device Name if there is more than one D-Link device within

the subnet.

Customize your own password and click Next.

Select Access Point as the wireless mode.

Click Next

Click Save to save your network settings.

Select Manual as the configuration method to setup your network

manually.

Click Next to continue.

Select Auto as the conguration method only if your wireless device

supports Wi-Fi Protected Setup.

Click Next to continue.

If you choose WPA-PSK encryption, the following screen will display the

Network Key to be entered on your wireless clients.

Click Save to nish the Setup Wizard.

Enter a network name and choose the option to Automatically assign a

network key. To Manually assign a network key, skip to page 8.

Click Next to continue.

If you choose WEP encryption, a following screen will show you your

Network Key to enter on your wireless clients.

Click Save to nish the Setup Wizard.

For WPA encryption, enter a Network Key between 8 and 63 characters

long or enter exactly 64 characters using 0-9 and A-Z.

Choose Manually assign a network key to create your own key and click

Next to continue.

If you select WPA encryption, the following screen will display the network

key to be entered on your wireless clients.

Click Save to nish the Setup Wizard.

Click Next
