D-Link DCS-5610 Manual de usuario

2D-Link DCS-5610 Quick Install Guide

System Requirements

• Internet Explorer 6.x or above

• Windows®XP or Windows Vista™

• 1.7GHz processor or better and at least 256MB of RAM

• An available Ethernet connection

CAT5 Ethernet Cable

Package Contents

DCS-5610

PTZ PoE Internet Camera

System Requirements

If any of the above items are missing, please contact your reseller.

CD-ROM with Manual and

Setup Wizard

Camera Stand 12V 1.25A AC Power Adapter

3 D-Link DCS-5610 Quick Install Guide

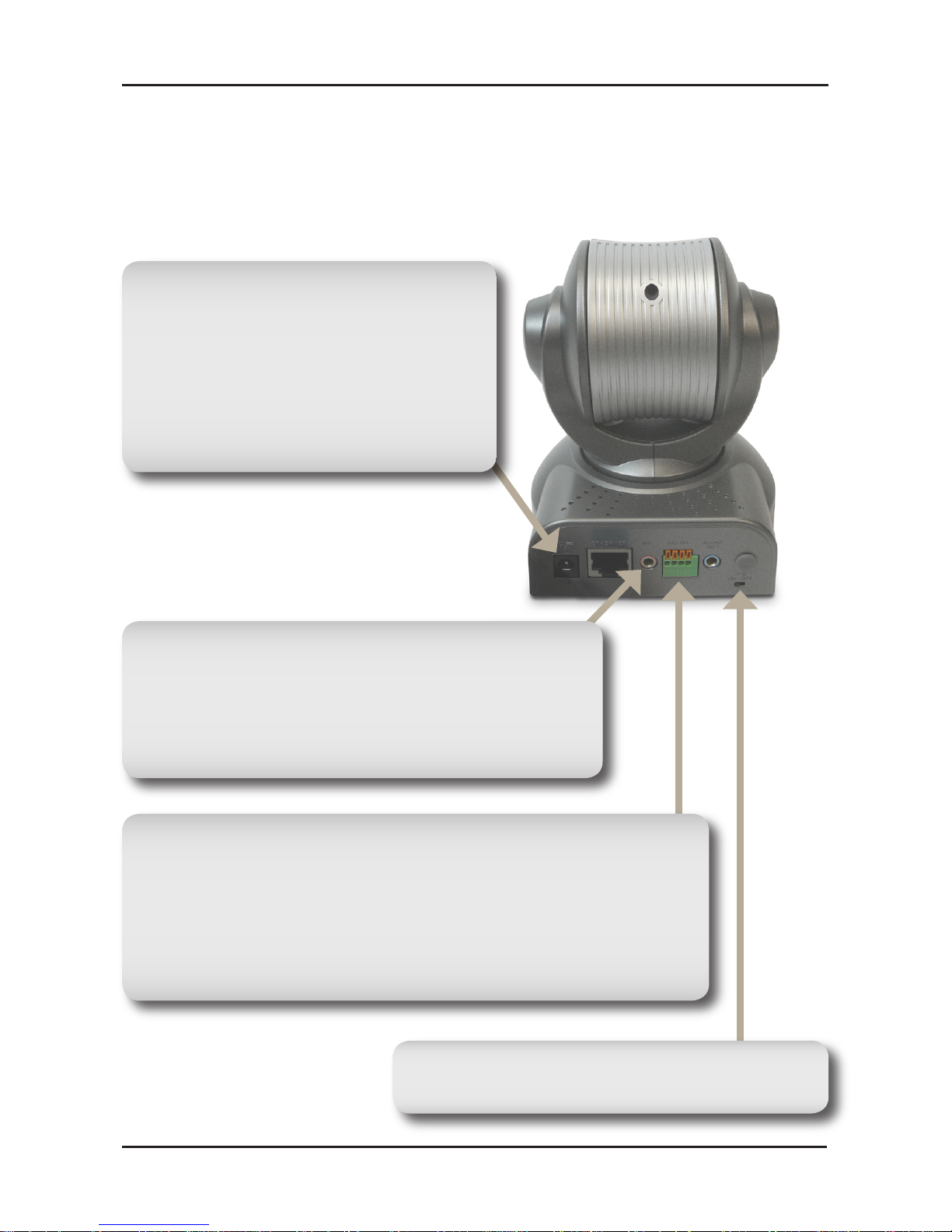

Hardware Overview

Connections

DC Power Connector

The DC power input connector is

located on the DCS-5610 Internet

Camera’s back panel and is labeled

12V DC with a single socket

to supply power to the Internet

Camera.

I/O Connector

The DCS-5610 provides a terminal block with two pairs

of connectors situated on the back panel. One pair is

for input and the other is for output. The I/O connectors

provide the physical interface to send and receive digital

signals to and from a variety of external devices.

Microphone Connector

The DCS-5610 Internet Camera has an internal

microphone built-in. However, you have the

option of using an external microphone by

plugging it into the microphone connector.

MIC On/Off Switch

Used to turn the microphone on or off.

4D-Link DCS-5610 Quick Install Guide

Hardware Overview

Ethernet Cable Connector (PoE)

The Internet Camera’s back panel features an RJ-45 connector

for connections to 10Base-T Ethernet cabling or 100Base-TX Fast

Ethernet cabling. This network port supports the NWay protocol,

allowing the Internet Camera to automatically detect or negotiate

the transmission speed of the network.The Ethernet port can also

be used to power the camera using a PoE switch.

Audio Out Connector

The DCS-5610 provides an Audio Out

connector to be used for 2-way audio.

Speakers (not included) may be

connected to the camera to provide

audio for 2-way communication.

Reset Button

Reset will be initiated when the

reset button is pressed once

and held 30 seconds until the

Power LED ﬂashes through its

cycle twice.

5 D-Link DCS-5610 Quick Install Guide

Hardware Overview

LEDs

Power/MIC LED

The power LED is at the front

base of the camera. As soon as

the power adapter is connected

to the camera, the LED will

turn red.

Activity LED

Once a connection has been established via

Ethernet port, the Activity LED will turn solid

green. If trafﬁc is passing to the camera the

Activity LED will blink. If no Ethernet connection

is detected the Activity LED will not light up.

6D-Link DCS-5610 Quick Install Guide

Hardware Installation

Connect the Ethernet Cable

Connect an Ethernet cable to the network

cable connector located on the Internet

Camera’s back panel and attach it to the

network.

Attach the External Power Supply

Attach the external power supply to the

DC power input connector located on the

Internet Camera’s back panel (labeled

DC 12V) and connect it to an AC power

outlet.

Note: When you have a proper connection, the LED will turn

green. The light may cycle on and off and your computer may show

an intermittent loss of connectivity, this is normal until you have

conﬁgured your Internet Camera.

Connect Using Power-Over-Ethernet

Once you connect an Ethernet cable to your PoE switch or adapter,

the Power LED on the DCS-5610 will turn green to indicate a proper

connection.

7 D-Link DCS-5610 Quick Install Guide

Software Installation

Turn on the computer and Insert the D-Link DCS-5610 Autorun CD

in the CD-ROM drive. The step-by-step instructions that follow are

shown in Windows®XP. The steps and screens are similar for the

other Windows operating systems.

Software Installation

Click on Installation Wizard

Click Next to continue.

Click I Agree to accept the License

Agreement.

Click Next

Click I Agree

8D-Link DCS-5610 Quick Install Guide

Software Installation

Click Finish to complete the

installation.

To start the installation click

Install.

Note: The installation may take

several minutes to complete.

Click Install

Click Finish

9 D-Link DCS-5610 Quick Install Guide

Conﬁguration

Conﬁguring Your Camera with

the Installation Wizard

Click on the D-Link Installation Wizard icon that was created in your

Windows Start menu.

The Installation Wizard will appear and show the MAC address of

the DCS-5610 and an IP Address (which may or may not be correct

depending on what you have your DCS-5610 connected to). If

you have a DHCP server on your network, there will be a valid IP

Address displayed here.

Note: A DHCP server is a device that supplies the same IP address.

Click Manual Setup

Enter the admin ID and password.

Note: The default Admin ID is admin

with the password left blank.

Click Next

10D-Link DCS-5610 Quick Install Guide

Conﬁguration

Select DHCP if you want to obtain

a new IP address every time the

camera boots up.

Click Next

Choose UPnP Port Forwarding if

your router supports it. Otherwise,

choose Manual to enter your port

numbers manually. Click Next to

continue.

Enable DDNS and setup your

DDNS service here. Click Next to

continue.
