Before You Begin
You must have at least the following:
zPentium III 500 MHz, Celeron, AMD Athlon processor, or higher
z64MB RAM (or minimum OS requirement whichever is higher)
zMicrosoft Windows XP/2000/ME/98SE
zMicrosoft DirectX 8.1b or higher
zUpdate Service Pack
z200MB free hard drive space
zCD-ROM drive
zUSB Port (USB specificaiton version 1.1)
z24Bit color display adapter
zWindows compatible sound card and speakers (full duplex sound card
recommended)
Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
©2004 D-Link System, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice.
This product works with the
following operating system
software: Windows
XP/2000/ME/98SE
D
S
B-
C
320 U
S
B P
C
C
AMERA
DSB-C320
D-Link 330K Pixel USB
PC Camera
CD-ROM(containing Drivers, Application
Software, PDF Installation Guide, PDF
Manual, and Warranty)
USB 1.1 Cable
Run the Driver CD
before you install the
PC Camera.The Driver CD
contains an installation
program that simplifies
your installation process.
2
DSB-C320 Driver Installation
Please bring out the attached CD-ROM and follow the steps listed
below carefully to insure the installation of DSB-C320 will be
complete.
If the Autorun screen does not automatically start, click on Start >
Run, enter „D:\Autorun.exe” and click OK. „D” represents the letter
of your CD-ROM drive. Replace it if your CD-ROM drive is a different
letter.
Windows XP Users
Click Install DSB-C320
Driver
Insert the software CD into
CD-ROM. As you can see
the below picture,D-Link
DSB-C320 startup window
will be displayed.
Click Next
3
Windows XP Users (Continued)
Click Finish
Plug the USB cable into camera
and USB port on the PC directly.
When all setup
procedures are finished,
you MUST restart the
operating system manually
after you plugged the USB
cable into camera and USB
port as well as ran image
device sucessfully.
Please Click “Yes” to restart
the operating system.
4
Windows 2000 Users
Click Next
Click Finish
Click Yes
5
Windows 2000 Users (Continued)
Click Finish
Please Click “Yes” to restart
the operating system.
Plug the USB cable into camera
and USB port on the PC directly.
When all setup
procedures are finished,
you MUST restart the
operating system manually
after you plugged the USB
cable into camera and USB
port as well as ran image
device sucessfully.
6
Windows ME & 98 Users
The DSB-C320 driver installation will proceed automatically for Windows
ME & 98SE users.
Plug the USB cable into camera
and USB port on the PC directly.
Click Next
Click Finish
7
Windows ME & 98 Users(Continued)
Driver Installing is Completed!
To confirm the DSB-C320 is properly installed, click “START”
→”SETTINGS”→”CONTROL PANEL”. Double-click ”SYSTEM”. Select
the ”HARDWARE” tab and click the ”DEVICE MANAGER” button.
Confirm that „”D-Link DSB-C320” appears in the ”IMAGE DEVICES”
section.
Please Click “Yes” to restart
the operating system.
When all setup
procedures are finished,
you MUST restart the
operating system manually
after you plugged the USB
cable into camera and USB
port as well as ran image
device sucessfully.
8
Once properly installed, you are ready to start immediately capturing
images and a creating video with the DSB-C320.
Please refer to the DSB-C320 Manual on the CD included with this
product for information on how to install and use the VP-EYE 4.0
software.
Attention:
1.Make sure to install the driver and software BEFORE plugging the
camera into USB port.
2.We recommend plugging the cable connector to USB pot on PC directly
to avoid low voltage.
3.If a dialog box pops up and request to have the language setting file
replaced after plugging the camera into USB port, please simply click
“Yes” to continue.
4.Please download the latest update of “Service Pack” (from Start Æ
Windows Update) to keep the camera running smoothly.
5.If you have more than one image device in your system, please select
the “D-Link DSB-C320” as the PC Camera device. In this way, you can
use this camera to capture images.
9
10
Technical Support
You can find software updates and user documentation on the
D-Link website.
Tech Support for customers within Australia:
D-Link Technical Support over the Telephone:
1300-766-868
Monday to Friday 8:00am to 8:00pm EST
Saturday 9:00am to 1:00pm EST
D-Link Technical Support over the Internet:
http://www.dlink.com.au
email:[email protected]
Tech Support for customers within New Zealand:
D-Link Technical Support over the Telephone:
0800-900-900
Monday to Friday 8:30am to 8:30pm
Saturday 9:00am to 5:00pm
D-Link Technical Support over the Internet:
http://www.dlink.co.nz
email:[email protected]
Otros manuales para DSB-C320
4
Tabla de contenidos
Otros manuales de Cámara web de D-Link
D-Link
D-Link DCS-940L Manual de usuario
D-Link
D-Link DCS-935L Hoja de instrucciones
D-Link
D-Link DSB-C120 Manual de usuario
D-Link
D-Link DSB-C320 Manual de usuario
D-Link
D-Link DCS-940L Manual de usuario
D-Link
D-Link VisualStream DSB-C310 Manual de usuario
D-Link
D-Link DSB-C120 Manual de usuario
D-Link
D-Link VisualStream 300K Pixel PC Camera Manual de usuario
D-Link
D-Link DCS-2330L Manual de usuario
D-Link
D-Link DCS-942L Hoja de instrucciones
D-Link
D-Link DCS-932L Manual de usuario
D-Link
D-Link DSB-C320 Manual de usuario
D-Link
D-Link VisualStream DSB-C110 Manual de usuario
D-Link
D-Link DSB-C300Clear Manual de usuario
D-Link
D-Link DCS-5020L Manual de usuario
D-Link
D-Link DCS-2310L Manual de usuario
D-Link
D-Link DCS-5020L Manual de usuario
D-Link
D-Link DCS-5020L Manual de usuario
D-Link
D-Link VisualStream DSB-C110 Manual de usuario
D-Link

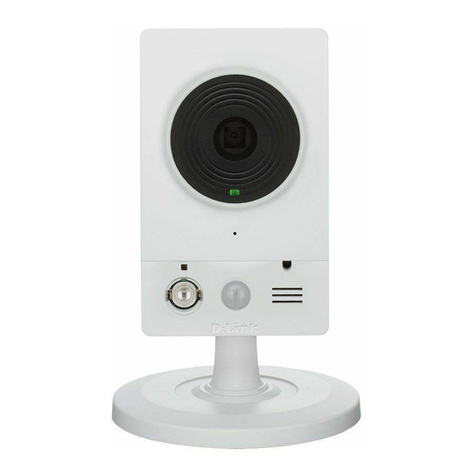

D-Link DCS-2132L Manual de usuario
