D-Link DGS-F1010P-E Manual de usuario

Product Quick Installation Guide

DGS-F1010P-E

10-Port Gigabit Switch with Long Reach PoE+

1.1 Package Contents

The package contains the following items:

•PoE Switch

•External Power Adapter

•Power Cord

•Quick Installation Guide

1.2 Safety Instructions

Use the following safety guidelines to ensure your own personal safety and to help protect

your equipment from potential damage.

•The power adapter should be disconnected from the mains during the installation process;

•Wear a grounded anti-static wrist band to avoid the build-up of static electricity;

•The switch is designed to operate only when it is powered by the supplied power adapter. Make

sure that the power adapter voltage matches the voltage indicated in the switch specifications.

•Observe extension cable and power strip ratings. Make sure that the total ampere rating of all

products plugged into the extension cable or power strip does not exceed 80 percent of the

ampere ratings limit for the extension cable or power strip;

To avoid the risk of electric shock, do not open the switch or the power adapter housing. Do not

modify power cables or plugs.

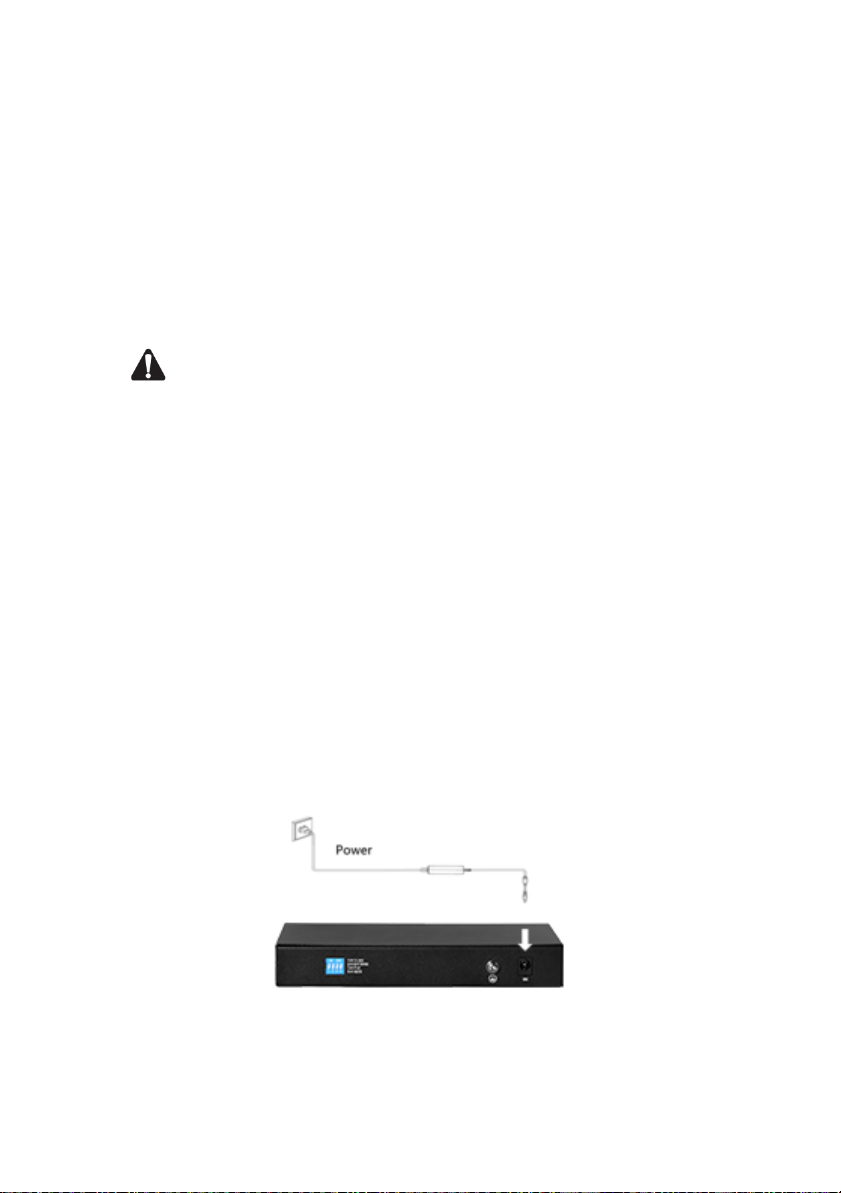

1.3 Connecting Power

Connect the External power adapter to the PoE switch DC Power Input.

1.4 Product Connection Diagram

1.5 Product Ports Description

Port

Description

PoE 1-8

PoE Ports: Support IEEE802.3af/at standard Power over Ethernet,

used to connect PD devices.

Uplink 9-10

Non-PoE ports: used to connect NVR, PC, Aggregation Switch etc.

DC Power

Input

Power adapter connector (supports 48-56V).

Please use the adapter supplied with the switch.

1.6 Product Specifications

Switch Modes

Extend: Supports long reach PoE delivery, up to 250m.

(Cat 5 or better cabling is recommended)

VLAN: Isolates ports from each other. Adds security and improves network

performance by constraining broadcast traffic.

QOS: Introduces application prioritisation. Traffic with higher priority (e.g.

Voice over IP) will be forwarded ahead of the queue.

PoE: Automatically restarts a remote device by disabling and re-enabling PoE

on the port if it detects the remote device has locked up (no incoming traffic).

Network Port

8 x 10/100/1000Mbps PoE RJ45 ports (Port 1–Port 8)

2 x10/100/1000Mbps RJ45 Uplink ports (Port 9 –Port 10)

Transfer Rate

1000Mbps full Duplex, 10 or 100/1000Mbps Half Duplex

Standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Performance

Bandwidth: 20Gbps (non-blocking)

Network delay (100to100 Mbps): maximum 20μs (using 64 byte packet)

Network delay (1000 to 1000M bps): maximum 10μs (using 64 byte packet）

Frame filtering and transmission rate:

10M port maximum 14,800pps

100M port maximum 148,800pps

1000M port maximum 1,488,000pps

LED indicator

Power

RESV

LINK/ACT

PoE pins

1/2(+), 3/6(-)

Power

Max power for single port 30W

External power adapter: 96W

Dimensions

Size L x W x H: 184mm x 94mm x 27mm

Weight 0.95kg

Environment

Operating Temperature: 0°- 40°C

Operating Humidity: 10% - 90%, Non-condensing

Safety

CE/ROHS/FCC
