Before Your Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DGS1224T GigabitSmart Switch. The model you have purchased may appear slightly

different from those shown in the illustrations. For more detailed information about the

switch, its components, making network connections and technical specifications,

please refer to the User’s Manual on master CDincluded with your switch.

Check Your Package Contents

These are the items included with your DGS-1224T purchase:

Ifanyoftheaboveitemsaremissing,pleasecontactyourreseller.

holders. Software and specifications subject to change without notice.

•

DGS

1224T

D-Link 24-Port 10/100/1000Mbps + 2 Combo

Mini GBIC Gigabit Smart Switch

• CD-

ROM (containing Manual and Utility

Installation)

• 100–240VAC 50/60Hz

Power Adapter

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

24T

D-Link 24-

Port 10/100/1000Mbps +

2 Combo Mini GBIC Gigabit Smart

Switch

Broadband Router

Setup The DGS-1224T Gigabit Smart

Switch

The setup of the Switch can be performed using the following steps:

A. Install theDGS-1224T in a fairly cool and dry place. See Technical

Specificationfortheacceptable operation temperature and humidity

ranges.

B. Installthe DGS-1224T in a site free from strong electromagnetic

field generators(such as motors), vibration, dust, and direct

exposure to sunlight.

C. Leave at least 10cm (about4 inches) of space at the front and rear

of the hub for ventilation.

D. Visually inspect the DC power jack and make sure that it is fully

secured to the power adapter.

E. Install the DGS-1224T on a sturdy, level surface that can support

itsweight,orin anEIA standard-size equipment rack.

F. When installing the Switch on a level surface, attach the rubber feet

to the bottom of each device. The rubber feet cushion the hub and

protect the hub case from scratching.

Attach the adhesive rubber pads to the bottom

Rack Mounting

The DGS-1224T can be mounted in an EIA standard-size, 19-inch rack,

which can be placed in a wiring closet with other equipments. Attach the

mountingbrackets tobothsides oftheSwitch (one at each side), and

secure them with the provided screws.

Use the screws provided. Then, use screws provided with the

equipment rack to mount the Switch in the rack.

Mount the Switch in the rack

Connecting Network Cable

The DGS-1224T supports 10/100/1000Mbps GigabitEthernet. It runs

full/half duplex transfer mode for 10/100Mbps and full duplex transfer

mode for 1000Mbps. Each port on the DGS-1224T supports Auto-

MDI/MDI-X. Auto-MDI/MDI-X is a feature that eliminates the need for

worrying about using either a standard or crossover cable—you can

useeitherone—and allows any port to be an uplink port.

ACPower

The DGS-1224T can be used with AC power supply 100~240V AC,

50~60Hz. The power switch is located at the rear of the unit adjacent to

the AC power connector and the system fan. The switch’spowersupply

will adjust to the local power sourceautomatically and may be turned on

without having any or allLANsegmentcablesconnected.

Connect The DGS-1224T Gigabit Smart

Switch To Your Network

Front Panel

10/100/1000Base-TMini GBIC Ports

Twisted-PairPorts

┌───────────────┐ ┌──┐

└─────┘

LEDIndicators

1000BASE-T Twisted Pair Ports (Port 1~24)

The DGS-1224T is equipped with two Gigabit twisted pair ports that

areauto negotiable 10/100/1000Mbps andalso support auto

MDI/MDIX crossover detection. These two ports can operate in half-

and full-duplex modes.

Mini GBIC Ports (Option Port 23~24)

The Switch is equipped with twoMini GBIC ports, supported optional

1000BASE-SX/LX Mini GBIC module.

Note: When the port was set to“Forced Mode”, the Auto

MDI/MDIX will be disabled.

LED Indicators

LEDstands for Light-Emitting Diode.

The front panel LEDs providesinstant status feedback and simplifies

monitoring and troubleshooting tasks.

LED indicators of the Switch

nPower LEDs

When the Power LED light is on, the Switch is

receivingpower.

Off

When the Power LED light isoff, the powercord is

improperly connected.

nCPU LEDs ( Management Indicator)

Blinking

When the CPU is working,the System LED is

blinking.

On/Off

The CPU is not working.

nPorts 1 & 16 Status LEDs

Link/Act

On When the Link/Act LED lights on, the respective port

is successfully connected to an Ethernet network.

Blinking

When the Link/Act LED is blinking, the port is

transmitting or receiving data on the Ethernet network.

Off No link.

1000Mbps

On When the1000Mbps LED lights on, the

respective port is connected to a 1000Mbps

GigabitEthernet network.

Off When the respective port is connected to a

10Mbps Ethernet or 100Mbps Fast Ethernet

network

100Mbps

On When the 100Mbps LED lights on, the respective port

is connected to a 100Mbps FastEthernet network.

Off When the respective port is connected to a 10Mbps

Ethernet or 1000Mbps Gigabit Ethernet network.

nOption Ports 15~16 Mini GBIC Status LEDs

Link/Act

WhentheMiniGBIC moduleis installed and

connected to a network, the Link/ACT LED lights on.

Blinking

When the LED is blinking, theMini GBIC module is

receiving data ona network.

Off

No link.

1000Mbps

When the 1000Mbps LED lights on, the respective

portis connected toa 1000MbpsGigabit Ethernet

network.

Off

When the respective port isdisconnected to the

network

Installing the Web Management

Utility

Through the Web Browser you can configure the Switch such as VLAN,

Trunking,QoS…etc.

The following instruction guides youto installthe Web Management

utility.

1. Insertthe Utility CD in the CD-Rom Drive.

2. From the Start menu on the Windows desktop, chooseRun.

3. In the Run dialog box, type D:\Web Management Utility\setup.exe

(D:\depends where your CD-Rom drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files->

web_management_utility and execute the Web Management

utility. (Figure 1.)

Figure1. Web ManagementUtility

Configuring the Switch

TheDGS-1224Thasa Web GUIinterface for smart switch configuration.

The Switch can beconfigured through theWeb Browser.A network

administrator can manage,control and monitor the switch from the local

LAN. This sectionindicates how to configure the Switch to enable its

smart functions.

UseInternet Explorer 5.0 or aboveWeb browser.

Before you configure this device, note that when the Web Smart Switch

is configured through an Ethernet connection, make sure themanager

PC must be set on

the

same

IP network

. For example, when the default

network address of the default IP address of the Web Smart Switch is

192.168.0.1, then themanager PC should be set at 192.168.0.x (where x

is a number between 2 and 254), and the default subnet mask is

255.255.255.0.

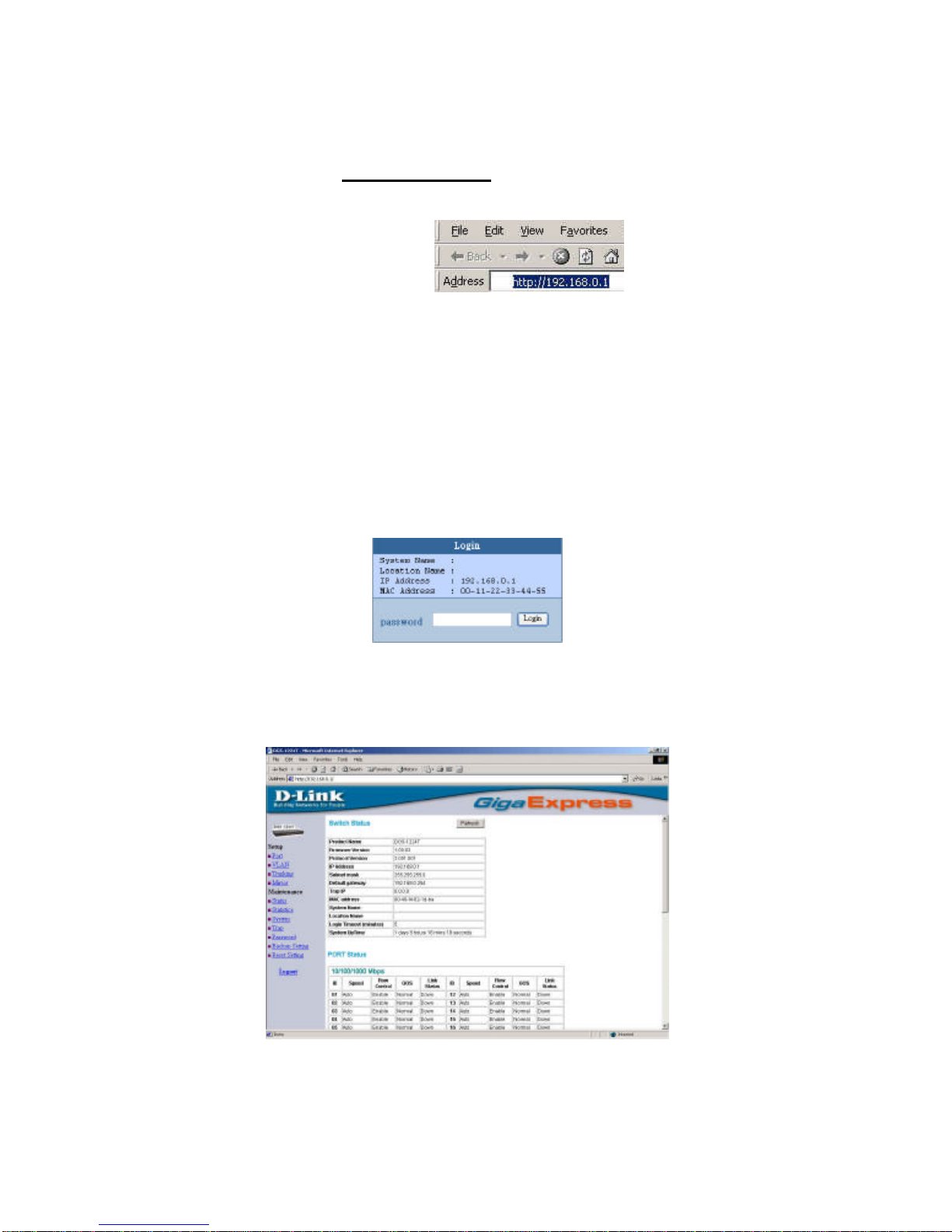

Enter IP addresshttp://192.168.0.1 (the factory-default IP address

setting) to the address location. (Figure 2.)

Figure2.

Or through the Web Management Utility, you do not need to remember

the IP Address, select the device shown in the Monitor List of the Web

Management Utility to settle the device on the Web Browser.

When the following dialogpage appears, remainenter the default

password "admin" andpress Login to enter the main configuration

window.(Figure3.)

Figure 3.

After entering the password, the main page comes up,the screen will

display the device status. (Figure 4.)

Figure 4.

Setup Menu

Whenthe main pageappears,find theSetupmenu in theleft side of the

screen (Figure 5).Click on the setup item that you want to configure.

Thereare eleven options:Port Settings, VLAN Settings, Trunk Setting,

Mirror Setting, Device Status, System Settings, Trap Setting, Password

Setting, Backup Setting and Reset Setting as shown in the Main Menu

screen.

Figure 5.
