D-Link DCS-8300LH Manual de usuario

User Manual

Version 1.00 | 08/09/2016

DCS-8300LH

Full HD 180-Degree Wi-Fi Network Camera

2D-Link DCS-8300LH User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or

organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and

change.

Manual Revisions

Revision Date Description

1.00 08/09/2016 DCS-8300LH Revision A1 with rmware version 1.00

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other

countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

Preface

3D-Link DCS-8300LH User Manual

Table of Contents

Product Overview..............................................................4

Package Contents.........................................................................4

System Requirements.................................................................4

Introduction ................................................................................... 5

Features............................................................................................5

Hardware Overview.....................................................................6

Front View................................................................................6

Rear View .................................................................................7

Installation.........................................................................8

Mounting the Camera.................................................................9

Technical Specications..................................................11

Regulatory Information ..................................................13

4D-Link DCS-8300LH User Manual

Section 1: Product Overview

Product Overview

Package Contents

System Requirements

• 802.11n/g router (a D-Link Cloud Router is recommended)

• A broadband Internet connection

• iPhone, iPad, Android, or Windows smartphone or tablet (please refer to the mobile app’s store page to check whether your device is

compatible)

• DCS-8300LH Full HD 180-Degree Wi-Fi Network Camera

• Power Adapter

• Mounting Kit

• Quick Installation Guide

• Quick Install Card

Note: Using a power supply with a dierent voltage than the one included with your product will cause damage

and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

5D-Link DCS-8300LH User Manual

Section 1: Product Overview

Introduction

The DCS-8300LH Full HD 180-Degree Wi-Fi Network Camera boasts a horizon-wide 180° lens that easily captures your entire room, wall-to-wall,

in high-quality 1080p. Its rotatable head makes ceiling installations easy, and the built-in night vision and handy mobile app empower you with

knowing exactly what is happening, day or night.The DCS-8300LH comes with remote monitoring and motion detection features, and is compatible

with the mydlink Home ecosystem so you can automate and manage and your home or oce from anywhere.

180°Wide Angle Lens

The DCS-8300LH provides whole-room coverage with a 180°wide angle lens, eliminating the need for multiple cameras to cover a single room.

Built-in dewarping technology automatically corrects the image for you.

1080p Full HD Video

The 1080p Full HD sensor provides crisp detail and clarity for high-quality snapshots and video.

Comprehensive Day/Night Surveillance

The built-in infrared LEDs enable night time viewing of up to 16 feet (5 meters), and the PIR sensor detects nearby motion even in complete darkness.

The microSD card slot allows the camera to record snapshots and video directly to onboard storage for a complete surveillance solution.

Wireless N Connectivity

The DCS-8300LH uses high-speed Wireless N to connect to your wireless router, and is compatible with 802.11n/g.

Features

6D-Link DCS-8300LH User Manual

Section 1: Product Overview

Hardware Overview

Front View

Camera Lens

Microphone

IR LEDs (behind cover)

Light Sensor

Camera Stand

Signal Locator LED

Solid Green: Best wireless signal

Solid Orange: Good wireless signal

Blinking Orange: Poor wireless signal

7D-Link DCS-8300LH User Manual

Section 1: Product Overview

Rear View

microSD Slot

MicroUSB Connector

(for power)

Reset Button

WPS Button

Power/Status LED

Solid Green: Successfully connected

Blinking Green: WPS process in progress

Solid Red: Camera is booting, or rmware

upgrade is in progress

8D-Link DCS-8300LH User Manual

Section 2: Installation

Please follow the instructions below to set up your Full HD 180-Degree Wi-Fi Network Camera.

Congratulations, your Full HD 180-Degree Wi-Fi Network Camera is now ready to use!

Be sure to check the dlink.com/mydlinkhomehelp website periodically for the latest rmware

updates to keep your product secure and up to date with the latest features.

Note: If you experience issues registering this camera with your mydlink account, or if you

purchased an open box or resold unit, perform a hard reset by pressing and holding the reset

button on the device for 10 seconds while the device is powered on. If you are returning the

device to the place of purchase, please perform the hard reset procedure to clear the

device of any personal data.

Step 1:

On your mobile device, download mydlink Home by going to mydlinkhomeapp.dlink.com,

or by searching for mydlink Home in the iTunes App Store or Google Play.

Step 2:

Launch the mydlink Home app and create a new account or sign in to your existing account.

iOS: If you are asked about allowing the app to access your location, select Allow.

Android: Make sure location services are turned on in your phone’s settings.

Step 3:

After logging in, tap the Settings icon in the top-left corner, select Add New Device, and

follow the instructions.

When you are asked to scan a QR code, use the code on the Quick Install Card in your package,

or on the label attached to your device.

Installation

9D-Link DCS-8300LH User Manual

Section 2: Installation

Mounting the Camera

To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.

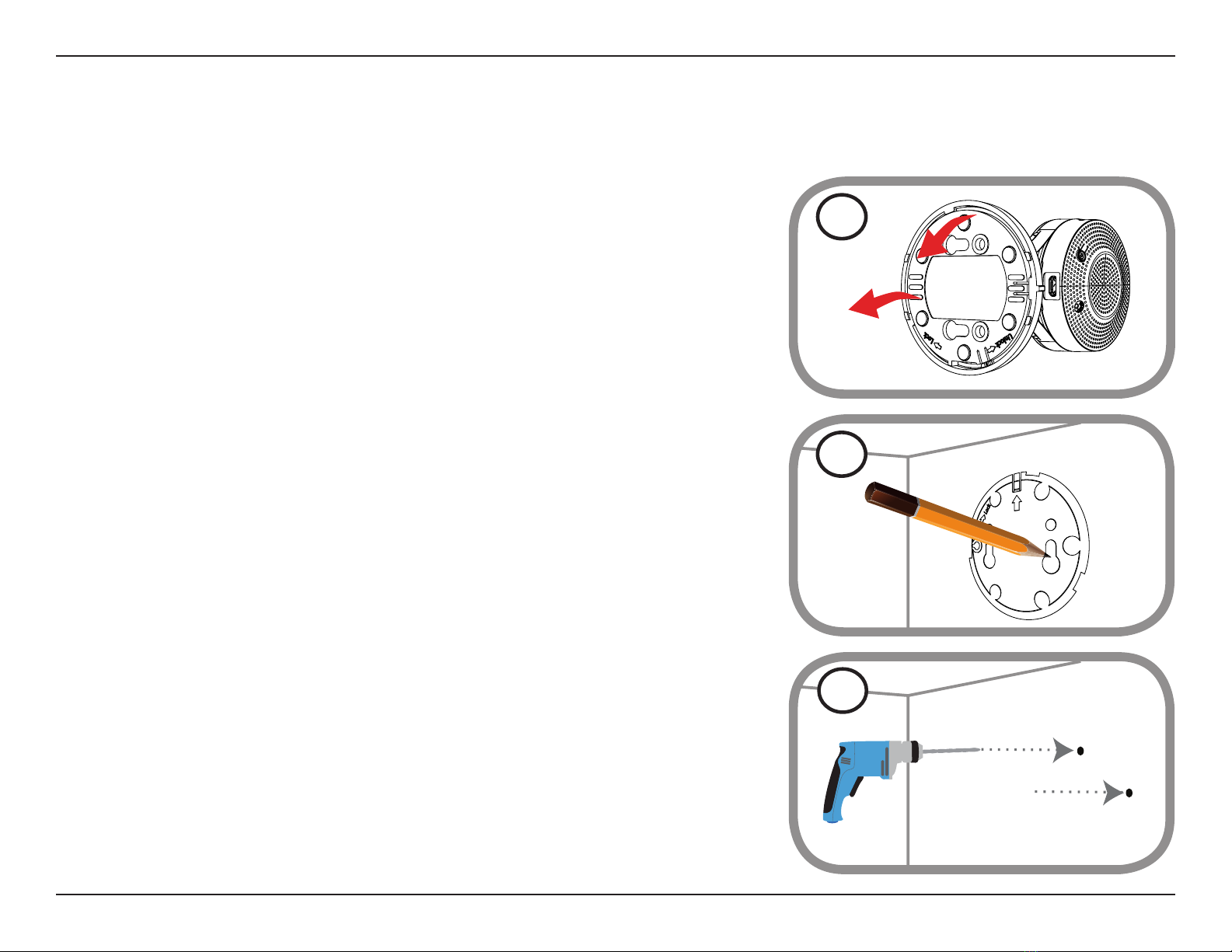

Step 1

Rotate the baseplate counter-clockwise and remove it. 1

Step 2

Place the baseplate where you want to position the camera and use a pencil to mark the holes.

You can use the lower holes for a removable installation, or the top holes for a xed one. Make

sure that the arrow on the baseplate is pointing up.

Step 3

Depending on the material of the wall or ceiling, use proper tools to drill holes 25 mm deep

with a 6 mm drill bit where you marked. If the wall is made out of concrete, drill the holes rst,

then insert the plastic anchors to support the screws.

10D-Link DCS-8300LH User Manual

Section 2: Installation

Step 4

Place the baseplate over the holes that are in the wall. Make sure to align the baseplate holes

with the holes in the wall. Use the supplied screws to attach the baseplate to the surface of

the wall.

Step 6

Adjust the angle and rotation of the camera as desired. You can also rotate the camera on the

baseplate about 45° to the right or left. 6

Step 5

Place the camera over the baseplate with the alignment nub pointing left, then attach the

camera by rotating it until the alignment nub points up. 5
