D-Link DCS 6210 Manual de usuario

This document will guide you through the basic

installation process for your new D-Link Network

Camera.

DCS-6210

Quick Install Guide

Full HD Mini Fixed-Dome Network Camera

Quick Installation Guide

D-Link DCS-6210 Quick Install Guide

DCS-6210 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-6210 Full HD Mini

Fixed-Dome Network Camera on your network. For additional information about how to

use the camera, please see the User’s Manual, which is available on the CD included in this

package or on the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview.

3. SD Card Installation.

4. Hardware Installation.

5. Conguration with Wizard.

6. Adjusting the 3-axis gimbal.

1. Package Contents

Full HD Mini Fixed-Dome Network Camera

Power Adaptor

CAT5 Ethernet Cable

Quick Install Guide

Installation CD with D-ViewCam™

Mounting Kit with Security Wrench

If any of the above items are missing, please contact your reseller.

Safety Notice: Installation and servicing should be done by certied technicians so as to conform

to all local codes and prevent voiding your warranty.

D-Link DCS-6210 Quick Install Guide 3

2. Hardware Overview

SD/SDHC Card Slot

SD/SDHC card for storing

recorded images and video

Power Connector

Connects to 12V DC power

Ethernet Jack

RJ-45 connector for Ethernet

which can also be used to

power the camera using

Power over Ethernet (PoE)

Install the SD Card

Push the SD card into the camera with the

gold contacts oriented towards the base of

the camera. To eject the SD card, push the

SD card into the slot.

3. SD Card Installation

Disassemble the Camera

Open the camera enclosure by loosening

the 3 screws. Lift the dome o the base of

the camera.

LED

Power and network

indicator

Reset

Press and hold this

button for 10 seconds

to reset the camera

D-Link DCS-6210 Quick Install Guide

4. Hardware Installation

Mounting Installation

Please see the User Manual for detailed instructions regarding installation and mounting of

the camera.

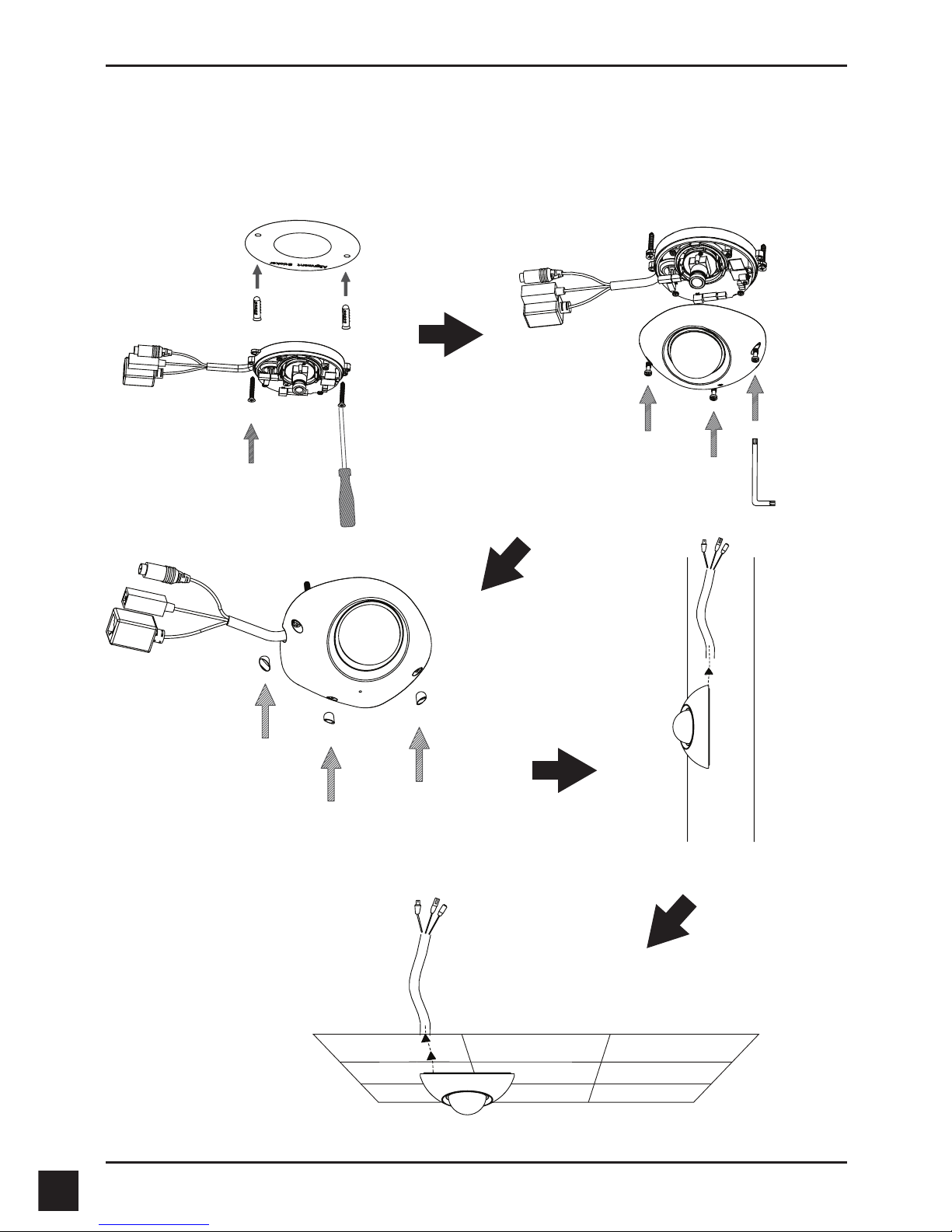

Figure 4.1 Figure 4.2

Figure 4.3 Figure 4.4

Figure 4.5

D-Link DCS-6210 Quick Install Guide 5

Connection with a PoE Switch

If you are using a PoE switch, connect the camera to the switch via an Ethernet cable, which

will provide transmission of both power and data over a single cable.

General Connection Using 12V DC Power Adapter

1. Connect the network camera to a switch via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6210 Quick Install Guide

5. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-6210 CD into your computer's CD-ROM drive to begin the installation. If the Autorun

function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click

Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to nish.

D-Link DCS-6210 Quick Install Guide 7

Click on the D-Link Setup Wizard SE icon that was created

in your Windows Start menu.

Start > Programs > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select Static IP if the

camera will use the same IP address each time it is started.

Click Next to proceed to the next page.

Enter the Admin ID and password. When logging in for the

rst time, the default Admin ID is admin with the password

left blank.

Click Next to proceed to the next page.

The Setup Wizard will appear and display the MAC address

and IP address of your camera(s). If you have a DHCP server

on your network, a valid IP address will be displayed. If your

network does not use a DHCP server, the network camera's

default static IP (192.168.0.20) will be displayed.

Click the Wizard button to continue.

D-Link DCS-6210 Quick Install Guide

Click on the D-Link Setup Wizard SE icon that was created

in your Windows Start menu.

Start > Programs > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You can select

your video prole and view or operate the camera. For

additional information about web conguration, please

refer to the user manual included on the CD-ROM or the

D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the Link button to access the

web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

D-Link DCS-6210 Quick Install Guide 9

Adjust the Viewing Angle of the 3-Axis Gimbal

Turn the lens module left and right until the desired

position is achieved.

Turn the lens up and down until the desired position

is achieved.

Turn the lens to adjust the camera’s image until the

desired orientation is achieved.

6. Adjusting the 3-Axis Gimbal

D-Link DCS-6210 Quick Install Guide

Notes
