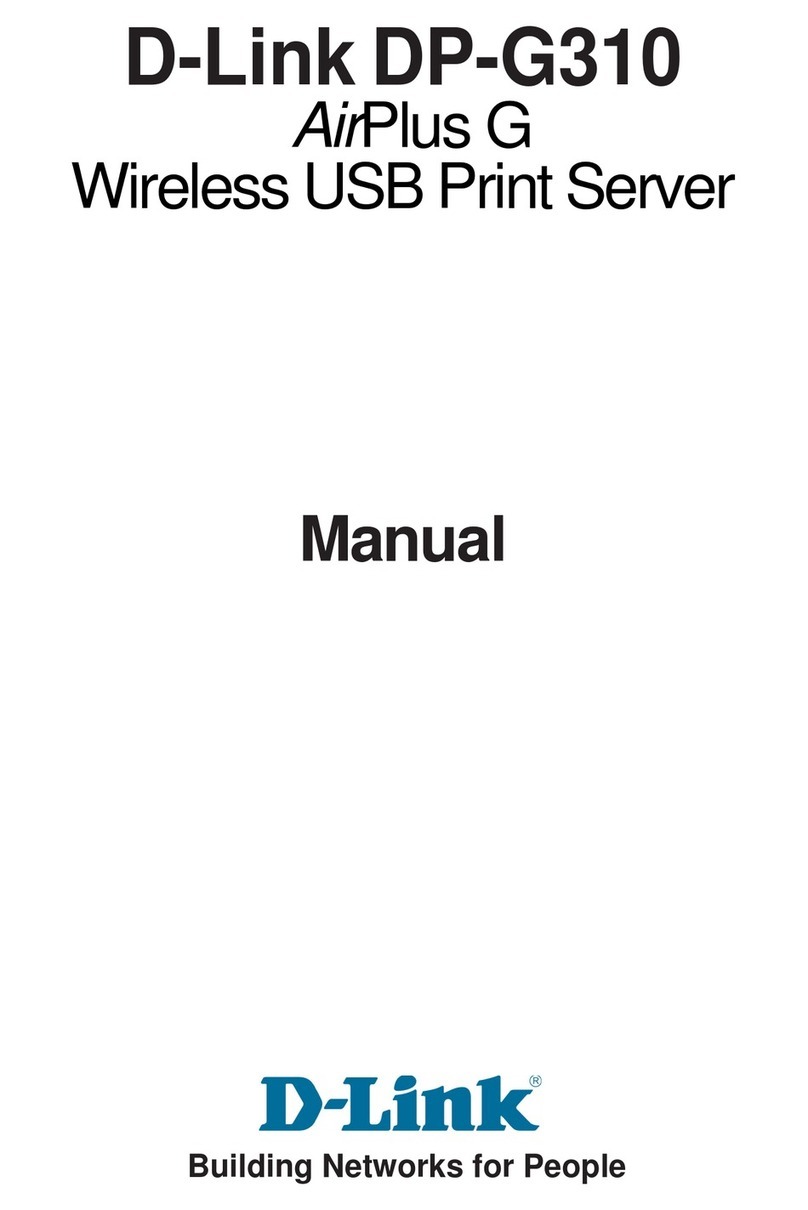

Manual

Wireless USB Print Server

D-Link DP-G310

AirPlus G

Contents

Package Contents ................................................................................ 3

Introduction ........................................................................................... 4

Wireless Basics .................................................................................... 8

Installation Considerations ................................................................... 9

Setting up the DP-G310 .................................................................... 10

Power On Self Test ..............................................................................11

Using the Web Conﬁguration .............................................................. 12

TCP/IP Printing for Windows XP ....................................................... 30

TCP/IP Printing for Windows 2000 .................................................... 39

TCP/IP Printing for Windows 98SE/Me ............................................. 49

Unix/Linux Printing (See PS Admin Manual on CD-ROM) ................ 61

Setting up AppleTalk or LPR Printing in MAC OSX ............................ 62

Setting up AppleTalk Printing in MAC OS9 ........................................ 67

Printing from Mac OS Client Workstation ........................................... 68

Networking Basics .............................................................................. 70

Technical Speciﬁcations ..................................................................... 82

Contacting Technical Support ............................................................. 83

Warranty ............................................................................................. 84

Registration ........................................................................................ 87

Appendix: DP-G310 Printer Compatibility List .................................... 88

D-Link DP-G310 Wireless USB Print Server

Manual and Warranty on CD

Printed Quick Installation Guide



Package Contents

If any of the above items are missing, please contact your reseller.

System Requirements:

A computer with an installed Ethernet adapter for initial

conﬁ guration purposes only



Windows XP/2000/ME/98SE, Mac OS with AppleTalk , or

Linux



Internet Explorer 6.0, or Netscape Navigator version 6.0 or

above, with JavaScript enabled



The printer must support the required Operating System



Contents of Package:

A computer or a network of computers with wireless

capability



The D-Link DP-G310 Print Server is an 802.11g wireless USB 2.0 high-speed

Print Server that can also connect to your Ethernet/Fast Ethernet network. Now

you can locate USB printer services virtually anywhere in your home or ofﬁce.

The DP-G310 manages the ﬂow of print ﬁles from workstations or ﬁle servers to

connected printers, delivering print jobs to printers much faster than a ﬁle server

on a PC. With one USB 2.0 port, the DP-G310 can connect to almost any printer

with a USB port.

The DP-G310 includes easy-to-use software to install on most Windows-based

networks. Protocol support for TCP/IP, NetBEUI, and AppleTalk are provided to

ensure seamless connection to major networking operating systems.

The DP-G310 has a built in Web-based management feature that allows users

to easily conﬁgure and manage print queues through TCP/IP. The DP-G310 also

supports Telnet as an alternative method to conﬁgure the unit.

The DP-G310 improves network printing services in the following ways:

The DP-G310 delegates print jobs to the connected USB printer. This

provides workload relief to your ﬁle servers and allows the ﬁle servers’ full

capacity to be used for ﬁle access or other direct services to network users.

On peer-to-peer networks, workstations can print directly to the Print Server

without increasing the load of another workstation or server.

Because the DP-G310 is very portable and inexpensive compared to a

PC-based print server, and the Print Server connects to your ﬁle servers

through the network, printers can be deployed to locations of maximum

convenience to users.

Introduction



* Maximum wireless signal rate based on IEEE Standard 802.11g speciﬁcations. Actual data throughput will

vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials

and construction, and network overhead lower actual data throughput rate.

External Features

Port Connectors

The DP-G310’s USB port is located on its rear panel. The USB can be conﬁgured

using the PS Admin program or the print server’s Telnet interface. (See the

PS Admin User’s Guide, available on the CD that came with the DP-G310, for

information about conﬁguring the print server’s ports.) The Print Server also

supports web conﬁguration permitting users to conﬁgure settings through the web

browser. The default IP Address is as follows:

 Default IP Address – 192.168.0.10

 Subnet Mask – 255.255.255.0

The DP-G310 offers extraordinary ﬂexibility, operating with all major network

operating systems and protocols:

TCP/IP

UNIX lpr/lpd

Windows NT/2000, Windows 95/98SE/ME, Windows XP

NetWare 5.x NDPS LPR Remote Printing

NetBEUI

Windows 2000/XP, Windows 95/98SE/ME, Microsoft LAN

Manager, IBM LAN Server

AppleTalk

MacOS EtherTalk

Windows-based setup and administration software, PS Admin, is supplied with

the Print Server, making conﬁguration and management quick and easy. The

Print Server also supports conﬁguration and management via the Telnet protocol

for networks without Windows-compatible systems.

Note:

The PC’s IP Address must be in the same subnet as the Print Server’s IP Address for

the two devices to communicate. (For example, if your Print Server’s IP Address is

192.168.0.10, with a subnet mask of 255.255.255.0, then your computer’s IP Address

should be 192.168.0.x, where x is a value between 1-254, excluding 10.)



USB

Ethernet

WLAN

Power

Front Panel LED Indicators

There are two front panel indicators, each holding two separate LEDs (aligned in a

vertical position). As shown below, the ﬁ rst indicator holds the Power and the USB

LED. The second indicator holds the Ethernet and WLAN LED. Upon boot-up, the

Power light stays on continuously and all other LEDs light up momentarily one-by-one,

then turn off.

Power

A steadily lit LED indicates proper operation of the Print

Server.

USB

A steadily lit LED indicates your USB printer is printing;

otherwise, this LED is off.

Ethernet

A steadily lit LED indicates proper network connection; no lit

LED indicates an unsuccessful network connection. A blinking

LED indicates activity (conﬁ guration or printing).

WLAN

A steadily lit LED indicates a proper wireless network

connection; no lit LED indicates an unsuccessful wireless

network connection. A blinking LED indicates activity

(conﬁ guration or printing).

Network Cable Connector

The Print Server’s rear panel has a LAN port for CAT5 Ethernet

cabling. The port supports the NWay protocol, allowing the Print

Server to automatically detect or negotiate the transmission speed

of the network.

DC Power Connector

The DC power input connector is located on the Print Server’s

rear panel and is labeled DC 5V.

Rear Panel Connectors

USB

LAN

Power

Reset

Antenna

D-Link wireless products are based on industry standards to provide easy-to-use

and compatible high-speed wireless connectivity within your home, business or

public access wireless networks. D-Link wireless products will allow you access

to the data you want, when and where you want it. You will be able to enjoy the

freedom that wireless networking brings.

A wireless LAN (WLAN) is a cellular computer network that transmits and receives

data with radio signals instead of wires. WLANs are used increasingly in both

home and ofﬁce environments, and public areas such as airports, coffee shops and

universities. Innovative ways to utilize WLAN technology are helping people to work

and communicate more efﬁciently. Increased mobility and the absence of cabling

and other ﬁxed infrastructure have proven to be beneﬁcial for many users.

Wireless users can use the same applications they use on a wired network.

Wireless adapter cards used on laptop and desktop systems support the same

protocols as Ethernet adapter cards.

Wireless Basics

People use wireless LAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any location

within the operating range of the WLAN. Management decisions based on real-

time information can signiﬁcantly improve worker efﬁciency.

Low Implementation Costs – WLANs are easy to set up, manage, change

and relocate. Networks that frequently change can beneﬁt from WLANs ease of

implementation. WLANs can operate in locations where installation of wiring may

be impractical.

Installation and Network Expansion - Installing a WLAN system can be fast and

easy and can eliminate the need to pull cable through walls and ceilings. Wireless

technology allows the network to go where wires cannot go - even outside the

home or ofﬁce.

Scalability – WLANs can be conﬁgured in a variety of topologies to meet the

needs of speciﬁc applications and installations. Conﬁgurations are easily changed

and range from peer-to-peer networks suitable for a small number of users to

larger infrastructure networks to accommodate hundreds or thousands of users,

depending on the number of wireless devices deployed.

Inexpensive Solution - Wireless network devices are as competitively priced as

conventional Ethernet network devices.

Standards-Based Technology

Based on the IEEE 802.11g standard, the DP-G310 is interoperable with existing

compatible 2.4GHz wireless technology with data transfer speeds of up to 54Mbps*

when used with other D-Link AirPlus G devices.

Wireless Basics (cont.)

Installation Considerations

The D-Link AirPlus G DP-G310 lets you print through your network, using a wireless

connection, from virtually anywhere within its operating range. Keep in mind,

however, that the number, thickness and location of walls, ceilings, or other objects

that the wireless signals must pass through, may limit the range. Typical ranges

vary depending on the types of materials and background RF (radio frequency)

noise in your home or business. The key to maximizing wireless range is to follow

these basic guidelines:

Keep the number of walls and ceilings between the DP-G310 and other

network devices to a minimum - each wall or ceiling can reduce your D-Link

wireless product’s range from 3-90 feet (1-30 meters.) Position your devices

so that the number of walls or ceilings is minimized.

Be aware of the direct line between network devices. A wall that is 1.5 feet thick

(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.

At a 2-degree angle it looks over 42 feet (14 meters). Position devices so that

the signal will travel straight through a wall or ceiling (instead of at an angle)

for better reception.

Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that generate extreme RF noise.

Building materials can impede the wireless signal - a solid metal door or

aluminum studs may have a negative effect on range. Try to position wireless

devices and computers with wireless adapters so that the signal passes

through drywall or open doorways and not other materials.

Keep the antenna of the DP-G310 in an upright position.

* Maximum wireless signal rate based on IEEE Standard 802.11g speciﬁcations. Actual data throughput will

vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials

and construction, and network overhead lower actual data throughput rate.

Setting up the DP-G310

Installing the Print Server

WARNING: Conﬁguration problems may result if the Print Server is powered up without

ﬁrst establishing its network connection. Follow this procedure to avoid complications at

the conﬁguration stage.

Conﬁrm proper operation of your printer before connecting the DP-G310.

When you have conﬁrmed proper operation of your USB printer, turn your

printer power OFF.

Conﬁrm that your network is operating normally.

Connect the DP-G310 to your network, using a straight-through CAT5 cable.

While the printer is powered OFF, use the USB printer cable to connect the

DP-G310 to your USB printer.

Switch ON your USB printer.

Plug the DC power adapter into the DC 5V power socket on the rear panel of

the Print Server.

Plug the power adapter into a power outlet. This will supply power to the DP-

G310, as it has no external power switch. The green Power LED on the Print

Server’s front panel should illuminate steadily, and the Print Server’s Self-

Test will proceed.

Otros manuales para AirPlus G DP-G310

Tabla de contenidos

Otros manuales de Servidor de impresión de D-Link

D-Link

D-Link AirPlus DP-G310 Manual de usuario

D-Link

D-Link DPR-1260 - RangeBooster G Multifunction Print... Manual de usuario

D-Link

D-Link DP-300 Manual de instalación

D-Link

D-Link DPR-1020 Manual de usuario

D-Link

D-Link DP-300+ Manual de usuario

D-Link

D-Link DP-300+ Manual de usuario

D-Link

D-Link AirPlus DP-G310 Manual de usuario

D-Link

D-Link DP-101P - Pocket Ethernet Print Server Manual de usuario

D-Link

D-Link DP 301U Manual de usuario

D-Link

D-Link DP-802 Manual de usuario

D-Link

D-Link DP-300U Manual de usuario

D-Link

D-Link DP-300 Manual de instrucciones

D-Link

D-Link DP-313 - Air 802.11b Wireless Print Server Manual de usuario

D-Link

D-Link DP-301P Instrucciones de instalación

D-Link

D-Link AirPlus DP-G310 Manual de usuario

D-Link

D-Link Epress EtherNetwork DP-301P+ Manual de usuario

D-Link

D-Link DP-301 Instrucciones de instalación

D-Link

D-Link Epress EtherNetwork DP-301P+ Manual de usuario

D-Link

D-Link DPR-1260 - RangeBooster G Multifunction Print... Manual de usuario

D-Link

D-Link DPR-160 Manual de usuario

D-Link

D-Link AirPlus DP-G321 Manual de usuario

D-Link

D-Link DPR-2000 Manual de usuario

D-Link

D-Link AirPlus G DP-G321 Manual de usuario

D-Link

D-Link DPR-1020 Manual de usuario

Manuales populares de Servidor de impresión de otras marcas

Digitus

Digitus DN-13003-1 Manual de usuario

Edimax

Edimax PS-1206PWg Manual de usuario

Intellinet

Intellinet 509077 Manual de usuario

Atlantis Land

Atlantis Land NETSERVER A02-PSU_GX02 Manual de usuario

Buffalo

Buffalo LPV4-U2-300S Manual de usuario

Zonet

Zonet ZPS1000 Manual de usuario

TRENDnet

TRENDnet TEW-P11G Manual de usuario

Axis

Axis 140 BJC Manual de usuario

HP Jetdirect 280m - 802.11b Wireless Print... Manual de usuario

MicroNet

MicroNet SP766W Manual de usuario

NETGEAR

NETGEAR PS104 - Hub - EN Manual de usuario

Axis

Axis AXIS 1610 Manual de usuario

Buffalo

Buffalo LPV4-U2-300S Manual de usuario

Axis

Axis 5600+ Manual de usuario

LevelOne

LevelOne WPS-9123 Manual de usuario

NETGEAR

NETGEAR PS105 Manual de usuario

Xerox

Xerox FreeFlow Print Server V9 SP3 Manual de usuario

SEH

SEH primos Manual de usuario
