D-Link MyPocket DIR-457 Manual de usuario

myPocket HSDPA Router

DIR-457

User Manual

iD-Link DIR-457 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to

notify any person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the

United States or other countries. All other company or product names mentioned herein are trademarks or registered

trademarks of their respective companies.

from D-Link Systems, Inc.

Revision Date Description

1.0 October 27, 2009 • First Draft.

Preface

iiD-Link DIR-457 User Manual

Table of Contents

Preface...........................................................................i

Manual Revisions ..................................................... i

Trademarks ............................................................... i

Package Contents....................................................1

Product Setup.......................................................... 2

Hardware Setup................................................. 2

Power Management...........................................3

Connection Setup ..............................................4

Hardware Overview .................................................5

Connections....................................................... 5

Top View.............................................................6

Technical Speciﬁcations.............................................7

Table of Contents

iiiD-Link DIR-457 User Manual

Table of Contents

1D-Link DIR-457 User Manual

Section 1 - Product Overview

Package Contents

myPocket 3.5G HSPDA Router

DIR-457

battery

USB power cable

If any of these items are missing from your packaging, contact

your reseller.

USB power adapter

5V 1A

travel case

2D-Link DIR-457 User Manual

Section 1 - Product Overview

INSTALL THE BATTERY

Insert the battery by lining up the contact points on the battery with the contact points in

the battery compartment. The included battery lasts up to four hours.

Note: The battery is required to power the DIR-457 myPocket Router in either WiFi router

or USB modem mode.

INSTALL THE SIM CARD

Open the SIM card and battery compartment, located on the bottom of the device. Insert

the SIM card by lining up the contact points on the SIM card with the contact points in the

Product Setup

Hardware Setup

3D-Link DIR-457 User Manual

Section 1 - Product Overview

CHARGING WITH THE POWER ADAPTER

To charge the battery insert the end of the power adapter cable into the Micro-USB port of

the DIR-457 myPocket Router and the power adapter into a wall socket. While charging,

the Power/3G network LED will ﬂash. When battery power is low, the LED will ﬂash red.

CHARGING WITH THE USB CABLE

To charge the battery insert the USB cable into the Micro-USB port of the DIR-457 myPocket

Router and the other end into a free USB port of your computer.While charging, the Power/3G

network LED will ﬂash. When battery power is low, the LED will ﬂash red.

Note: Charging the battery via a USB port is slower than charging it using the power adapter.

Power Management

4D-Link DIR-457 User Manual

Section 1 - Product Overview

USB MODEM MODE/CONNECTION MANAGER MODE

1. Move the router/modem selection switch to USB modem

mode.

2. Connect the DIR-457 myPocket Router to your computer with

the included USB cable. To do this, insert the USB cable into

the Micro-USB port of the DIR-457 myPocket Router and the

other end into a free USB port of your computer.

3. Press the power button on the DIR-457.

4. The Connection Manager software will automatically start up.

5. Congure your router/modem settings using the Connection

Manager.

6. You can now use the DIR-457 myPocket Router as a USB

modem.

Note: You have to install the Connection Manager software

when using the DIR-457 for the rst time. After successful

installation, you can congure USB modem and WiFi router

basic settings. Only USB modem mode serves as Connection

Manager mode.

WIFI ROUTER MODE

1. Move the router/modem selection switch to WiFi router mode.

2. Press the power button on the DIR-457.

3. You can now use the DIR-457 myPocket Router as a wireless

access point and connect to the router with any WiFi capable

devices.

Connection Setup

5D-Link DIR-457 User Manual

Section 1 - Product Overview

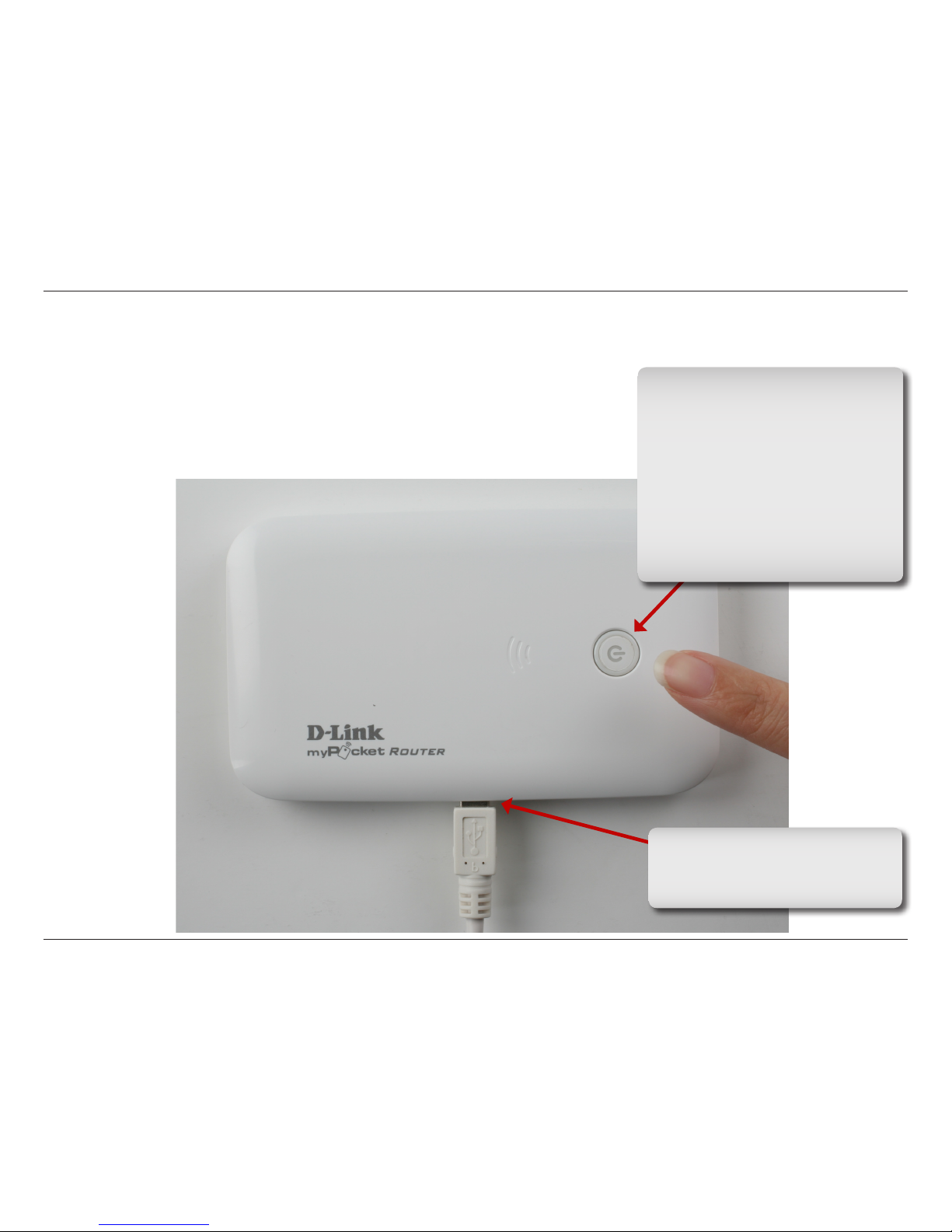

Power Receptor

USB receptor for the supplied

power adapter and power cable.

Hardware Overview

Connections

6D-Link DIR-457 User Manual

Section 1 - Product Overview

Hardware Overview

Top View

3G USB Connection

Connect your 3G USB dongle to this

port if you want to use a 3G Internet

connection.

Power button / LED

RED steady light - Low battery

blinking - SIM card error / no network

service

GREEN steady light - 2G network

blinking - battery charged

BLUE steady light - 3G network

blinking - battery charged
