D-Link Express Ethernetwork DI-707P Manual de usuario

This product can be set up using

any current web browser, i.e.,

Internet Explorer or Netscape

Navigator.

DI-707P

Ethernet Broadband

Router and Print Server

5V DC Power Adapter

specifications subject to change without notice. DI-707P.11262002

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-707P Broadband Router. The DI-707P acts as a DHCP server and will assign

all the necessary IP address information on your network. See Appendix at the

end of this Quick Installation Guide or the Manual on the CD-ROM for setting

each network adapter to automatically obtain an IP address.

Check Your Package Contents

DI-707P Ethernet Broadband Router

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

Connecting The DI-707P Broadband

Router To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DI-707P and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of an Ethernet cable to the WAN port on the back panel

of the DI-707P and the other end to the Ethernet port located on your

Cable or DSL modem. The WAN LED light will illuminate to indicate

proper connection.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-

707P and an available Ethernet port on the network adapter in the

computer you will use to configure the DI-707P. The LED light for LAN

Port 1 will illuminate to indicate proper connection. (Note: The LAN

Ports on the DI-707P are Auto-MDI/MDIX. Meaning you can use a

straight-through or crossover-cable to the LAN Ports.

D. The parallel port on the DI-707P is used to connect printers only.

Connect one end of the printer cable to your printer and the other end

to the DI-707P.

A. Receptor for

Power Adapter.

B. WAN Port

This is for the connection

of an Ethernet cable to

the Cable or DSL modem

C. LAN Ports These

are the connections

for Ethernet cables

to Ethernet enabled

computers.

D. Printer Port

You can connect a

Printer to the

Parallel Port here.

Reset Button

Pressing this button restores

the Router to its original factory

default settings.

Restart Your Computer

Connecting Additional Computers To

The DI-707P

Using additional Ethernet (CAT5 UTP) cables, connect your

Ethernet-equipped computers to the remaining Ethernet LAN ports

on the back panel of the DI-707P

WAN LED – a

solid light indicates

connection on the

WAN port. This

LED blinks during

data transmission.

LOCAL NETWORK

LEDs – a solid light

on the port indicates a

connection to an

Ethernet enabled

computer on ports 1-7.

This LED blinks during

data transmission.

POWER LED – a solid

light indicates a proper

connection to the

power supply.

M2 LED – a solid light indicates

that Internet connection has

been established.

M1 LED – will flash

consistently to indicate

that the DI-707P is

working properly.

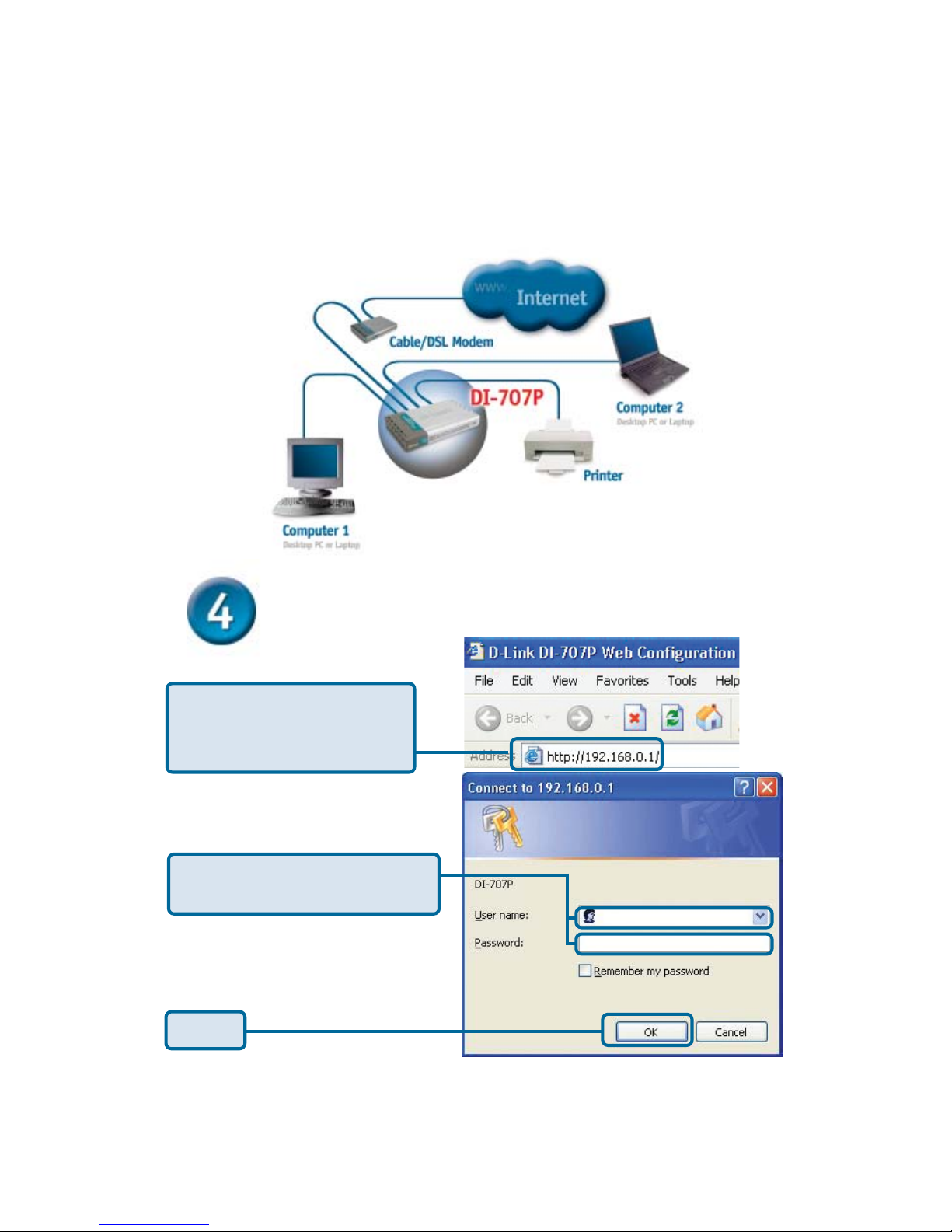

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

The logon pop-up screen will appear.

Open your Web browser and

type “http://192.168.0.1” into the

URL address box. Then press the

Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

The Setup Wizard (continued)

Once you have logged in, the Home

screen will appear.

You will see the following screens

Set up your new password.

You have the option to

establish a password.

Click Run Wizard

Click Next

The Setup Wizard (continued)

Select your Internet

Connection. You will be

prompted to select the

type of Internet connection

for your router.

If you are unsure of which setting to select,

please contact your Internet Service Provider.

Select Others only if you use PPTP in

Europe or Big Pond Cable in Australia.

If you selected Dynamic IP

Address, this screen will

appear: (Used mainly for

Cable Internet service.)

What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already

include built-in network adapters.

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

The Setup Wizard (continued)

If your ISP requires a Static

IP Address, and this option

is selected, then this

screen will appear:

If your ISP uses PPPoE

(Point-to-Point Protocol over

Ethernet), and this option is

selected, then this screen will

appear: (Used mainly for DSL

Internet service.)

Enter the IP address informa-

tion originally provided to you

by your ISP. You will need to

complete all the required

fields.

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and

password provided to you by

your ISP.

Click Next

Your Setup is Complete!

Click Restart

Test Internet Connection.

You will be returned to the Home tab.

For additional settings

or information, refer to

the Advanced, Tools,

or Status tabs on the

web-management

interface; or to the

Manual located on the

CD.

Then relaunch your

Web browser (i.e.,

Internet Explorer or

Netscape Navigator),

to link to your favorite

Web site to test your

Internet connection.

Click to Exit

APPENDIX

Insert the installation CD-ROM into the CD-

ROM drive. The following window will be

shown automatically. If it is not, please run

“autorun.exe” on the CD-ROM.

Installing the Print Server Software

Wait until the following Welcome

dialog appears.

Select the destination folder.

Click Next

Click Install Windows

Printer Software

Click Next

Select your Windows

operating system

After rebooting your computer, the software installation procedure is finished.

Installing the Print Server Software (continued)

Configuring on Windows 98se/Me Platforms

After you finish the software installation

procedure, your computer will be capable of

network printing provided by the DI-707P. For

convenience, we call the printer connected to

the printer port of the DI-707P a printer server.

On a Windows 95/98 platform, open the

Printers window in the My Computer menu.

Click OK

Now, you can configure the print server of the

DI-707P:

Find out the corresponding icon of your printer

server, for example, the HP LaserJet 6L.

Right click on that icon, and then select

Properties.

The following screen appears:

Then, the setup program will begin

to install the programs into the

destination folder.

When the following window is

displayed.

Click Finish
