D-Link Express EtherNetwork DI-604 Manual de usuario

Before Your Begin

1. If you purchased this router to share your high-speed Internet connection with

other computers, you must have either an Ethernet-based Cable or a DSL modem

with an established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for

configuring the DI-604 router. The DI-604 Router acts as a DHCP server and will

assign all the necessary IP address information on your network. See Appendix

at the end of this Quick Installation Guide or the Manual on the CD-ROM for

setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

These are the items included with your DI-604 purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice. DI-604.05082002

This product can be set up using any current

web browser, i.e., Internet Explorer 5x,

Netscape Navigator 4x.`

DI-604

Express EtherNetwork™

Broadband Router

• DI-604 Ethernet Broadband Router

• CD-ROM (containing Manual and Warranty)

• Ethernet (CAT5 UTP/Straight-Through) Cable

• 5V DC, 2A Power Adapter

Using a powe

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Connecting The DI-604 Broadband Router

To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DI-604 and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of an Ethernet cable to the WAN port on the back

panel of the DI-604 and the other end to the Ethernet port located on

your Cable or DSL modem. The WAN LED light will illuminate to

indicate proper connection.

C. Insert one end of an Ethernet cable to LAN port 1 on the back panel

of the DI-604 and the other end to an available Ethernet port on the

network adapter in the computer you will use to configure the DI-604.

The LED light for LAN Port 1 will illuminate to indicate proper

connection. (Note: Some computers already have network adapters

pre-installed.)

Restart Your Computer

.Receptor for

Power Ada

B.WAN Port

This is the

connection for the

Ethernet Cable to

Ethernet Port on the

Cable or DSL

Modem.

C.LAN Ports

These are the

connections for

Ethernet cables to

your Ethernet-

enabled com

uters

Reset Button

Pressing this button

restores the router

to its original factory

default settings.

Connecting Additional Computers To The

DI-604 Broadband Router

Using additional Ethernet (CAT5 UTP/Straight-Through) cables, connect

your Ethernet-equipped computer(s)to one of the 3remaining Ethernet

LAN ports on the back panel of the DI-604.

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

LAN Port LEDs. Each of the

LAN ports on the back of the

DI-604 have a corresponding

LED light on the front panel

of the unit. When a proper

connection has been made

to a computer that is ON, the

LED on the front panel

should illuminate.

Cable or DSL

Modem

DI-604 Ethernet

Broadband Router

Computers connected

to the LAN Ports

Using The Setup Wizard

The logon pop-up

screen will appear.

Once you have

logged in, the

Home screen

will appear.

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

Type “admin” for the

username and leave the

password field blank.

Click OK

Click Run Wizard

You will see the following screens.

Step 1 - Set up your new password.You have the option to establish a password.

Click Next

The Setup Wizard (continued)

Select the type of Internet connection for your router.

If you selected Dynamic

IP Address, this screen

will appear:

Select one

of these

settings

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

Click

Click the “Clone MAC

Address” button to

automatically copy the

MAC address of the

network adapter in your

computer. You can also

manually type in the

MAC address. What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

If your ISP requires a Static IP

Address, and this option is

selected, then this screen will

appear:

If your ISP uses PPPoE (Point-to-

Point Protocol over Ethernet) and

this option is selected, then this

screen will appear:

Do not use

the numbers

displayed in these

fields. They are only

shown as an example.

Do not use

the numbers

displayed in these

fields. They are only

shown as an example.

Enter the IP address

information originally

provided to you by your

ISP. You will need to

complete all the required

fields.

Click Next

Enter in the username

and password provided

to you by your ISP.

Click Next

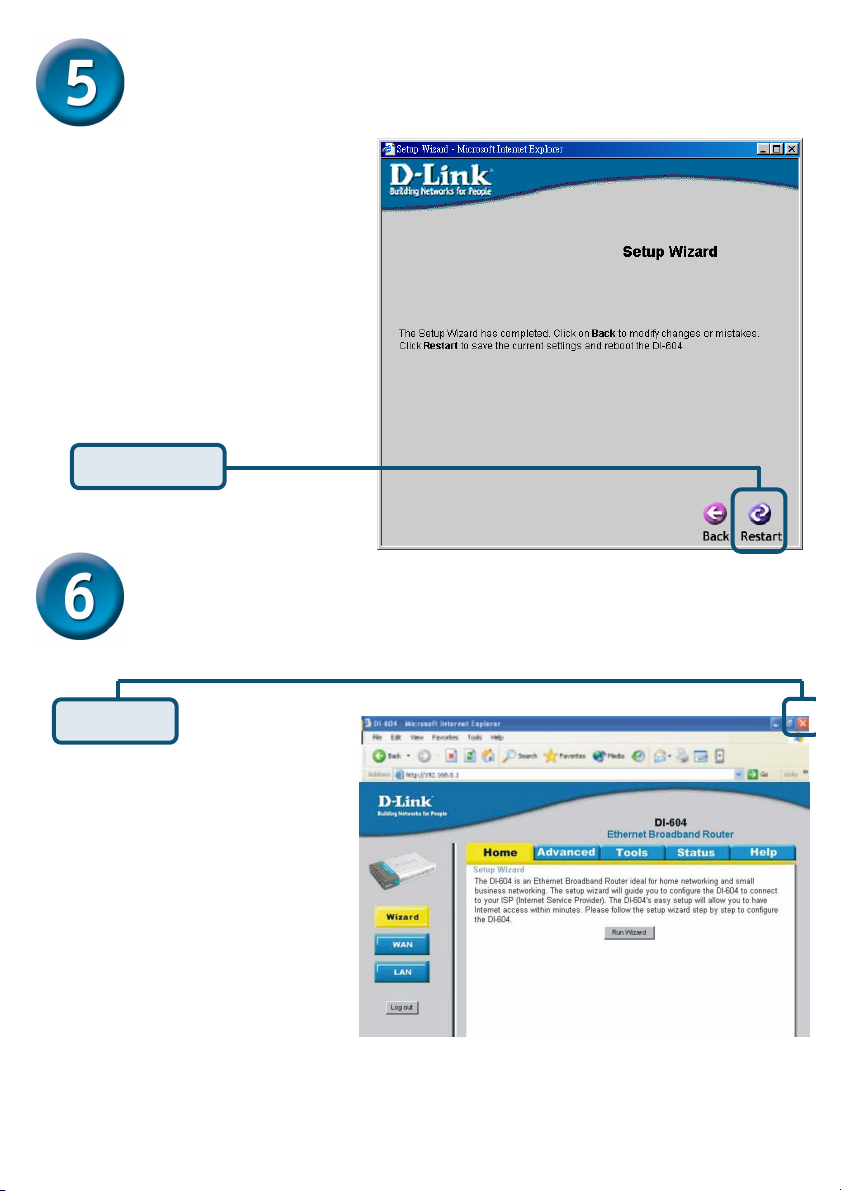

Your Setup is Complete!

Test Your Internet Connection

Relaunch your Web browser (i.e.,

Internet Explorer or Netscape

Navigator), to link to your favorite

Web site to test your Internet

connection.

For additional settings or

information, refer to the

Advanced, Tools, or Status tabs

on the web-management interface;

or to the manual located on the

CD-ROM.

Click Restart

Click Exit

APPENDIX

To connect to the network, make sure

the network adapter in your computer

is configured properly. Here’s how to

configure the network adapter to obtain

an IP address automatically for the

DI-604 Broadband Router.

For Microsoft Windows XP:

Go to Start > right click on

My Network Places >

select Properties > Double-click on

the Network Connection associated

with the Ethernet adapter (i.e.,

D-Link DFE-530TX+).

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

Click OK

Restart your

computer

For Apple Macintosh OS X:

Go to the Apple Menu

and Select System

Preferences.

The IP address information,

the Subnet Mask, the Router’s

IP address and the Ethernet

adapter address will appear.

Click on

Network

Select Built-in

Ethernet in the Show

pull-down menu

Select Using DHCP

in the Configure pull-

down menu

Click on

Apply Now
