D-Link DSL-2750E Manual de usuario

USER MANUAL

Router: D-Link DSL-2750E

Table of Contents

Overview 3

Packing List 4

D-Link DSL-2750E Overview 4

Start with D-Link DSL-2750E 7

Connecting D-Link DSL-2750E 8

configuring Wireless Security Using WPS 16

Troubleshooting 17

Safety Concerns 26

FAQs 28

Tachnical Specification 31

Router: D-Link DSL-2750E

Quick Start

Thank you for purchasing Router: D-Link DSL-2750E

With the D-Link DSL-2750E, you can access the Internet at a high speed while

making a phone call.

If there is a need to configure the device in your application, please

ask for necessary information and guidance from your ISP

Overview

The following summarizes useful information to install D-Link DSL-2750E.

zPacking List

zD-Link DSL-2750E Overview

zPreparation

zConnecting D-Link DSL-2750E

zQuick Troubleshooting

zSafety Concerns

zFAQs (Frequently Ask Questions)

zTachnical Specifications

Packing List

Open the packet delivered to you with care. Make sure that you have the following

items.

zOne D-Link DSL-2750E

zOne Splitter

zTwo Micro Fillter

zOne Power Adapter

zTwo Telephone Cable

zOne ETHERNET Cale

zQuick Guide

D-Link DSL-2750E

D-Link DSL-2750E gives full consideration to the household arrangements,

enabling horizontal or hanging on the wall. Picture below shows how it stands on

your table.

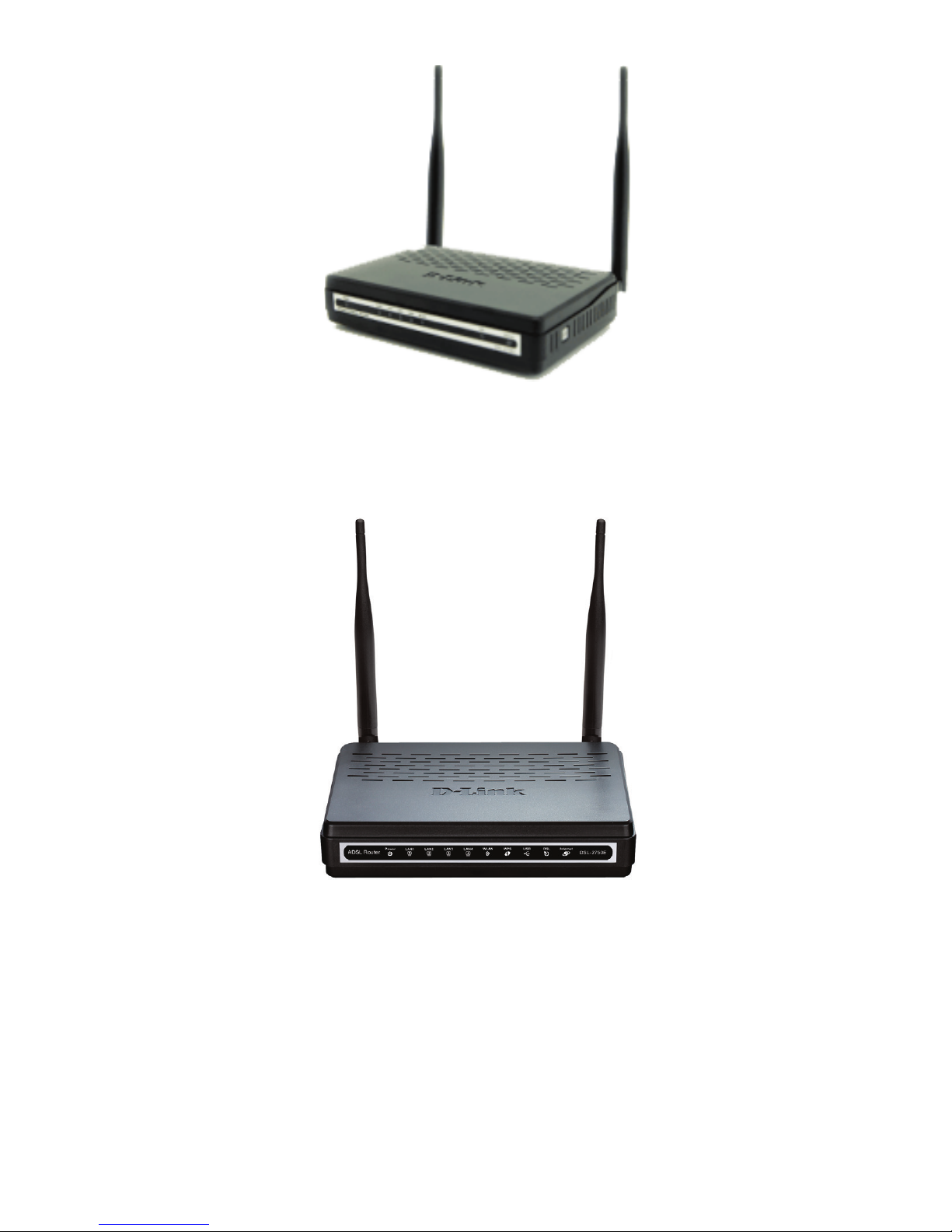

Figure 1-1 D-Link DSL-2750E Router Profile

Figure 1-2 D-Link DSL-2750E Router Front panel

Figure 1-3 D-Link DSL-2750E Router Real panel

The LED Indicators as below;

Table 1-1 LED Indicators

Indicator Color Status Description

POWER

Green Off The power is off.

On The power is on and the initialization is normal.

Red On The device is initialing.

Blinks The firmware is upgrading.

ETHERNET

1-4

Green

Off No LAN link.

Blinks Data is being transmitted through the LAN interface

On The connection of LAN interface is normal.

WLAN

Green

On The Connection of WLAN interface is normal.

Blinks Data is transmitted through the WLAN interface.

Off The WLAN connection is not established.

WPS

Blue Blinks WPS negotiation and enabled on the device.

Off WPS negotiation is not enabled on the device.

Indicator Color Status Description

USB

Green

On The connection of USB flash disk has been

established.

Blinking Data is being transmitted.

Off The connection of USB flash disk is not established.

DSL

Green On On Initial self-test of the unit has passed and is ready

Blinks The device is detecting itself.

Off Initial self-test is failed.

Internet

Green Off The device is under the Bridge mode, DSL connection

is not present.

Blinks Internet data is being transmitted in the routing mode.

On The IP is connected.

Red On The device is attempted to become IP connected, but

failed.

Start With D-LINK DSL-2750E

Splitter

Using Splitter can reduce disturbance signals in the telephone line. D-Link DSL-

2750E needs to use a separate splitter. The External has three ports.

zLINE: Connecting to the phone jack.

zPHONE: Connecting to the telephone sets.

zDSL: Connecting to the D-Link DSL-2750E.

Remark: Figure 1-4 Computer to D-Link DSL-2750E Page 9

ETHERNET Card

Computer is connected to D-Link DSL-2750E through the ETHERNET port on D-Link

DSL-2750E. Ensure your computer is configured with ETHERNET Adapter as well as

ETHERNET port. Besides, make sure you enabled the TCP/IP for your operating

system.

Connecting D-Link DSL-2750E

(1) Place D-Link DSL-2750E in a safe and accessible location Keep the device away

from heat source, power line or highly powered electronic equipment where you

can easily view the LED indicator on the front panel of the device.

If you want to connect one or more telephones, Micro Filter is

needed; It will work between telephones and the line from phone

jack. For more details about connecting multiple telephones, please

refer to the FAQs

You are now ready to connect D-Link DSL-2750E. Follow these steps;

1. Connect the ADSL Line – Plug one end of the telephone cable into the Line

port of splitter and insert the other end into the phone jack. Use another

phone cable to connect the DSL port of the splitter and the DSL port on the

rear panel of Router. Use Telephone set connect to PHONE port of the

splitter

2. Connect the power adapter – Connect the power adapter to D-Link DSL-

2750E and the mail supply. Power on the switch. The Power LED indicator

will turn on.

3. Connect D-Link DSL-2750E to your computer – Use the ETHERNET cable to

connect D-Link DSL-2750E and your computer

When the ETHERNET LED of D-Link DSL-2750E is ON, it indicates the connection

between D-Link DSL-2750E and your PC.

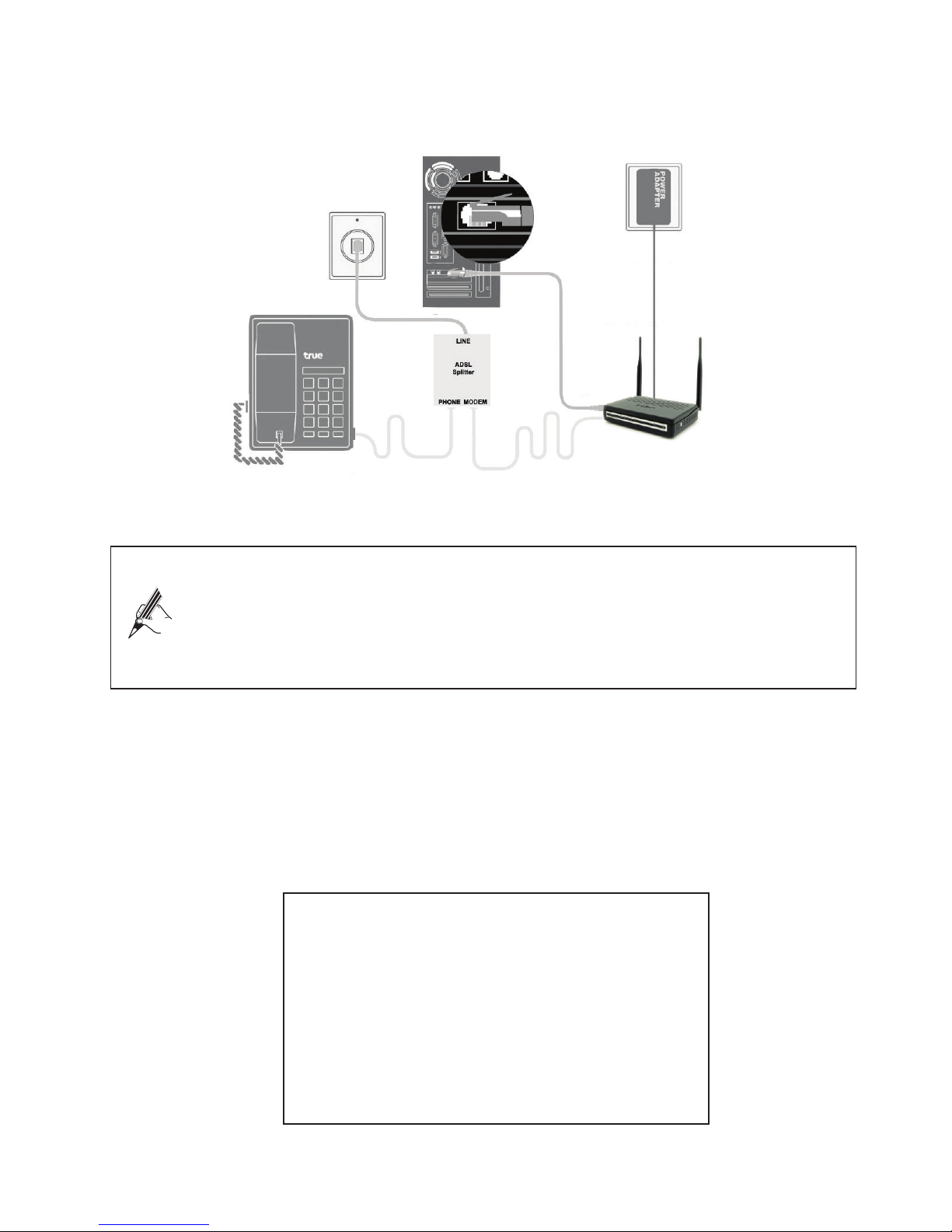

Figure 1-4 Computer to D-Link DSL-2750E

Ensure that the LAN cable connecting the LAN to D-Link DSL-2750E

must not exceed 100 meters or less

*** Depend on quality of telephone cable and noise

řşŞIf you want to connect PC via Wireless LAN. You can use default SSID

and WiFi key can get from Label Sticker on your D-Link DSL-2750E as follow. Exam:

SSID : true_homewifi_6JU and key is “0081Z225”. Both of SSID and WiFi key is a

unique value associated with D-Link DSL-2750E

SSID (Name of WiFi) : true_homewifi_6JU

Key (Password for use WiFi): 0081Z225

Router Username/Password

(User/Password for device’s login)

: admin/password

You can configure to Internet Connection by 2 ways are Web Browser and hi-

speed assistant program. Please do as follows.

Config by Web Configuration (Wizard)

1. Open your web browser or Internet Explorer. Type “řšŚřŞŠřř” click

‘Enter’. See at Figure ř-ŝ

Figure 1-5 Browser

2. Web page will pop up Password insert. See at Figure 1-6

User : “admin” Password : “password” Click “Login”

Figure 1-6 Username / Password Login
