D-Link DIR-632 Manual de usuario

Contents

1 Hardware

1.1 Pros of this hardware♦ 1.2 Cons of this hardware♦ 1.3 Specifications♦ 1.4 Main board♦

•

2 Installation Instructions

2.1 Out-of-the-box factory firmware upgrade♦ 2.2 How to upgrade with new DD-WRT

firmware

♦

2.3 How to reset the Router to initial DD-WRT

configuration

♦

2.4 How to restore to factory firmware♦

•

3 USB Storage

3.1 FTP Access♦ 3.2 File Sharing Access♦

•

4 USB Printing

4.1 Using the printer in Windows 7♦

•

5 Common Problems• 6 Suport•

Hardware

8 ETHERNET PORTS FOR UNLIMITED CONNECTIVITY TO ALL YOUR DEVICES

Delivering great wireless performance, network security and coverage, the D-Link Wireless N 8-Port Router

(DIR-632) is ideal for building a powerful network. Designed to do the heavy-lifting and get your small

business humming, 8 ports let you connect just about anything you can imagine, all at once - printers, laptops,

desktops, security cameras, servers, storage drives - you name it, the DIR 632 can handle it. It also serves as

an excellent home router, since it's ideal for providing wired Internet connectivity for video, music, photos,

and documents.

D-Link_DIR-632

Hardware 1

Pros of this hardware

Runs standard version of DD-WRT• Eight (8) wired ports, at 10/100 speed.• New Harware. 802.11n WiFi• Easy to install DD-WRT• One USB Port• Great range, signal strength and stability•

Cons of this hardware

The biggest knock about this router is it's frequent WIFI drops and lockups when using the stock

firmware. Installing DD-WRT corrects this isssue.

•

No gigabit / 1000 speed LAN support.• No Wireless AC / IEEE 802.11ac.•

Specifications

Power in 100~240V 0.4A, Power Out 5V 2.5A

PCB ver. A1

D-Link Firmware 1.0.2 dated 2010/11/26

CPU AR7241 or AR7242 @ 400Mhz(MIPS32 24Kc).

Wireless NIC AR9287

Ethernet Ports 1x WAN RJ-45 10/100 Base T, 8x LAN RJ-45 10/100 Base T

Switch chip RTL8309G

ROM size 8mb <= The D-Link official rom is 7.6mb

RAM 32MB

USB ports 1x USB2.0, can connect to a USB hub, for more usb devices sharing.

USB 3G It support D-Link its own DWM-156 3G nic.

Antennas 2x antennas

FCC ID KA2IR632A1

Wireless standards supported 802.11b (max. 11 Mbit/s), 802.11g (max. 54 Mbit/s), 802.11n (max. 300

Mbit/s, 2.4 GHz only)

Main board

D-Link_DIR-632

Pros of this hardware 2

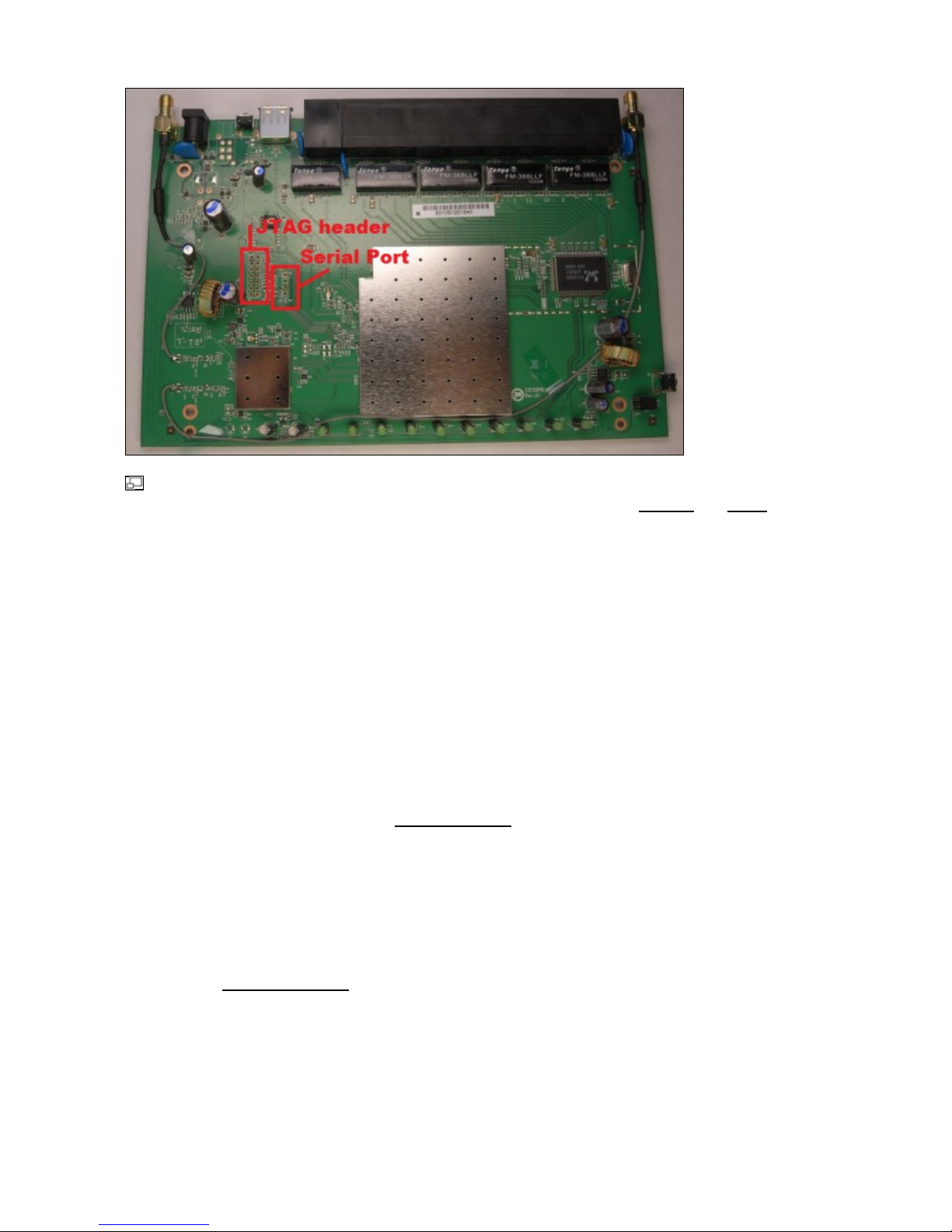

This shows the main board for the DIR-632 along with the location for the SERIAL and JTAG headers.

Installation Instructions

Please note that is is pre-release firmware at the momment. Please read the support forum listed at the

bottom of this page before loading it on you router to avoid bricking it.

Out-of-the-box factory firmware upgrade

To install dd-wrt on a stock D-Link DIR-632, you can flash it directly from the router's web admin page (yes,

that is correct... from D-Link's standard web interface). These are the steps to follow:

Download the current firmware:

NA (North America) - Factory-to-ddwrt r20548.1. AP (Asia Pasific) - Download the NA version of the firmware, then use a Hex Editor to

modify the signature at the end of the file. Change A101-AR7242-RT-100324-01 to

A101-AR7242-RT-100324-02

WW (Any place else in the world) - Download the NA version of the firmware, then use a

Hex Editor to modify the signature at the end of the file. Change

A101-AR7242-RT-100324-01 to A101-AR7242-RT-100324-03

Connect to the DIR-632 using an Ethernet cable.2. Open http://192.168.0.1/ in your web browser (Firefox recommended), which should open the

DIR632's administrative page from the standard D-link firmware.

The D-link's default login details are user "admin", password is blank.1. Tools -> Firmware2. Click "browse" button -> select the "factory-to-ddwrt_NA.bin" file -> click "Upload" button.3. Wait 2 or 3 minutes for the DIR-632 to flash and do the update. You will see a status page

that shows you the progress as it happens. After the flash & update is done, the router will

reboot to dd-wrt, and the IP address will have changed to 192.168.1.1. There is no need to

D-Link_DIR-632

Installation Instructions 3

reset.

Open http://192.168.1.1/ in web browser. This should open DD-WRT's web interface. Configure

DD-WRT as desired.

You're finished! No need to 30/30/30 hard reset, but you can reboot your router after several minutes.

(I don't know if it has to build anything in NVRAM, but better safe than sorry.)

How to upgrade with new DD-WRT firmware

Download the "dir632a-firmware", such as for r19342 from 2012. Or use a 2015 beta, then pick a

recent directory, then use the "dlink-dir632a" directory.

Open the DD-WRT's web interface in your web browser. It's http://192.168.1.1/ by default.2. Administration tab -> "Firmware Upgrade" button3. Click "browse" button -> select the "dir632a-firmware.bin" file -> click "Upgrade" button. It will take

about 2 minutes to upload and write the flash. Your browser will reload and let you know when it is

done.

It is probably a good idea to reboot after updating. That's it.5.

How to reset the Router to initial DD-WRT configuration

If you forget the username or password, or if the configuration becomes really messed up, you can always

clear all the non-volitile parameters by doing a 'factory reset'. To do this, with the router already fully booted,

press and hold the reset button for 5~6 seconds and release. The router will boot back up and answer to

192.168.1.1 just as if it had just been flashed with DD-WRT.

How to restore to factory firmware

This has been tested by GottaBKD

Download the original firmware from

http://www.dlink.com/ca/en/home-solutions/connect/routers/-/media/Consumer_Products/DIR/DIR%20632/Firmware/DIR632A1_FW103NA.bin

Unplug everything from the router including power and any LAN/WAN cables2. Hold down reset button with a pin or bent paperclip for 10 seconds3. While still holding reset button down, plug router back in and hold down the reset button until the

status light continually flashes orange

Configure a Windows 7 computer with IP address in the 192.168.0.2, subnet 255.255.255.0, Gateway

192.168.0.1, DNS 192.168.0.1

Plug ethernet cable into computer and a LAN port on the router, do not use WAN6. Open FIREFOX, I could only get this to work in FIREFOX, download it if you don't have it.

CHROME and IE would not work, they just hang when it looks like they are working! I spent ages

trying to get it to work in IE, then downloaded firefox and it worked first try.

Type 192.168.0.1 into firefox, this should bring up the emergency recovery page8. Click browse and select your firmware file9. Click send, and let it do it's magic, this may take a minute or 2, be patient, if it works your status light

will turn green, you are supposed to get a page that says upload succeeded, I waited 5 minutes and it

didn't happen. It still worked.

10.

D-Link_DIR-632

Out-of-the-box factory firmware upgrade 4

Reset router by holding down reset button for 10 seconds, status light will go orange again but don't

worry it is just rebooting.

11.

You should be good to go, open a new browser window and type 192.168.0.1 and you should get the

Dlink login page. If this doesn't work, try again from step 1

12.

USB Storage

What follows are the steps needs to use storage devices connected to the routers USB port.

Connect the USB device to the Router.1. Restart the router.2. Open the DD-WRT's web interface in your web browser. It's http://192.168.1.1/ by default.3. Services -> USB

Enable Core USB Support1. Enable USB Storage Support2. Enable Automatic Drive Mount3. Select Save, and then Apply4. You can ignore the Status: Not mounted message♦

FTP Access

Once set up, you will be able to access all the mounted partitions by using ftp://192.168.1.1

Serices -> NAS1. Enable ProFTPD2. Select other settings and then select Save, and then Apply3.

File Sharing Access

Once set up, you can access your files using Universal Naming Convention (UNC) names; ex.

\\192.168.1.1\part1. Storage devices can be format as Fat16, Fat32, NTFS, and Ext2. The Ext3 drive format is

not support, and will not mount.

Serices -> NAS1. Add Share2. Select the Share's Path, enter and name, and indicate is it's public or not. If it's pubic you do not have

to add users.

Repeat 2 and 3 for each share4. Select Save, and then Apply5.

D-Link_DIR-632

USB Storage 5

If you plan to add user, do so after adding the shares.◊

Note: There is currently a limit of the size of Hard Drive that can be connected: 2TB and under only.

Also formatting the drive as EXT2 will give you better performance over NTFS. Use the GParted Live

image to reform your hard drive.

USB Printing

What follows are the steps needs to use printer devices connected to the routers USB port.

Connect the USB device to the Router.1. Restart the router.2. Open the DD-WRT's web interface in your web browser. It's http://192.168.1.1/ by default.3. Services -> USB

Enable Core USB Support1. Enable USB Printer Support2. Select Save, and then Apply3.

Using the printer in Windows 7

Open Control Panel,Devices and Printers• Choose Add a printer, and then Add a Local Printer• select Create a new port, and choose Type of port: Standard TCP/IP Port. Click Next• Enter the IP address or your router: 192.168.1.1. If you like you can give the port a name.• UNCHECK the checkbox to Query the printer and automatically select a driver use. Click Next.

Now wait until the detection is done. It will say that the device is not found. Don't despair

•

Choose Custom and then click Settings

Make sure that Protocol Raw is selected and Port 9100 is entered. That will be proposed.♦ Leave all other settings also as they were and click OK♦

•

Click Next.• Choose the printer driver for your printer, then click Next• Give your printer a name, , then click Next• You don't have to share the printer. click Next• You can set it as default printer if your would like.• Click Finish•

Don't forget that your routers default address is 192.168.1.1 and its port is 9100

D-Link_DIR-632

USB Printing 6

Common Problems

Wireless Security WPA2 does not work with i Touches. Use WPA instead with AES or TKIP+AES

encryption.

•

When mounting USB devices, an odd message is produced indicating Status: Not mounted. This can

be ignored. Fixed in beta versions (since at least March 2015).

•

Can only load on the NA (North American) versions of the router. You need to Hex Edit the NA

firmware to load elsewhere per the instructions.

•

The undocumented button on the right side, near the front is a WDS or Wireless Distribution System

button. It's not used.

•

The WiFi Led doesn't light up. Not really a problem. Fixed in beta versions (since at least March

2015).

•

Suport

Support Thread: See Forum ... it's getting long.•

D-Link_DIR-632

Suport 7
