Quick Installation Guide

DIR-615A

Wireless N300 Router

DIR-615A Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-615A

•Power adapter DC 12V/0.5A

•Ethernet cable CAT 5)

•“Quick Installation Guide” brochure).

If any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents are available

on D-Link website see www.dlink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DIR-615A Quick Installation Guide

Default Settings

I address of wireless router 192.168.0.1

Username (login) admin

assword admin

Name of wireless network (SSID) DIR-615A

Network key ( SK password)

see WPS PIN on the

barcode label on the

bottom panel of the

device

Router DIR-615A with default settings cannot connect to the Internet.

To get started, please set your own password for access to the web-

based interface and change the WLAN name SSID); then, if needed,

configure other settings recommended by your ISP.

DIR-615A Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the router:

◦Apple Safari 8 and later

◦Google Chrome 48 and later

◦Microsoft Internet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A NIC Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11b, g, or n Wi-Fi adapter to create a wireless network.

DIR-615A Quick Installation Guide

CONNECTING TO C

PC with Ethernet Adapter

1. Make sure that your PC is powered off.

2. Connect an Ethernet cable between any of LAN ports located on the back

panel of the router and the Ethernet port of your PC.

3. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

4. Turn on the router by pressing the POWER button on its back panel.

5. Turn on your PC and wait until your operating system is completely

loaded.

Now you should configure your PC to obtain an IP address automatically as

DHCP client).

DIR-615A Quick Installation Guide

Obtaining P Address Automatically

in OS Windows XP

1. Click the Start button and proceed to the Control anel > Network

and Internet Connections > Network Connections window.

2. In the Network Connections window, right-click the relevant Local

Area Connection icon and select the roperties line in the menu

displayed.

3. In the Local Area Connection roperties window, on the General

tab, select the Internet rotocol (TC /I ) line. Click the roperties

button.

DIR-615A Quick Installation Guide

4. Select the Obtain an I address automatically and Obtain DNS

server address automatically radio buttons. Click the OK button.

5. Click the ОК button in the connection properties window.

Now your computer is configured to obtain an IP address automatically.

DIR-615A Quick Installation Guide

Obtaining P Address Automatically

in OS Windows 7

1. Click the Start button and proceed to the Control anel window.

2. Select the Network and Sharing Center section. If the Control Panel

has the category view the Category value is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the Network and Internet

section.)

3. In the menu located on the left part of the window, select the Change

adapter settings line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the roperties line in the menu displayed.

5. In the Local Area Connection roperties window, on the

Networking tab, select the Internet rotocol Version 4 (TC /I v4)

line. Click the roperties button.

DIR-615A Quick Installation Guide

6. Select the Obtain an I address automatically and Obtain DNS

server address automatically radio buttons. Click the OK button.

7. Click the OK button in the connection properties window.

Now your computer is configured to obtain an IP address automatically.

DIR-615A Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

2. Turn on the router by pressing the POWER button on its back panel.

3. Turn on your PC and wait until your operating system is completely

loaded.

4. Turn on your Wi-Fi adapter. As a rule, modern notebooks with built-in

wireless NICs are equipped with a button or switch that turns on/off the

wireless adapter refer to your PC documents). If your PC is equipped

with a pluggable wireless NIC, install the software provided with your

Wi-Fi adapter.

Now you should configure your Wi-Fi adapter.

Otros manuales para DIR-615A

Tabla de contenidos

Otros manuales de Enrutador de red de D-Link

D-Link

D-Link DXS-3400 SERIES Manual

D-Link

D-Link xStack DXS-3350SR Manual de instrucciones

D-Link

D-Link PowerLine DHP-P601AV Manual de usuario

D-Link

D-Link DVA-2800 Manual de usuario

D-Link

D-Link DIR-615 - Wireless N Router Manual de usuario

D-Link

D-Link DSL-2540U Manual de usuario

D-Link

D-Link DIR-X1860 Manual de usuario

D-Link

D-Link DSL-225 Manual de usuario

D-Link

D-Link xStack DES-3800 Series Manual de usuario

D-Link

D-Link M32 Manual de usuario

D-Link

D-Link DIR-601 Manual de usuario

D-Link

D-Link DWR-980 Manual de usuario

D-Link

D-Link Router Manual de usuario

D-Link

D-Link Air Xpert DI-774 Manual de usuario

D-Link

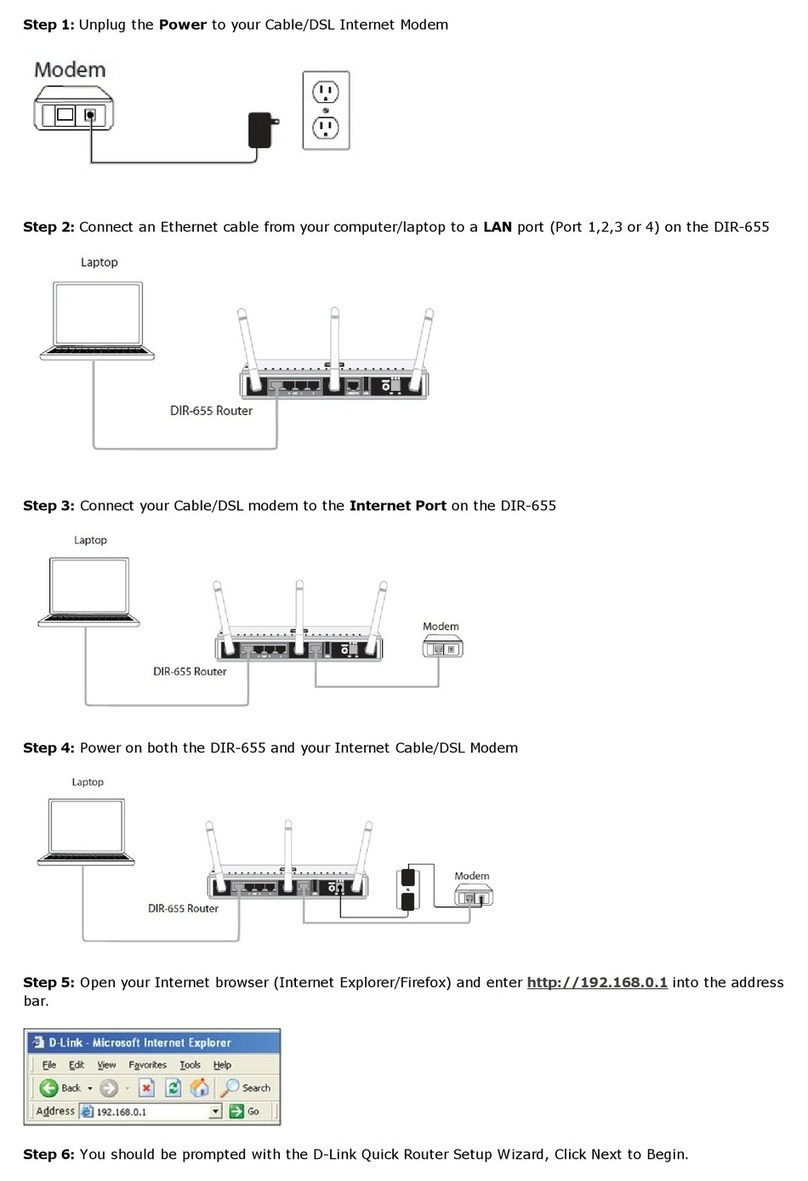

D-Link DIR-655 - Xtreme N Gigabit Router Wireless Manual de usuario
