D-Link DES-6300 Manual de usuario

DES-6300

Modular L3 Ethernet Switch

User’s Guide

First Edition (July,2002)

651ES6300015

Printed In Taiwan

RECYCLABLE

Features

The DES-6300 is a high performance modular switch platform that allows a customized

array of Layer 2 and Layer 3 functions to be easily installed and managed in a single

device. The Switch is ideal for expanding enterprise networks and environments where

traffic volume and needs fluctuate.

Switch features include:

Chassis

The chassis is the main unit that modules and power supplies are installed into. A CPU

module and a power supply module come preinstalled in the chassis.

Chassis features include:

♦Six slots for installing networking modules (plus one slot reserved for the CPU)

♦Two slots for installing redundant power supply modules

♦31.99 Gigabit/sec. (Gbps) backplane switching fabric

♦Hot-swappable design for power supply modules

♦Networking modules warm-swappable (except CPU module)

♦Ears and screws for rack mounting

Switch Modules

The plug-in modules available for the switch are optional except for the CPU module.

These modules are described below:

CPU Module

A single CPU module must be present and must be installed in first (uppermost) slot.

Layer 2 support includes:

♦Layer 2 switching based on MAC address & VLAN ID.

♦Store and Forward packet switching.

♦Broadcast Storm rate filtering.

♦Supports static filtering (based on MAC address).

♦Supports IEEE 802.1Q VLAN (Static VLAN).

♦Proprietary simplified Port-based VLANs

♦IEEE 802.1d Spanning Tree support.

♦Address table: 64K MAC address per switch

♦96 Static VLAN Entries (in IEEE 802.1Q VLANs mode)

♦Supports 802.1p priority queuing (2 priority queues)

♦Port Aggregation (Port-Trunking) Capability

♦Port Mirroring

♦IGMP snooping

♦Head Of Line (HOL) Blocking Prevention

♦RS-232 port for out-of-band management and system configuration

♦Telnet Remote Configuration

♦TFTP software upgrades, settings file and switch log uploads

♦NMS(Net Management System)

♦CLI (Command Line Interface)

♦SNMP Agents:

♦MIB-II (RFC 1213)

♦RMON MIB (RFC 1757)

♦Bridge MIB (RFC 1493)

♦SLIP

♦Supports four RMON (1,2,3,9) groups

♦Port Security

♦BootP support

Layer 3 support includes:

♦Support for DHCP Client

♦Support RIP1 and RIP2 routing protocol

♦Support OSFP routing protocol

♦Support IGMP, IP Multicast packet filtering, support QoS (Quality of Service).

♦Support Multicast Routing protocol: DVMRP, PIM DM

♦Support Layer 3 Access Control List, (ACL)

Optional Modules

DES-6303 10BASE-T/100BASE-TX Module

♦16 10BASE-T/100BASE-TX ports

♦Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX

♦All 10/100Mbps ports support NWay auto-negotiation

♦Back pressure Flow Control support for Half-duplex mode

♦IEEE 802.3x-compliant Flow Control support for Full-duplex

DES-6304 100BASE-FX (MT-RJ) Module

♦12 100BASE-FX (MT-RJ) Fast Ethernet ports

♦Fully compliant with IEEE 802.3u 100BASE-FX

♦IEEE 802.3x compliant Flow Control support for Full-duplex

DES-6305 100BASE-FX (SC) Module

♦8 100BASE-FX (SC) Fast Ethernet ports

♦Connects to a 100BASE-FX device at full duplex.

♦Fully compliant with IEEE 802.3u 100BASE-FX

♦Supports Full-duplex operation only

♦IEEE 802.3x-compliant Flow Control support

DES-6306 1000BASE-SX (SC) Module

♦2 1000BASE-SX (SC) Gigabit Ethernet ports

♦Fully compliant with IEEE 802.3z

♦Support Full-duplex operation only

♦IEEE 802.3x-compliant Flow Control support

DES-6307 1000BASE-LX (SC) Module

♦2 1000BASE-LX (SC) Gigabit Ethernet ports

♦Fully compliant with IEEE 802.3z

♦Support Full-duplex operation only

♦IEEE 802.3x-compliant Flow Control support

DES-6308 1000BASE-T (RJ-45) Module

♦2 1000BASE-T Gigabit Ethernet ports

♦Connects to 1000BASE-T devices only at full-duplex and auto-negotiating

10/100/1000 Mbps ports

♦Fully compliant with IEEE 802.3ab

♦Fully compliant with IEEE 802.1Q/P

♦Back pressure Flow Control support for Half-duplex mode

♦IEEE 802.3x compliant Flow Control support for Full-duplex

DES-6309 GBIC Module

♦2 GBIC Ethernet ports

♦Fully compliant with IEEE 802.3z

♦Support Full-duplex operation only

♦IEEE 802.3x-compliant Flow Control support

Power Supply Modules

♦Dual power modules design

♦Current sharing design

♦Full redundant feature design to ensure continuous operation

♦If one power module fails, the other will take over all current supply automatically.

♦Hot-swappable/Hot-pluggable

♦Power management functions enabled

♦Revolving handle design

♦Input: 90 ~ 264 VAC, 47 ~ 63Hz

♦Output: 3.3V 80A Max, 12V 2A Max

UNPACKING AND SETUP

This chapter provides unpacking and setup information for the Switch.

Unpacking

Open the shipping carton of the Switch and carefully unpack its contents. The carton

should contain the following items:

♦One switch chassis

♦One management module (pre-installed in uppermost slot)

♦One power supply module (pre-installed)

♦One mounting kit：four mounting brackets and screws

♦Four rubber feet with adhesive backing

♦One AC power cord

♦One console cable

♦One printed copy of the quickstart guide

♦One CD-ROM containing this user’s guide

If any item is found missing or damaged, please contact your local reseller for

replacement.

Setup

The setup of the Switch can be performed using the following steps:

♦The surface must support at least 5 kg.

♦The power outlet should be within 1.82 meters (6 feet) of the device.

♦Visually inspect the power cord and see that it is secured fully to the AC power

connector.

♦Make sure that there is proper heat dissipation from and adequate ventilation

around the Switch. Do not place heavy objects on the Switch.

Desktop or Shelf Installation

When installing the Switch on a desktop or shelf, the rubber feet included with the

device must be first attached. Attach these cushioning feet on the bottom at each corner

of the device. Allow enough ventilation space between the device and the objects around

it.

Figure 2-1. Switch installed on a Desktop or Shelf

Rack Installation

The Switch can be mounted in an EIA standard size, 19-inch rack, which can be placed

in a wiring closet with other equipment. To install, attach the mounting brackets on the

Switch’s front panel (one on each side) and secure them with the screws provided.

Figure 2-2. Attaching the mounting brackets to the Switch

Then, use the screws provided with the equipment rack to mount the Switch in the rack.

Installing Modules

The DES-6300 supports up to 6 modules which can be installed into the module bays.

Networking modules are warm-swappable, meaning they can be added and removed

while power to the switch is ON. After warm-swapping a networking module, the switch

will automatically be rebooted. Make sure to use the Save Changes command to save

the current configuration to NV-RAM before warm-swapping modules. The CPU module,

however, is NOT hot-swappable. Removing or inserting the CPU module while the power

is on may cause irreparable damage to the module and/or to the Switch itself. Further,

make sure you have unplugged the power cord from the removable power supply

module before inserting or removing it from the Switch.

CAUTION: Due to the high energy present in this

system, extreme caution should be exercised whenever

adding or removing system components. No element of

this system may be installed or removed except by an

authorized technician.

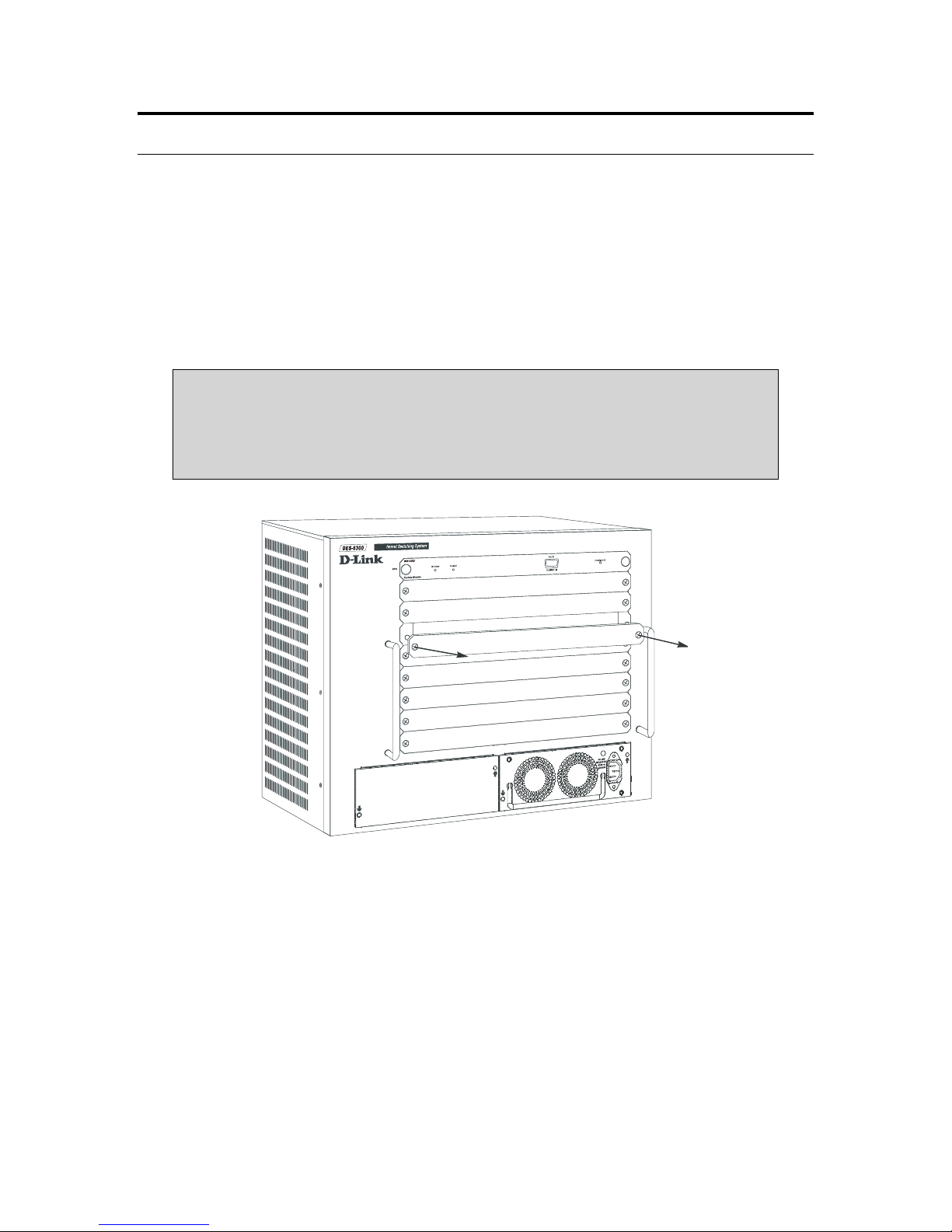

Figure 2-3. Removing a Blank Slot Cover

Modules can be installed into any free slot, except the CPU module. The CPU module

must be installed in the uppermost (top) slot. To install a module, simply remove a

blank slot cover and slide the module along the guide rails until it snaps firmly in place.

Figure 2–4. Installing a Module

Connecting a Terminal

The DES-6300 can perform basic switching functions without special configuration, but

to use the Switch’s advanced features you must first configure the unit through a

terminal (a VT-100 serial data terminal or a computer running a VT-100 emulator). The

connection is made through the Switch’s Diagnostic RS-232 port, which is configured at

the factory as follows:

♦Baud Rate: 115200

♦Data Bits: 8

♦Parity: none

♦Stop Bits: 1

♦Flow Control: None

The RS-232 port has a nine-socket D-shell connector with IBM-type DCE wiring, and

can be connected to the terminal using an off-the-shelf RS-232 cable with the proper

connectors for the terminal and the DES-6300.

Power on

Power up the DES-6300 as follows:

1. Make sure the power module is properly installed in the device.

2. Plug the device end of the supplied power cord firmly into the power inlet on

the DES-6300’s front panel of the redundant power supply.

3. Plug the outlet end of the power cord firmly into a suitable AC outlet.

4. Observe the DES-6300’s LED indicators to make sure the Switch is operating

correctly.

The DES-6300’s LED indicators operate as follows during a normal power-up:

♦All indicators blink momentarily to indicate a system reset.

♦The Power indicator flashes for about 20 seconds while the switch prepares its run-

time software and performs a self-test.

♦The Power indicator begins shining steadily, and the remaining indicators begin

reflecting port and system status.

Power Failure

As a precaution, the Switch should be unplugged in case of an impending power failure.

When power is resumed, plug the Switch back in.

IDENTIFYING EXTERNAL

COMPONENTS

This chapter describes the front panel, side panels, optional plug-in modules, and LED

indicators of the Switch

Front Panel

The front panel of the Switch consists nine slide-in module slots for networking

modules, two slide-in module slots for power supply modules, an RS-232

communication port, and LED indicators.

Figure 3-1. Front panel view of the Switch

♦Comprehensive LED indicators display the conditions of the Switch and status of

the network. A description of these LED indicators follows (see LED Indicators).

♦An RS-232 DCE console port is used to diagnose the Switch via a connection to a

terminal (or PC) and Local Console Management.

♦Seven slide-in module slots installing networking modules and the CPU module.

♦Two slide-in module slots for installing power supply modules.

Side Panels

The left side panel of the Switch contains four system fans. The right side panel

contains heat vents.

The system fans are used to dissipate heat. The sides of the system also provide heat

vents to serve the same purpose. Do not block these openings, and leave adequate

space at the rear and sides of the Switch for proper ventilation. Be reminded that

without proper heat dissipation and air circulation, system components might

overheat, which could lead to system failure.

Otros manuales para DES-6300

Tabla de contenidos

Otros manuales de Enrutador de red de D-Link

D-Link

D-Link DSL-2750U Hoja de información del producto

D-Link

D-Link DSL-504T Manual de usuario

D-Link

D-Link des-1016a Manual de usuario

D-Link

D-Link DSL-2741B Manual de usuario

D-Link

D-Link WBR-1310 - Wireless G Router Manual de usuario

D-Link

D-Link DSL-2745 Manual de usuario

D-Link

D-Link DVG-G1402S - Wireless Broadband VoIP Router Manual de usuario

D-Link

D-Link DIR-868L Manual de usuario

D-Link

D-Link DWM-312W Manual de usuario

D-Link

D-Link DIR-855L Manual de usuario

D-Link

D-Link DFL-210 - NetDefend - Security Appliance Manual de usuario

D-Link

D-Link DES-1005D Manual de usuario

D-Link

D-Link DI-206 Manual de usuario

D-Link

D-Link DSS-24+ Manual de usuario

D-Link

D-Link DIR-878 Manual de usuario

D-Link

D-Link DIR-822 Manual de usuario

D-Link

D-Link COVR-X1862 Instrucciones de instalación

D-Link

D-Link DSL-224 Manual de usuario

D-Link

D-Link xStack DES-3200 Series Manual de usuario

D-Link

D-Link Air Premier DAP-2695 Manual de usuario

D-Link

D-Link DIS-100G-5W Manual de usuario

D-Link

D-Link DIR-842 Manual de usuario

D-Link

D-Link DES-3528 - xStack Switch - Stackable Manual

D-Link

D-Link DIR-651 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
