D-Link DAP-1360U Manual de usuario

Quick Installation Guide

DAP-1360U

Wireless N300 Access Point & Router

DAP-1360U Quick Installation Guide

BEFORE YOU BEGI

Delivery Package

•Access point DAP-1360U

•Power adapter DC 12V/0.5A

•Ethernet cab e

•Two detachab e antennas

•“Quick Installation Guide” (brochure).

If any of the items are missing, p ease contact your rese er.

The “User Manual” and “Quick Installation Guide” documents are avai ab e

on D-Link website (see www.d ink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address of access point 192.168.0.50

Username (login) admin

Password admin

ame of wireless network (SSID) DAP-1360

etwork key (PSK)

see WPS PIN on the

barcode abe on the

bottom pane of the

device

DAP-1360U Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the access point:

◦App e Safari 8 and ater

◦Goog e Chrome 48 and ater

◦Microsoft Internet Exp orer 10 and ater

◦Microsoft Edge 20.10240 and ater

◦Mozi a Firefox 44 and ater

◦Opera 35 and ater.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the access point.

•An 802.11b, g, or n Wi-Fi adapter to create a wire ess network.

DAP-1360U Quick Installation Guide

CO ECTI G TO PC

PC with Ethernet Adapter

1. Connect an Ethernet cab e between any of LAN ports ocated on the back

pane of the access point and the Ethernet port of your PC.

2. Connect the power cord to the power connector port on the back pane of

the access point, then p ug the power adapter into an e ectrica out et or

power strip.

3. Turn on the access point by pressing the ON/OFF button on its back

pane .

Now you need to configure an IP address for the Ethernet adapter of your PC.

DAP-1360U Quick Installation Guide

Configuring IP Address in S Windows 7

1. C ick the Start button and proceed to the Control Panel window.

2. Se ect the etwork and Sharing Center section. (If the Contro Pane

has the category view (the Category va ue is se ected from the View by

drop-down ist in the top right corner of the window), choose the View

network status and tasks ine under the etwork and Internet

section.)

3. In the menu ocated on the eft part of the window, se ect the Change

adapter settings ine.

4. In the opened window, right-c ick the re evant Local Area Connection

icon and se ect the Properties ine in the menu disp ayed.

5. In the Local Area Connection Properties window, on the

etworking tab, se ect the Internet Protocol Version 4 (TCP/IPv4)

ine. C ick the Properties button.

DAP-1360U Quick Installation Guide

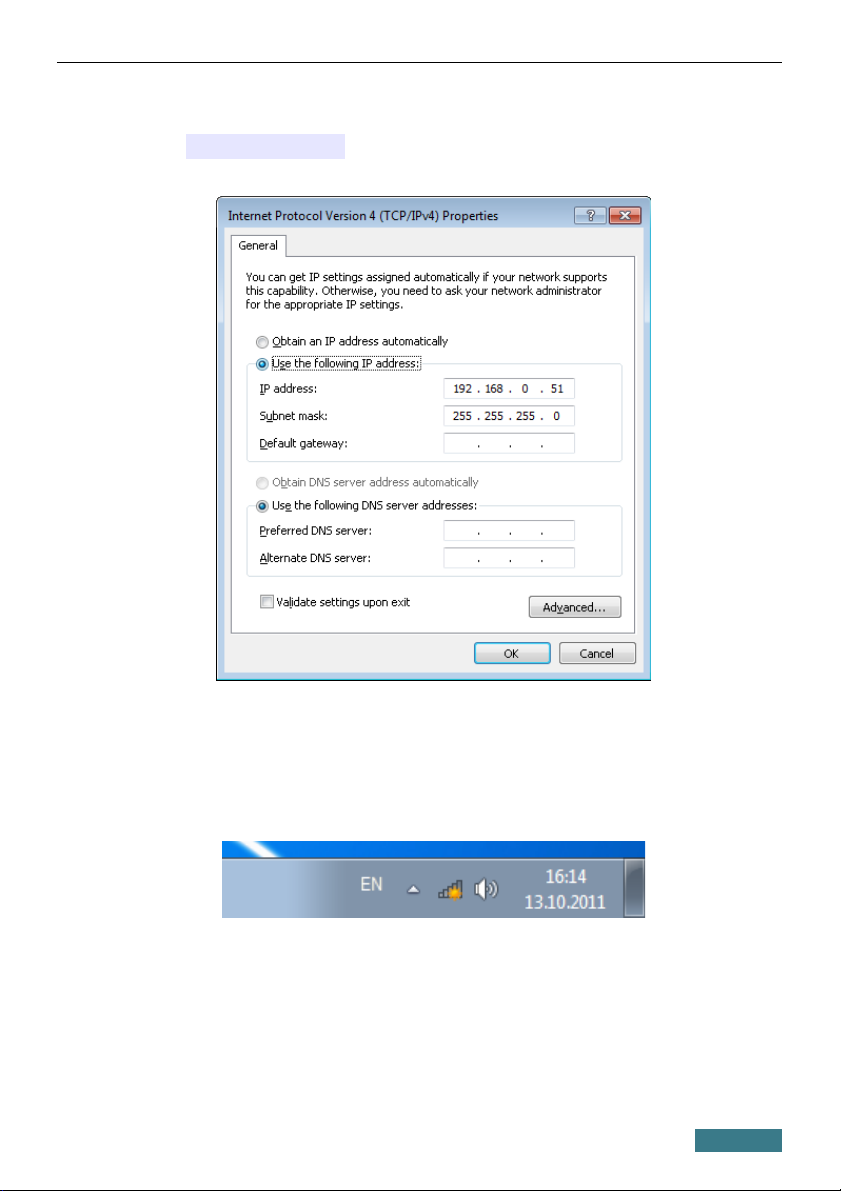

6. Se ect the Use the following IP address radio button and enter the

va ue 192.168.0.51 in the IP address fie d. The Subnet mask

fie d wi be fi ed in automatica y. C ick the OK button.

7. C ick the OK button in the connection properties window.

Now you can connect to the web-based interface of DAP-1360U for

configuring a needed parameters. To gain access to an externa network (to

the Internet), you a so need to specify the defau t gateway and the addresses of

DNS servers.

DAP-1360U Quick Installation Guide

PC with Wi-Fi Adapter

1. Attach the antennas from the de ivery package. To do this, remove the

antennas from their wrapper, attach them to the re evant connectors on the

back pane of the access point, and then screw the antennas in a c ockwise

direction to the back pane . Position the antennas upward at their

connecting joints. This wi ensure optima operation of your wire ess

network.

2. Connect the power cord to the power connector port on the back pane of

the access point, then p ug the power adapter into an e ectrica out et or

power strip.

3. Turn on the access point by pressing the ON/OFF button on its back

pane .

4. Make sure that the Wi-Fi adapter of your PC is on. As a ru e, modern

notebooks with bui t-in wire ess NICs are equipped with a button or

switch that turns on/off the wire ess adapter (refer to your PC documents).

If your PC is equipped with a p uggab e wire ess NIC, insta the software

provided with your Wi-Fi adapter.

Now you shou d configure your Wi-Fi adapter.

DAP-1360U Quick Installation Guide

Configuring Wi-Fi Adapter in S Windows 7

1. C ick the Start button and proceed to the Control Panel window.

2. Se ect the etwork and Sharing Center section. (If the Contro Pane

has the category view (the Category va ue is se ected from the View by

drop-down ist in the top right corner of the window), choose the View

network status and tasks ine under the etwork and Internet

section.)

3. In the menu ocated on the eft part of the window, se ect the Change

adapter settings ine.

4. In the opened window, right-c ick the re evant Wireless etwork

Connection icon. Make sure that your Wi-Fi adapter is on, then se ect

the Properties ine in the menu disp ayed.

5. In the Wireless etwork Connection Properties window, on the

etworking tab, se ect the Internet Protocol Version 4 (TCP/IPv4)

ine. C ick the Properties button.

DAP-1360U Quick Installation Guide

6. Se ect the Use the following IP address radio button and enter the

va ue 192.168.0.51 in the IP address fie d. The Subnet mask

fie d wi be fi ed in automatica y. C ick the OK button.

7. C ick the OK button in the connection properties window.

8. To open the ist of avai ab e wire ess networks, se ect the icon of the

wire ess network connection and c ick the Connect To button or eft-

c ick the network icon in the notification area ocated on the right side of

the taskbar.

DAP-1360U Quick Installation Guide

9. In the opened window, in the ist of avai ab e wire ess networks, se ect the

wire ess network DAP-1360 and c ick the Connect button.

10. In the opened window, enter the network key (see WPS PIN on the

barcode abe on the bottom pane of the device) in the Security key

fie d and c ick the OK button.

11. Wait for about 20-30 seconds. After the connection is estab ished, the

network icon wi be disp ayed as the signa eve sca e.

Now you can connect to the web-based interface of DAP-1360U for configuring

a needed parameters. To gain access to an externa network (to the Internet), you

a so need to specify the defau t gateway and the addresses of DNS servers.

If you perform initia configuration of the access point via Wi-Fi

connection, note that immediate y after changing the wire ess defau t

settings of the access point you wi need to reconfigure the wire ess

connection using the new y specified settings.
