D-Link DIR-822 Manual de usuario

Quick Installation Guide

DIR-822

AC1200 Wave 2 MU-MIMO Wi-Fi EasyMesh Router

DIR-822 Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-822

•Power adapter DC 12V/1A

•Ethernet cable

•“Quick Installation Guide” (brochure .

If any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents are available

on D-Link website (see www.dlink.ru .

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DIR-822 Quick Installation Guide

Default Settings

Domain name of device dlinkrouter.local.

I address of device 192.168.0.1

Username (login) admin

assword admin

Name of wireless network

(SSID)

2.4GHz DIR-822

5GHz DIR-822-5G

Network key ( SK password)

see WPS PIN on the barcode

label on the bottom panel of

the device

Router DIR-822 with default settings cannot connect to the Internet. To

get started, please set your own password for access to the web-based

interface and change the WLAN name (SSID ; then, if needed,

configure other settings recommended by your ISP.

DIR-822 Quick Installation Guide

System Requirements and Equipment

•An Android or iPhone mobile device (smartphone or tablet or a computer

with any operating system that supports a web browser.

•A PC web browser to access the web-based interface:

◦Apple Safari 8 and later

◦Google Chrome 48 and later

◦Microsoft Internet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A NIC (Ethernet or Wi-Fi adapter to connect to the router.

•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.

DIR-822 Quick Installation Guide

CONNECTING TO C

PC with Ethernet Adapter

1. Connect an Ethernet cable between any of LAN ports located on the back

panel of the router and the Ethernet port of your PC.

2. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

3. Turn on the router by pressing the POWER button on its back panel.

Then make sure that your PC is configured to obtain an IP address

automatically (as DHCP client .

DIR-822 Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 7)

1. Click the Start button and proceed to the Control anel window.

2. Select the Network and Sharing Center section. (If the Control Panel

has the category view (the Category value is selected from the View by

drop-down list in the top right corner of the window , choose the View

network status and tasks line under the Network and Internet

section.

3. In the menu located on the left part of the window, select the Change

adapter settings line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the roperties line in the menu displayed.

5. In the Local Area Connection roperties window, on the

Networking tab, select the Internet rotocol Version 4 (TC /I v4)

line. Click the roperties button.

DIR-822 Quick Installation Guide

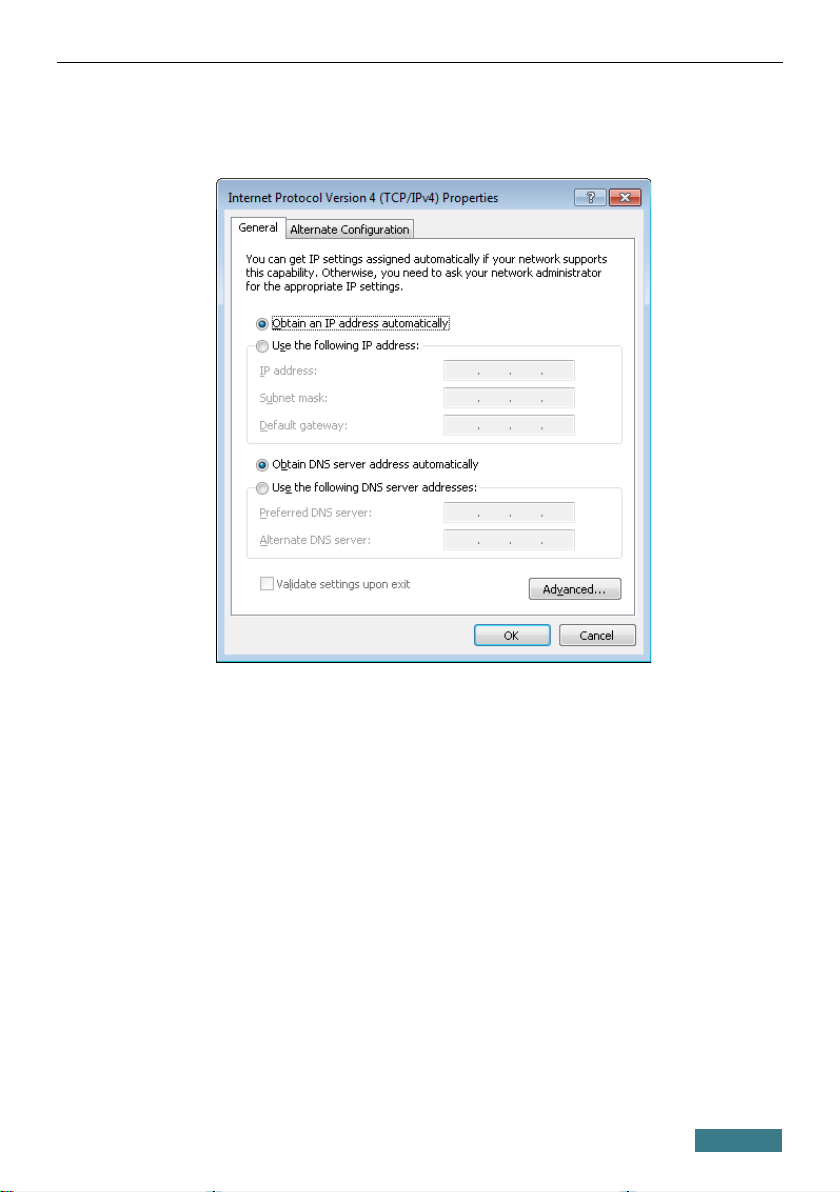

6. Make sure that the Obtain an I address automatically and Obtain

DNS server address automatically choices of the radio buttons are

selected. Click the OK button.

7. Click the OK button in the connection properties window.

DIR-822 Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 10)

1. Click the Start button and proceed to the Settings window.

2. Select the Network & Internet section.

3. In the Change your network settings section, select the Change

adapter options line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the roperties line in the menu displayed.

5. In the Local Area Connection roperties window, on the

Networking tab, select the Internet rotocol Version 4 (TC /I v4)

line. Click the roperties button.

DIR-822 Quick Installation Guide

6. Make sure that the Obtain an I address automatically and Obtain

DNS server address automatically choices of the radio buttons are

selected. Click the OK button.

7. Click the Close button in the connection properties window.

DIR-822 Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

2. Turn on the router by pressing the POWER button on its back panel.

3. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern

notebooks with built-in wireless NICs are equipped with a button or

switch that turns on/off the wireless adapter (refer to your PC documents .

If your PC is equipped with a pluggable wireless NIC, install the software

provided with your Wi-Fi adapter.

Then make sure that your Wi-Fi adapter is configured to obtain an IP address

automatically (as DHCP client .
