Setting Up DCS-1000W Camera & Internet

Gateway Router

2

Once logged into the camera, on the main

menu, click/select System. Enter a Camera

Name and Location. You will also be able to

assign a Admin Name and Password.

Configure the Camera with QIG.

3

There are two ways to assign an IP address. To configure

the DCS-1000W for security purposes, it will be necessary

to manually assign an IP address for use behind an

Internet Router. The Default Gateway will be the IP

Address of the Internet Router’s LAN IP Address.

IP Assignment

4

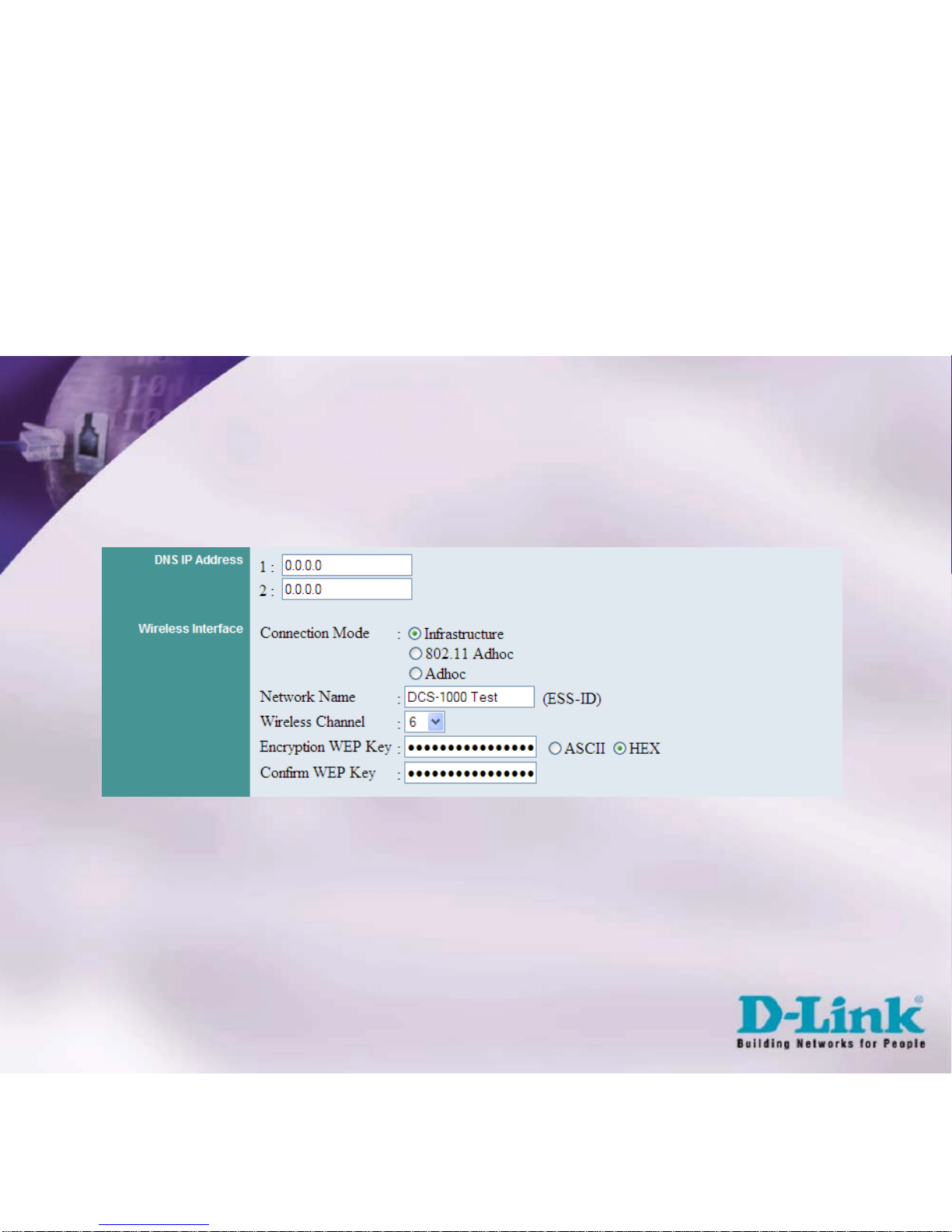

In the “Wireless Interface” section, you will be asked for your “Connection

Mode,” “Network Name” and “Encryption WEP Key.” Choose either HEX or

ASCII. Your “Wireless Channel” should also be set.

This information should be written down and saved for configuration of the

Wireless Router and other Wireless Cameras.

Settin

g

up your Wireless Connection

and Encryption

5

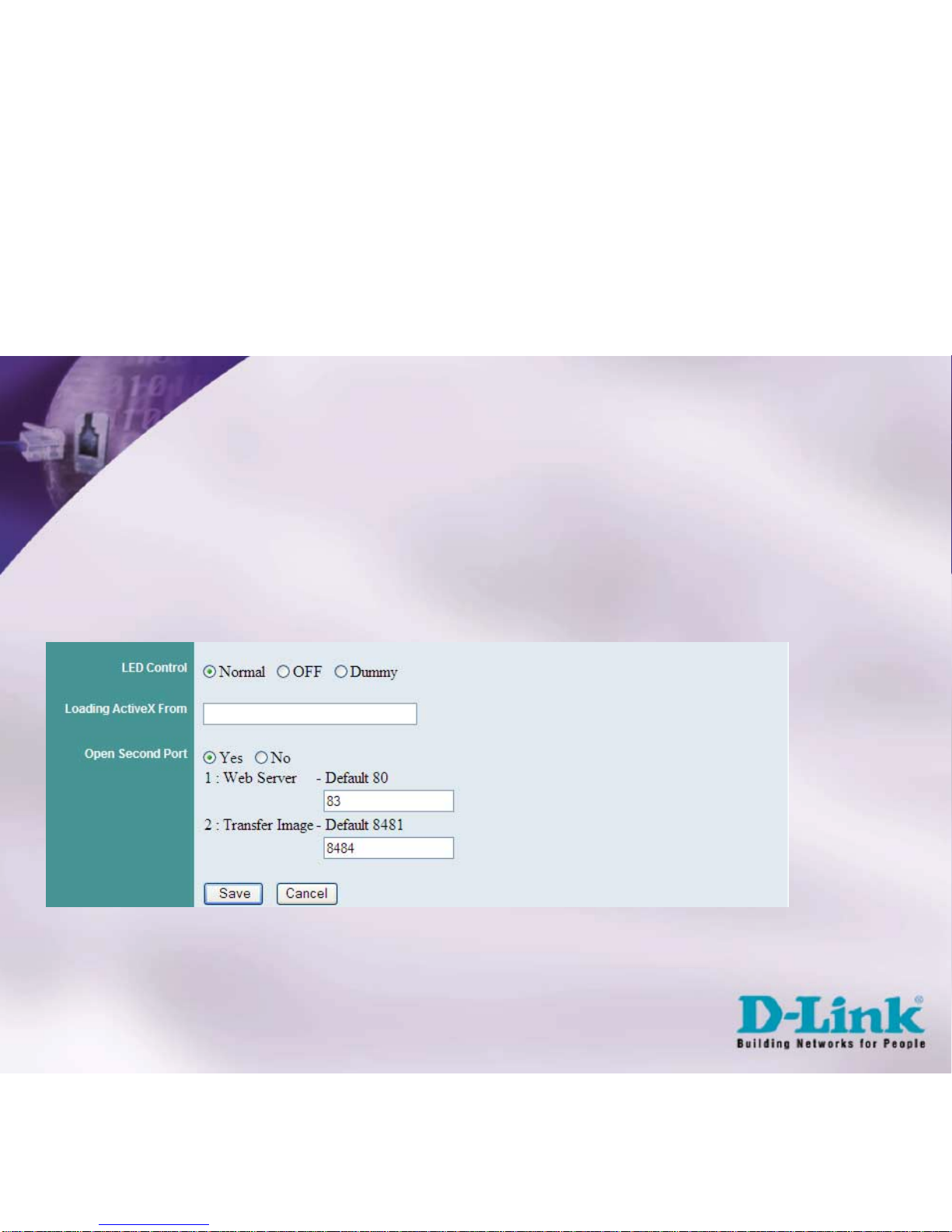

Opening Outside Ports will allow users to view the Camera

Images from inside or outside the Wireless Network. The Web

Server Port is a proprietary port used in the IP address from a

remote location. (Ex. http://10.80.1.250:83)

The ports that are opened must be unique for each camera,

to successfully view the images from an outside network.

Assigning and Opening outside ports.

6

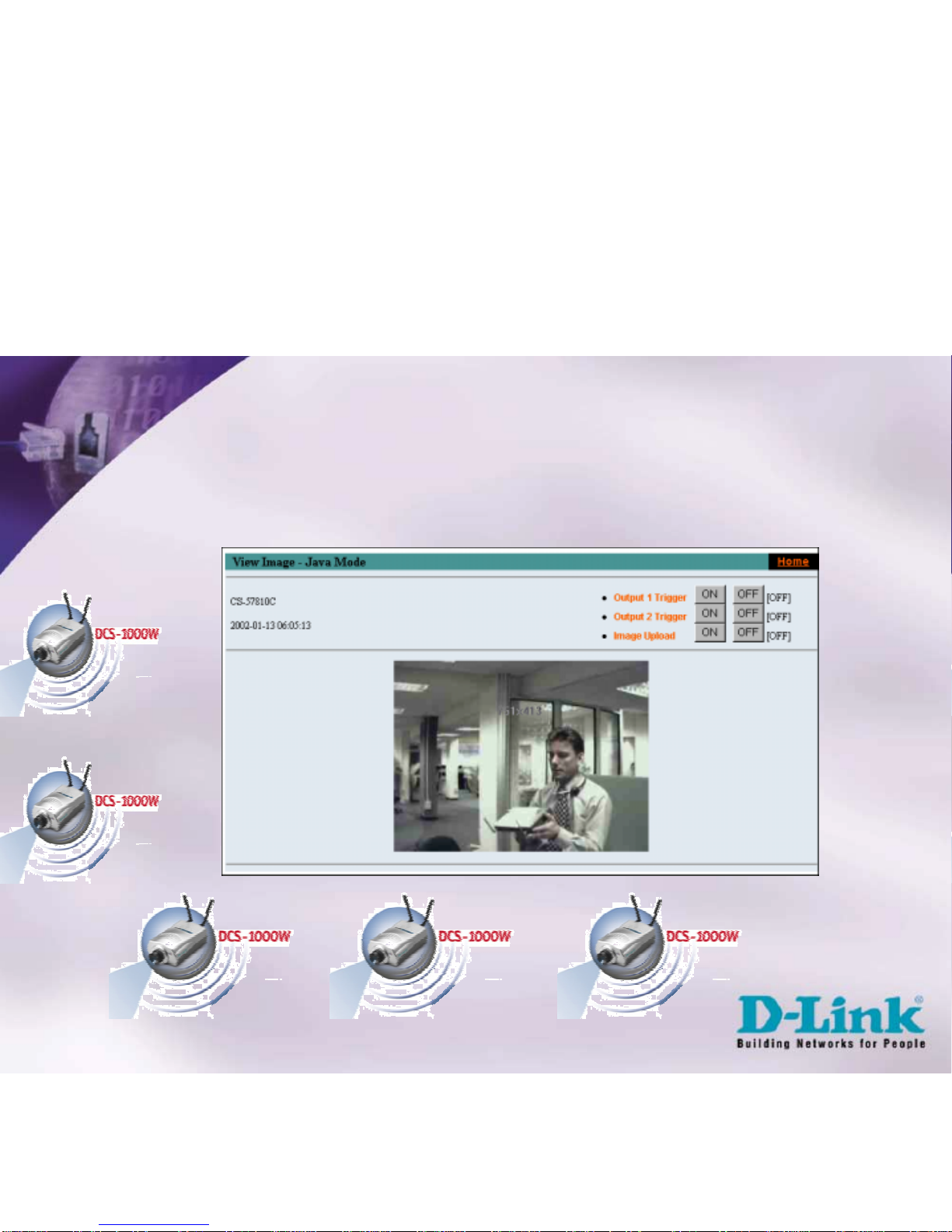

These fields control Input Trigger 1 and Trigger

2. Each Input trigger can trigger either or both

Output triggers.

SMTP Server Address: Name or IP address of a

SMTP Mail Server that the camera can send images to.

Sender E-Mail: Name of the Camera/Trigger that

sent the mail

Receiver E-Mail: Account Name of person to receive

pictures when sensors are activated

Sending Interval: The time between additional

sequences of pictures are taken when sensors

activated

Sending Times: The number of times the camera

takes additional sequences of pictures based on

Sending Interval.

Trigger I/O: Enable Output trigger for the specified

input trigger

Output # Time: How long the output trigger is

activated if Sensor is activated. (i.e.. How long should

siren ring?)

I/O Input Trigger 2

Security Notification Configuration

I/O Input Trigger 1

7

Configure all Cameras that will be used in The

Wireless Security Network

8

Configure the initial settings by following the steps outlined in the

DI-614+ QIG. Once logged into the Router, on the main menu,

click/select “Wireless.”

Router Set-Up and Installation

9

In the “Wireless Interface”

section, you will be asked for

your SSID (“Network Name”)

and “Encryption WEP Key.”

Choose either HEX or ASCII.

Your “Wireless Channel” should

also be set.

This information should be

entered from the notes taken

on the configuration of the

Wireless Camera.

Currently, D-Link only produces

Cameras based on 802.11b.

Therefore, 128 bit encryption is

the maximum that can be used.

Settin

g

up your Wireless Connection

and Encryption

10

There are two ways to assign an IP address. To configure the

DI-614+ for security purposes, it will be necessary to

manually assign an IP address for use with the Internet

Router.

WAN IP Assignment
