D-Link AirPlus XtremeG
802.11g High-Speed Ethernet-to-Wireless Bridge
Manual
2
Contents
1. Package Contents............................... 3
2. Introduction......................................... 4
3. Wireless Basics................................... 7
4. Getting Started ................................. 10
5. Web Configuration............................. 12
6. Troubleshooting ................................ 18
8. Technical Specifications................... 25
9. Contacting Technical Support .......... 28
10. Warranty and Registration............... 29
3
1. Package Contents
Contents of Package:
•D-Link AirPlus XtremeG DWL-G810 Ethernet-to-Wireless Bridge
•AC Power Adapter – 5V; 2.5A
•Manual and Warranty on CD
•Ethernet Cable (the DWL-G810 Auto MDI/MDIX Ethernet port
works with straight-through or crossover cable)
•Quick Installation Guide
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:
•A computer with an Ethernet adapter. (We recommend that you use
an Ethernet connection to configure the DWL-G810.)
•A current web-browser (e.g., Internet Explorer 6.0 or Netscape
Navigator 6.0 or later) for configuration
For Use: You will need an Ethernet-enabled device such as a game
console, laptop or desktop computer, network printer or set top box. The
DWL-G810 will transform virtually any Ethernet device into a wireless device,
enabling wireless communication over your network or in an ad-hoc/peer-to-
peer mode.
4
2. Introduction

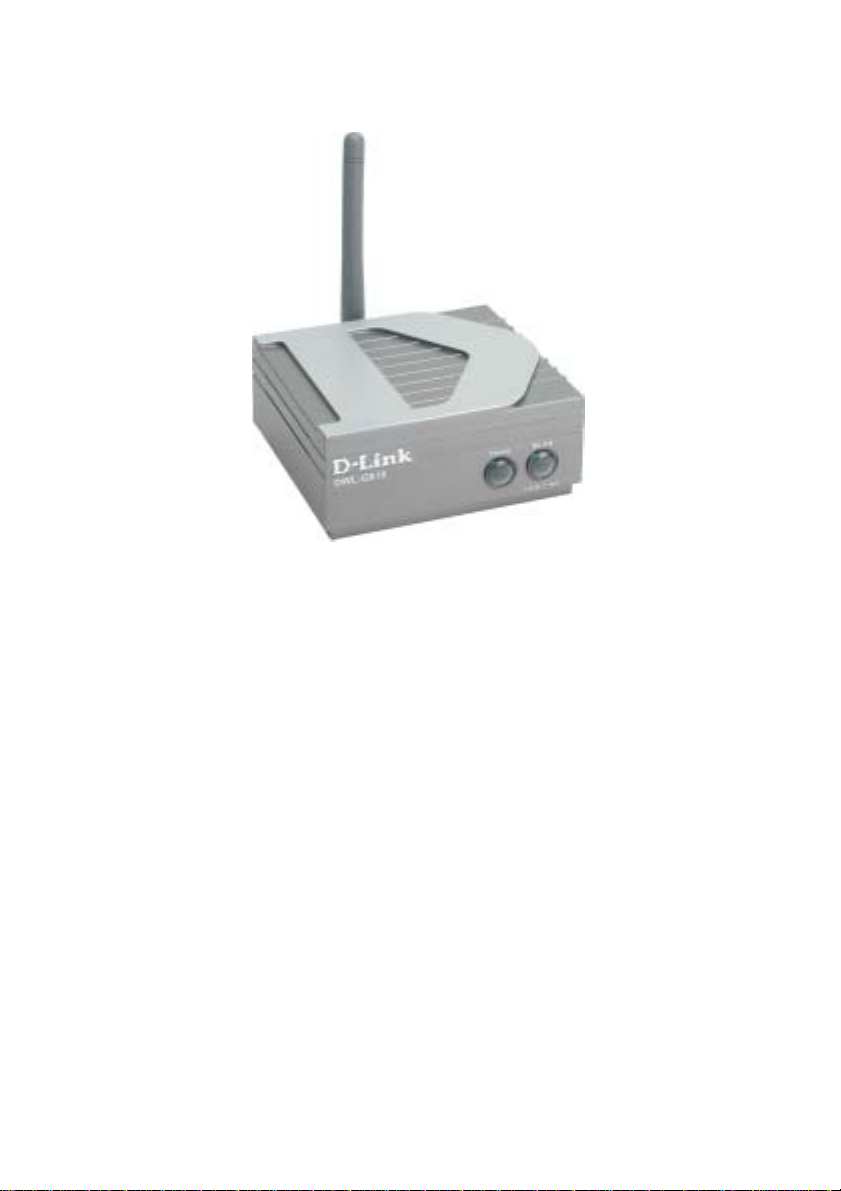

The D-Link AirPlus XtremeG DWL-G810 Ethernet-to-Wireless Bridge is a
device that can be implemented in a variety of ways to provide wireless
access by converting an Ethernet connection. For devices with a built-in
Ethernet port, the DWL-G810 provides a cost effective way to gain wireless
connectivity, virtually transforming wired devices into wireless units! Connect
any Ethernet-enabled device to 802.11g wireless network and legacy
802.11g wireless network using the DWL-G810.

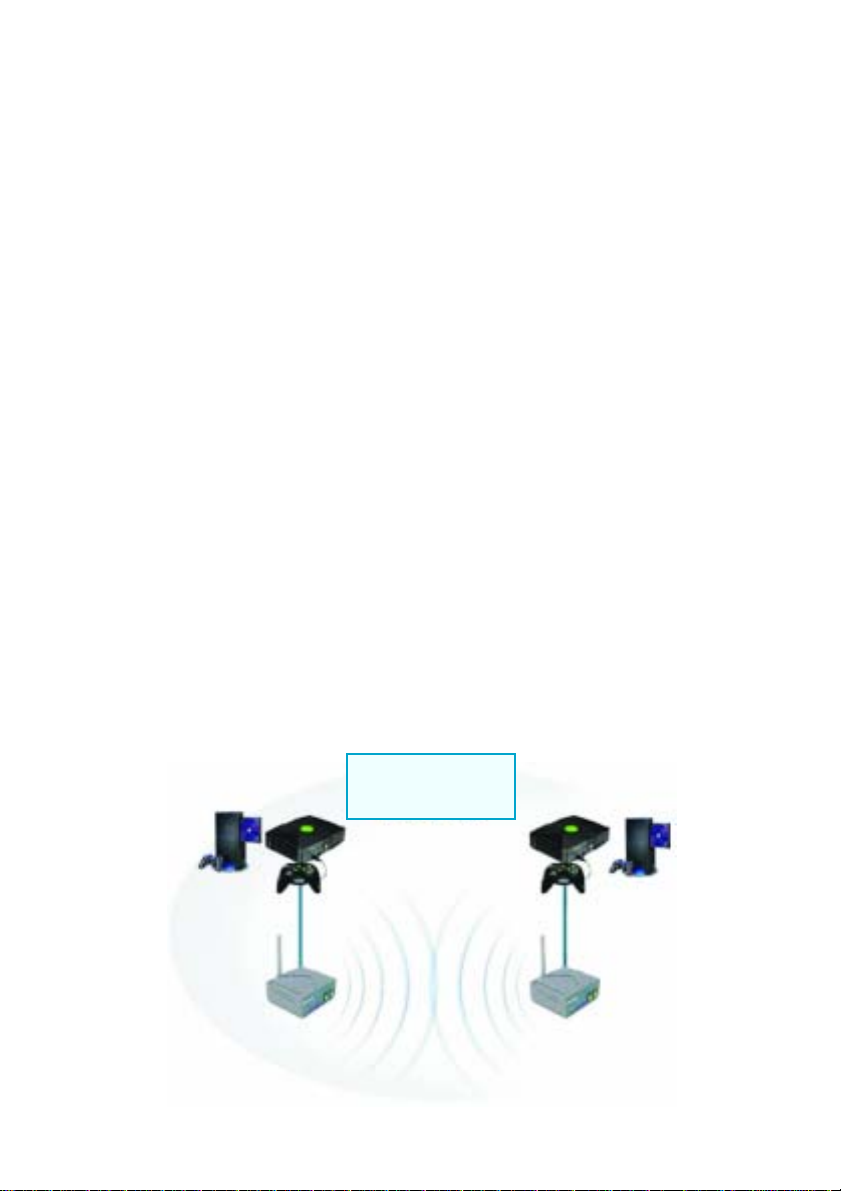

Typical applications include connecting a printer to a wireless network and
connecting Ethernet-enabled devices such as game consoles or set top
boxes to a Wireless Local Area Network (WLAN). Simply connect the DWL-
G810 to the Ethernet (RJ-45) port of a network device, such as a network
storage device, Internet camera, network printer, network scanner, or other
similar device. Using the DWL-G810 allows the flexibility of placing network
devices in remote locations while maintaining a high-speed connection.
You can use the convenient Setup Wizard for the easy installation of your
DWL-G810. Whether you are using it in Ad-Hoc mode or Infrastructure mode,
you can begin with the Setup Wizard. Please refer to the Quick Installation
Guide that is included with your purchase for instructions on how to use the
Setup Wizard.
This manual provides a quick introduction to wireless technology and its
application as it relates to networking. Please take a moment to read through
this manual if you need to get acquainted with wireless technology.
5
Features and Benefits
•Transforms an Ethernet device into a wireless device
•Up to 54Mbps transfer rates*
•Fully compatible with standard 802.11g/b-compliant devices
•Equipped with one 10/100 Ethernet port, Auto-MDI/MDIX
•Quick and Simple connectivity via Ethernet
•Supports Ad Hoc or Infrastructure modes
•Easy web-based configuration when changing settings
•Encryption to provide a level of security for data transfers

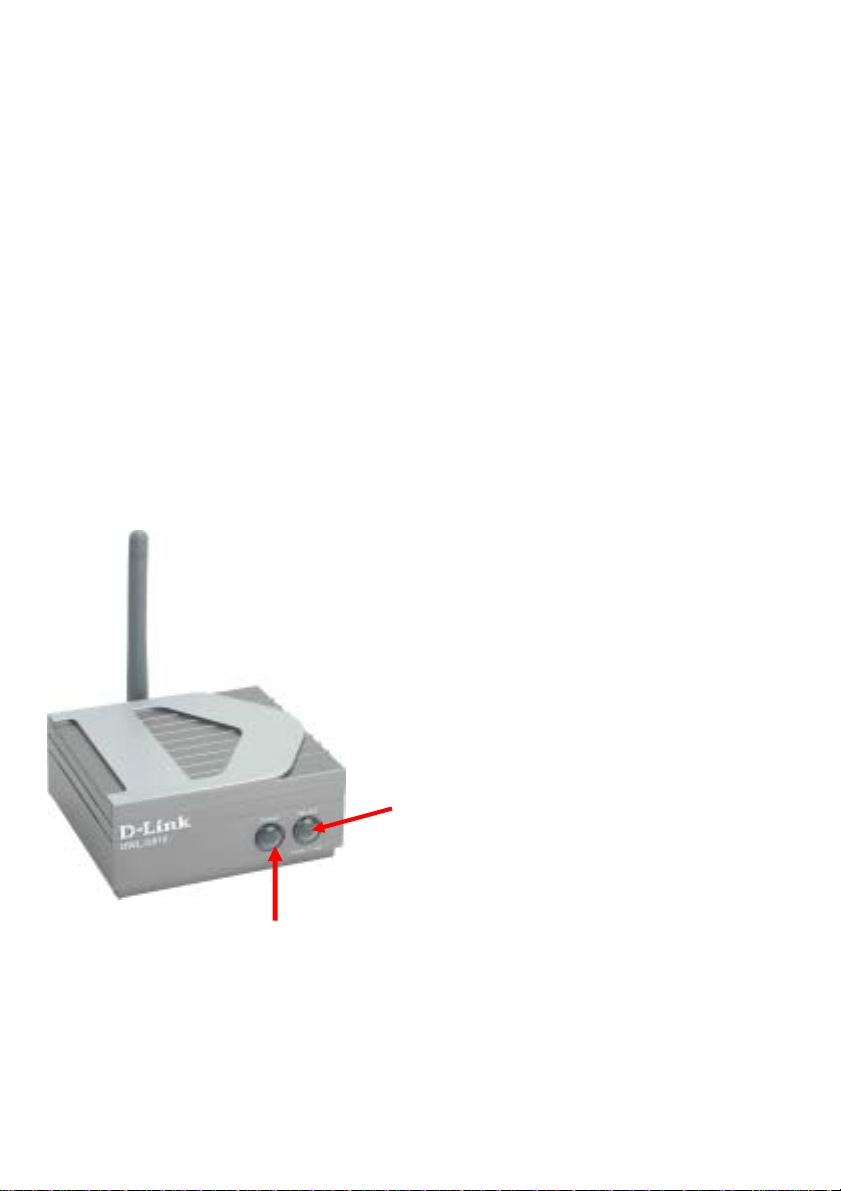

LEDs
LED stands for Light-Emitting Diode. The DWL-G810 has two LEDs:
Power – a steady Green light indicates a
proper connection to a power source.
Wireless Link/Act – A blinking light
indicates that the DWL-G810 is
receiving/transmitting from/to the wireless
network.
6

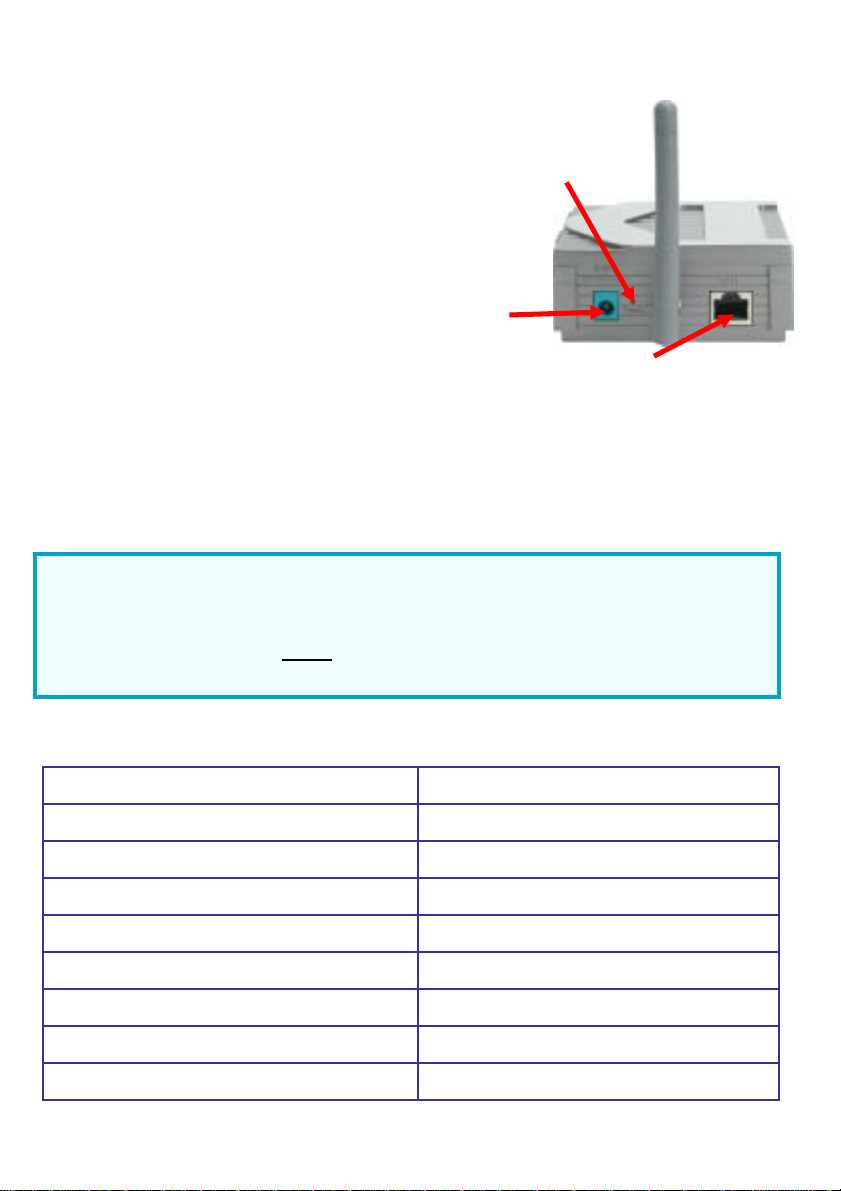

Connections
Reset Button – press this button to revert to the factory default settings of
the DWL-G810
Power Receptor – connect one end of the 5V DC Power Adapter (included)
to the power receptor on the DWL-G810 and connect the other end of the
Power Adapter to a power outlet.
Default Settings
Operating Mode Infrastructure
SSID default
Channel 6
Transmission rates Auto
Encryption Disabled
IP Address 192.168.0.30
IP Subnet 255.255.255.0
User Name admin (all lower case)
Password None (leave field blank)
Ethernet Port
Reset Button
Power Receptor
Category 5 is the most reliable grade of twisted-pair cable. It is available as
either Straight-Through cable or Cross-Over cable. Always check your
installation instructions to make sure that you have selected the correct type of
Category 5 cable for your other networking devices. The DWL-G810 will accept
either kind of cable and will automatically sense the cable that you are using.
Ethernet Port
–
this RJ-45 Auto
MDI/MDIX port provides
connection to a network device
using a Cat 5 Ethernet cable.
(The auto MDI/MDIX port
accommodates either Straight-
Through or Cross-Over cable and
is auto-sensing.)
7
3. Wireless Basics
With the DWL-G810 you can provide instant wireless access to the LAN
(Local Area Network) for Ethernet-enabled devices. With an Ethernet (CAT5)
cable simply connect the DWL-G810 to the Ethernet port of a network device
(such as a printer or web camera) to establish a wireless connection with
another device equipped with a wireless network adapter set to Ad-Hoc
mode.
If you are planning a larger wireless network, D-Link offers a wide array of
products for most of your wireless local area network (WLAN) needs. In this
section, we discuss typical WLANs and their components. Much of the
advice given here may be helpful in setting up the DWL-G810. It may also
give you some ideas, if you plan to expand your wireless network.
D-Link wireless products are based on industry standards to provide easy-to-
use and compatible high-speed wireless connectivity within your home,
business or wherever a wireless network is available. D-Link wireless
products will allow you access to the data you want, when and where you
want it. No longer will you be limited to one location or forced to run new
wiring through your home or office. You will be able to enjoy the freedom that
wireless networking brings.
A WLAN is a cellular computer network that transmits and receives data with
radio signals instead of wires. WLANs are used increasingly in both home
and office environments, and public areas such as airports, coffee shops and
universities. Innovative ways to utilize WLAN technology are helping people
to work and communicate more efficiently. Increased mobility with the
absence of cabling and other fixed infrastructure has proven to be beneficial
for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop and desktop systems, support the
same protocols as Ethernet adapter cards. For most users, there is no
noticeable functional difference between a wired Ethernet computer and a
wireless computer equipped with a wireless adapter other than the added
benefit of the ability to roam within a wireless-cell. Under many
circumstances, it may be desirable for mobile network devices to link to a
conventional Ethernet LAN in order to use servers, printers or an Internet
connection supplied through the wired LAN. A Wireless Access Point (AP) is
one device used to provide this link.
8
Wireless Basics
People use WLAN technology for many different purposes.
Mobility - Productivity increases when people have access to data in any
location within the operating range of the WLAN. Management decisions
based on real-time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change
and relocate. Networks that frequently change, both physically and logically,
can benefit from WLANs ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be
fast and easy and can eliminate the need to install cable through walls and
ceilings. Wireless technology allows the network to go where wires cannot
go - even outside the home or office.
Inexpensive Solution – Wireless network devices are as competitively
priced as conventional Ethernet network devices.
Scalability - WLANs can be configured in a variety of ways to meet the
needs of specific applications and installations. Configurations are easily
changed and range from peer-to-peer networks suitable for a small number
of users to full infrastructure networks of thousands of users that allow
roaming over a broad area.
The DWL-G810 is compatible with the D-Link Wireless family of products,
and other 802.11g/b products, including:
DWL-624 High-Speed 802.11g Wireless Router
DWL-624+ Enhanced 802.11g Wireless Router
DWL-2000AP High-Speed 802.11g Access Point
DWL-2000AP+ Enhanced 802.11g Access Point
9
Wireless Basics
The DWL-G810 is also compatible with the following D-Link AirPlus family of
products:
DWL-650+ Enhanced 2.4GHz Wireless Cardbus Adapter for laptop
PCs
DWL-520+ Enhanced 2.4GHz Wireless PCI card for desktop PCs
DWL-900AP+ Wireless Access Point
DI-614+ Wireless Router
Standards - Based Technology
The IEEE standard-based technology assures that this product is
interoperable with existing compatible wireless technology. This means you
will be able to transfer large files quickly or even watch a movie in MPEG
format over your network without noticeable delays. The technology works
by using multiple frequencies in the 2.4GHz range. This D-Link AirPlus
XtremeG product will automatically sense the best possible connection
speed to ensure the greatest speed and range possible with the technology.
Installation Considerations
Designed to go up to 984 feet (300 meters) outdoors and up to 328 feet (100
meters) indoors, the D-Link AirPlus XtremeG DWL-G810 lets you access
your network devices wirelessly from virtually anywhere within its operating
range. Keep in mind, however, that the number, thickness and location of
walls, ceilings or other objects that the wireless signal must pass thru may
limit range. Typical ranges vary depending on the types of materials and any
background RF (radio frequency) noise in your home or business. The key to
maximizing range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the DWL-G810 and your
receiving device (e.g., the DWL-2000AP+) to a minimum - Each wall or
ceiling can reduce your D-Link AirPlus XtremeG Wireless product’s
range from 3-90 feet (1-30 meters.) Position your DWL-G810, Access
Points, Residential Gateways, and computers so that the number of
walls or ceilings is minimized.
2. Be aware of the direct line between the DWL-G810 and the device with
which it communicates, as well as between Access Points, Residential
Gateways (routers), and computers. A wall that is 1.5 feet thick (.5
10
Wireless Basics
meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.
At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
Access Points and Adapters so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials can impede the wireless signal - A solid metal door or
aluminum studs may have a negative effect on range. Try to position the
DWL-G810, the Access Points, and computers with wireless adapters so
that the signal passes through drywall or open doorways and not other
materials.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that may generate extreme RF noise.
Using radio frequency (RF) technology, the DWL-G810 transmits and
receives data over the air, eliminating the need for a wired connection.
4. Getting Started
Setup #1:
This example illustrates an Ad-Hoc setup. Simply connect the DWL-G810
(refer to the Quick Installation Guide) to your Ethernet-capable network
device (in this case, a gaming console) and you will be able to connect
wirelessly with other gaming consoles also connected to DWL-G810’s.
Setup #1
Otros manuales para AirPlus XtremeG Ethernet-to-Wireless Bridge...
6
Tabla de contenidos
Otros manuales de Hardware de red de D-Link
D-Link
D-Link DIR-615 - Wireless N Router Manual de usuario
D-Link
D-Link ShareCenter DNS-343 Manual de usuario
D-Link
D-Link COVR-3902 Manual de usuario
D-Link
D-Link MYDLINK DNR-322L Manual de usuario
D-Link
D-Link ShareCenter Shadow DNS-325 Manual de usuario
D-Link
D-Link DWC-2000 Manual de usuario
D-Link
D-Link PowerLine DHP-W611AV Manual de usuario
D-Link
D-Link DSN-6000 Series Manual de usuario
D-Link
D-Link DHN-1000 Manual de usuario
D-Link
D-Link ShareCenter DNS-327L Manual de usuario
D-Link
D-Link SHARECENTER PRO 1100 Manual de usuario
D-Link
D-Link ShareCenter Pro DNS-1550-04 Manual de usuario
D-Link
D-Link DWL-922 - AirPlus G Wireless Network Starter Manual de usuario
D-Link
D-Link DNR-F4432-16P Manual de usuario
D-Link
D-Link ShareCenter DNS-315 Manual de usuario
D-Link
D-Link ShareCenter Shadow DNS-325 Manual de usuario
D-Link
D-Link GO-PLK-200 Manual de usuario
D-Link
D-Link COVR-P2502 Manual de usuario
D-Link
D-Link ShareCenter Quattro DNS-345 Manual de usuario
D-Link
D-Link DLB-1200 Manual de usuario
Manuales populares de Hardware de red de otras marcas
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manual de usuario
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manual de usuario
Yudor
Yudor YDS-16 Manual de usuario
Samsung
Samsung ES1642dc Instrucciones de uso
Honeywell Home
Honeywell Home LTEM-PV Instrucciones de montaje
evertz
evertz 7700 Series Manual de usuario
