D-Link SHARECENTER PRO 1100 Manual de usuario
This document will guide you through the basic installation
process for your new D-Link ShareCenter Pro 1100.
DNS-1100-04
Quick Installation Guide
D-Link ShareCenter Pro 1100
Quick Installation Guide
Installationsanleitung
Guide d’installation
Guía de instalación
Guida di Installazione
Documentation also available on
CD and via the D-Link Website
D-Link DNS-1100-04 Quick Installation Guide 1
DNS-1100-04 Quick Installation Guide
This installation guide provides basic instructions for installing the DNS-1100-04 on your
network. For additional information about how to use the ShareCenter Pro, please see
the User’s Manual which is available on the CD included in this package or from the
D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
D-Link ShareCenter Pro 1100
CD-ROM with Manual and Software
Quick Installation Guide
Power Cord
Cat5E Ethernet Cable
Front Panel Lock Key
Note: Using a power supply with a different voltage than the one included with the ShareCenter Pro
will cause damage and void the warranty for this product.
Note: The ShareCenter Pro 1100 should only be maintained by the authorized server manager or IT
administrator. The ShareCenter Pro 1100 should be locked using the Front Panel Key. Only
certied staff who have the Key are allowed to unlock it.
If any of the above items are missing, please contact your reseller.
D-Link DNS-1100-04 Quick Installation Guide
2
2. Hardware Overview
Next Button
Use this button to display
the System Information,
HD Volume Information,
and Error Messages on
the OLED.
Press the button once
to alternate between the
different Status screens.
OLED Screen
This screen displays detailed
information about the following:
System Information, HD Volume
Information and Error Messages
Rear Panel
Front Panel
Front Panel Lock
Turn key to up
position to unlock.
Turn key to left
position to lock.
Drive Trays
Use the screws to fasten
the SATA hard drives with
the trays and insert to the
ShareCenter.
Cooling Fan
The cooling fan is used to cool the
hard drives and feature speed control.
USB Connector
Two USB 2.0 (Type A) connectors.
The USB Host ports are for Printers,
USB memory disks or USB UPS
monitoring.
Reset Button
Press this button for more than 5 seconds to reset
the unit to factory defaults.
Power Receptacle
Connect the supplied power
cord to the receptacle.
Gigabit Ethernet Port
Use the Gigabit Ethernet Port to
connect the ShareCenter Pro to the
local network.
LED Indicators
This screen displays information
about the following: Hard Drive
Status (Green=operational),
LAN 1 & 2 Status (Blue=operational)
Power Button
Use this button to switch the device on or off.
To switch on the device press the button once.
To switch off the device hold the button down
for 5 seconds.
dlink-022100
IP1:169.254.90.223
D-Link DNS-1100-04 Quick Installation Guide 3
Using the OLED
The ShareCenter Pro 1100 features an OLED that enables the administrator to easily view
information about the ShareCenter Pro. The OLED screen displays the system information,
hard drive volume information and error messages. The OLED has three different screens:
System Information- This screen shows the following information:
The hostname of the ShareCenter Pro
The IP address of the ShareCenter Pro
The hard drive slots information
Hard Drive Volume information- This screen shows the following information:
The percentage of space used on the hard drives.
Error Messages- This screen shows error messages when there is any system failure.
Press the button once to alternate between the different Status screens.
D-Link DNS-1100-04 Quick Installation Guide
4

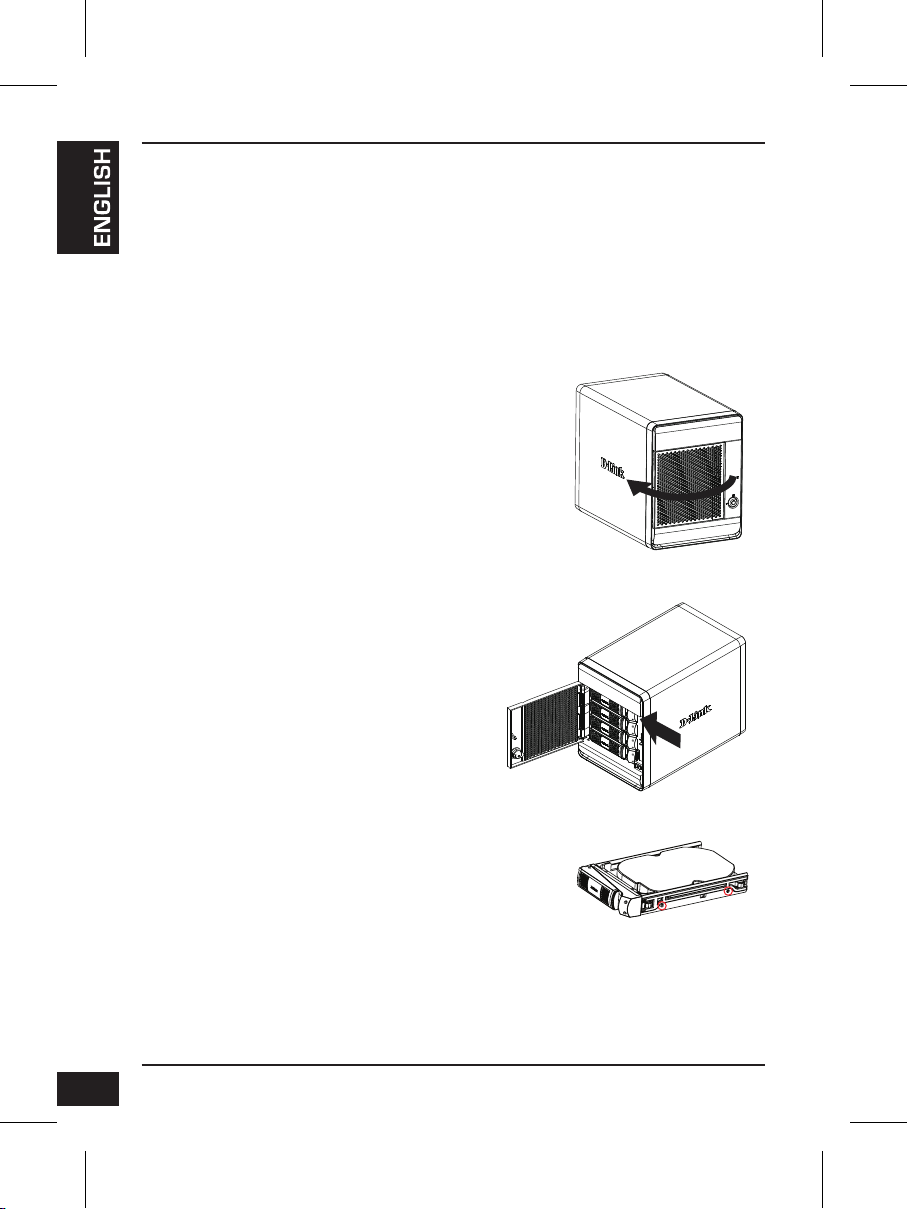

3. Hardware Installation
Follow the instructions below to install a hard drive, connect to the network and power on
the ShareCenter. Open the shipping carton for the ShareCenter Pro and carefully remove
and unwrap its contents. Follow the instructions below to setup the ShareCenter Pro. If
this is the rst time using the ShareCenter Pro or if a new hard disk is installed, use the
Easy Search utility located on the Installation CD and follow the instructions for setting up,
conguring and formatting the new drive.
To install ShareCenter Pro on your local network, refer to the steps below:
2. Remove the HDD tray by pressing the green button.
1. Open the faceplate to access the drive bays.
3. Put a 3.5” SATA hard drive into a drive tray and use
screws to fasten the hard drive with the tray. There
are four holes for fastening the screws. Two holes are
circled in red in the image, and the other two holes are
on the other side of the drive tray.
D-Link DNS-1100-04 Quick Installation Guide 5

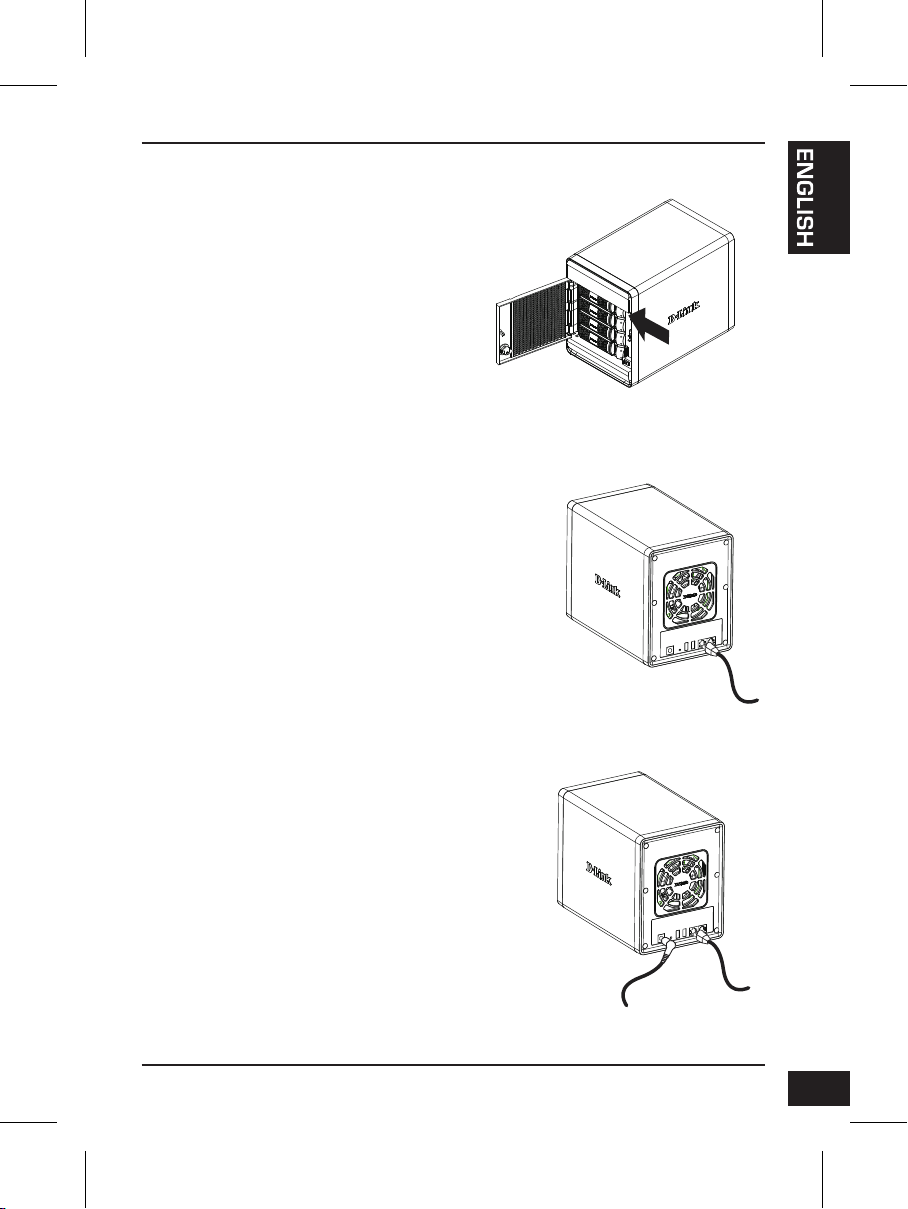

4. Reinsert the HDD tray into the ShareCenter Pro and
depress the green button to lock it into place.
5. Connect an Ethernet cable to the available Ethernet
port. This cable should connect the ShareCenter Pro
to your local network via a router or switch, or directly
to a computer for conguration.
6. Connect the supplied power adapter to the power
receptacle.
D-Link DNS-1100-04 Quick Installation Guide
6
4. Conguration with Wizard
When rst powered on, during the initial boot sequence, the ShareCenter Pro will wait
to be assigned an IP address via DHCP. If it does not receive a DHCP assigned IP
address, by default it will have an auto-assigned IP address of 169.254.x.x (where
"x" is dynamic). It is recommended to use the included D-Link EZ Search Utility when
accessing and conguring the ShareCenter Pro for the rst time. If you want to change
the IP address before logging in or are unable to connect to the ShareCenter Pro IP
address, you can use the EZ Search Utility provided on the product CD to locate the
device on your network and make any needed changes.
EZ Search Utility
Network Storage
Device
Refresh
Conguration
LAN
Apply
iSCSI Drive
Mapping
Connect
Management
Drive Mapping
Available Drive
Letters
About
Exit
The EZ Search Utility displays any ShareCenter Pro devices it detects on the
network here.
Click Refresh to refresh the device list.
Click Conguration to access the Web based conguration of the
ShareCenter Pro.
Congure the LAN Settings for the ShareCenter Pro here.
Click Apply to save changes to the LAN Settings.
Displays the available iSCSI targets on ShareCenter Pro.
Click Connect to connect to the iSCSI target.
Click Management to edit the information.
Volumes available for mapping are
displayed here.
Choose an available drive letter.
Click Connect to map the selected volume.
Click Disconnect to disconnect the
selected mapped volume.
Click About to view the software version of
the EZ Search Utility.
Click Exit to close the utility.
D-Link DNS-1100-04 Quick Installation Guide 7
To run the EZ Search Utility, insert the ShareCenter Pro CD into your CD-ROM drive:
Getting Started
Click EZ Search Utility.
Select the listed ShareCenter Pro and click the
Conguration button. This will launch the computer’s
default web browser and direct it to the IP address
listed for the device. Make sure the browser is not
congured to use a proxy server.
Note: The computer used to access the ShareCenter Pro
web-based conguration manager must be on the same
subnet as the ShareCenter Pro. If your network is using a
DHCP server and the computer receives IP settings from
DHCP server, the ShareCenter Pro will automatically be in
the same subnet.
The Login screen will appear:
Select System Administrator and leave the
password eld blank.
Click Login.
Note: The computer used to access the ShareCenter Pro web-based conguration, manager must
be on the same subnet as the ShareCenter Pro. If your network is using a DHCP server and the
computer receives IP settings from a DHCP server, the ShareCenter Pro will automatically be in the
same subnet.
D-Link DNS-1100-04 Quick Installation Guide
8
Click Next to continue.
System Wizard
The Setup Wizard is the easiest and fastest way to setup your ShareCenter Pro 1100. Once
you have entered your IP address into the browser, follow these few steps to get started:
Step 1: Close the Create Volume window.
Close the Create
Volume Window
Step 2: Click the System Wizard icon in the
Homepage ( ) window to start the Setup
Wizard. When running the ShareCenter Pro
System Wizard, the welcome screen details
the ve steps of the wizard.
