D-Link DVG-2032S Manual de usuario

Before You Begin

You must have the following:

‧ A subscription with the service provider

‧ A Computer with a CD-ROM drive and an Ethernet port running Windows

‧ Ethernet-based broadband modem

Check Your Package Contents

If any of the items below are missing, please contact your reseller.

These are the items included with your DVG-2032S purchase:

DVG-2032S FXS VoIP Gateway

FXS VoIP Gatewa

2 Phone Cables with 1 RJ-21 and 16 RJ-11 connectors

CAT5 Ethernet Cable

AC Power Cord

their respective holders. Software and specifications subject to change without notice.

DVG-2032S

CD-ROM

2 Rack-Mount Brackets

Mounting KIt

Warranty Card

Hardware Overview

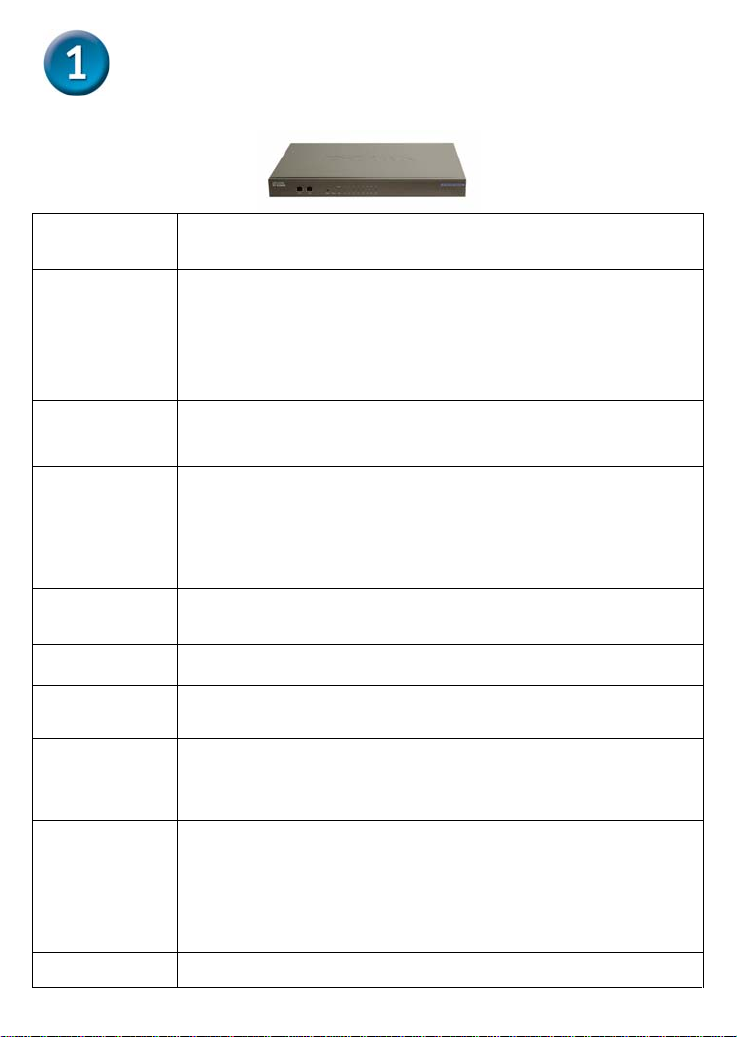

Front Panel

Connects to your broadband modem using an Ethernet

cable.

WAN Port

WAN LED When a connection is established, the 10 or 100 LED will

light up. The LED will blink to indicate activity. If the 10 or

100 LED does not light up when a cable is connected,

verify the cable connections and make sure your devices

are powered on.

LAN Port

Connect to an Ethernet enabled computer using

Ethernet cabling.

LAN LED

When a connection is established, the 10 or 100 LED

will light up. The LED will blink to indicate activity. If the

10 or 100 LED does not light up when a cable is

connected, verify the cable connections and make sure

your devices are powered on.

Reset

This button is used to reset the unit to its factory default

settings.

Power LED Indicates the unit is powered on.

Run LED

The Run LED will flash during the self-test/boot process

and light green if the self-test or boot fails.

The Alarm LED will light red if the self-test or boot fails.

The Alarm will flash red while the system is registering or

if registration fails.

Alarm LED

Phone LEDs

(1-32)

These LEDs display the VoIP status and Hook activity

on the phone ports that are used to connect normal

telephones. If a phone connected to a phone port is off

hook or in use, this LED will light up. When a phone is

ringing, the indicator will blink.

VoIP LED

The VoIP LED is on if the gateway is successfully registered at IP-PBX.

Rear Panel

FXS Ports

with Two

RJ-21

Connector

Connect up to thirty two phones using included

phone cables.

Power

Switch Used to turn the unit on and off.

AC Input

The power cord connects here.

Connecting the Gateway directly

to a Modem and Computer

If your computer connects directly to a DSL or Cable modem and does

not connect to a router, follow the steps below to install your gateway.

For any other configuration, please refer to the user manual located on

the CD-ROM. After the steps are completed, your setup should look

similar to the diagram below.

a. Turn off your Computer.

b. Disconnect the power to your Cable/DSL Modem (unplug it or turn off

the power switch).

c. Unplug the Ethernet cable that is connected to your Cable/DSL

Modem’s LAN or Ethernet port. Leave

the other end of this cable connected to

your PC.

d. Plug the Ethernet cable connector that

you just removed from the modem into

the LAN port on the front of the gateway.

The other end remains

connected to the PC.

Connecting the Gateway directly to

a Modem and Computer (continued)

e. Connect one end of the Ethernet Cable provided in this package to

the LAN or Ethernet Port on the Cable/DSL Modem.

f. Connect the other end of the provided

Ethernet Cable to the WAN Port of the

gateway.

g. Connect one end of one of the provided phone cables to

a standard analog telephone.

h. Connect the other end of the cable to

the RJ-21 port on the rear panel of

the gateway.

i. Restore power to the Cable/DSL Modem (plug it in or turn on the

power switch).

j. Connect the power cord to the AC Input

and the electrical outlet. Turn the switch ON.

 If your ISP registers your computer’s MAC address, see the section labeled MAC

Cloning for Connections in the user manual on the CD-ROM.

 PPPoE Users, please continue to the next page for additional configuration steps.

Hardware configuration is complete! If your VoIP service is already activated, you

can make phone calls now.

k. Restart your PC.

Configuration

Click Next.

Open your Web browser and type

http://192.168.8.254 into the URL

address box. Press the Enter or

Return Key.

Click Lo

in to enter Web Site.

Click Setu

Wizard.

To access the web-based configuration utility, open a web-browser and

enter the IP address of the DVG-2032S.

Configuration (continued)

It is highly recommended to create

a login ID and password to keep

your gateway secure.

Enter a NTP server or use the

default server. Click Next.

Click Next.

Configuration (continued)

Select your Internet connection

type:

DHCP – Most Cable ISPs or if

you are connecting the DVG-

2032S behind a router.

Static IP – Select if your ISP

supplied you with your IP

settings.

PPPoE – Most DSL ISPs.

PPTP – Select if required by

your ISP.

Select Manual to manually enter

IP address of DNS or select

Auto if DNS is assigned by ISP.

Click Next.

Configuration (continued)

by clicking Enable support of

SIP Proxy Server. Enter Proxy

Server IP/Domain and Port.

The Outbound Proxy Support

is optional. To register, please

click on the Outbound Proxy

Support check box and enter

Outbound Proxy IP/Domain

and Port in it.

Registration by phone line: enter

Number, User ID/Account and

Password supplied by your

ITSP. Click on the Register

check box to register to Proxy

Server.

Click Next.

Configuration (continued)

Setup is finished. Check the

summary of your settings. To make

new settings effective, you must

click on the Restart button to reboot

the DVG-2032S.

Click Restart.
